Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita AN935H'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

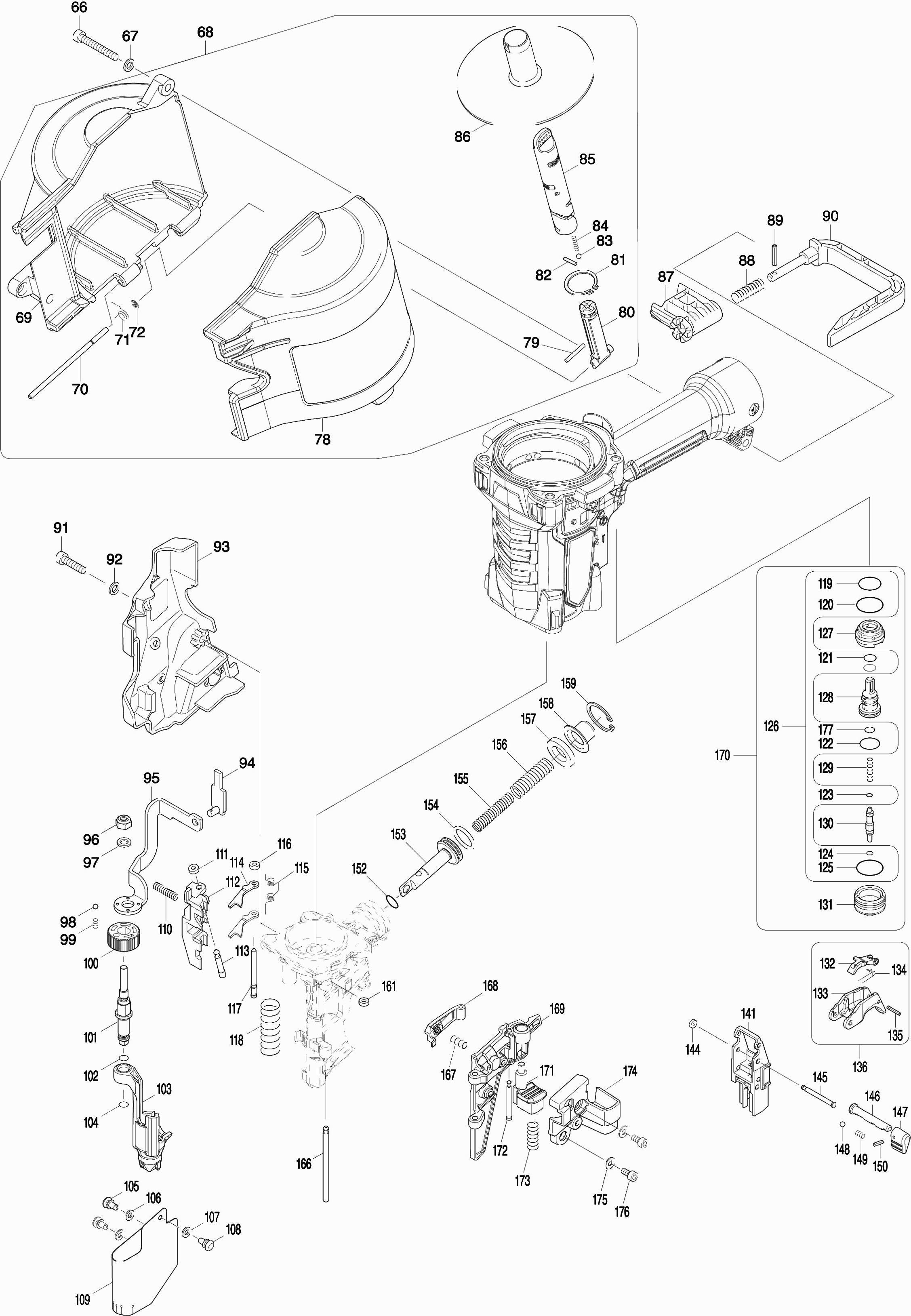

Tekeningen van de Makita AN935H
Onderdelen lijst van de Makita AN935H
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Inbusbout M6x30mm | ||||
| 001 | 266913-7 | 1.24 | 1.50 | |
| Bovendeksel | ||||
| 002 | 319360-2 | 43.10 | 52.15 | |
| Stootkussen achter | ||||
| 003 | 424649-6 | 2.80 | 3.39 | |
| Klepgeleider An935H | ||||
| 004 | 332118-2 | 2.80 | 3.39 | |
| Klepstoel | ||||
| 005 | 424648-8 | 7.43 | 8.99 | |
| Hoofdklep geleider | ||||
| 006 | 455320-1 | 46.85 | 56.69 | |
| Revisieset An935H | ||||
| 007 | 197788-2 | 8.46 | 10.24 | |
| O-ring 48 | ||||
| 008 | 213791-6 | 1.01 | 1.22 | |
| O-ring 45 | ||||
| 009 | 213792-4 | 0.83 | 1.00 | |
| O-ring 58 | ||||
| 010 | 213790-8 | 1.01 | 1.22 | |
| O-ring 58 | ||||
| 011 | 213790-8 | 1.01 | 1.22 | |
| Hoofdklep | ||||
| 012 | 332120-5 | 31.61 | 38.25 | |
| Slagpen set | ||||
| 013 | 135719-3 | 115.42 | 139.66 | |
| O-ring 28 | ||||
| 014 | 213588-3 | 4.08 | 4.94 | |
| Drukveer 52 | ||||
| 015 | 234341-4 | 2.80 | 3.39 | |
| Verdeler | ||||
| 016 | 332117-4 | 23.74 | 28.73 | |
| O-ring 56 | ||||
| 017 | 213658-8 | 0.83 | 1.00 | |
| O-ring 45 | ||||
| 018 | 213086-7 | 2.05 | 2.48 | |
| O-ring 36 | ||||
| 019 | 213510-0 | 1.21 | 1.46 | |
| Cilinder An935H A | ||||
| 020 | 327091-9 | 28.68 | 34.70 | |
| O-ring 40 | ||||
| 021 | 213509-5 | 0.83 | 1.00 | |
| O-ring 75 | ||||
| 022 | 213755-0 | 2.80 | 3.39 | |
| Pakking, bovendeksel- | ||||
| 023 | 162368-3 | 4.57 | 5.53 | |
| Naamplaat | ||||
| 024 | 852K50-5 | 2.80 | 3.39 | |
| Huis | ||||
| 025 | 183E68-2 | 158.64 | 191.95 | |
| Makita logo label R | ||||
| 026 | 809M90-6 | 5.88 | 7.11 | |
| Makita logo label L | ||||
| 027 | 809M89-1 | 5.88 | 7.11 | |
| Spanstift | ||||
| 028 | 951078-5 | 0.83 | 1.00 | |
| Spanstift | ||||
| 029 | 951078-5 | 0.83 | 1.00 | |
| Spanstift 3-24 | ||||
| 030 | 951072-7 | 0.83 | 1.00 | |
| Inbusschroef M5 x 10 mm | ||||
| 031 | 266912-9 | 1.70 | 2.06 | |
| Uitlaatkap | ||||
| 032 | 455322-7 | 2.45 | 2.96 | |
| Filter | ||||
| 033 | 455319-6 | 2.05 | 2.48 | |
| Filter | ||||
| 034 | 455319-6 | 2.05 | 2.48 | |
| Uitlaatkap | ||||
| 035 | 455321-9 | 2.45 | 2.96 | |
| Inbusschroef M5 x 10 mm | ||||
| 036 | 266912-9 | 1.70 | 2.06 | |
| Stootkussen voor | ||||
| 037 | 424387-0 | 12.58 | 15.22 | |
| O-ring 45 Hm1214C | ||||
| 038 | 213569-7 | 0.83 | 1.00 | |
| O-Ring 6 An250/Bo3711 | ||||
| 039 | 213045-1 | 0.83 | 1.00 | |
| Slagpengeleider | ||||
| 040 | 143408-6 | 334.47 | 404.71 | |
| Inbusschroef M8 x 30 mm | ||||
| 041 | 266914-5 | 4.09 | 4.95 | |
| Inlaat | ||||
| 042 | 196452-2 | 84.94 | 102.78 | |
| Borgring | ||||
| 043 | 962165-5 | 1.21 | 1.46 | |
| Inlaat houder | ||||
| 044 | 318983-3 | 7.44 | 9.00 | |
| O-ring 33 | ||||
| 045 | 213462-5 | 0.83 | 1.00 | |
| O-ring 40 | ||||
| 046 | 213509-5 | 0.83 | 1.00 | |
| Inlaatflens | ||||
| 047 | 331929-2 | 9.54 | 11.54 | |
| D-ring 14 | ||||
| 048 | 424455-9 | 0.83 | 1.00 | |
| O-ring 14 | ||||
| 049 | 213154-6 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 050 | 213034-6 | 0.83 | 1.00 | |
| O-ring 5mm | ||||
| 051 | 213005-3 | 0.83 | 1.00 | |
| Ontlastklep | ||||
| 052 | 452107-2 | 1.72 | 2.08 | |
| Inbusbout 4x16 | ||||
| 053 | 922127-5 | 0.83 | 1.00 | |
| Revisieset | ||||
| 054 | 197789-0 | 6.58 | 7.96 | |
| O-ring 3 | ||||
| 055 | 213034-6 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 056 | 213979-8 | 1.51 | 1.83 | |
| O-ring 5,5 | ||||
| 057 | 213545-1 | 0.83 | 1.00 | |
| O-ring 8 | ||||
| 058 | 213030-4 | 0.83 | 1.00 | |
| Klepsteller | ||||
| 059 | 325930-7 | 5.22 | 6.32 | |
| Klepgeleider | ||||
| 060 | 326042-9 | 7.44 | 9.00 | |
| Drukveer 5 | ||||
| 061 | 234003-4 | 1.72 | 2.08 | |
| Schakeldrukknop | ||||
| 062 | 452473-7 | 3.65 | 4.42 | |
| Spanstift 2-8 | ||||
| 063 | 951001-0 | 0.83 | 1.00 | |
| Kap | ||||
| 064 | 286280-4 | 1.27 | 1.54 | |
| NULL | ||||
| 065 | 243105-5 | 16.07 | 19.44 | |
| Inbusbout 5x35 | ||||
| 066 | 922257-2 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 067 | 941102-2 | 0.83 | 1.00 | |
| Magazijn compleet | ||||
| 068 | 135820-4 | 53.38 | 64.59 | |
| Magazijn | ||||
| 069 | 453086-7 | 11.19 | 13.54 | |
| Pen 4 | ||||
| 070 | 256773-5 | 2.44 | 2.95 | |
| Torsieveer 7 | ||||
| 071 | 233505-7 | 3.22 | 3.90 | |
| Stopring E-3 | ||||
| 072 | 259042-3 | 0.83 | 1.00 | |
| Deksel tbv magazijn compleet | ||||
| 078 | 143916-7 | 28.73 | 34.76 | |
| Magazijn label | ||||
| 078A | 809M88-3 | 8.46 | 10.24 | |
| Pen 3 | ||||
| 079 | 268168-0 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 080 | 454691-3 | |||
| Borgring S-25 | ||||
| 081 | 961105-0 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 082 | 268272-5 | |||
| Stalen kogel 4 | ||||
| 083 | 216008-6 | 0.83 | 1.00 | |
| Drukveer 2 | ||||
| 084 | 233492-0 | 0.83 | 1.00 | |
| Verstelhuls | ||||
| 085 | 419859-8 | 2.08 | 2.52 | |
| Wisselplaat | ||||
| 086 | 419860-3 | 4.58 | 5.54 | |
| Houder tbv draaghaak | ||||
| 087 | 455324-3 | 2.80 | 3.39 | |
| Drukveer 7 | ||||
| 088 | 233343-7 | 0.83 | 1.00 | |
| Spanstift 3-16 | ||||
| 089 | 951063-8 | 0.83 | 1.00 | |
| Haak | ||||
| 090 | 168583-7 | 17.92 | 21.68 | |
| Inbusbout 5x20 | ||||
| 091 | 266369-4 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 092 | 941102-2 | 0.83 | 1.00 | |
| Deksel | ||||
| 093 | 456258-3 | 4.08 | 4.94 | |
| Kontaktplaatje | ||||
| 094 | 310504-7 | 11.16 | 13.50 | |
| Contactarm | ||||
| 095 | 346386-1 | 4.58 | 5.54 | |
| Moer M6-10 | ||||
| 096 | 264027-6 | 0.83 | 1.00 | |
| Sluitring 6Mm A | ||||
| 097 | 267214-6 | 0.83 | 1.00 | |
| Stalen bal 3.5 | ||||
| 098 | 216040-0 | 0.83 | 1.00 | |
| Drukveer 3 An935 A | ||||
| 099 | 232417-1 | 0.83 | 1.00 | |
| Afsteller | ||||
| 100 | 451949-1 | 4.58 | 5.54 | |
| As, afsteller- | ||||
| 101 | 326751-0 | 9.54 | 11.54 | |
| O-ring 5mm | ||||
| 102 | 213005-3 | 0.83 | 1.00 | |
| Contactpunt | ||||
| 103 | 310673-4 | 21.70 | 26.26 | |
| O-ring 5mm | ||||
| 104 | 213005-3 | 0.83 | 1.00 | |
| Klinknagel | ||||
| 105 | 255174-4 | 1.01 | 1.22 | |
| Sluitring 4 | ||||
| 106 | 941051-3 | 0.83 | 1.00 | |
| Sluitring 4 | ||||
| 107 | 941051-3 | 0.83 | 1.00 | |
| Klinknagel | ||||
| 108 | 255174-4 | 1.01 | 1.22 | |
| Afdekkap | ||||
| 109 | 413152-2 | 1.21 | 1.46 | |
| Drukveer 5 | ||||
| 110 | 234225-6 | 1.01 | 1.22 | |
| Urethaan ring 3 | ||||
| 111 | 262054-7 | 1.01 | 1.22 | |
| Aanvoerklauw | ||||
| 112 | 310466-9 | 19.80 | 23.96 | |
| Pen 4-4,5 | ||||
| 113 | 256432-1 | 2.08 | 2.52 | |
| Borgklauw | ||||
| 114 | 346387-9 | 1.02 | 1.23 | |
| Torsieveer 4 | ||||
| 115 | 233581-1 | 1.43 | 1.73 | |
| Urethaan ring 3 | ||||
| 116 | 262054-7 | 1.01 | 1.22 | |
| Pen 3 | ||||
| 117 | 256517-3 | 1.72 | 2.08 | |
| Drukveer 5 | ||||
| 118 | 234186-0 | 1.21 | 1.46 | |
| O-ring 15 | ||||
| 119 | 213233-0 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 120 | 213275-4 | 0.83 | 1.00 | |
| O-ring 7 | ||||
| 121 | 213968-3 | 1.72 | 2.08 | |
| O-ring 12,5 | ||||
| 122 | 213185-5 | 0.83 | 1.00 | |
| O-Ring 3 blw A | ||||
| 123 | 213A17-2 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 124 | 213640-7 | 2.08 | 2.52 | |
| O-ring 18 | ||||
| 125 | 213275-4 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 126 | 197787-4 | |||
| Schakelklepgeleiding | ||||
| 127 | 455318-8 | 23.75 | 28.74 | |
| Regelklep | ||||
| 128 | 412156-1 | 31.62 | 38.26 | |
| Drukveer 3 | ||||
| 129 | 234188-6 | 1.43 | 1.73 | |
| Schakelklepsteel | ||||
| 130 | 326476-6 | 5.88 | 7.11 | |
| Schakelklephuis | ||||
| 131 | 326765-9 | 8.46 | 10.24 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 132 | 310503-9 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 133 | 310434-2 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 134 | 233570-6 | |||
| Spanstift 2-12 | ||||
| 135 | 951007-8 | 0.83 | 1.00 | |
| Schakelknop | ||||
| 136 | 123204-8 | 26.11 | 31.59 | |
| Schakel montageplaat | ||||
| 141 | 451963-7 | 5.88 | 7.11 | |
| Sluitring | ||||
| 144 | 261118-4 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 145 | 268262-8 | 3.22 | 3.90 | |
| Blokkeerpen 6mm | ||||
| 146 | 325928-4 | 7.44 | 9.00 | |
| Ontgrendelpal | ||||
| 147 | 451953-0 | 3.65 | 4.42 | |
| Stalen bal 3.5 | ||||
| 148 | 216040-0 | 0.83 | 1.00 | |
| Drukveer 3 An935 A | ||||
| 149 | 232417-1 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 150 | 951001-0 | 0.83 | 1.00 | |
| O-ring 9 | ||||
| 152 | 213054-0 | 0.83 | 1.00 | |
| Zuiger | ||||
| 153 | 326438-4 | 14.24 | 17.23 | |
| O-Ring 16mm DTW181 | ||||
| 154 | 213882-3 | 0.83 | 1.00 | |
| Drukveer 9 | ||||
| 155 | 234045-8 | 4.58 | 5.54 | |
| Drukveer 10 | ||||
| 156 | 234046-6 | 4.58 | 5.54 | |
| Rubber ring 14 | ||||
| 157 | 262123-4 | 2.44 | 2.95 | |
| Bekerring | ||||
| 158 | 345781-2 | 1.43 | 1.73 | |
| Seegering R24 | ||||
| 159 | 257395-4 | 1.24 | 1.50 | |
| Urethaan ring 3 | ||||
| 161 | 262054-7 | 1.01 | 1.22 | |
| Pen 4 | ||||
| 166 | 256570-9 | 1.24 | 1.50 | |
| Drukveer 4 | ||||
| 167 | 234009-2 | 1.80 | 2.18 | |
| Nagelhouder | ||||
| 168 | 310444-9 | 10.81 | 13.08 | |
| Deur | ||||
| 169 | 310684-9 | 74.76 | 90.46 | |
| Schakelklep cmpl. | ||||
| 170 | 135654-5 | 84.94 | 102.78 | |
| Blokkeerhandel | ||||
| 171 | 162320-1 | 3.88 | 4.69 | |
| Pen 3 | ||||
| 172 | 268274-1 | 3.22 | 3.90 | |
| Drukveer 7 | ||||
| 173 | 231401-3 | 0.83 | 1.00 | |
| Deurkap | ||||
| 174 | 452553-9 | 3.22 | 3.90 | |
| Sluitring 4 | ||||
| 175 | 941051-3 | 0.83 | 1.00 | |
| Inbusbout M4X8 A | ||||
| 176 | 265911-8 | 0.83 | 1.00 | |
| O-ring 6 | ||||
| 177 | 213771-2 | 0.83 | 1.00 | |
| Afdekkap | ||||
| 178 | 424771-9 | 5.88 | 7.11 | |
| Handgreep | ||||
| 179 | 424770-1 | 6.58 | 7.96 | |
