Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita AR411HR'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

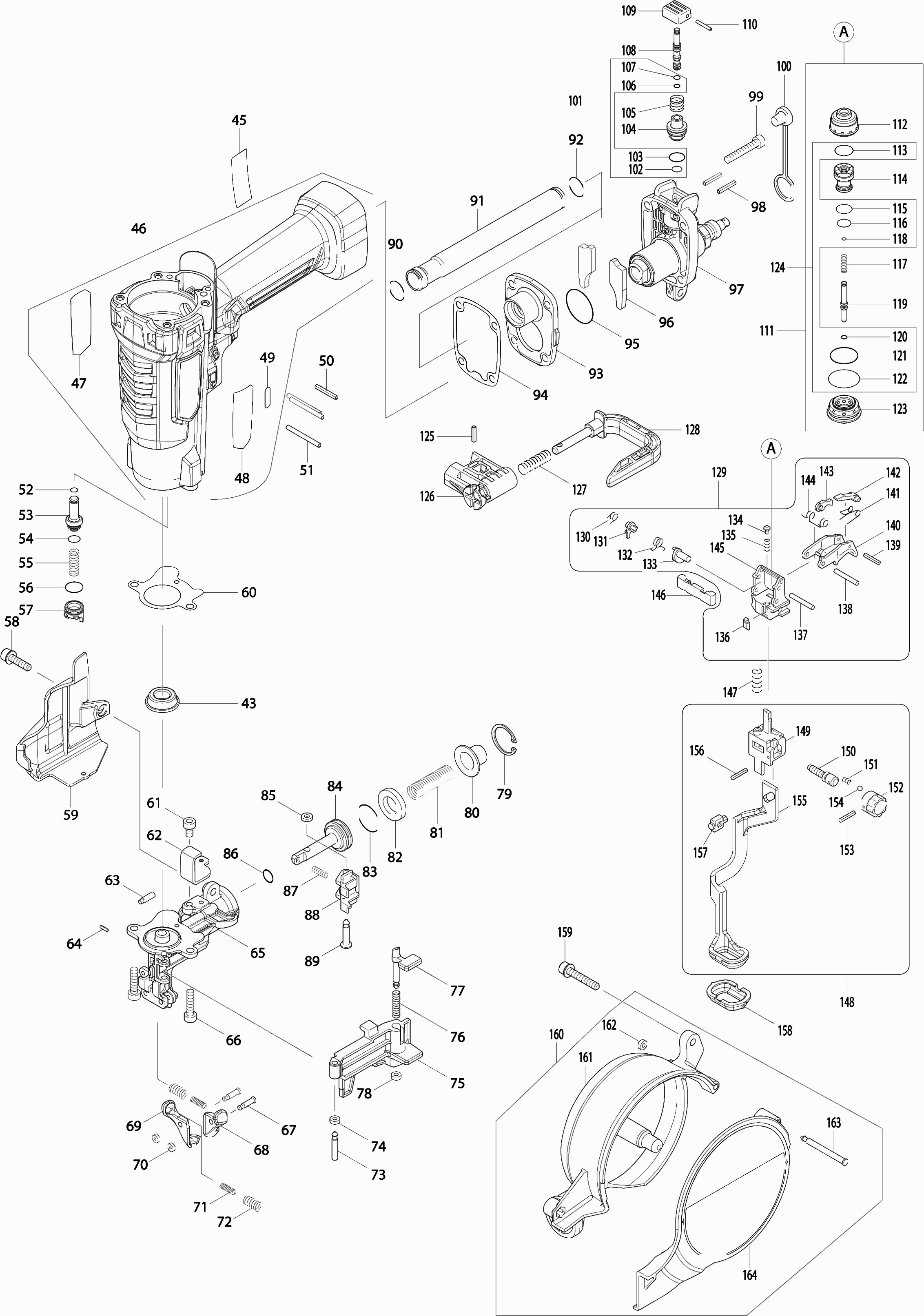

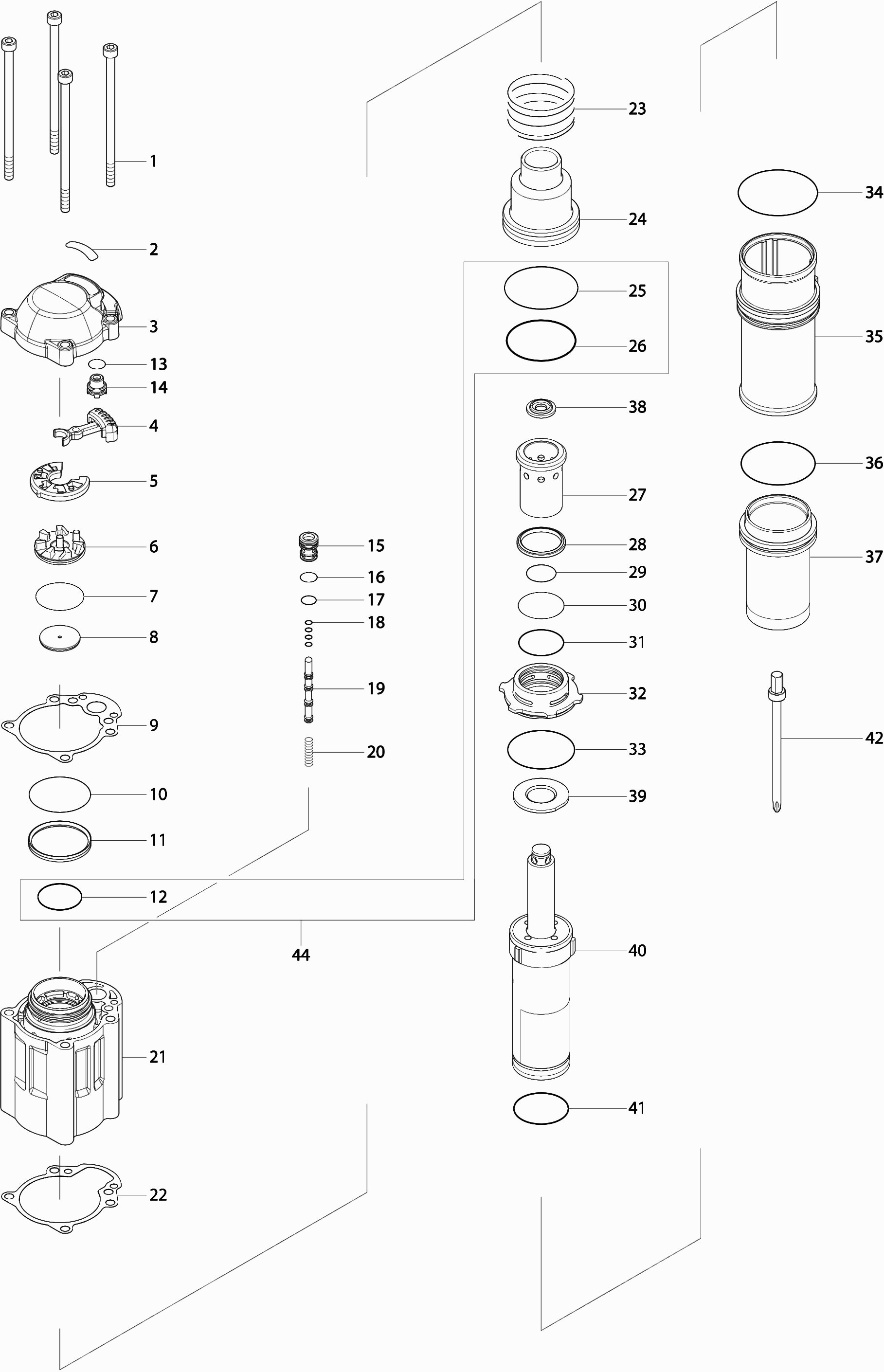

Tekeningen van de Makita AR411HR
Onderdelen lijst van de Makita AR411HR
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Inbusschroef M5X95Mm | ||||
| 001 | 266802-6 | 1.43 | 1.73 | |
| Indicatie label | ||||
| 002 | 800L10-7 | 2.80 | 3.39 | |
| Bovendeksel | ||||
| 003 | 319389-8 | 26.09 | 31.57 | |
| Verstelknop Ar411Hr | ||||
| 004 | 310531-4 | 10.81 | 13.08 | |
| Verstelknop Basisplaat | ||||
| 005 | 310532-2 | 11.16 | 13.50 | |
| Verstelknopplaat | ||||
| 006 | 310530-6 | 12.58 | 15.22 | |
| O-Ring 27 | ||||
| 007 | 213699-4 | 0.83 | 1.00 | |
| Klepstoel Ar411Hr | ||||
| 008 | 424535-1 | 3.65 | 4.42 | |
| Pakking, bovendeksel Ar411Hr | ||||
| 009 | 162364-1 | 4.58 | 5.54 | |
| O-ring 35 | ||||
| 010 | 213460-9 | 1.21 | 1.46 | |
| D-Ring 34 Ar411Hr | ||||
| 011 | 424536-9 | 1.21 | 1.46 | |
| O-ring 23 | ||||
| 012 | 213393-8 | 0.83 | 1.00 | |
| O-ring 9 | ||||
| 013 | 213062-1 | 0.83 | 1.00 | |
| Schakelklep Bus Ar411Hr | ||||
| 014 | 326254-4 | 3.55 | 4.30 | |
| Schakelklep Geleider Ar411Hr | ||||
| 015 | 412133-3 | 14.23 | 17.22 | |
| O-ring 9 | ||||
| 016 | 213062-1 | 0.83 | 1.00 | |
| O-ring 7 | ||||
| 017 | 213011-8 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 018 | 213034-6 | 0.83 | 1.00 | |
| Schakelklep Steel Ar411Hr | ||||
| 019 | 326231-6 | 5.22 | 6.32 | |
| Drukveer 4 | ||||
| 020 | 234079-1 | 0.83 | 1.00 | |
| Afstandhouder "bovendeksel" | ||||
| 021 | 318949-3 | 61.09 | 73.92 | |
| Pakking, Bovendeksel- Ar411Hr | ||||
| 022 | 162348-9 | 2.08 | 2.52 | |
| Drukveer 37 Ar411Hr | ||||
| 023 | 234272-7 | 2.80 | 3.39 | |
| Hoofdklep | ||||
| 024 | 326242-1 | 19.88 | 24.05 | |
| O-Ring 41 | ||||
| 025 | 213689-7 | 0.83 | 1.00 | |
| O-Ring 34 | ||||
| 026 | 213339-4 | 0.83 | 1.00 | |
| Zuiger Ar411hr | ||||
| 027 | 326241-3 | 14.24 | 17.23 | |
| Zuiger Bescherming Ar411Hr | ||||
| 028 | 424534-3 | 3.22 | 3.90 | |
| O-ring 16 | ||||
| 029 | 213223-3 | 0.83 | 1.00 | |
| O-Ring 25 | ||||
| 030 | 213691-0 | 0.83 | 1.00 | |
| O-Ring 25 | ||||
| 031 | 213777-0 | 0.83 | 1.00 | |
| Volledige Cilinderplaat AR411HR | ||||
| 032 | 126363-7 | 17.90 | 21.66 | |
| Cilinderplaat | ||||
| 032 | 332089-3 | 11.19 | 13.54 | |
| O-ring 38 | ||||
| 033 | 213508-7 | 1.21 | 1.46 | |
| O-ring 42 | ||||
| 034 | 213558-2 | 0.83 | 1.00 | |
| Motorhuis Ar411hr | ||||
| 035 | 332048-7 | 21.87 | 26.46 | |
| O-ring 40 | ||||
| 036 | 213509-5 | 0.83 | 1.00 | |
| Cilinder Ar411hr | ||||
| 037 | 332047-9 | 17.92 | 21.68 | |
| Afdichtingsring Ar411Hr | ||||
| 038 | 424533-5 | 8.46 | 10.24 | |
| Stootkussen achter Ar411Hr | ||||
| 039 | 424532-7 | 2.08 | 2.52 | |
| Motor, Lucht Compleet Ar411Hr | ||||
| 040 | 141822-0 | 334.47 | 404.71 | |
| O-Ring 29 | ||||
| 041 | 213690-2 | 0.83 | 1.00 | |
| Schroefbit PH2 | ||||
| 042 | 197776-9 | 19.39 | 23.46 | |
| Stootkussen Voor, Ar411Hr | ||||
| 043 | 424531-9 | 6.58 | 7.96 | |
| Revisieset Ar411Hr | ||||
| 044 | 196169-7 | 6.58 | 7.96 | |
| Naamplaat | ||||
| 045 | 851S66-5 | 2.80 | 3.39 | |
| Behuizing Ar411Hr | ||||
| 046 | 183C37-1 | 166.57 | 201.55 | |
| Label Makita logo rechts | ||||
| 047 | 809H40-1 | 4.58 | 5.54 | |
| Label Makita logo links | ||||
| 048 | 809H39-6 | 4.58 | 5.54 | |
| Label, indicatie Ar411hr | ||||
| 049 | 808D53-5 | 2.80 | 3.39 | |
| Borgpen 3-22 A | ||||
| 050 | 258033-1 | 0.83 | 1.00 | |
| Spanstift | ||||
| 051 | 951078-5 | 0.83 | 1.00 | |
| O-Ring 4 | ||||
| 052 | 213770-4 | 0.83 | 1.00 | |
| Uitlaatklepsteller Ar411Hr | ||||
| 053 | 326238-2 | 4.08 | 4.94 | |
| O-ring 6 | ||||
| 054 | 213771-2 | 0.83 | 1.00 | |
| Drukveer 6 Ar411Hr | ||||
| 055 | 234271-9 | 0.83 | 1.00 | |
| O-ring 10 | ||||
| 056 | 213070-2 | 0.83 | 1.00 | |
| Uitlaatbus | ||||
| 057 | 454159-9 | 4.08 | 4.94 | |
| Inbusbout M5X20 | ||||
| 058 | 922234-4 | 0.83 | 1.00 | |
| Deksel, Contactarm- Ar411Hr | ||||
| 059 | 456358-9 | 9.54 | 11.54 | |
| Slagpengeleiderpakking Ar411Hr | ||||
| 060 | 162347-1 | 1.72 | 2.08 | |
| Inbusschroef M5 x 95 mm | ||||
| 061 | 922202-7 | 0.83 | 1.00 | |
| Afstandhouder Ar411Hr | ||||
| 062 | 346645-3 | 3.22 | 3.90 | |
| Kraagpin | ||||
| 063 | 256547-4 | 0.83 | 1.00 | |
| Spanstift 2-8 | ||||
| 064 | 951001-0 | 0.83 | 1.00 | |
| Slagpengeleider Compl Ar411Hr | ||||
| 065 | 141817-3 | 158.70 | 192.03 | |
| Inbusbout 5x20 | ||||
| 066 | 922232-8 | 1.01 | 1.22 | |
| Pin 3,5 | ||||
| 067 | 268291-1 | 0.83 | 1.00 | |
| Aanslag Links Ar411Hr | ||||
| 068 | 310639-4 | 19.80 | 23.96 | |
| Aanslag Rechts Ar411Hr | ||||
| 069 | 310640-9 | 19.80 | 23.96 | |
| Sluitring | ||||
| 070 | 261118-4 | 0.83 | 1.00 | |
| Drukveer 3 Ar411Hr | ||||
| 071 | 234267-0 | 0.83 | 1.00 | |
| Drukveer 5 Ar411Hr | ||||
| 072 | 234268-8 | 0.83 | 1.00 | |
| Pin 4 | ||||
| 073 | 268290-3 | 0.83 | 1.00 | |
| Urethaan ring 3 | ||||
| 074 | 262054-7 | 1.01 | 1.22 | |
| Deur | ||||
| 075 | 454162-0 | 2.80 | 3.39 | |
| Drukveer 5 | ||||
| 076 | 234003-4 | 1.72 | 2.08 | |
| Blokkeerpen | ||||
| 077 | 310217-0 | 6.60 | 7.99 | |
| Urethaan ring 3 | ||||
| 078 | 262054-7 | 1.01 | 1.22 | |
| Seegering R24 | ||||
| 079 | 962113-4 | 0.83 | 1.00 | |
| Bekerring | ||||
| 080 | 345781-2 | 1.43 | 1.73 | |
| Drukveer 10 | ||||
| 081 | 234046-6 | 4.58 | 5.54 | |
| Rubber ring 14 | ||||
| 082 | 262123-4 | 2.44 | 2.95 | |
| O-ring 19 | ||||
| 083 | 213971-4 | 1.80 | 2.18 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 084 | 326115-8 | |||
| Urethaan ring 4 | ||||
| 085 | 262130-7 | 0.83 | 1.00 | |
| O-ring 8 | ||||
| 086 | 213007-9 | 0.83 | 1.00 | |
| Drukveer 3 | ||||
| 087 | 234042-4 | 1.72 | 2.08 | |
| Aanvoerklauw | ||||
| 088 | 310246-3 | 11.19 | 13.54 | |
| Pen 4,5 | ||||
| 089 | 268193-1 | 2.80 | 3.39 | |
| O-ring 14 | ||||
| 090 | 213162-7 | 0.83 | 1.00 | |
| Buis | ||||
| 091 | 332050-0 | 10.84 | 13.12 | |
| O-ring 14 | ||||
| 092 | 213162-7 | 0.83 | 1.00 | |
| Afstandhouder tbv inlaatdeksel | ||||
| 093 | 454161-2 | 2.05 | 2.48 | |
| Pakking, inlaatdeksel Ar411Hr | ||||
| 094 | 162350-2 | 1.72 | 2.08 | |
| O-ring 25 | ||||
| 095 | 213987-9 | 0.83 | 1.00 | |
| Filter Ar412Hr | ||||
| 096 | 413161-1 | 1.43 | 1.73 | |
| Inlaatdeksel Compl Ar411Hr | ||||
| 097 | 141821-2 | 98.74 | 119.48 | |
| Spanstift 3-16 | ||||
| 098 | 951063-8 | 0.83 | 1.00 | |
| Inbusbout m5x30 | ||||
| 099 | 922252-2 | 0.83 | 1.00 | |
| Kap 9 | ||||
| 100 | 286281-2 | 1.27 | 1.54 | |
| Revisieset Ar411Hr | ||||
| 101 | 196171-0 | 7.44 | 9.00 | |
| O-ring 5,5 | ||||
| 102 | 213545-1 | 0.83 | 1.00 | |
| O-ring 10 | ||||
| 103 | 213070-2 | 0.83 | 1.00 | |
| Inlaatklep Geleider AR411HR | ||||
| 104 | 412132-5 | 16.07 | 19.44 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 105 | 231471-2 | |||
| O-ring 3 | ||||
| 106 | 213034-6 | 0.83 | 1.00 | |
| O-ring 3 | ||||
| 107 | 213640-7 | 2.08 | 2.52 | |
| Klepsteller AR411HR | ||||
| 108 | 326232-4 | 5.22 | 6.32 | |
| Schakelaarhandel | ||||
| 109 | 454160-4 | 1.24 | 1.50 | |
| Spanstift 2-14 | ||||
| 110 | 951010-9 | 0.83 | 1.00 | |
| Schakelklep Cmpl. Ar411Hr | ||||
| 111 | 135542-6 | 46.31 | 56.04 | |
| Schakelklepgeleiding AR411HR | ||||
| 112 | 412131-7 | 16.07 | 19.44 | |
| O-ring 11 | ||||
| 113 | 213134-2 | 0.83 | 1.00 | |
| Regelklep AR411HR | ||||
| 114 | 326240-5 | 9.52 | 11.52 | |
| O-ring 8 | ||||
| 115 | 213984-5 | 0.83 | 1.00 | |
| O-ring 8 | ||||
| 116 | 213985-3 | 1.43 | 1.73 | |
| Drukveer 4 Ar411Hr | ||||
| 117 | 234270-1 | 2.08 | 2.52 | |
| O-ring 2 | ||||
| 118 | 213986-1 | 0.83 | 1.00 | |
| Schakelklepsteel Ar411Hr | ||||
| 119 | 326230-8 | 4.08 | 4.94 | |
| O-ring 3 | ||||
| 120 | 213034-6 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 121 | 213275-4 | 0.83 | 1.00 | |
| O-ring 20 | ||||
| 122 | 213310-8 | 0.83 | 1.00 | |
| Schakelklephuis Ar411Hr | ||||
| 123 | 326239-0 | 12.58 | 15.22 | |
| Revisieset Ar411Hr | ||||
| 124 | 196170-2 | 8.46 | 10.24 | |
| Spanstift 3-12 | ||||
| 125 | 951057-3 | 0.83 | 1.00 | |
| Houder tbv draaghaak | ||||
| 126 | 454166-2 | 2.45 | 2.96 | |
| Drukveer 7 | ||||
| 127 | 233343-7 | 0.83 | 1.00 | |
| Haak | ||||
| 128 | 161372-9 | 3.20 | 3.87 | |
| Schakelknop Compleet Ar411Hr | ||||
| 129 | 135736-3 | 73.70 | 89.18 | |
| Torsieveer 5 | ||||
| 130 | 233501-5 | 0.83 | 1.00 | |
| Afstandhouder | ||||
| 131 | 310199-6 | 5.87 | 7.10 | |
| Torsieveer 6 | ||||
| 132 | 233576-4 | 2.44 | 2.95 | |
| Ontgrendelpal | ||||
| 133 | 310310-0 | 5.87 | 7.10 | |
| Blokkeerpen | ||||
| 134 | 326144-1 | 1.72 | 2.08 | |
| Drukveer 2 | ||||
| 135 | 233490-4 | 0.83 | 1.00 | |
| Afdekplaat tbv startveer | ||||
| 136 | 419743-7 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 137 | 268168-0 | 0.83 | 1.00 | |
| Pen 3 | ||||
| 138 | 268168-0 | 0.83 | 1.00 | |
| Spanstift 2-12 | ||||
| 139 | 951007-8 | 0.83 | 1.00 | |
| Schakelknop Ar411Hr | ||||
| 140 | 310676-8 | 16.13 | 19.52 | |
| Torsieveer 4 | ||||
| 141 | 231699-2 | 0.83 | 1.00 | |
| Hendel | ||||
| 142 | 310196-2 | 6.60 | 7.99 | |
| Hefboom | ||||
| 143 | 310198-8 | 5.87 | 7.10 | |
| Torsieveer 4 | ||||
| 144 | 233503-1 | 2.08 | 2.52 | |
| Schakel montageplaat | ||||
| 145 | 419844-1 | 4.08 | 4.94 | |
| Schakelstang | ||||
| 146 | 310293-4 | 10.81 | 13.08 | |
| Drukveer 5 Ar411Hr | ||||
| 147 | 234269-6 | 4.08 | 4.94 | |
| Contactarm compleet Ar411Hr | ||||
| 148 | 135541-8 | 79.95 | 96.74 | |
| Niet meer leverbaar, geen vervanging | ||||
| 149 | 310234-0 | |||
| As, afsteller- | ||||
| 150 | 324745-9 | 1.72 | 2.08 | |
| Drukveer 2 | ||||
| 151 | 233491-2 | 0.83 | 1.00 | |
| Compleet regelaar | ||||
| 152 | 158747-1 | 1.21 | 1.46 | |
| Spanstift 2-14 | ||||
| 153 | 951010-9 | 0.83 | 1.00 | |
| Stalen bal 2.3 | ||||
| 154 | 216031-1 | 0.83 | 1.00 | |
| Contact Arm AR411HR | ||||
| 155 | 310529-1 | 34.36 | 41.58 | |
| Spanstift 2-14 | ||||
| 156 | 951010-9 | 0.83 | 1.00 | |
| Stelelement | ||||
| 157 | 310201-5 | 5.87 | 7.10 | |
| Neusrubber Ar411Hr | ||||
| 158 | 424539-3 | 2.44 | 2.95 | |
| Inbusbout M5X30 | ||||
| 159 | 922254-8 | 0.83 | 1.00 | |
| Magazijn Cpl AR411HR | ||||
| 160 | 135872-5 | 21.70 | 26.26 | |
| Magazijn | ||||
| 161 | 454163-8 | 5.87 | 7.10 | |
| Urethaan ring 3 | ||||
| 162 | 262054-7 | 1.01 | 1.22 | |
| Pen 4 | ||||
| 163 | 268027-8 | 2.08 | 2.52 | |
| Deksel Magazijn Compl Ar411Hr | ||||
| 164 | 143652-5 | 12.58 | 15.22 | |
