Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita BBC300L'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

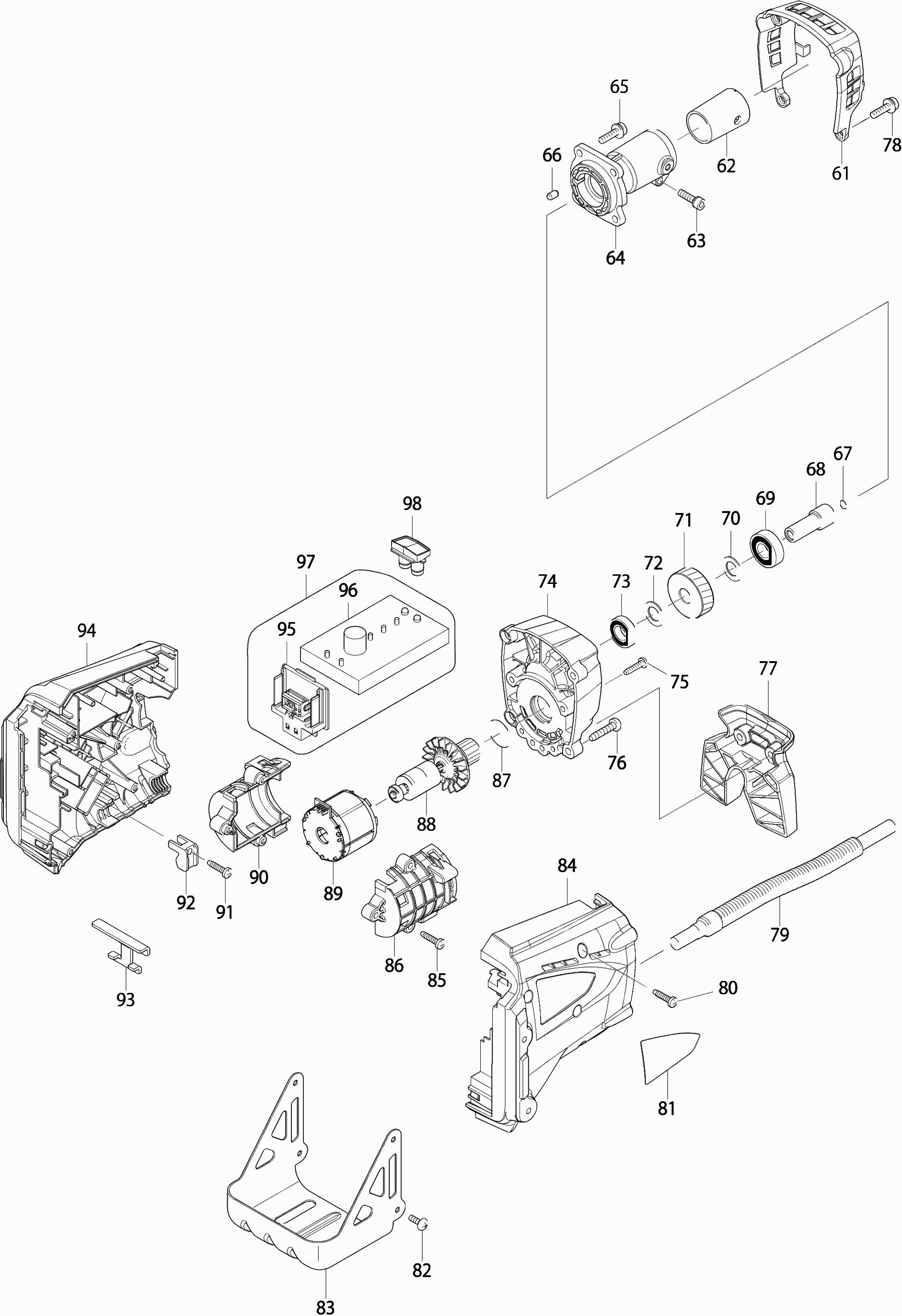

Tekeningen van de Makita BBC300L
Onderdelen lijst van de Makita BBC300L
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Tapschroef 4x18 | ||||
001 | 265A48-7@141 | 0.90 | 1.09 | |
Handgreep set | ||||
002 | 188841-5@141 | 46.31 | 56.04 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
003 | 922228-9@141 | |||
Tapschroef 4x18 | ||||
004 | 265A48-7@141 | 0.90 | 1.09 | |
Trekontlaster | ||||
005 | 687261-5@141 | 0.83 | 1.00 | |
Blokeerknop | ||||
006 | 451983-1@141 | 8.46 | 10.24 | |
Drukveer 4 | ||||
007 | 233054-4@141 | 0.83 | 1.00 | |
Schakelaar sle6a2-33 | ||||
008 | 651533-4@141 | 3.83 | 4.63 | |
Schakelaarknop | ||||
009 | 451984-9@141 | 16.13 | 19.52 | |
Stroomindicator | ||||
010 | 451986-5@141 | 11.16 | 13.50 | |
Stalen kogel 5.0 | ||||
011 | 216018-3@141 | 0.83 | 1.00 | |
Drukveer 2 | ||||
012 | 233211-4@141 | 0.83 | 1.00 | |
Schakelaar Tgr3-3 | ||||
013 | 650630-3@141 | 13.19 | 15.96 | |
Bus | ||||
014 | 686015-7@141 | 0.83 | 1.00 | |
Handgreep set | ||||
015 | 188841-5@141 | 46.31 | 56.04 | |
Verbindingsplaat | ||||
016 | 451982-3@141 | 7.44 | 9.00 | |
Kabelbeschermer | ||||
017 | 451985-7@141 | 10.81 | 13.08 | |
Beugelhandgreep | ||||
024 | 195215-3@141 | 16.88 | 20.42 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
024A | 783014-1@141 | |||
Beugelhandgreep | ||||
025 | 195215-3@141 | 16.88 | 20.42 | |
Handgreepsteun | ||||
026 | 451599-2@141 | 2.80 | 3.39 | |
Schroef 5x30 | ||||
027 | 911253-5@141 | 0.83 | 1.00 | |
Hanger | ||||
028 | 168478-4@141 | 4.08 | 4.94 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
029 | 922228-9@141 | |||
Steel cpl | ||||
031 | 141091-3@141 | 38.88 | 47.04 | |
Waarschuwingslabel | ||||
031A | 810558-9@141 | 5.22 | 6.32 | |
As | ||||
035 | 325812-3@141 | 20.76 | 25.12 | |
Inbusbout Ck M5x14mm | ||||
036 | 922218-2@141 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
037 | 125791-3@141 | |||
Kogellager 609zz | ||||
038 | 210049-4@141 | 3.37 | 4.08 | |
Borgring S-9 | ||||
041 | 961005-4@141 | 0.83 | 1.00 | |
Seegering R24 | ||||
042 | 962113-4@141 | 0.83 | 1.00 | |
Inbusbout Ck M5x25mm | ||||
043 | 922241-7@141 | 0.83 | 1.00 | |
Metaalschroef Ck M8x10mm | ||||
044 | 265590-2@141 | 0.83 | 1.00 | |
Tandwielset BBC231U P | ||||
046 | 183A00-2@141 | 23.68 | 28.65 | |
Kogellager 6001llu | ||||
049 | 211138-8@141 | 4.58 | 5.54 | |
Borgring R-28 | ||||
050 | 962106-1@141 | 0.83 | 1.00 | |
Beschermring | ||||
051 | 331861-0@141 | 7.44 | 9.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
055 | 451566-7@141 | |||
Afdekkap | ||||
056 | 451565-9@141 | 12.58 | 15.22 | |
O-ring 11 | ||||
057 | 213105-9@141 | 0.83 | 1.00 | |
Montagebeugel | ||||
058 | 346073-2@141 | 2.93 | 3.55 | |
Inbusbout M6x30 | ||||
059 | 922353-6@141 | 0.83 | 1.00 | |
Schroef Vk 20mm | ||||
060 | 911233-1@141 | 0.83 | 1.00 | |
Afdekkap | ||||
061 | 451981-5@141 | 17.90 | 21.66 | |
Demper | ||||
062 | 424307-4@141 | 2.08 | 2.52 | |
Zeskant Bout 5X20 LF1000 A | ||||
063 | 265550-4@141 | 0.83 | 1.00 | |
Steelhouder | ||||
064 | 318560-1@141 | 28.73 | 34.76 | |
Schroef Vk 20mm | ||||
065 | 911233-1@141 | 0.83 | 1.00 | |
Rubber pen 4 | ||||
066 | 263002-9@141 | 0.83 | 1.00 | |
O-Ring 6 An250/Bo3711 | ||||
067 | 213045-1@141 | 0.83 | 1.00 | |
Ashouder | ||||
068 | 325811-5@141 | 17.63 | 21.33 | |
Kogellager 6001zz | ||||
069 | 211148-5@141 | 8.46 | 10.24 | |
Sluitring 12 | ||||
070 | 253744-3@141 | 0.83 | 1.00 | |
Tandwiel 33 | ||||
071 | 227720-3@141 | 43.10 | 52.15 | |
Sluitring 12 | ||||
072 | 253744-3@141 | 0.83 | 1.00 | |
Kogellager 6901zz | ||||
073 | 211150-8@141 | 5.22 | 6.32 | |
Tandwielhuis | ||||
074 | 318559-6@141 | 34.36 | 41.58 | |
Tapschroef 4x18 | ||||
075 | 265A48-7@141 | 0.90 | 1.09 | |
Tapschroef 5x25 | ||||
076 | 266041-8@141 | 0.83 | 1.00 | |
Voet | ||||
077 | 451572-2@141 | 8.46 | 10.24 | |
Schroef Vk 20mm | ||||
078 | 911233-1@141 | 0.83 | 1.00 | |
Kabel | ||||
079 | 699047-5@141 | 14.24 | 17.23 | |
Tapschroef 4x18 | ||||
080 | 265A48-7@141 | 0.90 | 1.09 | |
Naamplaat | ||||
081 | 867948-7@141 | 2.80 | 3.39 | |
Schroef M4x12 | ||||
082 | 251314-2@141 | 0.83 | 1.00 | |
Batterijhouder | ||||
083 | 346194-0@141 | 24.97 | 30.21 | |
Motorhuisset | ||||
084 | 188836-8@141 | 31.62 | 38.26 | |
Tapschroef 4x18 | ||||
085 | 265A48-7@141 | 0.90 | 1.09 | |
Motorhuisset | ||||
086 | 188838-4@141 | 10.12 | 12.25 | |
O-ring 22 | ||||
087 | 213961-7@141 | 0.83 | 1.00 | |
Anker | ||||
088 | 619254-4@141 | 73.52 | 88.96 | |
Veld | ||||
089 | 629880-1@141 | 63.90 | 77.32 | |
Motorhuisset | ||||
090 | 188838-4@141 | 10.12 | 12.25 | |
Tapschroef 4x18 | ||||
091 | 265A48-7@141 | 0.90 | 1.09 | |
Trekontlaster | ||||
092 | 687261-5@141 | 0.83 | 1.00 | |
Steunplaat | ||||
093 | 346039-2@141 | 1.02 | 1.23 | |
Motorhuisset | ||||
094 | 188836-8@141 | 31.62 | 38.26 | |
Aansluitunit | ||||
095 | 643849-1@141 | 4.08 | 4.94 | |
Toerenregelcircuit | ||||
096 | 620497-3@141 | 166.57 | 201.55 | |
Toerenregelcircuit | ||||
097 | 620497-3@141 | 166.57 | 201.55 | |
Indicatie label | ||||
098 | 140285-7@141 | 7.44 | 9.00 | |
Tapschroef 4x18 | ||||
100 | 265A48-7@141 | 0.90 | 1.09 | |
Draadsnijder | ||||
101 | 346280-7@141 | 8.46 | 10.24 | |
Beschermhoes tbv steel | ||||
102 | 140583-9@141 | 14.23 | 17.22 | |
Indicatielabel | ||||
102A | 891041-5@141 | 4.09 | 4.95 | |
Afstandhouder | ||||
103 | 451601-1@141 | 2.08 | 2.52 |
