Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita BHR162'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

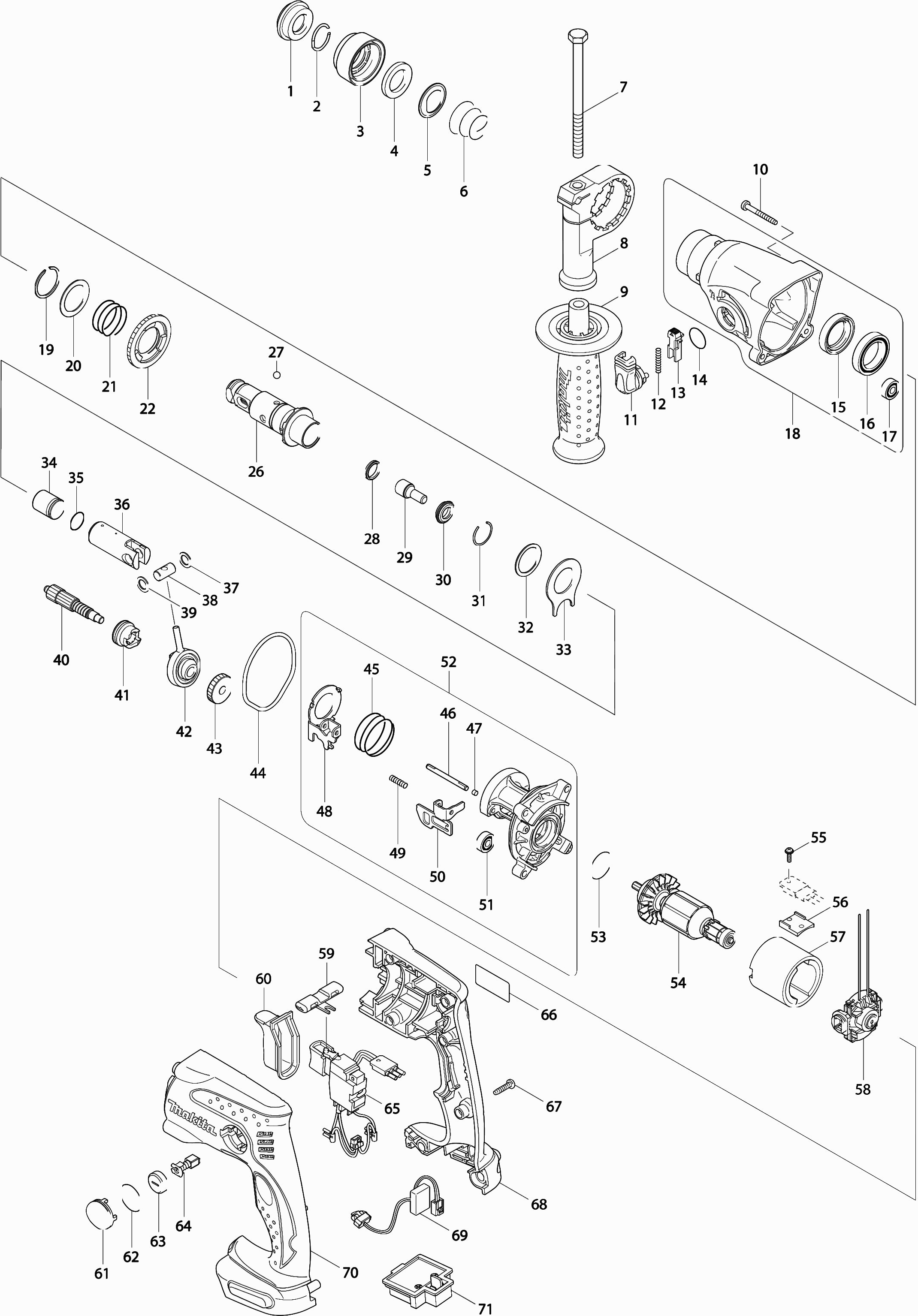

Tekeningen van de Makita BHR162
Onderdelen lijst van de Makita BHR162
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Rubber Stofkap 35 Hr2440/50 | ||||
| 001* | 286263-4 | 0.98 | 1.19 | |
| Borgring 19 Hr2440/50 A | ||||
| 002 | 233940-9 | 0.98 | 1.19 | |
| Boorhouderkap Hr1830F | ||||
| 003 | 419220-9 | 1.46 | 1.77 | |
| Ring 21 Hr2440/50 | ||||
| 004 | 257241-1 | 1.18 | 1.43 | |
| Geleidering Hr2440/50 | ||||
| 005 | 345187-4 | 0.83 | 1.00 | |
| Drukveer 21-29 Hr2440/50 | ||||
| 006 | 233916-6 | 0.83 | 1.00 | |
| Zeskantbout M8X120Mm A | ||||
| 007 | 265583-9 | 1.18 | 1.43 | |
| Handgreepbeugel Hr1830F | ||||
| 008 | 417911-6 | 2.02 | 2.44 | |
| Handgreep Hr2230 Rubber A | ||||
| 009 | 158057-6 | 9.24 | 11.18 | |
| Moer M8 Zwt | ||||
| 009A | 931402-8 | 0.83 | 1.00 | |
| Schroef 4X35 A | ||||
| 010 | 266351-3 | 0.83 | 1.00 | |
| Verstelknop Hr1830F | ||||
| 011 | 162242-5 | 1.02 | 1.23 | |
| Drukveer 3X28Mm Hr1830F | ||||
| 012 | 234264-6 | 0.83 | 1.00 | |
| Blokkeerknop Hr1830F | ||||
| 013 | 419192-8 | 0.83 | 1.00 | |
| O-Ring 17 Hr2440/50 | ||||
| 014 | 213278-8 | 0.83 | 1.00 | |
| Keerring 25 Hr1830F A | ||||
| 015 | 213535-4 | 2.48 | 3.00 | |
| Kogellager 6805Llb 6221Dw | ||||
| 016 | 211375-4 | 12.65 | 15.31 | |
| Kogellager 606Zz A | ||||
| 017 | 210137-7 | 0.98 | 1.19 | |
| Tandwielhuis Hr1830F | ||||
| 018 | 154840-9 | 21.34 | 25.82 | |
| Borgring Wr-25 Hr1830F A | ||||
| 019 | 347555-7 | 0.83 | 1.00 | |
| Sluitring 25 Hr1830F | ||||
| 020 | 267304-5 | 0.83 | 1.00 | |
| Drukveer 25 Hr1830F | ||||
| 021 | 233457-2 | 0.83 | 1.00 | |
| Tandwiel 46 Hr1830F | ||||
| 022 | 331707-0 | 11.34 | 13.72 | |
| Borgring 22 Hr1830/Bhr162 | ||||
| 024 | 233942-5 | 0.83 | 1.00 | |
| Beitelhouder Hr1830 | ||||
| 026 | 154843-3 | 23.06 | 27.90 | |
| Stalen Kogel 7.0 Hr2400 | ||||
| 027 | 216022-2 | 0.83 | 1.00 | |
| X-Ring 13 Hr1830F | ||||
| 028* | 213183-9 | 0.83 | 1.00 | |
| Slagbout H1830F | ||||
| 029 | 324611-0 | 1.75 | 2.12 | |
| Ring 11 Hr1830F | ||||
| 030 | 257275-4 | 2.10 | 2.54 | |
| Borgring 22 Hr1830/Bhr162 | ||||
| 031* | 233942-5 | 0.83 | 1.00 | |
| Platte Ring 24 Btd132 | ||||
| 032 | 267175-0 | 0.83 | 1.00 | |
| Adapterplaat Hr1830F | ||||
| 033 | 345681-6 | 0.83 | 1.00 | |
| Slaghamer Hr1830F | ||||
| 034 | 324613-6 | 1.75 | 2.12 | |
| O-Ring 14 Hr1830 | ||||
| 035* | 213182-1 | 0.83 | 1.00 | |
| Zuiger Hr1830F | ||||
| 036 | 331708-8 | 12.80 | 15.49 | |
| Ring 9 Hr2410/13/30 A | ||||
| 037 | 267130-2 | 0.83 | 1.00 | |
| Zuigerverbinding Hr1830F | ||||
| 038 | 324612-8 | 1.02 | 1.23 | |
| Ring 9 Hr2410/13/30 A | ||||
| 039 | 267130-2 | 0.83 | 1.00 | |
| Tandwiel 10 Hr1830F | ||||
| 040 | 227152-4 | 6.70 | 8.11 | |
| Koppelingsplaat Hr1830F | ||||
| 041 | 331706-2 | 5.30 | 6.41 | |
| Schommellager 9 Hr1830F | ||||
| 042 | 219019-0 | 34.95 | 42.29 | |
| Tandwiel 22 Bhr162 | ||||
| 043 | 226623-8 | 11.34 | 13.72 | |
| Pakking Ring Hr1830F | ||||
| 044* | 423346-1 | 0.83 | 1.00 | |
| Drukveer 32 Hr1830F | ||||
| 045 | 233458-0 | 0.83 | 1.00 | |
| Pen 4 Hr1830F | ||||
| 046 | 268147-8 | 0.83 | 1.00 | |
| Dempingsvilt Hr1830F | ||||
| 047 | 443123-5 | 0.83 | 1.00 | |
| Wisselplaat Hr1830F | ||||
| 048 | 345645-0 | 7.57 | 9.16 | |
| Drukveer 3 Hr1830F | ||||
| 049 | 233460-3 | 0.83 | 1.00 | |
| Afstandhouder Hr1830F | ||||
| 050 | 345654-9 | 5.06 | 6.12 | |
| Kogellager 606Zz A | ||||
| 051 | 210137-7 | 0.98 | 1.19 | |
| Lagerhuis Hr1830F | ||||
| 052 | 154841-7 | 23.52 | 28.46 | |
| O-Ring 24 Hr2430 | ||||
| 053 | 213953-6 | 0.83 | 1.00 | |
| Anker Bhr162 | ||||
| 054 | 619182-3 | 44.96 | 54.40 | |
| Tapschroef St3X10Mm | ||||
| 055 | 266282-6 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 055A | 911011-9 | |||
| Afstandhouder 6349D | ||||
| 056 | 689136-4 | 0.83 | 1.00 | |
| Magneet Houder Bhr162 | ||||
| 057 | 638446-6 | 10.50 | 12.70 | |
| Koolborstelhouder Bhr162 | ||||
| 058 | 638445-8 | 2.36 | 2.86 | |
| Koolborstelhouder Bhr162 | ||||
| 058A | 632A30-5 | 10.52 | 12.73 | |
| L/R Verstelhendel Bhr162 | ||||
| 059 | 419457-8 | 2.84 | 3.44 | |
| Schakelaarkap Bhr162 | ||||
| 060 | 421957-6 | 4.45 | 5.38 | |
| Koolborstelafdekkap Bhr162 | ||||
| 061 | 419456-0 | 1.39 | 1.68 | |
| O-Ring 24 Hr2430 | ||||
| 062 | 213953-6 | 0.83 | 1.00 | |
| Koolborsteldop Bga452 | ||||
| 063 | 643929-3 | 0.83 | 1.00 | |
| Koolborstel Set Cb-430 A | ||||
| 064* | 191971-3 | 3.54 | 4.28 | |
| Schakelaar Bhr162 (2 Cont.) | ||||
| 065 | 650578-9 | 30.70 | 37.15 | |
| Schakelaar Bhr162 (3 Cont.) | ||||
| 065A | 638878-7 | 37.75 | 45.68 | |
| Naamplaat Bhr162 | ||||
| 066 | 862842-8 | 2.71 | 3.28 | |
| Tapschroef 4X18 A | ||||
| 067 | 265A48-7 | 0.83 | 1.00 | |
| Motorhuis Bhr162 (3 Cont.) A | ||||
| 068 | 187379-7 | 37.46 | 45.33 | |
| Motorhuis Bhr162 (3 Cont.) A | ||||
| 068A | 187379-7 | 37.46 | 45.33 | |
| Light Circuit Bhr162 | ||||
| 069 | 631711-2 | 13.82 | 16.72 | |
| Motorhuis Bhr162 (3 Cont.) A | ||||
| 070 | 187379-7 | 37.46 | 45.33 | |
| Motorhuis Bhr162 (3 Cont.) A | ||||
| 070A | 187379-7 | 37.46 | 45.33 | |
| Aansluitunit 14,4V (2 Cont.) A | ||||
| 071 | 643847-5 | 3.54 | 4.28 | |
| Aansluitunit 14,4V (3 Cont.) | ||||
| 071A | 643867-9 | 10.99 | 13.30 | |
