Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita BHR243'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

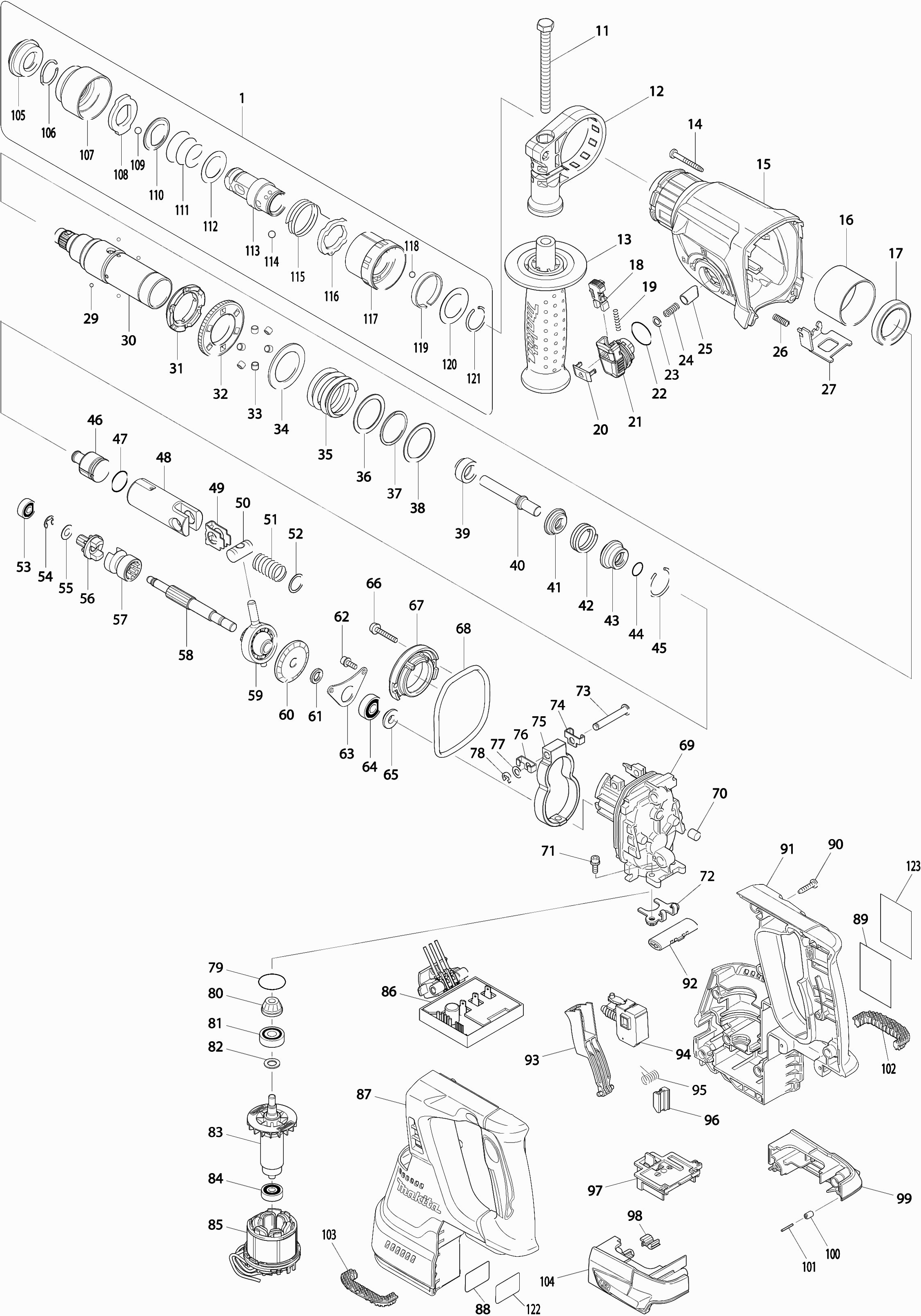

Tekeningen van de Makita BHR243
Onderdelen lijst van de Makita BHR243
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| SDS-PLUS boorkop | ||||
| 001 | 194080-7 | 34.98 | 42.33 | |
| Moerbout M8X90Mm | ||||
| 011 | 266745-2 | 0.83 | 1.00 | |
| Handgreepbeugel Bhr242 | ||||
| 012 | 453129-5 | 2.71 | 3.28 | |
| Handgreep Hr2230 Rubber A | ||||
| 013 | 158057-6 | 9.24 | 11.18 | |
| Schroef 4X35 A | ||||
| 014 | 266351-3 | 0.83 | 1.00 | |
| Tandwielhuis Bhr242 A | ||||
| 015 | 144354-6 | 7.22 | 8.74 | |
| Keerring 25 Bhr240 A | ||||
| 015A | 213345-9 | 1.39 | 1.68 | |
| Bus Hr2300 | ||||
| 016 | 331890-3 | 2.71 | 3.28 | |
| Kogellager 6806Llu | ||||
| 017 | 211294-4 | 8.21 | 9.93 | |
| Blokkeerknop Bhr242 A | ||||
| 018 | 454112-5 | 1.18 | 1.43 | |
| Drukveer 3X28Mm Hr1830F | ||||
| 019 | 234264-6 | 0.83 | 1.00 | |
| Schakelhendelkap Bhr242/43 | ||||
| 020 | 453131-8 | 1.18 | 1.43 | |
| Schakelhendel Bhr242 | ||||
| 021 | 453125-3 | 2.71 | 3.28 | |
| O-Ring 21 A | ||||
| 022 | 213381-5 | 3.12 | 3.78 | |
| Dunne Sluitring 6 | ||||
| 023 | 253308-3 | 0.83 | 1.00 | |
| Drukveer 5 Hr2300 | ||||
| 024 | 234147-0 | 0.83 | 1.00 | |
| Drukpen DHR242/43 | ||||
| 025 | 326850-8 | 0.83 | 1.00 | |
| Drukveer 4 Hr23/2600 | ||||
| 026 | 233360-7 | 0.83 | 1.00 | |
| Blokkeerplaat Bhr242 | ||||
| 027 | 346537-6 | 1.18 | 1.43 | |
| Stalen Kogel 3 P | ||||
| 029 | 216019-1 | 0.83 | 1.00 | |
| Beitelhouder Hr2601Ft | ||||
| 030 | 140266-1 | 23.06 | 27.90 | |
| Keerring 9 Hr2811 A | ||||
| 030A | 213344-1 | 3.96 | 4.79 | |
| Niet meer leverbaar, geen vervanging | ||||
| 031 | 332139-4 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 032 | 227360-7 | |||
| Pen 6 Hk1820 | ||||
| 033 | 268226-2 | 1.26 | 1.52 | |
| Sluitring 30 Hr2300 | ||||
| 034 | 267414-8 | 0.83 | 1.00 | |
| Drukveer 31Mm Hr2300 | ||||
| 035 | 234148-8 | 1.18 | 1.43 | |
| Sluitring 30 Hr2300 | ||||
| 036 | 267153-0 | 0.83 | 1.00 | |
| Borgring Spiro30 Hr2300 | ||||
| 037 | 257932-4 | 3.12 | 3.78 | |
| Sluitring 30 Hr2300 | ||||
| 038 | 267153-0 | 0.83 | 1.00 | |
| Bus 9B Hr2601 | ||||
| 039 | 325783-4 | 0.98 | 1.19 | |
| Slagstuk B Hr2611Ft | ||||
| 040 | 325791-5 | 1.67 | 2.02 | |
| Revet 10 Hr2601 | ||||
| 041 | 325792-3 | 1.18 | 1.43 | |
| Drukveer 20 Hr2601 | ||||
| 042 | 234149-6 | 0.98 | 1.19 | |
| O-Ring Huis B Hr2601 | ||||
| 043 | 325793-1 | 2.71 | 3.28 | |
| O-Ring 9 Hr2440/50 | ||||
| 044 | 213073-6 | 0.83 | 1.00 | |
| Veerring 28 Hr2300 | ||||
| 045 | 233979-2 | 0.83 | 1.00 | |
| Slaghamer Bhr242 | ||||
| 046 | 326139-4 | 3.54 | 4.28 | |
| O-Ring 17.5 | ||||
| 047 | 213258-4 | 2.02 | 2.44 | |
| Zuiger-Cilinder Hr2300 | ||||
| 048 | 310345-1 | 8.21 | 9.93 | |
| Geleidingsplaat Bhr261Rde | ||||
| 049 | 346036-8 | 0.83 | 1.00 | |
| Zuigerpen Hr2440/50 A | ||||
| 050 | 324215-8 | 2.02 | 2.44 | |
| Drukveer 14 Bhr261Rde | ||||
| 051 | 234098-7 | 0.83 | 1.00 | |
| Sluitring 14 Hr2300 | ||||
| 052 | 267447-3 | 0.83 | 1.00 | |
| Kogellager 606Zz A | ||||
| 053 | 210137-7 | 0.98 | 1.19 | |
| Stopring Ext U6 Bhr242 | ||||
| 054 | 257336-0 | 0.83 | 1.00 | |
| Sluitring 7 LF1000 A | ||||
| 055 | 267322-3 | 0.83 | 1.00 | |
| Tandwiel 10 Hr2610 | ||||
| 056 | 227231-8 | 25.36 | 30.69 | |
| Koppelingsplaat A Hr2610 A | ||||
| 057 | 326849-3 | 4.45 | 5.38 | |
| Koppeling Bhr242 | ||||
| 058 | 326140-9 | 5.06 | 6.12 | |
| Schommellager 10 Hr2300 | ||||
| 059 | 219020-5 | 28.02 | 33.90 | |
| Tandwiel 32 Bhr242 | ||||
| 060 | 227588-7 | 5.71 | 6.91 | |
| Ring 8 Bhr242 | ||||
| 061 | 257323-9 | 0.83 | 1.00 | |
| Inbusbout M4X12 A | ||||
| 062 | 922118-6 | 0.83 | 1.00 | |
| Lagerborging B Bhr261Rde | ||||
| 063 | 346038-4 | 0.83 | 1.00 | |
| Kogellager 608Zz A | ||||
| 064 | 210046-0 | 0.83 | 1.00 | |
| Ring 8 Bhr243 | ||||
| 065 | 324212-4 | 4.45 | 5.38 | |
| Inbusbout M4X25 | ||||
| 066 | 922147-9 | 0.83 | 1.00 | |
| Vastzetblok Bhr242 | ||||
| 067 | 141230-5 | 3.12 | 3.78 | |
| O-Ring 75 Bhr242 | ||||
| 068 | 213767-3 | 0.98 | 1.19 | |
| Binnenhuis Bhr242 | ||||
| 069 | 318810-4 | 15.60 | 18.88 | |
| Dempingsvilt Hr2300 | ||||
| 070 | 443153-6 | 0.83 | 1.00 | |
| Inbusbout M4X12 A | ||||
| 071 | 922118-6 | 0.83 | 1.00 | |
| Lagerborging A Bhr242 | ||||
| 072 | 346536-8 | 1.18 | 1.43 | |
| Platpin 6Mm Bhr242 | ||||
| 073 | 256536-9 | 0.98 | 1.19 | |
| Gewichtgeleider Bhr242 | ||||
| 074 | 346538-4 | 0.83 | 1.00 | |
| Balansgewicht Bhr242 | ||||
| 075 | 313224-2 | 3.28 | 3.97 | |
| Gewichtgeleider Bhr242 | ||||
| 076 | 346538-4 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 077 | 253726-5 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 078 | 961018-5 | 0.83 | 1.00 | |
| O-Ring 22.4 | ||||
| 079 | 213008-7 | 0.98 | 1.19 | |
| Tandwiel 11 Bhr242 | ||||
| 080 | 141458-5 | 5.06 | 6.12 | |
| Kogellager 608 2Rs Hr5001C | ||||
| 081 | 210024-0 | 3.12 | 3.78 | |
| Sluitring 8X14X1Mm | ||||
| 082 | 253835-0 | 0.83 | 1.00 | |
| Anker A | ||||
| 083 | 619737-4 | 36.87 | 44.61 | |
| Kogellager 626Zz | ||||
| 084 | 210143-2 | 2.71 | 3.28 | |
| Veld Bhr242 A | ||||
| 085 | 529187-4 | 33.36 | 40.37 | |
| Circuit enkel icm geribb anker | ||||
| 086 | 620G68-8 | 112.06 | 135.59 | |
| Circuit enkel icm geribb anker | ||||
| 086-1 | 620G68-8 | 112.06 | 135.59 | |
| Motorhuis Set Bhr242 A | ||||
| 087 | 183C02-0 | 17.38 | 21.03 | |
| Label Serienr Bhr243 | ||||
| 088 | 896800-2 | 2.71 | 3.28 | |
| Naamplaat Bhr242* | ||||
| 089 | 896796-7 | 2.71 | 3.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 090 | 266326-2 | |||
| Motorhuis Set Bhr242 A | ||||
| 091 | 183C02-0 | 17.38 | 21.03 | |
| L+R Schakelhendel Bhr242 | ||||
| 092 | 453124-5 | 0.83 | 1.00 | |
| Schakelaarhandel Bhr242 | ||||
| 093 | 453123-7 | 0.83 | 1.00 | |
| Schakelaar C3Jw-1-P Bhr242 | ||||
| 094A | 650674-3 | 12.22 | 14.79 | |
| Schakelaar C3Jw-1-P Bhr242 | ||||
| 094B | 650709-0 | 13.82 | 16.72 | |
| Torsieveer 6Mm Bhr242 | ||||
| 095 | 233598-4 | 0.83 | 1.00 | |
| Blokkeerhandel Bhr242 | ||||
| 096 | 313226-8 | 0.83 | 1.00 | |
| Aansluitunit Bhr241 (3 Cont) A | ||||
| 097 | 644808-8 | 3.54 | 4.28 | |
| Dempings Vilt Bhr242 A | ||||
| 098 | 424476-1 | 0.83 | 1.00 | |
| Batterijhuis Set Bhr242 | ||||
| 099 | 187377-1 | 5.71 | 6.91 | |
| Rubber Pen 6 AC320H P | ||||
| 099A | 263005-3 | 0.83 | 1.00 | |
| Rubber Pen 5 Btw251 | ||||
| 100 | 263036-2 | 1.18 | 1.43 | |
| Pen 1,5 Btw251 | ||||
| 101 | 268184-2 | 0.83 | 1.00 | |
| Dempings Rubber Bhr242 | ||||
| 102 | 424473-7 | 1.39 | 1.68 | |
| Dempings Rubber Bhr242 | ||||
| 103 | 424473-7 | 1.39 | 1.68 | |
| Batterijhuis Set Bhr242 | ||||
| 104 | 187377-1 | 5.71 | 6.91 | |
| Rubber Pen 6 AC320H P | ||||
| 104A | 263005-3 | 0.83 | 1.00 | |
| Rubber Stofkap 35 Hr2440/50 | ||||
| 105 | 286263-4 | 0.98 | 1.19 | |
| Borgring 19 Hr2440/50 A | ||||
| 106 | 233940-9 | 0.98 | 1.19 | |
| Beitelblokkeerkap Hr2450Ft | ||||
| 107 | 418217-5 | 1.66 | 2.01 | |
| Aanslag Hr2450T | ||||
| 108 | 345333-9 | 1.00 | 1.21 | |
| Stalen Kogel 7.0 Hr2400 | ||||
| 109 | 216022-2 | 0.83 | 1.00 | |
| Geleidering Hr2440/50 | ||||
| 110 | 345187-4 | 0.83 | 1.00 | |
| Drukveer 21-29 Hr2440/50 | ||||
| 111 | 233916-6 | 0.83 | 1.00 | |
| Sluitring 21 Bhr261 | ||||
| 112 | 267279-8 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 113 | 324355-2 | |||
| Stalen Kogel 6 LF1000 A | ||||
| 114 | 216030-3 | 0.83 | 1.00 | |
| Torsieveer 31 Hr2450Ft | ||||
| 115 | 231669-1 | 0.83 | 1.00 | |
| Verwisselring Hr2450Ft | ||||
| 116 | 345334-7 | 1.39 | 1.68 | |
| Blokkeerkap Hr2450Ft | ||||
| 117 | 418218-3 | 0.98 | 1.19 | |
| Stalen Kogel 5.0 | ||||
| 118 | 216018-3 | 0.83 | 1.00 | |
| Bladveer Hr2450Ft | ||||
| 119 | 345335-5 | 0.83 | 1.00 | |
| Sluitring 24 Hr2450Ft | ||||
| 120 | 267270-6 | 0.83 | 1.00 | |
| Borgring 21 Hr2450Ft | ||||
| 121 | 233924-7 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 122 | 893072-0 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 123 | 890994-5 | |||
