Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DBM230'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

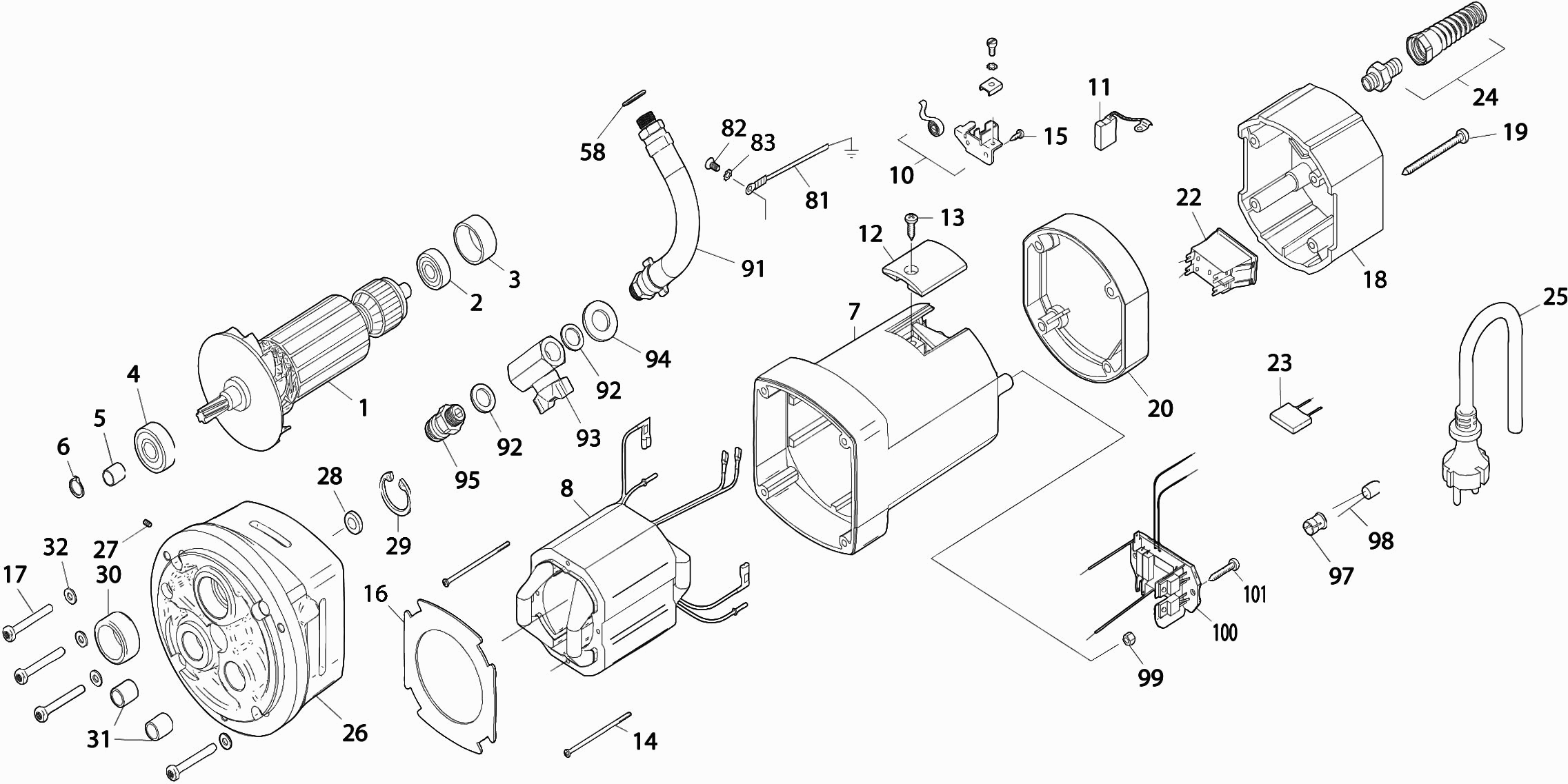

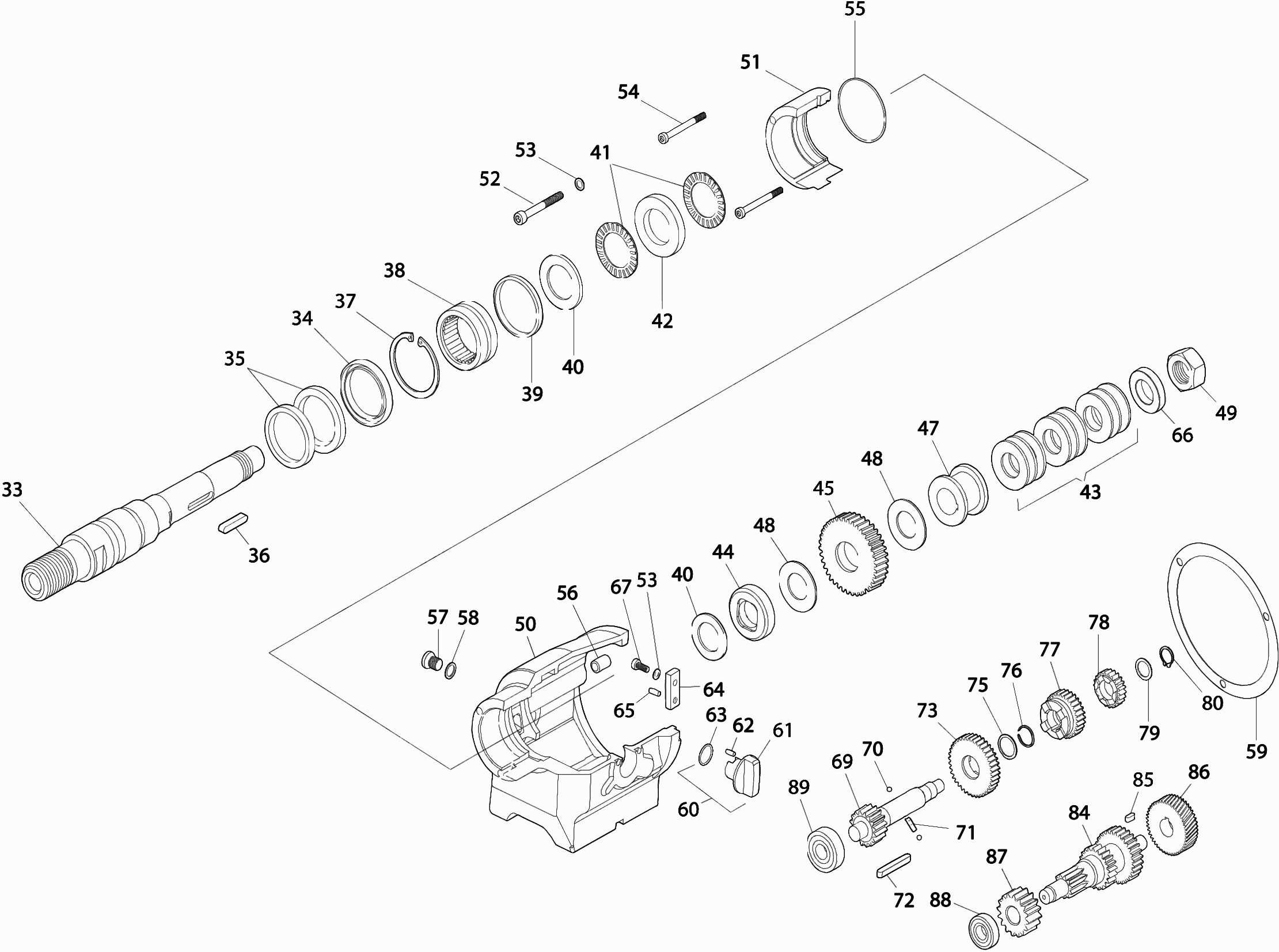

Tekeningen van de Makita DBM230
Onderdelen lijst van de Makita DBM230
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Anker Cpl Dbm230 | ||||
| 001 | EE73537100 | 366.86 | 443.90 | |
| Kogellager 6000Zz Ls10/1216L | ||||
| 002 | 210067-2 | 1.18 | 1.43 | |
| Lagerhuis Dbm230 A | ||||
| 003 | EE83000031 | 5.06 | 6.12 | |
| Kogellager 6201Rsz Dbm230 | ||||
| 004 | EE80410101 | 12.22 | 14.79 | |
| Glijbus 12X15X12,5 Dbm230 | ||||
| 005 | EE80420160 | 11.82 | 14.30 | |
| Borgring S-12 | ||||
| 006 | 961052-5 | 0.83 | 1.00 | |
| Motorhuis Cpl Dbm131 | ||||
| 007 | EE80900159 | 38.72 | 46.85 | |
| Veld Dbm230 | ||||
| 008 | EE73R53150 | 161.42 | 195.32 | |
| Koolborstelhouder Dbm131 | ||||
| 010 | EE80201199 | 17.40 | 21.05 | |
| Koolborstel DBM131 A | ||||
| 011 | EE7332022S | 13.82 | 16.72 | |
| Koolborsteldop Dbm230 | ||||
| 012 | EE80900073 | 0.98 | 1.19 | |
| Schroef Ck 4,2X13Mm | ||||
| 013 | EE80201270 | 1.20 | 1.45 | |
| Schroef 3X78 Dbm230 | ||||
| 014 | EE80201234 | 2.36 | 2.86 | |
| Schroef Ck 2,9X13Mm * | ||||
| 015 | EE80201252 | 0.83 | 1.00 | |
| Opvulplaat Dbm230 | ||||
| 016 | EE85000097 | 6.38 | 7.72 | |
| Schroef Ck 4,5X60Mm Dbm230 | ||||
| 017 | EE80201425 | 1.39 | 1.68 | |
| Motorhuis A Dbm230 | ||||
| 018 | EE73537240 | 13.83 | 16.73 | |
| Schroef Ck 4,8X70 Dbm230 | ||||
| 019 | EE80201286 | 1.67 | 2.02 | |
| Motorhuis B Dbm230 | ||||
| 020 | EE75613425 | 11.84 | 14.33 | |
| Schakelaar Dbm230 | ||||
| 022 | EE80600119 | 52.29 | 63.27 | |
| Condensator Ut120 | ||||
| 023 | EE80500010 | 10.52 | 12.73 | |
| Kabeltule Dbm230 | ||||
| 024 | EE80600174 | 5.71 | 6.91 | |
| Aardlekschakelaar Dbm230 | ||||
| 025 | EE73533262 | 169.36 | 204.93 | |
| Tandwielhuisdeksel Dbm230 | ||||
| 026 | EE73537610 | 124.80 | 151.01 | |
| Schroef M6X6 Dbm230 | ||||
| 027 | EE80200757 | 1.00 | 1.21 | |
| Pakkingring 15X21X3 Dbm230 | ||||
| 028 | EE83000042 | 7.22 | 8.74 | |
| Borgring R-32X1,5 Dbm230 | ||||
| 029 | EE80201351 | 0.83 | 1.00 | |
| Naaldlager Hk2012 Dbm230 | ||||
| 030 | EE80420150 | 11.82 | 14.30 | |
| Naaldlager Hk1212 Dbm230 | ||||
| 031 | EE80420130 | 10.50 | 12.70 | |
| As Dbm230 * | ||||
| 032 | EE73531420 | 138.80 | 167.95 | |
| Keerring 40X52X7 Dbm230 | ||||
| 034 | EE83000073 | 28.02 | 33.90 | |
| Keerring 40X55X7 Dbm230 | ||||
| 035 | EE83000074 | 28.02 | 33.90 | |
| Spie 6X6X32 Dbm230 | ||||
| 036 | EE80200607 | 2.36 | 2.86 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 037 | EE80201337 | |||
| Naaldlager Nks37 Dbm230 | ||||
| 038 | EE80420155 | 51.83 | 62.71 | |
| Ring Dbm230 | ||||
| 039 | EE73531450 | 8.21 | 9.93 | |
| Schijf Ls3047 Dbm230 | ||||
| 040 | EE80420165 | 10.50 | 12.70 | |
| Naaldlager Axk3047A Dbm230 | ||||
| 041 | EE80420038 | 10.50 | 12.70 | |
| Schijf Zs3151 Dbm230 | ||||
| 042 | EE80420168 | 28.02 | 33.90 | |
| Plaatveer 50X25,4X3 Dbm230 | ||||
| 043 | EE80200717 | 6.38 | 7.72 | |
| Borgring Dbm230 | ||||
| 044 | EE73531425 | 25.36 | 30.69 | |
| Tandwiel Dbm230 | ||||
| 045 | EE73533430 | 82.76 | 100.14 | |
| Pas-Cilinder Dbm230 | ||||
| 047 | EE73531423 | 44.96 | 54.40 | |
| Vulring Dbm230 | ||||
| 048 | EE85000076 | 3.54 | 4.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 049 | EE80201010 | |||
| Tandwielhuis A Dbm230 | ||||
| 050 | EE73537400 | 169.36 | 204.93 | |
| Ring Dbm230 | ||||
| 051 | EE73531410 | 19.23 | 23.27 | |
| Bout M6X25 Dbm230 | ||||
| 052 | EE80201125 | 0.83 | 1.00 | |
| Borgring S6 | ||||
| 053 | EE80201362 | 0.83 | 1.00 | |
| Bout M5X55 Dbm230 | ||||
| 054 | EE80201211 | 1.39 | 1.68 | |
| O-Ring 50,52X1,78 Dbm131 | ||||
| 055 | EE83000080 | 3.96 | 4.79 | |
| Bus Dbm230 | ||||
| 056 | EE80201050 | 10.50 | 12.70 | |
| Asblokkeering Dbm230 | ||||
| 057 | EE80201406 | 3.12 | 3.78 | |
| Pakkingring 1/8 Dbm131 | ||||
| 058 | EE83000106 | 0.83 | 1.00 | |
| Pakking Dbm230 | ||||
| 059 | EE82000066 | 5.71 | 6.91 | |
| Toerenknop Dbm131 | ||||
| 060 | EE73531545 | 19.29 | 23.34 | |
| Toerenknop Dbm131 | ||||
| 061 | EE73531545 | 19.29 | 23.34 | |
| Pen 4,6X12 Dbm230 | ||||
| 062 | EE80200578 | 0.83 | 1.00 | |
| O-Ring 18,77X1,75 Dbm131 | ||||
| 063 | EE83000081 | 0.98 | 1.19 | |
| Tandwielbalans Dbm230 | ||||
| 064 | EE73531542 | 17.40 | 21.05 | |
| Pen 5,6X14 Dbm230 | ||||
| 065 | EE80200579 | 0.83 | 1.00 | |
| Veerring 6 Dbm230 | ||||
| 066 | EE80201364 | 0.98 | 1.19 | |
| Bout M5X12 Dbm230 | ||||
| 067 | EE80201230 | 0.98 | 1.19 | |
| Tandwielas Dbm230 | ||||
| 069 | EE73533490 | 98.23 | 118.86 | |
| Kogel 5Mm Dbm230 | ||||
| 070 | EE80410081 | 0.98 | 1.19 | |
| Veer Dbm230 | ||||
| 071 | EE80200694 | 1.39 | 1.68 | |
| Spie 6X6X50 Dbm230 | ||||
| 072 | EE80200610 | 2.71 | 3.28 | |
| Tandwiel A Dbm230 | ||||
| 073 | EE73531460 | 98.23 | 118.86 | |
| Ring 20X24,5X1 Dbm230 | ||||
| 075 | EE73531494 | 1.39 | 1.68 | |
| Veerring 20 Dbm230 | ||||
| 076 | EE80200749 | 1.39 | 1.68 | |
| Tandwiel Dbm230 | ||||
| 077 | EE73531550 | 82.76 | 100.14 | |
| Tandwiel B Dbm230 | ||||
| 078 | EE73531470 | 98.23 | 118.86 | |
| Ring 16X22X1 Dbm230 | ||||
| 079 | EE80200514 | 0.98 | 1.19 | |
| Borgring 16X1 Dbm230 | ||||
| 080 | EE80201316 | 0.98 | 1.19 | |
| Aardekabel Dbm230 | ||||
| 081 | EE73325185 | 2.71 | 3.28 | |
| Schroef Ck M4X6Mm | ||||
| 082 | EE80201200 | 0.98 | 1.19 | |
| Borgring 4,3Mm | ||||
| 083 | EE80200752 | 0.83 | 1.00 | |
| Tussenas Dbm230 | ||||
| 084 | EE73531500 | 98.23 | 118.86 | |
| Spie 5X5X10 Dbm230 | ||||
| 085 | EE80200600 | 0.98 | 1.19 | |
| Tandwiel C Dbm230 | ||||
| 086 | EE73531440 | 72.58 | 87.82 | |
| Tandwiel D Dbm230 | ||||
| 087 | EE73533510 | 48.40 | 58.56 | |
| Kogellager Dbm230 | ||||
| 088 | EE80410031 | 13.82 | 16.72 | |
| Kogellager 6302 Dbm230 | ||||
| 089 | EE80410160 | 17.38 | 21.03 | |
| Slang Cpl Dbm131 | ||||
| 091 | EE83000109 | 15.60 | 18.88 | |
| Pakking Ring 1/4 Dbm131 | ||||
| 092 | EE83000107 | 0.83 | 1.00 | |
| Kogelkraan Dbm230 | ||||
| 093 | EE83000117 | 19.29 | 23.34 | |
| Slangconn.Gard.920 Dbm131/230A | ||||
| 095 | EE83000124 | 5.98 | 7.24 | |
| Led Houder Dbm131 | ||||
| 097 | EE80601153 | 1.02 | 1.23 | |
| Led Dbm131 | ||||
| 098 | EE80601154 | 3.72 | 4.50 | |
| Moer Plastic | ||||
| 099 | EE80201295 | 0.83 | 1.00 | |
| Circuit Dbm230 | ||||
| 100 | EE80601155 | 161.42 | 195.32 | |
| Schroef Ck 4,2X25Mm * | ||||
| 101 | EE80201273 | 0.83 | 1.00 | |
