Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DBN500'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

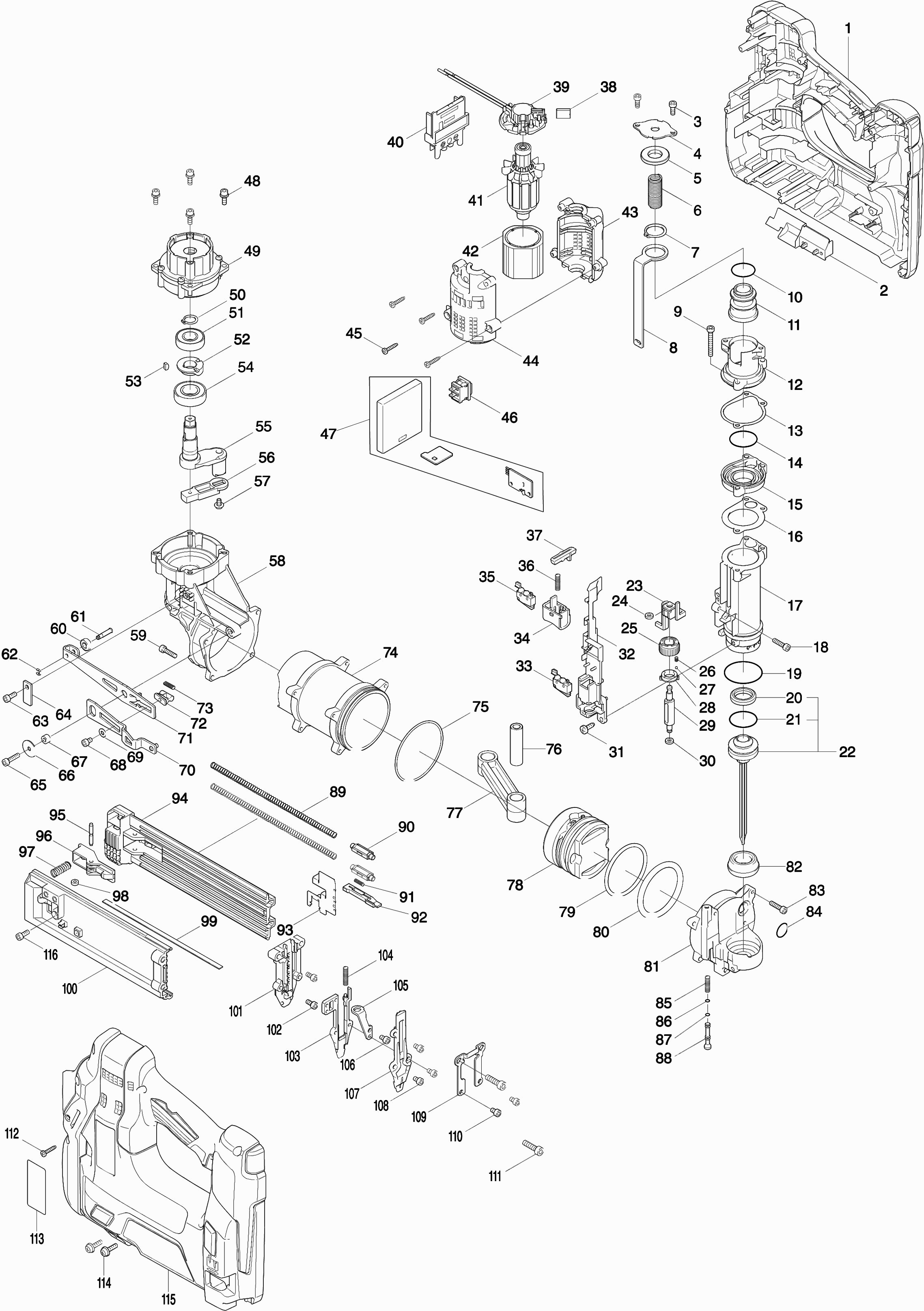

Tekeningen van de Makita DBN500
Onderdelen lijst van de Makita DBN500
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Behuizing | ||||
001 | 187864-0@141 | 53.39 | 64.60 | |
Borgmoer M4x7mm | ||||
001A | 252126-6@141 | 0.83 | 1.00 | |
Waarschuwingslabel Dbn500 | ||||
001B | 803N94-6@141 | 2.80 | 3.39 | |
Waarschuwingslabel Dbn500 | ||||
001C | 803N94-6@141 | 2.80 | 3.39 | |
Lichtafdekplaat | ||||
002 | 454946-6@141 | 2.44 | 2.95 | |
Inbusbout M4x10 | ||||
003 | 922112-8@141 | 0.83 | 1.00 | |
Bovendeksel | ||||
004 | 346773-4@141 | 1.02 | 1.23 | |
Bescherming | ||||
005 | 424625-0@141 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
006 | 234327-8@141 | |||
Borgring S-19 | ||||
007 | 961059-1@141 | 0.83 | 1.00 | |
Koppelarm B | ||||
008 | 346776-8@141 | 5.22 | 6.32 | |
Moerbout M4x30mm | ||||
009 | 922157-6@141 | 0.83 | 1.00 | |
O-ring 21 | ||||
010 | 213381-5@141 | 3.22 | 3.90 | |
Klepventiel | ||||
011 | 326398-0@141 | 9.52 | 11.52 | |
Cilinder kop | ||||
012 | 319114-7@141 | 8.46 | 10.24 | |
Pakking A | ||||
013 | 423472-6@141 | 2.44 | 2.95 | |
O-ring 24mm | ||||
014 | 213364-5@141 | 0.83 | 1.00 | |
Verdeler | ||||
015 | 319116-3@141 | 6.16 | 7.45 | |
Pakking B | ||||
016 | 423473-4@141 | 2.44 | 2.95 | |
Cilinder | ||||
017 | 319113-9@141 | 12.58 | 15.22 | |
Inbusbout 4x16 | ||||
018 | 922127-5@141 | 0.83 | 1.00 | |
O-ring 34 | ||||
019 | 213475-6@141 | 0.83 | 1.00 | |
Bescherming Dbn500 | ||||
020 | 421551-4@141 | 4.58 | 5.54 | |
O-ring 24mm | ||||
021 | 213364-5@141 | 0.83 | 1.00 | |
Slagpen | ||||
022 | 135644-8@141 | 53.39 | 64.60 | |
Afstelblok | ||||
023 | 310585-1@141 | 22.75 | 27.53 | |
Urethaan ring 4 | ||||
024 | 262130-7@141 | 0.83 | 1.00 | |
Afsteller | ||||
025 | 454949-0@141 | 4.58 | 5.54 | |
Drukveer 2 | ||||
026 | 234254-9@141 | 1.21 | 1.46 | |
Stalen kogel 2.3 | ||||
027 | 216031-1@141 | 0.83 | 1.00 | |
Afstelgeleider | ||||
028 | 453807-7@141 | 3.83 | 4.63 | |
Verstelstang Dbn500D | ||||
029 | 326399-8@141 | 2.80 | 3.39 | |
Urethaan ring 4 | ||||
030 | 262130-7@141 | 0.83 | 1.00 | |
Tapschroef M4x12mm Ck | ||||
031 | 266026-4@141 | 0.83 | 1.00 | |
Schakel montageplaat | ||||
032 | 454938-5@141 | 4.08 | 4.94 | |
Schakelaar | ||||
033 | 632C01-4@141 | 10.81 | 13.08 | |
Schakelknop | ||||
034 | 454939-3@141 | 2.93 | 3.55 | |
Schakelaar | ||||
035 | 632C01-4@141 | 10.81 | 13.08 | |
Drukveer 5 | ||||
036 | 231372-4@141 | 0.83 | 1.00 | |
Drukveer 5 | ||||
036 | 234037-7@141 | 0.83 | 1.00 | |
Blokkeerplaat | ||||
037 | 454952-1@141 | 2.08 | 2.52 | |
Koolborstelset Cb448 | ||||
038 | 196854-2@141 | 3.65 | 4.42 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
039 | 632B92-9@141 | |||
Aansluitunit Bcl182D(3 Cont) A | ||||
040 | 643523-1@141 | 5.22 | 6.32 | |
Anker | ||||
041 | 619339-6@141 | 23.75 | 28.74 | |
Magneet houder | ||||
042 | 638989-8@141 | 16.13 | 19.52 | |
Motorhuis | ||||
043 | 187809-8@141 | 7.44 | 9.00 | |
Motorhuis | ||||
044 | 187809-8@141 | 7.44 | 9.00 | |
Tapschroef 3x16 | ||||
045 | 266130-9@141 | 0.83 | 1.00 | |
Schakelaar sle6a2-33 | ||||
046 | 651533-4@141 | 3.83 | 4.63 | |
Toerenregelcircuit | ||||
047 | 620291-3@141 | 115.42 | 139.66 | |
Zeskant bout 4x12 | ||||
048 | 266273-7@141 | 0.83 | 1.00 | |
Aandrijf excentriek | ||||
049 | 126398-8@141 | 43.02 | 52.05 | |
Borgring S-12 | ||||
050 | 961052-5@141 | 0.83 | 1.00 | |
Kogellager 6001zz | ||||
051 | 211148-5@141 | 8.46 | 10.24 | |
Zuiger HR006G | ||||
052 | 312A68-3@141 | 8.52 | 10.31 | |
Inlegspie 3 | ||||
053 | 254031-3@141 | 0.83 | 1.00 | |
Kogellager 6002zz | ||||
054 | 211243-1@141 | 2.08 | 2.52 | |
Slijtstrip DBN500 A | ||||
055 | 313346-8@141 | 3.70 | 4.48 | |
Magnetisch veld cpl | ||||
056 | 142440-7@141 | 5.22 | 6.32 | |
Schroef 4x8 | ||||
057 | 911109-2@141 | 0.83 | 1.00 | |
Karterdeksel | ||||
058 | 319112-1@141 | 33.12 | 40.08 | |
Inbusbout 4x16 | ||||
059 | 922127-5@141 | 0.83 | 1.00 | |
Kogellager 604zz | ||||
060 | 210036-3@141 | 3.22 | 3.90 | |
Pen 4 | ||||
061 | 256553-9@141 | 1.01 | 1.22 | |
Stopring E-3 | ||||
062 | 961017-7@141 | 0.83 | 1.00 | |
Inbusbout M4x10 | ||||
063 | 922112-8@141 | 0.83 | 1.00 | |
Plaat B | ||||
064 | 346778-4@141 | 0.83 | 1.00 | |
Inbusbout 4x16 | ||||
065 | 922127-5@141 | 0.83 | 1.00 | |
Sluitring 4 | ||||
066 | 267071-2@141 | 0.83 | 1.00 | |
Bus 8mm | ||||
067 | 257822-1@141 | 1.43 | 1.73 | |
Zeskant bout 4x6 | ||||
068 | 922102-1@141 | 0.83 | 1.00 | |
Sluitring 4 | ||||
069 | 941051-3@141 | 0.83 | 1.00 | |
Slagpenhouder | ||||
070 | 142442-3@141 | 8.52 | 10.31 | |
Koppelarm A | ||||
071 | 346775-0@141 | 10.81 | 13.08 | |
As | ||||
072 | 310587-7@141 | 6.60 | 7.99 | |
Drukveer 3 | ||||
073 | 234119-5@141 | 4.26 | 5.15 | |
Cilinder | ||||
074 | 332099-0@141 | 53.38 | 64.59 | |
O-ring 63 | ||||
075 | 213709-7@141 | 1.72 | 2.08 | |
Pijp 12mm | ||||
076 | 332101-9@141 | 3.22 | 3.90 | |
Drijfstang | ||||
077 | 454937-7@141 | 2.80 | 3.39 | |
Zuiger A | ||||
078 | 454944-0@141 | 5.87 | 7.10 | |
O-ring 50 | ||||
079 | 213605-9@141 | 0.83 | 1.00 | |
O-ring 50 | ||||
080 | 213609-1@141 | 2.80 | 3.39 | |
Cilindereind | ||||
081 | 319115-5@141 | 14.90 | 18.03 | |
Cilindereind | ||||
081A | 319115-5@141 | 14.90 | 18.03 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
081B | 312A55-2@141 | |||
Bescherming | ||||
082 | 424624-2@141 | 6.58 | 7.96 | |
Inbusbout 4x16 | ||||
083 | 922127-5@141 | 0.83 | 1.00 | |
O-ring 14 | ||||
084 | 213162-7@141 | 0.83 | 1.00 | |
O-ring 14 | ||||
084A | 213162-7@141 | 0.83 | 1.00 | |
O-ring 13mm DHW080 | ||||
084B | 213238-0@141 | 0.83 | 1.00 | |
Drukveer 6 | ||||
085 | 234329-4@141 | 0.83 | 1.00 | |
O-Ring 3 blw A | ||||
086 | 213A17-2@141 | 0.83 | 1.00 | |
O-Ring 3 blw A | ||||
087 | 213A17-2@141 | 0.83 | 1.00 | |
Klepsteller | ||||
088 | 326401-7@141 | 3.83 | 4.63 | |
Drukveer 6 | ||||
089 | 234325-2@141 | 2.08 | 2.52 | |
Bus | ||||
090 | 454940-8@141 | 1.72 | 2.08 | |
Drukveer 3 | ||||
091 | 234326-0@141 | 0.83 | 1.00 | |
Stopper | ||||
092 | 310584-3@141 | 6.60 | 7.99 | |
Drukplaat | ||||
093 | 346782-3@141 | 5.22 | 6.32 | |
Kap schuifdeksel | ||||
094 | 454942-4@141 | 10.81 | 13.08 | |
Pen 3 | ||||
095 | 256793-9@141 | 0.83 | 1.00 | |
Blokkeerhandel | ||||
096 | 454945-8@141 | 2.80 | 3.39 | |
Drukveer 7 | ||||
097 | 233197-2@141 | 0.83 | 1.00 | |
Urethaan ring 3 | ||||
098 | 262054-7@141 | 1.01 | 1.22 | |
Nagelplaat | ||||
099 | 346774-2@141 | 1.01 | 1.22 | |
Magazijn | ||||
100 | 454943-2@141 | 12.58 | 15.22 | |
Zeskant moer M4 | ||||
100A | 931102-0@141 | 0.83 | 1.00 | |
Plaat | ||||
101 | 310588-5@141 | 49.85 | 60.32 | |
Inbusbout M4X8 A | ||||
102 | 265911-8@141 | 0.83 | 1.00 | |
Centreerplaat | ||||
103 | 142443-1@141 | 28.73 | 34.76 | |
Drukveer 4 | ||||
104 | 234328-6@141 | 0.83 | 1.00 | |
Arm | ||||
105 | 346779-2@141 | 1.01 | 1.22 | |
Zeskant bout 4x6 | ||||
106 | 922102-1@141 | 0.83 | 1.00 | |
Slagpengeleider | ||||
107 | 310586-9@141 | 28.85 | 34.91 | |
Zeskant bout 4x6 | ||||
108 | 922102-1@141 | 0.83 | 1.00 | |
Plaat A | ||||
109 | 346777-6@141 | 1.43 | 1.73 | |
Zeskant bout 4x6 | ||||
110 | 922102-1@141 | 0.83 | 1.00 | |
Inbusbout 5x20 | ||||
111 | 266369-4@141 | 0.83 | 1.00 | |
Tapschroef 3x16 | ||||
112 | 266130-9@141 | 0.83 | 1.00 | |
Naamplaat Dbn500 | ||||
113 | 815P33-6@141 | 2.93 | 3.55 | |
Schroef 4x12 | ||||
114 | 911116-5@141 | 0.83 | 1.00 | |
Behuizing | ||||
115 | 187864-0@141 | 53.39 | 64.60 | |
Borgmoer M4x7mm | ||||
115A | 252126-6@141 | 0.83 | 1.00 | |
Waarschuwingslabel Dbn500 | ||||
115B | 803N94-6@141 | 2.80 | 3.39 | |
Inbusbout M4x10 | ||||
116 | 922112-8@141 | 0.83 | 1.00 |
