Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DHR400'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

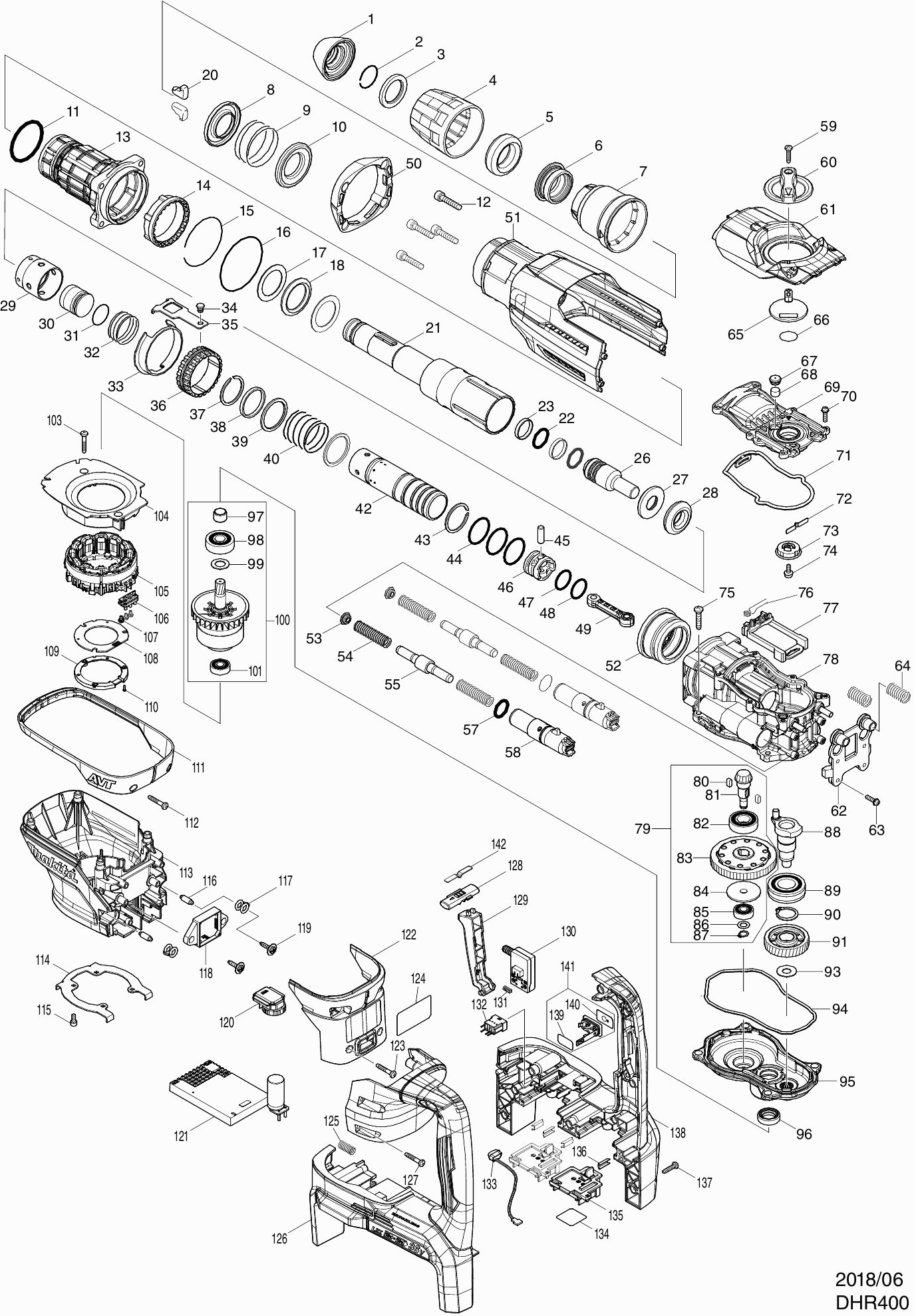

Tekeningen van de Makita DHR400
Onderdelen lijst van de Makita DHR400
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Beitelhouderkap | ||||
| 001 | 286292-7 | 1.72 | 2.08 | |
| Borgring 25 | ||||
| 002 | 233948-3 | 0.83 | 1.00 | |
| Ring 28 | ||||
| 003 | 257308-5 | 1.72 | 2.08 | |
| Beitelblokkeerkap | ||||
| 004 | 454330-5 | 1.72 | 2.08 | |
| Rubber ring 30 | ||||
| 005 | 262167-4 | 4.58 | 5.54 | |
| Vergrendelring | ||||
| 006 | 326272-2 | 5.22 | 6.32 | |
| Ontgrendelkap | ||||
| 007 | 454331-3 | 2.45 | 2.96 | |
| Veergeleider | ||||
| 008 | 346670-4 | 0.83 | 1.00 | |
| Drukveer 46mm | ||||
| 009 | 234288-2 | 0.83 | 1.00 | |
| Veergeleider | ||||
| 010 | 346670-4 | 0.83 | 1.00 | |
| O-ring 46 | ||||
| 011 | 213615-6 | 0.83 | 1.00 | |
| Zeskant bout 6x30 | ||||
| 012 | 922351-0 | 0.83 | 1.00 | |
| Cilinder compleet | ||||
| 013 | 141956-9 | 45.06 | 54.52 | |
| O-Ring Sa1004 | ||||
| 013C10 | 213246-1 | 0.83 | 1.00 | |
| Keerring Hr4013 | ||||
| 013C20 | 213490-0 | 2.80 | 3.39 | |
| O-ring 32 | ||||
| 013C30 | 213492-6 | 1.72 | 2.08 | |
| Glijlager 32 | ||||
| 013C40 | 214457-1 | 9.54 | 11.54 | |
| Veerring 45 | ||||
| 013C50 | 233963-7 | 0.83 | 1.00 | |
| Blokkeerbus | ||||
| 014 | 454337-1 | 1.27 | 1.54 | |
| Veerring 59 | ||||
| 015 | 234290-5 | 0.83 | 1.00 | |
| O-ring 65 | ||||
| 016 | 213707-1 | 1.43 | 1.73 | |
| Sluitring 32 | ||||
| 017 | 267469-3 | 0.83 | 1.00 | |
| Rubber ring 32 | ||||
| 018 | 262168-2 | 2.08 | 2.52 | |
| Sluitring 32 | ||||
| 019 | 267469-3 | 0.83 | 1.00 | |
| Gereedschapklem | ||||
| 020 | 310257-8 | 6.58 | 7.96 | |
| Beitelhouder | ||||
| 021 | 326268-3 | 142.97 | 172.99 | |
| O-ring 20 | ||||
| 022 | 213317-4 | 0.83 | 1.00 | |
| Fluoride ring 25 | ||||
| 023 | 213392-0 | 9.52 | 11.52 | |
| O-ring 20 | ||||
| 024 | 213317-4 | 0.83 | 1.00 | |
| Fluoride ring 25 | ||||
| 025 | 213392-0 | 9.52 | 11.52 | |
| Slagbout | ||||
| 026 | 326269-1 | 5.22 | 6.32 | |
| Ring 17 | ||||
| 027 | 326274-8 | 2.56 | 3.10 | |
| Rubber ring 18 | ||||
| 028 | 262166-6 | 4.58 | 5.54 | |
| Geleidebus | ||||
| 029 | 454347-8 | 1.70 | 2.06 | |
| Slaghamer | ||||
| 030 | 326270-6 | 3.22 | 3.90 | |
| O-ring 22 | ||||
| 031 | 213695-2 | 3.65 | 4.42 | |
| Drukveer 33mm | ||||
| 032 | 234289-0 | 0.83 | 1.00 | |
| Geleidering | ||||
| 033 | 346673-8 | 4.58 | 5.54 | |
| Platkoppin 6mm . | ||||
| 034 | 256548-2 | 0.83 | 1.00 | |
| Verbindingsplaat | ||||
| 035 | 346671-2 | 1.01 | 1.22 | |
| Geleidebus | ||||
| 036 | 313255-1 | 10.81 | 13.08 | |
| Borgring | ||||
| 037 | 257991-8 | 0.83 | 1.00 | |
| Ring 33 | ||||
| 038 | 257340-9 | 1.01 | 1.22 | |
| Sluitring 33 | ||||
| 039 | 267470-8 | 1.21 | 1.46 | |
| Drukveer 34mm | ||||
| 040 | 234287-4 | 0.83 | 1.00 | |
| Sluitring 33 | ||||
| 041 | 267470-8 | 1.21 | 1.46 | |
| Cilinder 28.5 | ||||
| 042 | 332063-1 | 36.90 | 44.65 | |
| Borgring | ||||
| 043 | 257991-8 | 0.83 | 1.00 | |
| O-ring 30 | ||||
| 044 | 213406-5 | 1.21 | 1.46 | |
| Pen 7 | ||||
| 045 | 256197-5 | 1.21 | 1.46 | |
| Zuiger | ||||
| 046 | 419004-5 | 1.72 | 2.08 | |
| O-ring 21 | ||||
| 047 | 213379-2 | 0.83 | 1.00 | |
| O-ring 22 | ||||
| 048 | 213695-2 | 3.65 | 4.42 | |
| Drijfstang | ||||
| 049 | 454317-7 | 5.22 | 6.32 | |
| Afdekkap | ||||
| 050 | 424560-2 | 1.72 | 2.08 | |
| Huis deksel | ||||
| 051 | 141957-7 | 17.90 | 21.66 | |
| Tandwiel 26 | ||||
| 052 | 227613-4 | 16.07 | 19.44 | |
| Plaat tbv veer | ||||
| 053 | 454342-8 | 0.83 | 1.00 | |
| Drukveer 11mm | ||||
| 054 | 234286-6 | 0.83 | 1.00 | |
| Balansgewicht | ||||
| 055 | 326273-0 | 2.80 | 3.39 | |
| Drukveer 11mm | ||||
| 056 | 234286-6 | 0.83 | 1.00 | |
| O-ring 19 | ||||
| 057 | 213325-5 | 0.83 | 1.00 | |
| Houder | ||||
| 058 | 142289-5 | 6.58 | 7.96 | |
| Tapschroef 4x18 | ||||
| 059 | 265A48-7 | 0.90 | 1.09 | |
| Verstelknop | ||||
| 060 | 454326-6 | 1.72 | 2.08 | |
| Krukashuiskap DHR400 | ||||
| 061 | 319652-9 | 9.52 | 11.52 | |
| Veerhouder DHR400 | ||||
| 062 | 458098-5 | 2.08 | 2.52 | |
| Schroef 4X16 A | ||||
| 063 | 911526-6 | 0.83 | 1.00 | |
| Drukveer 12mm | ||||
| 064 | 234282-4 | 0.83 | 1.00 | |
| Krukasgeleider | ||||
| 065 | 454345-2 | 1.43 | 1.73 | |
| O-ring 18 | ||||
| 066 | 213262-3 | 1.01 | 1.22 | |
| Filterkap | ||||
| 067 | 424556-3 | 0.83 | 1.00 | |
| Filter | ||||
| 068 | 443182-9 | 0.83 | 1.00 | |
| Tandwielhuiskap | ||||
| 069 | 454319-3 | 3.22 | 3.90 | |
| Schroef 4X16 A | ||||
| 070 | 911526-6 | 0.83 | 1.00 | |
| Afdichtring B | ||||
| 071 | 424559-7 | 1.06 | 1.28 | |
| Bladveer | ||||
| 072 | 232280-2 | 0.83 | 1.00 | |
| Verbindingsring DHR400 | ||||
| 073 | 458100-4 | 1.72 | 2.08 | |
| Schroef 4x10 | ||||
| 074 | 911511-9 | 0.83 | 1.00 | |
| Tapschroef 5x25 | ||||
| 075 | 266041-8 | 0.83 | 1.00 | |
| Torsieveer 7 | ||||
| 076 | 233603-7 | 0.83 | 1.00 | |
| Verbindingsring | ||||
| 077 | 454338-9 | 2.08 | 2.52 | |
| Krukashuis | ||||
| 078 | 141953-5 | 80.00 | 96.80 | |
| Koppelbegrenzer | ||||
| 079 | 126290-8 | 90.50 | 109.50 | |
| Inlegspie 4 | ||||
| 080 | 254239-9 | 1.01 | 1.22 | |
| Tandwiel 7 Hr4013C | ||||
| 081 | 227612-6 | 7.44 | 9.00 | |
| Kogellager 6002llu | ||||
| 082 | 211232-6 | 7.44 | 9.00 | |
| Koppelbegrenzer Hr4013C | ||||
| 083 | 141959-3 | 60.98 | 73.79 | |
| Kraagrevet 8Mm | ||||
| 084 | 324727-1 | 4.58 | 5.54 | |
| Kogellager 608ddw | ||||
| 085 | 210005-4 | 4.58 | 5.54 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 086 | 253215-0 | 0.83 | 1.00 | |
| Borgring S-8 | ||||
| 087 | 961004-6 | 0.83 | 1.00 | |
| Krukas | ||||
| 088 | 326271-4 | 10.81 | 13.08 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 089 | 210183-0 | |||
| Borgring S-20 | ||||
| 090 | 961060-6 | 0.83 | 1.00 | |
| Tandwiel 37 | ||||
| 091 | 227772-4 | 7.44 | 9.00 | |
| Sluitring 10 | ||||
| 093 | 253180-3 | 1.01 | 1.22 | |
| Afdichtring A | ||||
| 094 | 424558-9 | 1.01 | 1.22 | |
| Tandwielhuis | ||||
| 095 | 141955-1 | 46.85 | 56.69 | |
| Keerring 10 | ||||
| 096 | 213231-4 | 5.88 | 7.11 | |
| Bus 12 | ||||
| 097 | 331596-3 | 5.22 | 6.32 | |
| Kogellager 6201llu | ||||
| 098 | 211137-0 | 5.22 | 6.32 | |
| Sluitring 12 | ||||
| 099 | 253744-3 | 0.83 | 1.00 | |
| Anker compleet DHR400 | ||||
| 100 | 519492-7 | 115.42 | 139.66 | |
| Kogellager 608ddw | ||||
| 101 | 210005-4 | 4.58 | 5.54 | |
| Tapschroef 4x25 | ||||
| 103 | 265999-8 | 0.83 | 1.00 | |
| Tussenplaat DHR400 | ||||
| 104 | 458099-3 | 2.80 | 3.39 | |
| Anker DHR400 | ||||
| 105 | 629335-6 | 57.06 | 69.04 | |
| Aansluitcontact DHR400 | ||||
| 106 | 632L39-3 | 5.24 | 6.34 | |
| Schroef M3X6 | ||||
| 107 | 652031-1 | 0.83 | 1.00 | |
| Controller B DHR400 | ||||
| 108 | 620795-5 | 23.75 | 28.74 | |
| Stopper DHR400 | ||||
| 109 | 687877-6 | 2.45 | 2.96 | |
| Parker Ck 2x6mm | ||||
| 110 | 266490-9 | 0.83 | 1.00 | |
| Beschermring | ||||
| 111 | 454348-6 | 8.46 | 10.24 | |
| Tapschroef 4x25 | ||||
| 112 | 265999-8 | 0.83 | 1.00 | |
| Motorhuis DHR400 | ||||
| 113 | 458051-1 | 16.07 | 19.44 | |
| Geleidingsplaat DHR400 | ||||
| 114 | 347299-9 | 8.52 | 10.31 | |
| Inbusbout M4x10 | ||||
| 115 | 922112-8 | 0.83 | 1.00 | |
| Kraagpen 4-6 DHR400 | ||||
| 116 | 256380-4 | 0.83 | 1.00 | |
| O-Ring DHR400 | ||||
| 117 | 422241-2 | 0.83 | 1.00 | |
| Acceleratiemeter unit DHR400 | ||||
| 118 | 620797-1 | 49.90 | 60.38 | |
| Schroef 4X18 | ||||
| 119 | 251599-0 | 0.83 | 1.00 | |
| Circuit DHR400 | ||||
| 120 | 620796-3 | 16.07 | 19.44 | |
| Controller DHR400 | ||||
| 121 | 620794-7 | 197.02 | 238.39 | |
| Controller kap DHR400 | ||||
| 122 | 458054-5 | 4.08 | 4.94 | |
| Tapschroef 4x25 | ||||
| 123 | 265999-8 | 0.83 | 1.00 | |
| Naamplaat DHR400 | ||||
| 124 | 854C13-9 | 2.80 | 3.39 | |
| Drukveer 8 | ||||
| 125 | 232411-3 | 0.83 | 1.00 | |
| Motorhuisset DHR400 | ||||
| 126 | 183J10-3 | 39.89 | 48.27 | |
| Rubber pen 6 | ||||
| 126C10 | 263005-3 | 0.83 | 1.00 | |
| Tapschroef 4x25 | ||||
| 127 | 265999-8 | 0.83 | 1.00 | |
| Schakelblokkeering DHR400 | ||||
| 128 | 458096-9 | 2.08 | 2.52 | |
| Schakelaarhandel DHR400 | ||||
| 129 | 458097-7 | 1.72 | 2.08 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 130 | 651083-9 | 19.88 | 24.05 | |
| Drukveer 5 | ||||
| 131 | 232418-9 | 0.83 | 1.00 | |
| Stekker DHR400 | ||||
| 132 | 632L47-4 | 17.92 | 21.68 | |
| Licht Circuit Dhp483 | ||||
| 133 | 620549-0 | 3.65 | 4.42 | |
| Serienummer label DHR400 | ||||
| 134 | 854C21-0 | 2.80 | 3.39 | |
| Aansluitunit (3 contacten) | ||||
| 135 | 644809-6 | 4.08 | 4.94 | |
| Beschermplaat | ||||
| 136 | 346783-1 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 137 | 265A48-7 | 0.90 | 1.09 | |
| Motorhuisset DHR400 | ||||
| 138 | 183J10-3 | 39.89 | 48.27 | |
| Rubber pen 6 | ||||
| 138C10 | 263005-3 | 0.83 | 1.00 | |
| O-ring 18 | ||||
| 139A | 213275-4 | 0.83 | 1.00 | |
| O-ring 16 | ||||
| 139B | 213218-6 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 140 | 816A25-8 | |||
| Kap set DHR400 A | ||||
| 141A | 183H95-7 | 7.44 | 9.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 141B | 183J86-0 | |||
| Bladveer | ||||
| 142 | 232280-2 | 0.83 | 1.00 | |
