Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DHS630'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

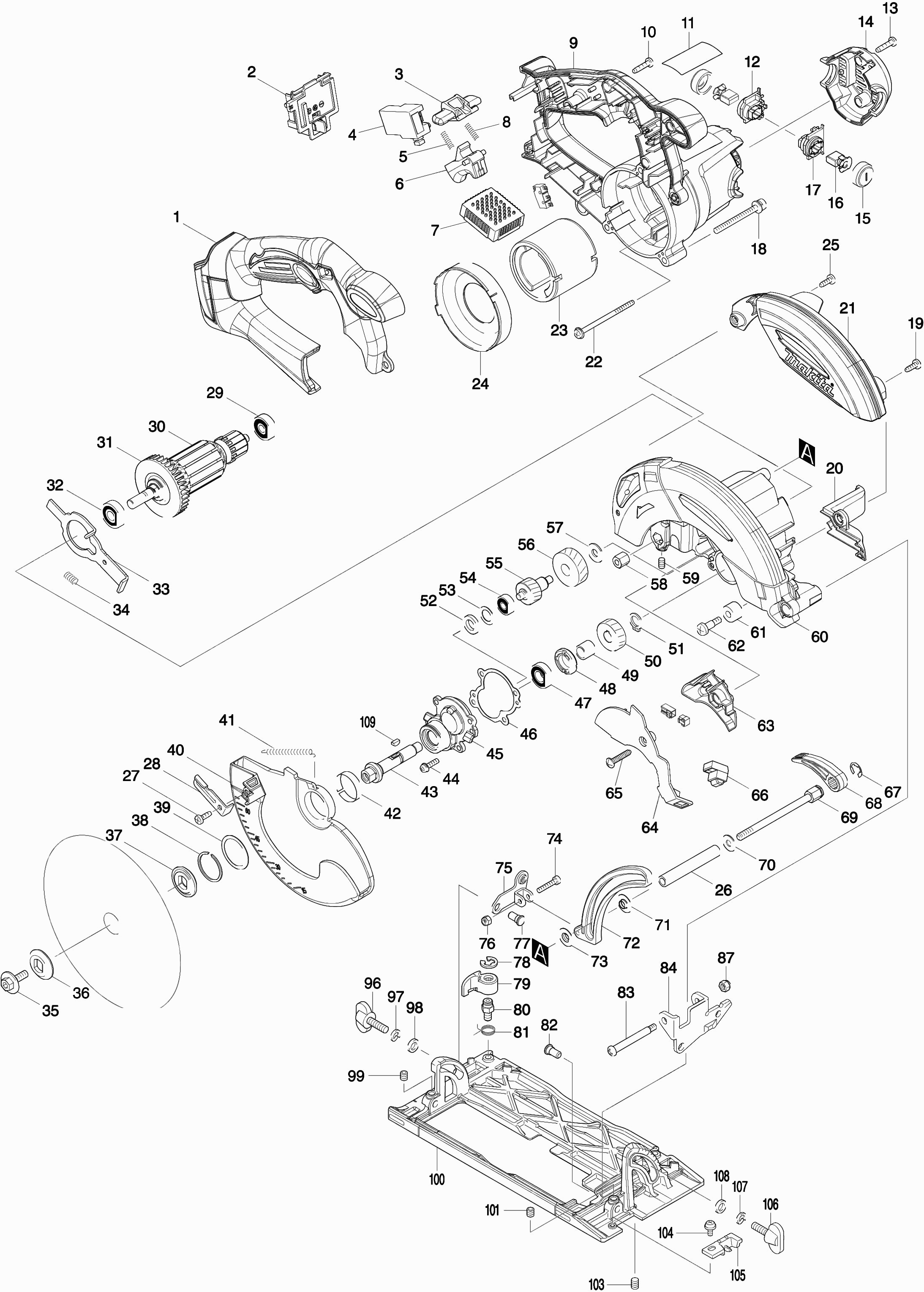

Tekeningen van de Makita DHS630
Onderdelen lijst van de Makita DHS630
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Handgreepdeksel | ||||
| 001 | 141237-1@141 | 37.12 | 44.92 | |
| Rubber pen 6 | ||||
| 001A | 263005-3@141 | 0.83 | 1.00 | |
| Aansluitunit (3 contacten) | ||||
| 002 | 644808-8@141 | 3.65 | 4.42 | |
| Blokkeerknop | ||||
| 003 | 419664-3@141 | 1.06 | 1.28 | |
| Schakelaar 3 contacten | ||||
| 004 | 650631-1@141 | 12.58 | 15.22 | |
| Drukveer 4 | ||||
| 005 | 231469-9@141 | 0.83 | 1.00 | |
| Schakelknop | ||||
| 006 | 419665-1@141 | 1.06 | 1.28 | |
| Controlle Unit Dhs630 A | ||||
| 007 | 620G73-5@141 | 24.20 | 29.28 | |
| Drukveer 4 | ||||
| 008 | 231469-9@141 | 0.83 | 1.00 | |
| Motorhuis | ||||
| 009 | 140984-1@141 | 39.89 | 48.27 | |
| Rubber pen 6 | ||||
| 009A | 263005-3@141 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 010 | 265A48-7@141 | 0.90 | 1.09 | |
| Naamplaat Dhs630 | ||||
| 011 | 815J60-7@141 | 2.80 | 3.39 | |
| Koolborstelhouder "li" | ||||
| 012 | 643889-9@141 | 3.22 | 3.90 | |
| Tapschroef 4x18 | ||||
| 013 | 265A48-7@141 | 0.90 | 1.09 | |
| Waaierdeksel | ||||
| 014 | 452787-4@141 | 7.44 | 9.00 | |
| Koolborstelhouderdop | ||||
| 015 | 643941-3@141 | 2.44 | 2.95 | |
| Koolborstel set Cb-441 | ||||
| 016 | 194435-6@141 | 4.58 | 5.54 | |
| Koolborstelhouder "re" | ||||
| 017 | 643882-3@141 | 2.80 | 3.39 | |
| Schroef 5x36 | ||||
| 018 | 911258-5@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 019 | 266026-4@141 | 0.83 | 1.00 | |
| Stop tbv spaankanaal | ||||
| 020 | 452790-5@141 | 4.26 | 5.15 | |
| Afdekkap | ||||
| 021 | 452789-0@141 | 13.19 | 15.96 | |
| Tapschroef Pf 4x65 | ||||
| 022 | 266060-4@141 | 1.43 | 1.73 | |
| MAGNEET HOUDER AS3625 A | ||||
| 023 | 638571-3@141 | 8.63 | 10.44 | |
| Tussenplaat | ||||
| 024 | 452785-8@141 | 3.22 | 3.90 | |
| Tapschroef M4x12mm Ck | ||||
| 025 | 266026-4@141 | 0.83 | 1.00 | |
| Afstandbus 6mm | ||||
| 026 | 331947-0@141 | 3.22 | 3.90 | |
| Schroef Pt4x12mm | ||||
| 027 | 266020-6@141 | 0.83 | 1.00 | |
| Ontgrendelknop | ||||
| 028 | 272270-3@141 | 0.83 | 1.00 | |
| Kogellager 627ddw | ||||
| 029 | 210045-2@141 | 3.22 | 3.90 | |
| Anker 18v | ||||
| 030 | 519288-6@141 | 49.85 | 60.32 | |
| Waaier 55 | ||||
| 031 | 241869-5@141 | 3.22 | 3.90 | |
| Kogellager 609llu | ||||
| 032 | 210060-6@141 | 4.58 | 5.54 | |
| Asblokkering | ||||
| 033 | 344681-3@141 | 2.93 | 3.55 | |
| Drukveer 6x29mm | ||||
| 034 | 233117-6@141 | 0.83 | 1.00 | |
| Zeskant bout 6x18 | ||||
| 035 | 266458-5@141 | 0.83 | 1.00 | |
| Buitenflens 28 | ||||
| 036 | 224421-4@141 | 9.52 | 11.52 | |
| Binnenflens 28 | ||||
| 037 | 224417-5@141 | 9.52 | 11.52 | |
| Seegering E-26 | ||||
| 038 | 257938-2@141 | 0.83 | 1.00 | |
| Ring 26 | ||||
| 039 | 267127-1@141 | 0.83 | 1.00 | |
| Verende beschermkap | ||||
| 040 | 452791-3@141 | 11.16 | 13.50 | |
| Trekveer 4mm | ||||
| 041 | 231874-0@141 | 0.83 | 1.00 | |
| Opvulring | ||||
| 042 | 345470-9@141 | 1.21 | 1.46 | |
| Zaagas | ||||
| 043 | 326410-6@141 | 6.58 | 7.96 | |
| Schroef 4X16 A | ||||
| 044 | 911526-6@141 | 0.83 | 1.00 | |
| Lagerhuis | ||||
| 045 | 140983-3@141 | 8.46 | 10.24 | |
| Rubber pen 4 | ||||
| 045A | 263002-9@141 | 0.83 | 1.00 | |
| Pakking | ||||
| 046 | 442141-0@141 | 0.83 | 1.00 | |
| Kogellager 6900Ddw DUX60 A | ||||
| 047 | 210258-5@141 | 4.73 | 5.72 | |
| Lager borgring 14-23 | ||||
| 048 | 285847-5@141 | 4.58 | 5.54 | |
| Ring 10 | ||||
| 049 | 257284-3@141 | 1.43 | 1.73 | |
| Tandwiel 24 | ||||
| 050 | 227791-0@141 | 9.52 | 11.52 | |
| Borgring S-10 | ||||
| 051 | 257408-1@141 | 0.95 | 1.15 | |
| Rubber ring 10mm | ||||
| 052 | 262155-1@141 | 0.83 | 1.00 | |
| Revet 11mm | ||||
| 053 | 267369-7@141 | 0.83 | 1.00 | |
| Kogellager 606Zz A | ||||
| 054 | 210137-7@141 | 1.01 | 1.22 | |
| Tandwiel 17 | ||||
| 055 | 227717-2@141 | 11.16 | 13.50 | |
| Tandwiel 17 | ||||
| 056 | 226676-7@141 | 10.81 | 13.08 | |
| Sluitring 7 | ||||
| 057 | 253823-7@141 | 0.83 | 1.00 | |
| Moer M6 | ||||
| 058 | 264064-0@141 | 3.83 | 4.63 | |
| Zeskant bout 5x8 | ||||
| 059 | 266229-0@141 | 0.83 | 1.00 | |
| Vaste beschermkap | ||||
| 060 | 141002-8@141 | 49.85 | 60.32 | |
| O-ring 24 | ||||
| 060A | 213953-6@141 | 0.83 | 1.00 | |
| Naaldlager 609 | ||||
| 060B | 212012-3@141 | 4.58 | 5.54 | |
| Naaldlager 810 | ||||
| 060C | 212003-4@141 | 4.08 | 4.94 | |
| Rubber bus 6 | ||||
| 061 | 262511-5@141 | 0.83 | 1.00 | |
| Metaaalschroef M5 | ||||
| 062 | 265115-2@141 | 0.83 | 1.00 | |
| Verbindingsstuk | ||||
| 063 | 452786-6@141 | 4.58 | 5.54 | |
| Afdekkap | ||||
| 064 | 452788-2@141 | 4.08 | 4.94 | |
| Tapschroef 4x20 | ||||
| 065 | 266042-6@141 | 0.83 | 1.00 | |
| Light-circuit | ||||
| 066 | 631694-6@141 | 18.76 | 22.70 | |
| Stopring E-8 | ||||
| 067 | 259054-6@141 | 0.83 | 1.00 | |
| Schakelhendel 55mm | ||||
| 068 | 272260-6@141 | 2.80 | 3.39 | |
| Inbusbout M6x85mm | ||||
| 069 | 265595-2@141 | 6.58 | 7.96 | |
| Sluitring 6 | ||||
| 070 | 253804-1@141 | 0.83 | 1.00 | |
| Kraagrevet 6mm | ||||
| 071 | 346477-8@141 | 2.08 | 2.52 | |
| Dieptegeleider | ||||
| 072 | 318245-9@141 | 8.46 | 10.24 | |
| Kraagrevet 6mm | ||||
| 073 | 346477-8@141 | 2.08 | 2.52 | |
| Inbusbout 4x20 | ||||
| 074 | 922137-2@141 | 0.83 | 1.00 | |
| Gradengeleider | ||||
| 075 | 345876-1@141 | 0.83 | 1.00 | |
| Borgmoer M4x7mm | ||||
| 076 | 252126-6@141 | 0.83 | 1.00 | |
| Kraagpin 6-7 | ||||
| 077 | 256480-0@141 | 0.83 | 1.00 | |
| Stopring E-6 | ||||
| 078 | 259053-8@141 | 0.83 | 1.00 | |
| Blokkeerhandel | ||||
| 079 | 453165-1@141 | 0.83 | 1.00 | |
| Stelschroef M6x10mm | ||||
| 080 | 265571-6@141 | 2.08 | 2.52 | |
| Torsieveer 11mm | ||||
| 081 | 233596-8@141 | 0.83 | 1.00 | |
| Kraagpin 6-7 | ||||
| 082 | 256480-0@141 | 0.83 | 1.00 | |
| Kruiskopschroef M5 | ||||
| 083 | 265072-4@141 | 1.21 | 1.46 | |
| Hoekgeleider | ||||
| 084 | 345590-9@141 | 2.80 | 3.39 | |
| Zeskant borgmoer 5x8 | ||||
| 087 | 252103-8@141 | 0.83 | 1.00 | |
| Vleugelbout M6x20mm | ||||
| 096 | JM23100066@141 | 2.80 | 3.39 | |
| Knopbout M6x18mm | ||||
| 096 | 265783-1@141 | 1.21 | 1.46 | |
| Veerring 6 A | ||||
| 097 | 253903-9@141 | 0.83 | 1.00 | |
| Sluitring 6x12mm | ||||
| 098 | 941151-9@141 | 0.83 | 1.00 | |
| Inbusbout M6X6 A | ||||
| 099 | 265A21-7@141 | 0.83 | 1.00 | |
| Zoolplaat Bhs630 A | ||||
| 100 | 310931-8@141 | 37.12 | 44.92 | |
| Inbusbout M6X6 A | ||||
| 101 | 265A21-7@141 | 0.83 | 1.00 | |
| Inwendig zeskant bout M6x8 | ||||
| 103 | 265894-2@141 | 0.83 | 1.00 | |
| Schroef 4x8 | ||||
| 104 | 911109-2@141 | 0.83 | 1.00 | |
| Bovengeleider cpl | ||||
| 105 | 450333-7@141 | 1.01 | 1.22 | |
| Vleugelbout M6x20mm | ||||
| 106 | JM23100066@141 | 2.80 | 3.39 | |
| Schroef 6x20 | ||||
| 106 | 911333-7@141 | 0.83 | 1.00 | |
| Veerring 6 A | ||||
| 107 | 253903-9@141 | 0.83 | 1.00 | |
| Sluitring 6x12mm | ||||
| 108 | 941151-9@141 | 0.83 | 1.00 | |
| Inlegspie 3 | ||||
| 109 | 254031-3@141 | 0.83 | 1.00 | |
