Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DHS783'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

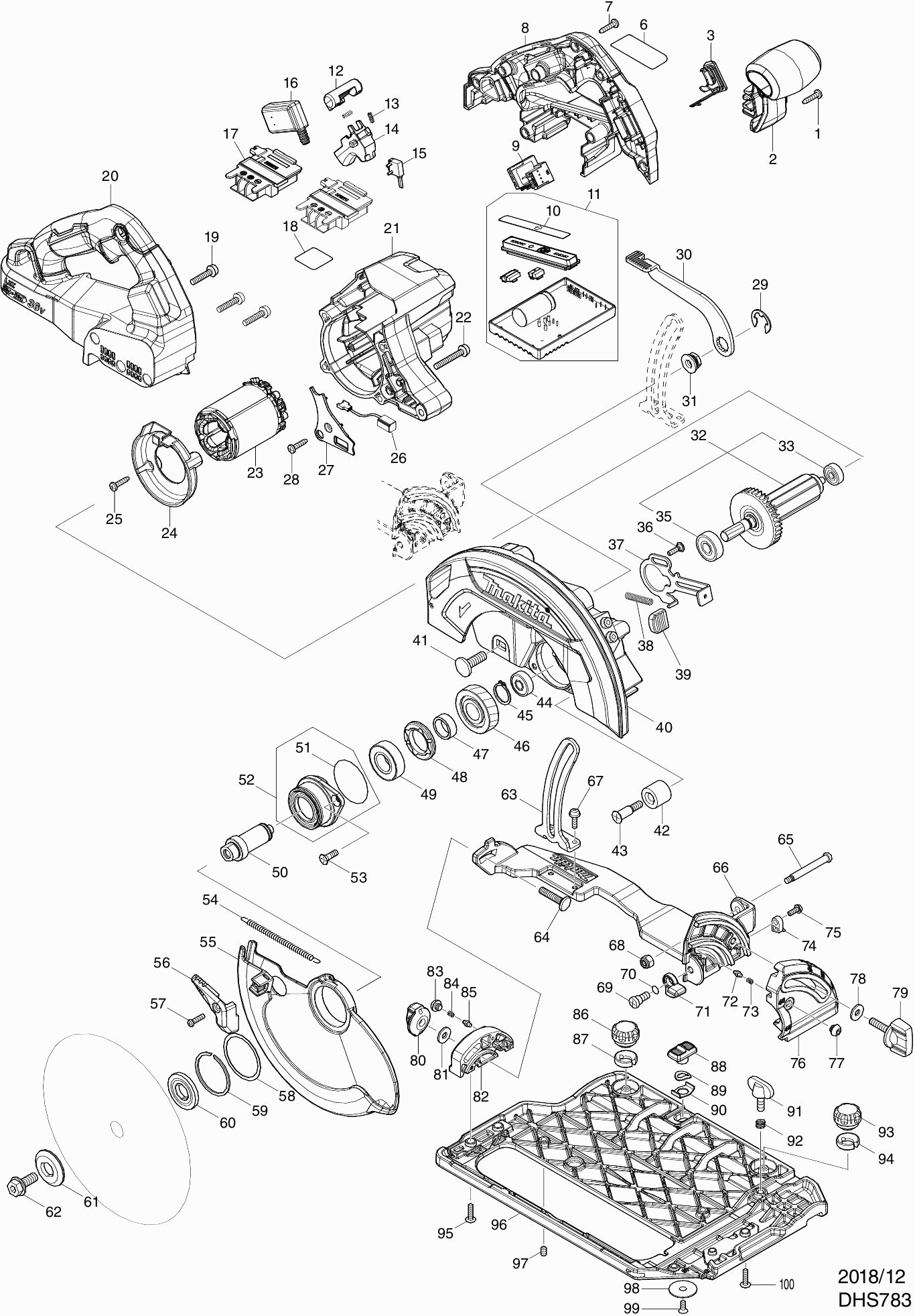

Tekeningen van de Makita DHS783
Onderdelen lijst van de Makita DHS783
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| TAPSCHR 4X18MM DGA520 A | ||||
| 001 | 265B67-9 | 1.00 | 1.21 | |
| HANDGREEP (VOOR) DHS752 | ||||
| 002 | 458750-5 | 8.40 | 10.16 | |
| AFDEKKAP DGA701 | ||||
| 003 | 140F99-0 | 2.40 | 2.90 | |
| O-RING 16 HK1820 P | ||||
| 003C10 | 213218-6 | 1.20 | 1.45 | |
| LABEL DGA701* | ||||
| 003C20 | 818H07-8 | 2.40 | 2.90 | |
| NAAMPLAAT DHS783 | ||||
| 006 | 855R05-1 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 007 | 265B67-9 | 1.00 | 1.21 | |
| HANDGREEPSET DHS783 | ||||
| 008 | 183K52-3 | 17.60 | 21.30 | |
| RUBBER PEN 6 AC320H P | ||||
| 008C10 | 263005-3 | 1.00 | 1.21 | |
| SUB CONTROLLER DLS111 | ||||
| 009 | 620750-7 | 34.10 | 41.26 | |
| INDICATIELABEL DHS782 | ||||
| 010 | 812G25-2 | 2.40 | 2.90 | |
| CONTROLLER COMPLEET DHS783 P | ||||
| 011 | 620984-2 | 176.00 | 212.96 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 011-1 | 620L92-1 | |||
| VERGRENDELKNOP KP0810/C P | ||||
| 012 | 419704-7 | 2.40 | 2.90 | |
| DRUKVEER 4MM | ||||
| 013 | 231433-0 | 1.00 | 1.21 | |
| SCHAKELKNOP DHS660 | ||||
| 014 | 458594-3 | 1.20 | 1.45 | |
| SCHAKELUNIT DHS782 | ||||
| 015 | 632M92-5 | 10.80 | 13.07 | |
| SCHAKELAAR C3XA-1PSPM DSP600 | ||||
| 016 | 651083-9 | 19.80 | 23.96 | |
| AANSLUITUNIT DHP483 | ||||
| 017 | 643874-2 | 3.60 | 4.36 | |
| SERIENUMMER LABEL DHS783 | ||||
| 018 | 855R09-3 | 2.40 | 2.90 | |
| SCHROEF 5X25 | ||||
| 019 | 911243-8 | 1.00 | 1.21 | |
| HANDGREEPSET DHS783 | ||||
| 020 | 183K52-3 | 17.60 | 21.30 | |
| RUBBER PEN 6 AC320H P | ||||
| 020C10 | 263005-3 | 1.00 | 1.21 | |
| MOTORHUIS DHS782 | ||||
| 021 | 458746-6 | 11.00 | 13.31 | |
| SCHROEF 5X35 A | ||||
| 022 | 911258-5 | 1.00 | 1.21 | |
| VELD DHS782 P | ||||
| 023 | 629375-4 | 48.40 | 58.56 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 023-1 | 629C02-1 | |||
| TUSSENPLAAT DHS782 | ||||
| 024 | 458749-0 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 025 | 265B67-9 | 1.00 | 1.21 | |
| LEDCIRCUIT DHR680 | ||||
| 026 | 620936-3 | 8.40 | 10.16 | |
| LENS DHS782 | ||||
| 027 | 458751-3 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 028 | 265B67-9 | 1.00 | 1.21 | |
| BORGRING E-12 | ||||
| 029 | 257953-6 | 1.00 | 1.21 | |
| VASTZETHENDEL 110 DHS782 | ||||
| 030 | 271447-7 | 2.40 | 2.90 | |
| BORGMOER DHS782 | ||||
| 031 | 252262-8 | 9.60 | 11.62 | |
| ANKER DHS782 | ||||
| 032 | 519534-7 | 39.60 | 47.92 | |
| KOGELLAGER 626ZZ | ||||
| 033D10 | 210143-2 | 3.60 | 4.36 | |
| KOGELLAGER 6000DDW HM1213C A | ||||
| 035 | 211289-7 | 13.20 | 15.97 | |
| MET.SCHROEF M4X14MM DHS782 | ||||
| 036 | 251529-1 | 1.00 | 1.21 | |
| ASBLOKKERING DHS782 | ||||
| 037 | 347441-2 | 1.20 | 1.45 | |
| DRUKVEER 6 DHS782 | ||||
| 038 | 232381-6 | 1.00 | 1.21 | |
| KAP LS1019L | ||||
| 039 | 286039-9 | 1.00 | 1.21 | |
| VASTE BESCHERMKAP DHS782 | ||||
| 040 | 140F30-6 | 48.40 | 58.56 | |
| O-RING 26 BSS610 | ||||
| 040C10 | 213434-0 | 1.00 | 1.21 | |
| SCHAALVERDELING DHS782 | ||||
| 040C20 | 818C45-0 | 1.00 | 1.21 | |
| SLOTBOUT 8X25 5008MG | ||||
| 041 | 266396-1 | 1.00 | 1.21 | |
| RUBBER BUS 8 DHS782 | ||||
| 042 | 262185-2 | 2.40 | 2.90 | |
| MET.SCHROEF M6X30MM DHS782 | ||||
| 043 | 251572-0 | 1.00 | 1.21 | |
| KOGELLAGER 608ZZ A | ||||
| 044 | 210046-0 | 1.20 | 1.45 | |
| BORGRING S-17 | ||||
| 045 | 961057-5 | 1.00 | 1.21 | |
| TANDWIEL 37 DHS782 | ||||
| 046 | 226838-7 | 6.00 | 7.26 | |
| RING 17 DHS782 | ||||
| 047 | 257451-0 | 1.20 | 1.45 | |
| LAGERBORGING 23-36 GA7010 | ||||
| 048 | 285809-3 | 2.40 | 2.90 | |
| KOGELLAGER 6003DDW P | ||||
| 049 | 210301-0 | 6.00 | 7.26 | |
| ZAAGAS DHS782 | ||||
| 050 | 327192-3 | 3.60 | 4.36 | |
| O-RING 42 DHS660 P | ||||
| 051 | 213565-5 | 1.00 | 1.21 | |
| LAGERHUIS DHS782 | ||||
| 052 | 136021-7 | 4.80 | 5.81 | |
| VERZONKENSCHROEF M5 A | ||||
| 053 | 265034-2 | 1.00 | 1.21 | |
| TREKVEER 4 DHS782 | ||||
| 054 | 232467-6 | 1.00 | 1.21 | |
| BESCHERMKAP DHS782 | ||||
| 055 | 319740-2 | 23.10 | 27.95 | |
| HEFBOOM 37 DHS782/83 | ||||
| 056 | 271450-8 | 2.40 | 2.90 | |
| SCHROEF 4X16 DUH501 A | ||||
| 057 | 265178-8 | 1.00 | 1.21 | |
| SLUITRING 40 BTP140 | ||||
| 058 | 267337-0 | 1.20 | 1.45 | |
| BORGRING WR-40 DHS782 | ||||
| 059 | 257452-8 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 060 | 224593-5 | |||
| BUITENFLENS 35MM 5008MG A | ||||
| 061 | 224409-4 | 2.40 | 2.90 | |
| INBUSBOUT M8X20MM 5008MG | ||||
| 062 | 266283-4 | 1.20 | 1.45 | |
| AFSTANDHOUDER DHS782/83 | ||||
| 063 | 347532-9 | 3.60 | 4.36 | |
| BOUT M6X30 DHS782 | ||||
| 064 | 251920-3 | 1.00 | 1.21 | |
| MET.SCHROEF M5 MT582 | ||||
| 065 | 265118-6 | 1.00 | 1.21 | |
| GRADENBOOG DHS782/83 | ||||
| 066 | 319829-6 | 22.00 | 26.62 | |
| KRUISKOPSCHROEF M4X12 JR180 A | ||||
| 067 | 911516-9 | 2.40 | 2.90 | |
| ZESKANT BORGMOER M5X8 A | ||||
| 068 | 252103-8 | 1.20 | 1.45 | |
| SCHROEF M6 | ||||
| 069 | 251267-5 | 1.00 | 1.21 | |
| O-RING 7 4191D | ||||
| 070 | 213026-5 | 1.00 | 1.21 | |
| AANSLAG DHS782/83 | ||||
| 071 | 319827-0 | 3.60 | 4.36 | |
| KRAAGPEN 3-5 DHS782/83 | ||||
| 072 | 263041-9 | 1.00 | 1.21 | |
| DRUKVEER 3,5 HR2400 | ||||
| 073 | 231234-6 | 2.40 | 2.90 | |
| AANDUIDPLAAT SP6000 | ||||
| 074 | 419632-6 | 1.20 | 1.45 | |
| SCHROEF 4X12 A | ||||
| 075 | 911116-5 | 1.00 | 1.21 | |
| HOEKGELEIDER A DHS782/83 | ||||
| 076 | 319830-1 | 19.80 | 23.96 | |
| ZESKANT BOUT M6X4 | ||||
| 077 | 266559-9 | 2.40 | 2.90 | |
| SLUITRING 6 SP6000 | ||||
| 078 | 253111-2 | 1.00 | 1.21 | |
| SCHROEF M6X26 SP6000 | ||||
| 079 | 265776-8 | 1.20 | 1.45 | |
| STERKNOP M6 | ||||
| 080 | 252270-9 | 2.40 | 2.90 | |
| SLUITRING 6 SP6000 | ||||
| 081 | 253111-2 | 1.00 | 1.21 | |
| HOEKGELEIDER B DHS782/83 | ||||
| 082 | 319831-9 | 13.20 | 15.97 | |
| ZESKANT BOUT M6X4 | ||||
| 083 | 266559-9 | 2.40 | 2.90 | |
| DRUKVEER 3,5 HR2400 | ||||
| 084 | 231234-6 | 2.40 | 2.90 | |
| KRAAGPEN 3-5 DHS782/83 | ||||
| 085 | 263041-9 | 1.00 | 1.21 | |
| SCHROEF M4X3 SP6000 | ||||
| 086 | 265775-0 | 2.40 | 2.90 | |
| HOUDER SP6000 | ||||
| 087 | 419627-9 | 1.20 | 1.45 | |
| SCHUIFPLAAT DSP600 A | ||||
| 088 | 458092-7 | 2.40 | 2.90 | |
| VEERRING 10 | ||||
| 089 | 253932-2 | 1.00 | 1.21 | |
| SLUITPLAAT SP6000 | ||||
| 090 | 345977-5 | 1.00 | 1.21 | |
| VLEUGELBOUT 6X15 A | ||||
| 091 | 265726-3 | 1.20 | 1.45 | |
| DRUKVEER 8 9555/57/58 A | ||||
| 092 | 233376-2 | 1.00 | 1.21 | |
| SCHROEF M4X3 SP6000 | ||||
| 093 | 265775-0 | 2.40 | 2.90 | |
| HOUDER SP6000 | ||||
| 094 | 419627-9 | 1.20 | 1.45 | |
| MET.SCHR. M4X16MM DHS782/83 | ||||
| 095 | 265174-6 | 1.00 | 1.21 | |
| ZOOLPLAAT DHS782/83 | ||||
| 096 | 319828-8 | 42.90 | 51.91 | |
| INBUSBOUT M6 BSS500 | ||||
| 097 | 266225-8 | 1.00 | 1.21 | |
| BORGRING SP6000 | ||||
| 098 | 345748-0 | 1.20 | 1.45 | |
| VERZONKEN SCHROEF M4X10 A | ||||
| 099 | 912112-6 | 1.00 | 1.21 | |
| MET.SCHR. M4X16MM DHS782/83 | ||||
| 100 | 265174-6 | 1.00 | 1.21 | |
| CONTROLLER DSP600/601 | ||||
| 101 | 620L68-8 | 17.60 | 21.30 | |
| MET.SCHR M2X6MM | ||||
| 102 | 652119-7 | 1.00 | 1.21 | |
