Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DLM481'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

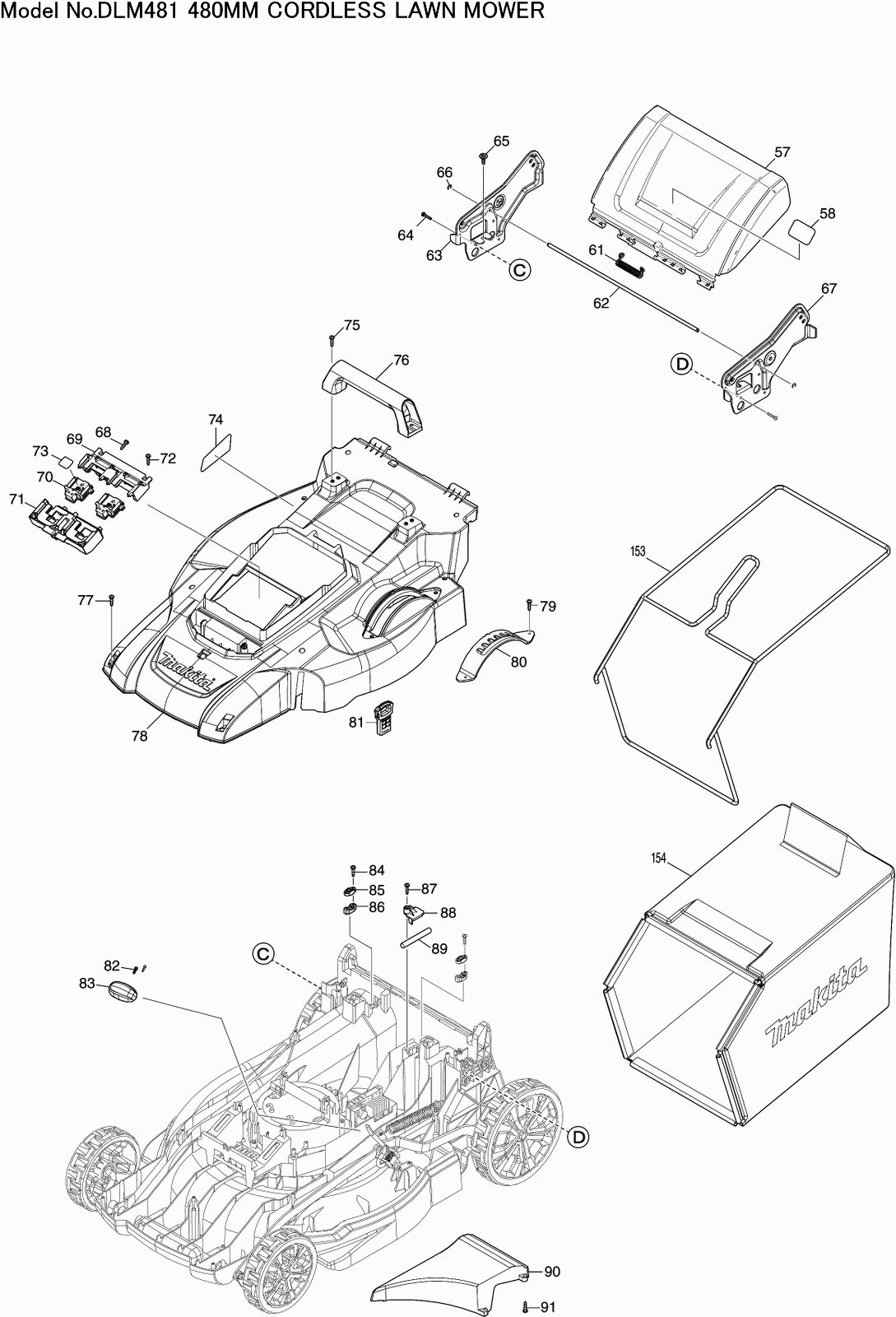

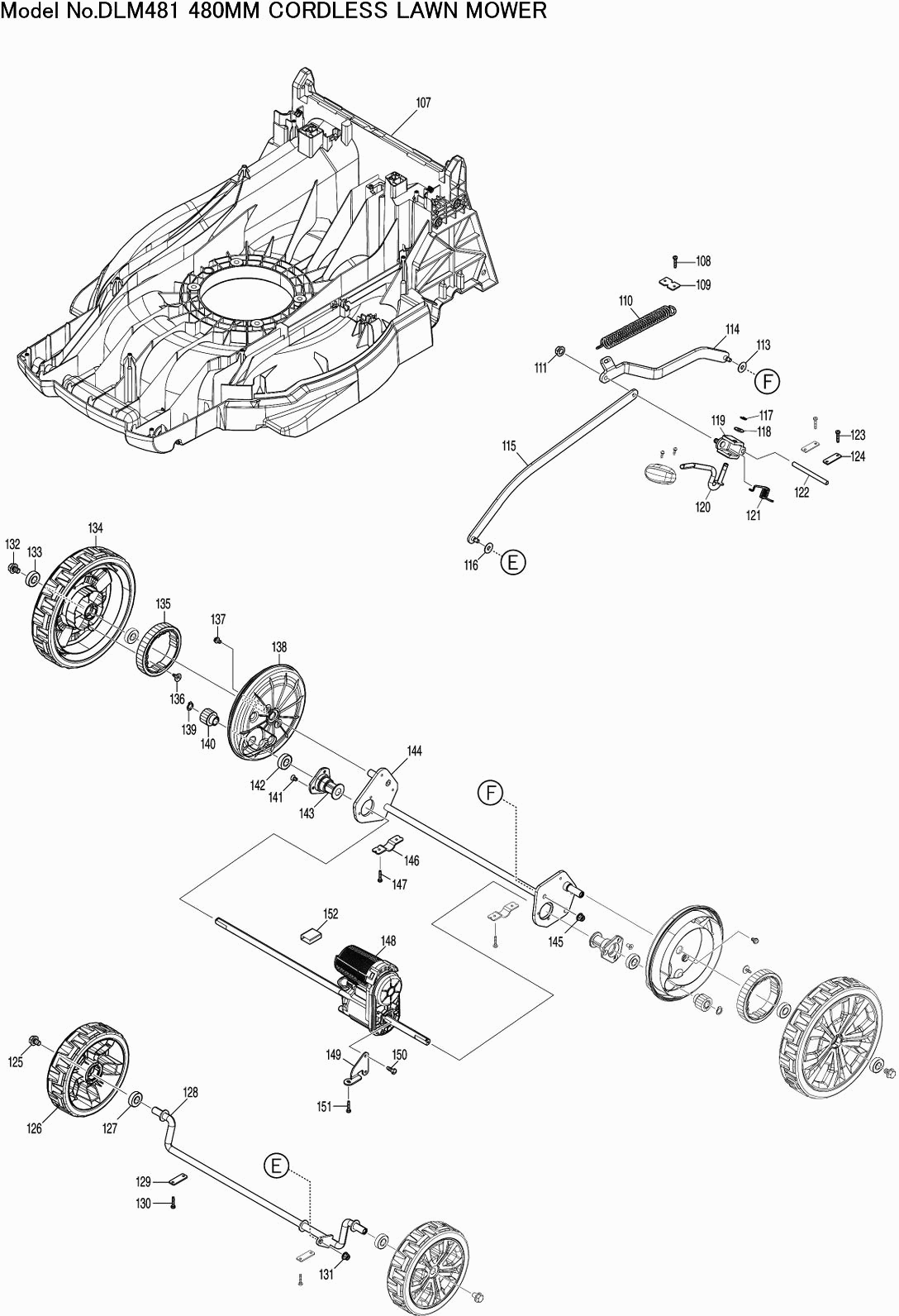

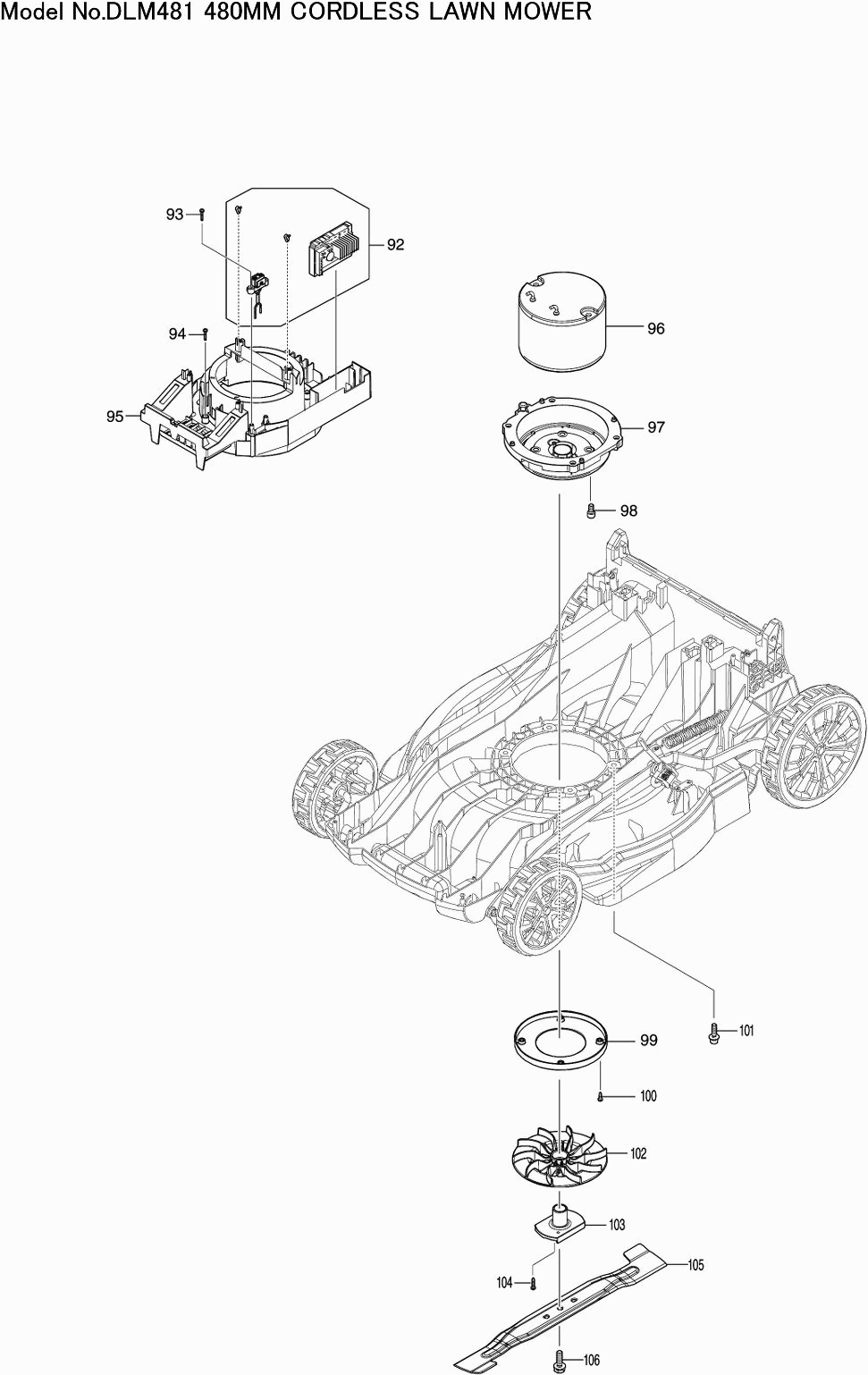

Tekeningen van de Makita DLM481
Onderdelen lijst van de Makita DLM481
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Aandrijfhendel DLM532/533 | ||||
| 001 | 327425-6 | 7.22 | 8.74 | |
| Schroef 4X20 A | ||||
| 002 | 911138-5 | 0.83 | 1.00 | |
| Hendelhouder R DLM532/533 | ||||
| 003 | 459858-8 | 1.39 | 1.68 | |
| Zeskantmoer M4 A | ||||
| 003C10 | 931102-0 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 004 | 253814-8 | 0.83 | 1.00 | |
| Met.schr. 4x18mm DUC355 | ||||
| 005 | 265620-9 | 0.83 | 1.00 | |
| Loophendelhouder L DLM481 | ||||
| 008 | 413B10-4 | 1.51 | 1.83 | |
| Pen 5 Gf600 | ||||
| 009 | 268225-4 | 0.83 | 1.00 | |
| Torsieveer 12 DLM532/533 | ||||
| 011 | 232566-4 | 0.83 | 1.00 | |
| Schakelhendel DLM532/533 | ||||
| 012 | 327424-8 | 7.22 | 8.74 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 013 | 266424-2 | 0.83 | 1.00 | |
| Schakelhuis DLM481/539 | ||||
| 014 | 183V30-9 | 4.03 | 4.88 | |
| Label indicatie DLM480 | ||||
| 014C10 | 8045G7-5 | 0.83 | 1.00 | |
| Drukveer 15 DLM460 | ||||
| 015 | 231227-3 | 0.83 | 1.00 | |
| Schakelh.steun R DML481/539 | ||||
| 016 | 413A99-6 | 1.07 | 1.29 | |
| Vergrendel uit knop DML481/539 | ||||
| 017 | 413B00-7 | 1.26 | 1.52 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 019 | 651083-9 | 19.29 | 23.34 | |
| Klemstrip P | ||||
| 021 | 687053-2 | 0.83 | 1.00 | |
| Schakel circuit cpl DML481/539 | ||||
| 022 | 141H35-1 | 10.72 | 12.97 | |
| Label A/U AS1925 | ||||
| 022C10 | 810D46-0 | 2.71 | 3.28 | |
| Houder rijhendel DLM481/539 | ||||
| 024 | 413A98-8 | 0.83 | 1.00 | |
| Hendel box set DLM481/539 | ||||
| 027 | 183U35-3 | 2.83 | 3.42 | |
| Controlle Unit Dub362 | ||||
| 029 | 620415-1 | 11.84 | 14.33 | |
| Klemstrip P | ||||
| 031 | 687053-2 | 0.83 | 1.00 | |
| Hendel box c DLM481/539 | ||||
| 032 | 413A95-4 | 2.83 | 3.42 | |
| O-ring 18 DLM481/539 | ||||
| 033 | 213A12-2 | 0.83 | 1.00 | |
| Snelheidshendel DLM481/539 | ||||
| 034 | 413B01-5 | 0.89 | 1.08 | |
| Schakelhendelhouder L DLM533 | ||||
| 035 | 459863-5 | 1.67 | 2.02 | |
| Torsieveer 12 DLM532/533 | ||||
| 036 | 232575-3 | 0.83 | 1.00 | |
| Kabelboom DLM481/539 | ||||
| 040 | 699184-5 | 14.15 | 17.12 | |
| Hendel boven LM001/2J | ||||
| 041 | 327871-3 | 17.45 | 21.11 | |
| Kabelboom DLM481/539 | ||||
| 042 | 699185-3 | 17.45 | 21.11 | |
| Bout M8x50 LM001/2J | ||||
| 043 | 265C08-1 | 0.83 | 1.00 | |
| Vleugelmoer M8 LM001/2J | ||||
| 044 | 265C06-5 | 1.07 | 1.29 | |
| Draadklem LM001/2J | ||||
| 045 | 413944-9 | 0.83 | 1.00 | |
| Schroef 4X35 | ||||
| 046 | 911163-6 | 0.83 | 1.00 | |
| Hendel assy LM001J | ||||
| 047 | 122A73-0 | 17.45 | 21.11 | |
| Spanstift 2,5-16 | ||||
| 048 | 258004-8 | 0.83 | 1.00 | |
| Knop LM001J | ||||
| 049 | 413943-1 | 1.07 | 1.29 | |
| Borghouder LM001J | ||||
| 050 | 327877-1 | 1.82 | 2.20 | |
| Drukveer 8 Fs4300 | ||||
| 051 | 234121-8 | 0.83 | 1.00 | |
| Borgpen LM001J | ||||
| 052 | 327876-3 | 1.82 | 2.20 | |
| Moerbout M8 LM001/2J | ||||
| 053 | 265C07-3 | 0.83 | 1.00 | |
| Batterijkap cpl DLM480/539 P | ||||
| 054 | 141F56-1 | 12.53 | 15.16 | |
| Label Waarsc AM3623 P | ||||
| 054C10 | 890380-0 | 2.71 | 3.28 | |
| Drukveer 7 | ||||
| 055 | 231037-8 | 0.83 | 1.00 | |
| Borghendel DML481/539 | ||||
| 056 | 413B03-1 | 0.83 | 1.00 | |
| Achterklep cpl DML481/539 P | ||||
| 057 | 141J54-9 | 8.38 | 10.14 | |
| Label waarschuwing DLM480 P | ||||
| 058 | 8047H5-8 | 0.83 | 1.00 | |
| Drukveer 8mm LM001/2J | ||||
| 061 | 232721-8 | 1.07 | 1.29 | |
| Stang 6mm LM001J | ||||
| 062 | 327874-7 | 2.15 | 2.60 | |
| Hendelsteun R LM001/2J | ||||
| 063 | 347867-8 | 10.72 | 12.97 | |
| Tapschroef 5X30 Ga9012C | ||||
| 064 | 266553-1 | 0.83 | 1.00 | |
| Parker 5x20mm LM001/2J | ||||
| 065 | 265C05-7 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 066 | 961018-5 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 066-1 | 259084-7 | 0.83 | 1.00 | |
| Hendelsteun L LM001/2J | ||||
| 067 | 347866-0 | 10.72 | 12.97 | |
| Batterijhuis DLM382/432 | ||||
| 069 | 183N35-1 | 4.45 | 5.38 | |
| Rubber Pen 6 AC320H P | ||||
| 069C10 | 263005-3 | 0.83 | 1.00 | |
| Aansluitunit Djr186 A | ||||
| 070 | 644809-6 | 3.96 | 4.79 | |
| Label serienr. DLM481 | ||||
| 073 | 8114F4-1 | 0.83 | 1.00 | |
| Naamplaat DLM481 | ||||
| 074 | 8114F1-7 | 0.83 | 1.00 | |
| Handgreep LM001/2J | ||||
| 076 | 413938-4 | 2.46 | 2.98 | |
| Kap compleet DLM481/539 | ||||
| 078 | 141J45-0 | 25.41 | 30.75 | |
| Afdichtingring DLM480 | ||||
| 078C10 | 422789-4 | 0.83 | 1.00 | |
| Label indicatie DLM480 | ||||
| 078C20 | 8031N0-1 | 0.83 | 1.00 | |
| Hoogteplaat LM001/2J | ||||
| 080 | 162993-0 | 6.55 | 7.93 | |
| Veiligheidssleutel DLM460 | ||||
| 081 | 643535-4 | 3.12 | 3.78 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 082 | 265C97-6 | |||
| Hoogteversteller LM001/2J | ||||
| 083 | 413939-2 | 1.07 | 1.29 | |
| Klemstrip * | ||||
| 086 | 687051-6 | 0.83 | 1.00 | |
| Kabelhoes DLM481/539 | ||||
| 088 | 413B08-1 | 0.83 | 1.00 | |
| Kabelboom DLM481/539 | ||||
| 089 | 699182-9 | 10.72 | 12.97 | |
| Achterkap LM001J | ||||
| 090 | 413924-5 | 2.83 | 3.42 | |
| Controller DLM481/539 | ||||
| 092 | 620G77-7 | 113.19 | 136.96 | |
| Motorkap DML481/539 | ||||
| 095 | 413B05-7 | 7.44 | 9.00 | |
| Dc-motor DML481/539 | ||||
| 096 | 629A90-6 | 213.68 | 258.55 | |
| Motorbeugel cpl DML481/539 | ||||
| 097 | 141H61-0 | 12.53 | 15.16 | |
| Inbusbout M8X16 | ||||
| 098 | 922422-3 | 0.83 | 1.00 | |
| Motortussenplaat DLM532/533 | ||||
| 099 | 459853-8 | 2.02 | 2.44 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| Inbusbout M8x30 LM001/2J | ||||
| 101 | 265C22-7 | 0.83 | 1.00 | |
| Waaier 170 LM001/2J | ||||
| 102 | 240229-8 | 3.59 | 4.34 | |
| Meshouder 48cm LM001J | ||||
| 103 | 313393-9 | 4.60 | 5.57 | |
| Cirkelmes 48cm | ||||
| 105 | 191V97-3 | 17.87 | 21.62 | |
| Maaimesbout M8x35mm DLM532 A | ||||
| 106 | 265A69-9 | 0.83 | 1.00 | |
| Maaidek DLM481/539 | ||||
| 107 | 413A61-1 | 53.71 | 64.99 | |
| Borgplaat LM001/2J | ||||
| 109 | 347870-9 | 0.83 | 1.00 | |
| Drukveer 17 LM001/2J | ||||
| 110 | 232717-9 | 2.15 | 2.60 | |
| Borgmoer M6 LM001/2J | ||||
| 111 | 252301-4 | 0.83 | 1.00 | |
| Label indicatie DLM480 | ||||
| 112 | 8046H7-8 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 113 | 253731-2 | 0.83 | 1.00 | |
| Verbindingstang R LM001/2J | ||||
| 114 | 347873-3 | 9.52 | 11.52 | |
| Verbindingstang F LM001J | ||||
| 115 | 347872-5 | 5.80 | 7.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 117 | 961012-7 | |||
| Stopring E-6 | ||||
| 117-1 | 259085-5 | 0.83 | 1.00 | |
| Sluitring 8 Ga9010C | ||||
| 118 | 267281-1 | 0.83 | 1.00 | |
| Stanghouder LM001/2J | ||||
| 119 | 313389-0 | 8.38 | 10.14 | |
| Hoogteversteller LM001/2J | ||||
| 120 | 327872-1 | 3.22 | 3.90 | |
| Drukveer 9mm LM001/2J | ||||
| 121 | 232715-3 | 0.83 | 1.00 | |
| Stang 7mm LM001/2J | ||||
| 122 | 327873-9 | 0.83 | 1.00 | |
| Plaat LM001/2J | ||||
| 124 | 347869-4 | 0.83 | 1.00 | |
| Flensbout M8X12 | ||||
| 125 | 265324-3 | 1.18 | 1.43 | |
| Voorwiel 180mm LM001/2J | ||||
| 126 | 141E34-5 | 11.09 | 13.42 | |
| Kogellager 6001Ddw A | ||||
| 127 | 210163-6 | 1.18 | 1.43 | |
| Vooras LM001J | ||||
| 128 | 162991-4 | 9.52 | 11.52 | |
| Flensbout M8X12 | ||||
| 132 | 265324-3 | 1.18 | 1.43 | |
| Wiel 230 cpl DLM481/539 | ||||
| 134 | 141F63-4 | 14.15 | 17.12 | |
| Tandwiel 49 DLM481/539 | ||||
| 135 | 227913-2 | 6.55 | 7.93 | |
| Parker 4x12mm LM001J | ||||
| 136 | 265B00-1 | 0.83 | 1.00 | |
| Kruiskopschroef M5X10 A | ||||
| 137 | 911208-0 | 0.83 | 1.00 | |
| Wielkap DLM481/539 | ||||
| 138 | 413B06-5 | 3.59 | 4.34 | |
| Borgring S-12 | ||||
| 139 | 961052-5 | 0.83 | 1.00 | |
| Tandwiel 11 DLM481/539 | ||||
| 140 | 227912-4 | 2.15 | 2.60 | |
| Schroef 5X10 | ||||
| 141 | 251951-2 | 0.83 | 1.00 | |
| Ashouder achter LM001/2J | ||||
| 143 | 313390-5 | 2.46 | 2.98 | |
| As achter LM001J | ||||
| 144 | 162992-2 | 15.76 | 19.07 | |
| Draadklem 19 LM001/2J | ||||
| 146 | 347865-2 | 0.83 | 1.00 | |
| Aandrijving DLM481/539 | ||||
| 148 | 122B04-5 | 101.64 | 122.98 | |
| Haakje DLM481/539 | ||||
| 149 | 347887-2 | 0.89 | 1.08 | |
| Tapschroef 5X16 Uc30/35/4020A | ||||
| 150 | 266388-0 | 0.83 | 1.00 | |
| Kabeltule DLM532/533 | ||||
| 152 | 683A20-1 | 0.83 | 1.00 | |
| Grasvangzakbeugel LM001J P | ||||
| 153 | 162A29-1 | 12.53 | 15.16 | |
| Grasvangzak | ||||
| 154 | 162A28-3 | 17.87 | 21.62 | |
