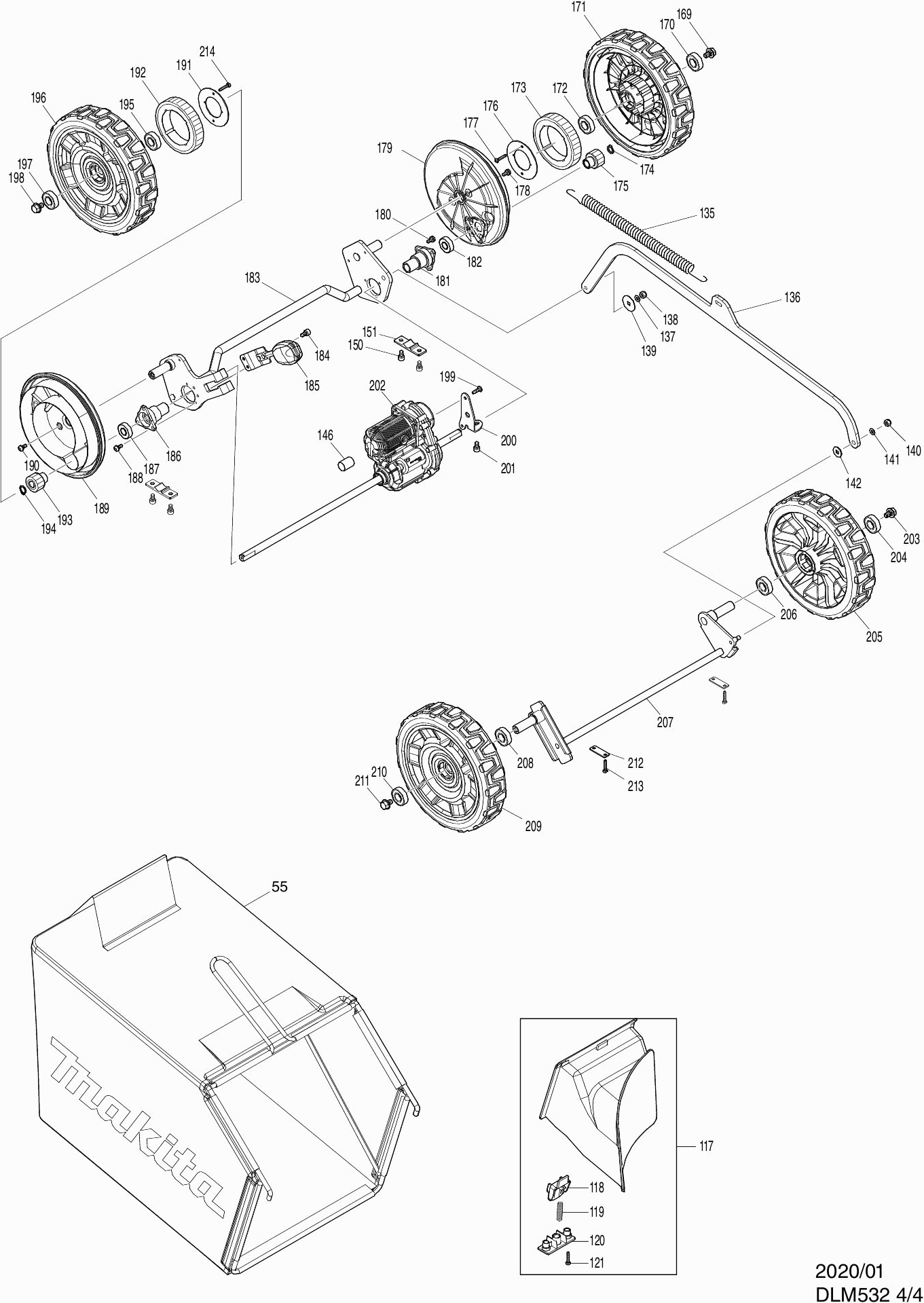

Tekeningen van de Makita DLM532
Onderdelen lijst van de Makita DLM532
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Aandrijfhendel DLM532/533 | ||||
| 001 | 327425-6 | 7.22 | 8.74 | |
| Hendelhouder DLM532/533 | ||||
| 002 | 459859-6 | 0.83 | 1.00 | |
| Torsieveer 12 DLM532/533 | ||||
| 003 | 232566-4 | 0.83 | 1.00 | |
| Schroef 4X20 A | ||||
| 004 | 911138-5 | 0.83 | 1.00 | |
| Hendelhouder L DLM532/533 | ||||
| 005 | 459864-3 | 2.38 | 2.88 | |
| Ring 5 | ||||
| 006 | 267136-0 | 0.98 | 1.19 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 007 | 266424-2 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 008 | 266424-2 | 0.83 | 1.00 | |
| Ring 5 | ||||
| 009 | 267136-0 | 0.98 | 1.19 | |
| Hendelhouder R DLM532/533 | ||||
| 010 | 459858-8 | 1.39 | 1.68 | |
| Schroef 4X20 A | ||||
| 011 | 911138-5 | 0.83 | 1.00 | |
| Hendelhouder DLM532/533 | ||||
| 012 | 459859-6 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 013 | 266424-2 | 0.83 | 1.00 | |
| Schakelkast assy DLM532/533 | ||||
| 014 | 183N90-3 | 3.12 | 3.78 | |
| Schakelcircuit A DLM460 | ||||
| 015 | 140F09-7 | 11.82 | 14.30 | |
| Label A/U AS1925 | ||||
| 015C10 | 810D46-0 | 2.71 | 3.28 | |
| Schakelcircuit B DLM460 | ||||
| 016 | 140F10-2 | 11.82 | 14.30 | |
| Label aan/uit DLM460 | ||||
| 016C10 | 818A74-1 | 2.36 | 2.86 | |
| Torsieveer 12 DLM532/533 | ||||
| 017 | 232575-3 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 018 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 019 | 687124-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 020 | 459860-1 | |||
| Circuit indicatie DLM532 | ||||
| 021 | 620C48-0 | 12.53 | 15.16 | |
| Label indicatie A | ||||
| 021C10 | 8007C8-5 | 1.66 | 2.01 | |
| Controlle Unit Dub362 | ||||
| 022 | 620415-1 | 11.84 | 14.33 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 023 | 651083-9 | 19.29 | 23.34 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 024 | 459866-9 | |||
| O-ring 26mm DLM532/533 | ||||
| 025 | 213897-0 | 0.83 | 1.00 | |
| Schakelkast assy DLM532/533 | ||||
| 026 | 183N90-3 | 3.12 | 3.78 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 027 | 266424-2 | 0.83 | 1.00 | |
| Snelheidshendel DLM532/533 | ||||
| 028 | 459865-1 | 1.18 | 1.43 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 029 | 266424-2 | 0.83 | 1.00 | |
| Schroef 4X20 A | ||||
| 030 | 911138-5 | 0.83 | 1.00 | |
| Schakelhendelhouder L DLM533 | ||||
| 031 | 459863-5 | 1.67 | 2.02 | |
| Zeskantmoer M4 A | ||||
| 031C10 | 931102-0 | 0.83 | 1.00 | |
| Schakelhendel DLM532/533 | ||||
| 032 | 327424-8 | 7.22 | 8.74 | |
| Schakelhendelhouder R DLM533 | ||||
| 033 | 459856-2 | 2.02 | 2.44 | |
| Zeskantmoer M4 A | ||||
| 033C10 | 931102-0 | 0.83 | 1.00 | |
| Schroef 4X20 A | ||||
| 034 | 911138-5 | 0.83 | 1.00 | |
| Schakelkastset DLM532/533 P | ||||
| 035 | 183P40-0 | 3.96 | 4.79 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 035-1 | 183X73-3 | |||
| Label indicatie B | ||||
| 035C10 | 8007C6-9 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 036 | 459857-0 | |||
| Drukveer 15 DLM460 | ||||
| 037 | 231227-3 | 0.83 | 1.00 | |
| Schakelaar Dur364L | ||||
| 038 | 632E26-0 | 10.99 | 13.30 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 039 | 687124-5 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 040 | 266424-2 | 0.83 | 1.00 | |
| Schakelkastset DLM532/533 P | ||||
| 041 | 183P40-0 | 3.96 | 4.79 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 041-1 | 183X73-3 | |||
| Label indicatie B | ||||
| 041C10 | 8007C6-9 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 042 | 266424-2 | 0.83 | 1.00 | |
| Draadboom DLM532/533 | ||||
| 043 | 699143-9 | 30.70 | 37.15 | |
| Duwboom boven DLM532/533 | ||||
| 044 | 327421-4 | 17.38 | 21.03 | |
| Moerkap M8 DLM532/533 | ||||
| 045 | 252278-3 | 0.83 | 1.00 | |
| Duwboom onder DLM532 | ||||
| 046 | 327422-2 | 17.38 | 21.03 | |
| Slotbout M8x38mm DLM532/533 | ||||
| 047 | 265A62-3 | 0.83 | 1.00 | |
| Slotbout M8x38mm DLM532/533 | ||||
| 048 | 265A62-3 | 0.83 | 1.00 | |
| Moerkap M8 DLM532/533 | ||||
| 049 | 252278-3 | 0.83 | 1.00 | |
| Kabelklem DLM532/533 | ||||
| 050 | 459905-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 051 | 921451-3 | |||
| Kabelklem DLM532/533 | ||||
| 052 | 459905-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 053 | 921451-3 | |||
| Draadboom A DLM532/533 | ||||
| 054 | 699142-1 | 5.06 | 6.12 | |
| Niet meer leverbaar, geen vervanging | ||||
| 055 | 127412-3 | |||
| Batterykap DLM465/536 P | ||||
| 056 | 140S03-7 | 12.22 | 14.79 | |
| Label Waarsc AM3623 P | ||||
| 056C10 | 890380-0 | 2.71 | 3.28 | |
| Stopring E-5 | ||||
| 057 | 961018-5 | 0.83 | 1.00 | |
| Stang 6mm DLM532/533 | ||||
| 058 | 327536-7 | 0.83 | 1.00 | |
| Veiligheidssleutel DLM460 | ||||
| 059 | 643535-4 | 3.12 | 3.78 | |
| Schroef M3X14 | ||||
| 060 | 266404-8 | 0.83 | 1.00 | |
| Schakelhendel A DLM532/533 | ||||
| 061 | 459851-2 | 0.98 | 1.19 | |
| O-ring 24mm DLM532/533 | ||||
| 062 | 213896-2 | 0.83 | 1.00 | |
| Blokkeerhendel DLM532/533 | ||||
| 063 | 459852-0 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 064 | 231037-8 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 065 | 266424-2 | 0.83 | 1.00 | |
| Maaidekafdekkap DLM532 | ||||
| 066 | 459847-3 | 15.60 | 18.88 | |
| Naamplaat DLM532 | ||||
| 067 | 856R09-6 | 2.71 | 3.28 | |
| Batterijhuis DLM462/532 | ||||
| 068 | 183N78-3 | 6.38 | 7.72 | |
| Rubber Pen 6 AC320H P | ||||
| 068C10 | 263005-3 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 069 | 266424-2 | 0.83 | 1.00 | |
| Label serienr DLM532 | ||||
| 070 | 856R18-5 | 0.83 | 1.00 | |
| Aansluitunit Djr186 A | ||||
| 071 | 644809-6 | 3.96 | 4.79 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 072 | 266424-2 | 0.83 | 1.00 | |
| Batterijhuis DLM462/532 | ||||
| 073 | 183N78-3 | 6.38 | 7.72 | |
| Rubber Pen 6 AC320H P | ||||
| 073C10 | 263005-3 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 077 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 078 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 079 | 687051-6 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 080 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 081 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 082 | 687051-6 | 0.83 | 1.00 | |
| Controller DLM532/533 | ||||
| 083 | 620C45-6 | 324.72 | 392.91 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 084 | 266424-2 | 0.83 | 1.00 | |
| Draadboom B DLM532/533 | ||||
| 085 | 632P74-5 | 9.24 | 11.18 | |
| Buffer B DLM532/533 | ||||
| 086 | 422529-0 | 0.83 | 1.00 | |
| Controller DLM532/533 | ||||
| 087 | 620C47-2 | 99.33 | 120.19 | |
| Buffer A DLM532/533 | ||||
| 088 | 422528-2 | 0.83 | 1.00 | |
| Schakelaar 1703,4703 DLM532 | ||||
| 089 | 651444-3 | 12.22 | 14.79 | |
| Draadboom C DLM532/533 | ||||
| 090 | 699145-5 | 8.21 | 9.93 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 091 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip 9555Nb/Bo3711 A | ||||
| 092 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 093 | 687051-6 | 0.83 | 1.00 | |
| Kruiskopschroef 5X20 | ||||
| 094 | 911233-1 | 0.83 | 1.00 | |
| Onderplaat DLM532/533 | ||||
| 095 | 459848-1 | 17.38 | 21.03 | |
| Motorhuis boven DLM532/533 | ||||
| 096 | 319869-4 | 8.21 | 9.93 | |
| Veerring 19mm DLM532/533 | ||||
| 097 | 253455-0 | 0.83 | 1.00 | |
| Kogellager 6000Ddw Hs0600 | ||||
| 098 | 210141-6 | 1.18 | 1.43 | |
| Motor assy DLM532/533 | ||||
| 099 | 519606-8 | 112.06 | 135.59 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 100 | 211387-7 | |||
| Parker 2x8mm DLM532/533 | ||||
| 101 | 265B29-7 | 0.83 | 1.00 | |
| Controller B DLM532/533 | ||||
| 102 | 620B88-2 | 19.23 | 23.27 | |
| Veld DLM532/533 | ||||
| 103 | 629465-3 | 112.06 | 135.59 | |
| Motorhuis onder DLM532/533 | ||||
| 104 | 319870-9 | 9.24 | 11.18 | |
| Schroef 5X70 * | ||||
| 105 | 911691-1 | 1.18 | 1.43 | |
| Schroef M3X6 | ||||
| 106 | 652031-1 | 0.83 | 1.00 | |
| Kruiskopschroef 5X20 | ||||
| 107 | 911233-1 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 108 | 922441-9 | |||
| Motorsteun DLM532/533 | ||||
| 109 | 319867-8 | 17.38 | 21.03 | |
| Motortussenplaat DLM532/533 | ||||
| 110 | 459853-8 | 2.02 | 2.44 | |
| Schroef 4X16 | ||||
| 111 | 911126-2 | 0.83 | 1.00 | |
| Waaier 170 DLM532/533 | ||||
| 112 | 240205-2 | 5.06 | 6.12 | |
| Cirkelmessteun DLM532/533 | ||||
| 113 | 319868-6 | 5.06 | 6.12 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 114 | 266424-2 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 115 | 191D52-7 | |||
| Maaimesbout M8x35mm DLM532 A | ||||
| 116 | 265A69-9 | 0.83 | 1.00 | |
| Mulchinleg DLM532 | ||||
| 117 | 127516-1 | 8.00 | 9.68 | |
| Blokkeerknop DLM462/532 | ||||
| 118 | 459884-7 | 1.00 | 1.21 | |
| Drukveer 7 Ls1013 | ||||
| 119 | 231401-3 | 0.83 | 1.00 | |
| Blokkeerknophouder DLM462/532 | ||||
| 120 | 459885-5 | 1.00 | 1.21 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 121 | 266424-2 | 0.83 | 1.00 | |
| Uitwerpdeksel DLM532 P | ||||
| 123 | 140R96-8 | 10.52 | 12.73 | |
| Label waarschuw DLM534 P | ||||
| 123C10 | 8007P8-6 | 0.83 | 1.00 | |
| Inbusbout M8 DLM532/533 | ||||
| 124 | 265B20-5 | 0.83 | 1.00 | |
| Duwboomsteun L DLM532 | ||||
| 125 | 347579-3 | 8.21 | 9.93 | |
| Torsieveer 6Mm Blm/Am | ||||
| 126 | 233597-6 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 127 | 961018-5 | 0.83 | 1.00 | |
| Uitwerpdekselas 6mm DLM532 | ||||
| 128 | 327418-3 | 2.02 | 2.44 | |
| Inbusbout M5X12Mm Ck A | ||||
| 129 | 922213-2 | 0.83 | 1.00 | |
| Dekselhouder DLM532/533 | ||||
| 130 | 459877-4 | 2.02 | 2.44 | |
| Achtergreep DLM532 | ||||
| 131 | 162692-4 | 10.50 | 12.70 | |
| Handgreephouder R DLM533 | ||||
| 132 | 347578-5 | 7.22 | 8.74 | |
| Klem Ms245.4 | ||||
| 133 | 451825-9 | 0.83 | 1.00 | |
| Inbusbout M8 DLM532/533 | ||||
| 134 | 265B20-5 | 0.83 | 1.00 | |
| Veer tbv klep DLM532/533 | ||||
| 135 | 232628-8 | 3.12 | 3.78 | |
| Verbindingsas DLM532 | ||||
| 136 | 347580-8 | 23.06 | 27.90 | |
| Sluitring 6X12Mm A | ||||
| 137 | 941151-9 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 138 | 252014-7 | 0.83 | 1.00 | |
| Sluitring 8 Bo3700 | ||||
| 139 | 267216-2 | 0.83 | 1.00 | |
| Borgmoer M6 | ||||
| 140 | 252014-7 | 0.83 | 1.00 | |
| Sluitring 6X12Mm A | ||||
| 141 | 941151-9 | 0.83 | 1.00 | |
| Revet 8Mm A | ||||
| 142 | 253762-1 | 0.98 | 1.19 | |
| Kabeldoorvoer DLM533 | ||||
| 143 | 422526-6 | 0.83 | 1.00 | |
| Inbusbout M5X12Mm Ck A | ||||
| 144 | 922213-2 | 0.83 | 1.00 | |
| Kabelbeschermer DLM532 | ||||
| 145 | 459880-5 | 0.83 | 1.00 | |
| Kabeltule DLM532/533 | ||||
| 146 | 683A20-1 | 0.83 | 1.00 | |
| Maaidek DLM532 | ||||
| 147 | 347559-9 | 131.16 | 158.70 | |
| Hoogteplaat DLM532/533 | ||||
| 148 | 347582-4 | 3.97 | 4.80 | |
| Inbusbout M8 DLM532/533 | ||||
| 149 | 265B20-5 | 0.83 | 1.00 | |
| Inbusbout M6X12 | ||||
| 150 | 922311-2 | 0.83 | 1.00 | |
| Achterashouderkap DLM532/533 | ||||
| 151 | 313290-9 | 2.36 | 2.86 | |
| Inbusbout M5X12Mm Ck A | ||||
| 157 | 922213-2 | 0.83 | 1.00 | |
| Torsieveer 9mm DLM532/533 | ||||
| 159 | 232567-2 | 0.83 | 1.00 | |
| Zijkapplaat DLM532 | ||||
| 160 | 347584-0 | 1.67 | 2.02 | |
| As 8mm DLM532 | ||||
| 161 | 327420-6 | 0.98 | 1.19 | |
| Stopring E-7 | ||||
| 162 | 961013-5 | 0.83 | 1.00 | |
| Zijkap DLM532 | ||||
| 163 | 459886-3 | 3.54 | 4.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 164 | 922441-9 | |||
| Handgreep voor DLM462 | ||||
| 165 | 459870-8 | 5.06 | 6.12 | |
| Afdekkap voor DLM532 | ||||
| 166 | 459871-6 | 10.50 | 12.70 | |
| Onderplaat maaidek DLM532 | ||||
| 167 | 459872-4 | 12.22 | 14.79 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 168 | 266424-2 | 0.83 | 1.00 | |
| Flensbout M8X12 | ||||
| 169 | 265324-3 | 1.18 | 1.43 | |
| Kogellager 6002Ddw A | ||||
| 170 | 211236-8 | 9.24 | 11.18 | |
| Achterwiel assy DLM532/533 | ||||
| 171 | 127513-7 | 23.06 | 27.90 | |
| Kogellager 6002Ddw A | ||||
| 172 | 211236-8 | 9.24 | 11.18 | |
| Tandwiel 49 DLM532/533 | ||||
| 173 | 226941-4 | 13.82 | 16.72 | |
| Borgring S-12 | ||||
| 174 | 961052-5 | 0.83 | 1.00 | |
| Tandwiel 12 DLM532/533 | ||||
| 175 | 226940-6 | 3.96 | 4.79 | |
| Tandwiel houderplt DLM532 | ||||
| 176 | 347586-6 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 177 | 266424-2 | 0.83 | 1.00 | |
| Schroef M5X12 A | ||||
| 178 | 911213-7 | 0.83 | 1.00 | |
| Wielkap DLM532/533 | ||||
| 179 | 459867-7 | 5.06 | 6.12 | |
| Schroef M5X12 A | ||||
| 180 | 911213-7 | 0.83 | 1.00 | |
| Achterashouder DLM532/533 P | ||||
| 181 | 327426-4 | 6.38 | 7.72 | |
| Kogellager 6001Ddw A | ||||
| 182 | 210163-6 | 1.18 | 1.43 | |
| Achteras DLM532/533 | ||||
| 183 | 162689-3 | 25.36 | 30.69 | |
| Inbusbout M6X12 | ||||
| 184 | 922311-2 | 0.83 | 1.00 | |
| Hoogteinstelling DLM532/533 | ||||
| 185 | 162694-0 | 8.21 | 9.93 | |
| Achterashouder DLM532/533 P | ||||
| 186 | 327426-4 | 6.38 | 7.72 | |
| Kogellager 6001Ddw A | ||||
| 187 | 210163-6 | 1.18 | 1.43 | |
| Schroef M5X12 A | ||||
| 188 | 911213-7 | 0.83 | 1.00 | |
| Wielkap DLM532/533 | ||||
| 189 | 459867-7 | 5.06 | 6.12 | |
| Schroef M5X12 A | ||||
| 190 | 911213-7 | 0.83 | 1.00 | |
| Tandwiel houderplt DLM532 | ||||
| 191 | 347586-6 | 0.83 | 1.00 | |
| Tandwiel 49 DLM532/533 | ||||
| 192 | 226941-4 | 13.82 | 16.72 | |
| Tandwiel 12 DLM532/533 | ||||
| 193 | 226940-6 | 3.96 | 4.79 | |
| Borgring S-12 | ||||
| 194 | 961052-5 | 0.83 | 1.00 | |
| Kogellager 6002Ddw A | ||||
| 195 | 211236-8 | 9.24 | 11.18 | |
| Achterwiel assy DLM532/533 | ||||
| 196 | 127513-7 | 23.06 | 27.90 | |
| Kogellager 6002Ddw A | ||||
| 197 | 211236-8 | 9.24 | 11.18 | |
| Flensbout M8X12 | ||||
| 198 | 265324-3 | 1.18 | 1.43 | |
| Tapschroef 5X16 Uc30/35/4020A | ||||
| 199 | 266388-0 | 0.83 | 1.00 | |
| Hoogteinstelplt DLM532 | ||||
| 200 | 347585-8 | 1.18 | 1.43 | |
| Inbusbout M6X12 | ||||
| 201 | 922311-2 | 0.83 | 1.00 | |
| Aandrijfunit DLM532/533 | ||||
| 202 | 127510-3 | 112.06 | 135.59 | |
| Flensbout M8X12 | ||||
| 203 | 265324-3 | 1.18 | 1.43 | |
| Kogellager 6002Ddw A | ||||
| 204 | 211236-8 | 9.24 | 11.18 | |
| Voorwiel assy DLM532/533 | ||||
| 205 | 127514-5 | 21.08 | 25.51 | |
| Kogellager 6002Ddw A | ||||
| 206 | 211236-8 | 9.24 | 11.18 | |
| Vooras DLM532/533 | ||||
| 207 | 162688-5 | 19.23 | 23.27 | |
| Kogellager 6002Ddw A | ||||
| 208 | 211236-8 | 9.24 | 11.18 | |
| Voorwiel assy DLM532/533 | ||||
| 209 | 127514-5 | 21.08 | 25.51 | |
| Kogellager 6002Ddw A | ||||
| 210 | 211236-8 | 9.24 | 11.18 | |
| Flensbout M8X12 | ||||
| 211 | 265324-3 | 1.18 | 1.43 | |
| Asborgplaat Jr3000V | ||||
| 212 | 341462-6 | 1.39 | 1.68 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 213 | 266424-2 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 214 | 266424-2 | 0.83 | 1.00 | |
