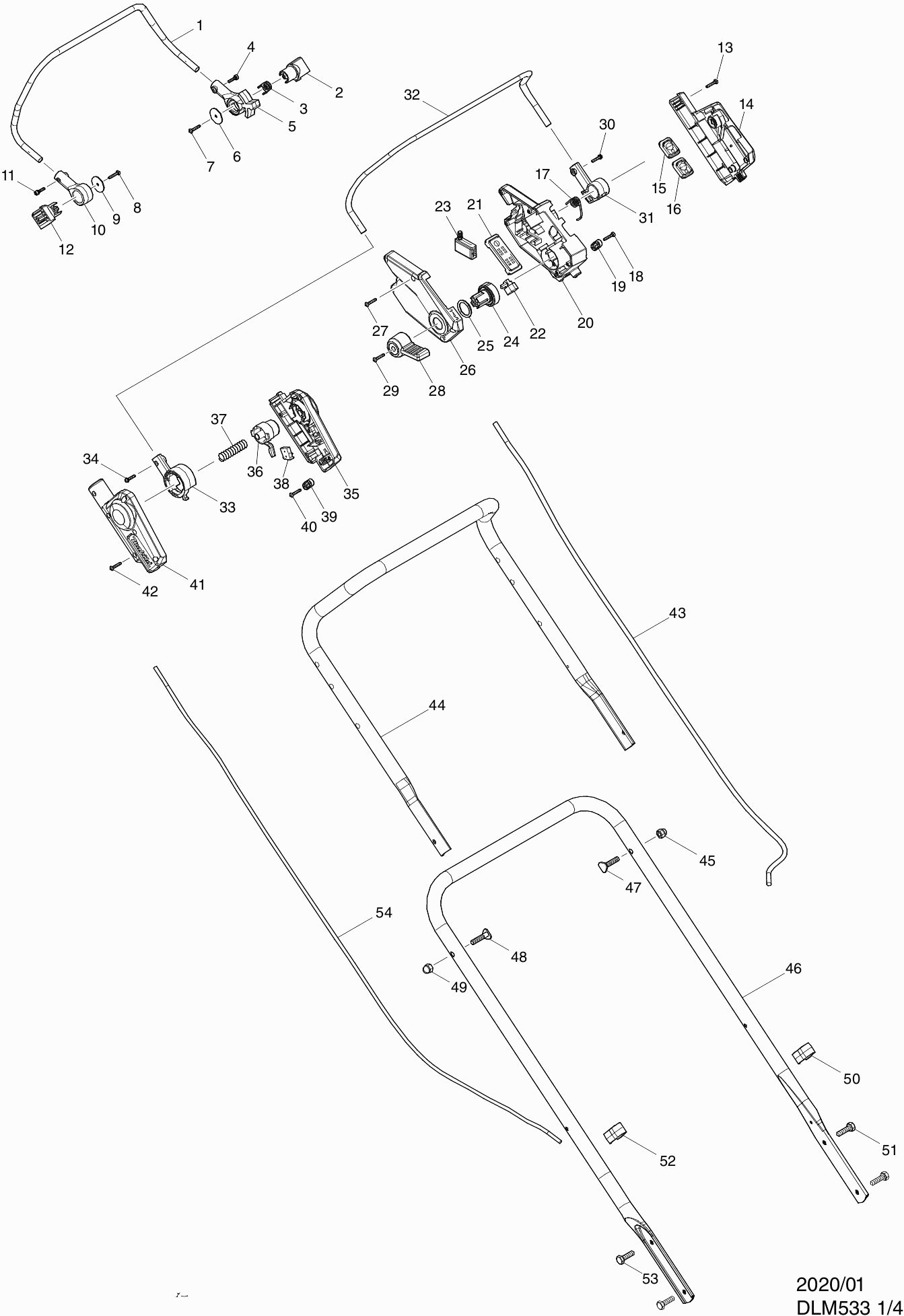

Tekeningen van de Makita DLM533
Onderdelen lijst van de Makita DLM533
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Aandrijfhendel DLM532/533 | ||||
| 001 | 327425-6 | 7.44 | 9.00 | |
| Hendelhouder DLM532/533 | ||||
| 002 | 459859-6 | 0.83 | 1.00 | |
| Torsieveer 12 DLM532/533 | ||||
| 003 | 232566-4 | 0.83 | 1.00 | |
| Schroef 4x20 | ||||
| 004 | 911138-5 | 0.83 | 1.00 | |
| Hendelhouder L DLM532/533 | ||||
| 005 | 459864-3 | 2.45 | 2.96 | |
| Ring 5 | ||||
| 006 | 267136-0 | 1.01 | 1.22 | |
| Tapschroef 4x20 | ||||
| 007 | 266424-2 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 008 | 266424-2 | 0.83 | 1.00 | |
| Ring 5 | ||||
| 009 | 267136-0 | 1.01 | 1.22 | |
| Hendelhouder R DLM532/533 | ||||
| 010 | 459858-8 | 1.43 | 1.73 | |
| Schroef 4x20 | ||||
| 011 | 911138-5 | 0.83 | 1.00 | |
| Hendelhouder DLM532/533 | ||||
| 012 | 459859-6 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 013 | 266424-2 | 0.83 | 1.00 | |
| Schakelkast assy DLM532/533 | ||||
| 014 | 183N90-3 | 3.22 | 3.90 | |
| Schakelcircuit A DLM460 | ||||
| 015 | 140F09-7 | 11.16 | 13.50 | |
| Label A/U AS1925 | ||||
| 015C10 | 810D46-0 | 2.80 | 3.39 | |
| Schakelcircuit B DLM460 | ||||
| 016 | 140F10-2 | 11.16 | 13.50 | |
| Label aan/uit DLM460 | ||||
| 016C10 | 818A74-1 | 2.44 | 2.95 | |
| Torsieveer 12 DLM532/533 | ||||
| 017 | 232575-3 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 018 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip | ||||
| 019 | 687124-5 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 020 | 459860-1 | |||
| Circuit indicatie DLM532 | ||||
| 021 | 620C48-0 | 12.90 | 15.61 | |
| Label indicatie A | ||||
| 021C10 | 8007C8-5 | 1.70 | 2.06 | |
| Toerenregelaar | ||||
| 022 | 620415-1 | 11.19 | 13.54 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 023 | 651083-9 | 19.88 | 24.05 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 024 | 459866-9 | |||
| O-ring 26mm DLM532/533 | ||||
| 025 | 213897-0 | 0.83 | 1.00 | |
| Schakelkast assy DLM532/533 | ||||
| 026 | 183N90-3 | 3.22 | 3.90 | |
| Tapschroef 4x20 | ||||
| 027 | 266424-2 | 0.83 | 1.00 | |
| Snelheidshendel DLM532/533 | ||||
| 028 | 459865-1 | 1.21 | 1.46 | |
| Tapschroef 4x20 | ||||
| 029 | 266424-2 | 0.83 | 1.00 | |
| Schroef 4x20 | ||||
| 030 | 911138-5 | 0.83 | 1.00 | |
| Schakelhendelhouder L DLM533 | ||||
| 031 | 459863-5 | 1.72 | 2.08 | |
| Zeskant moer M4 | ||||
| 031C10 | 931102-0 | 0.83 | 1.00 | |
| Schakelhendel DLM532/533 | ||||
| 032 | 327424-8 | 7.44 | 9.00 | |
| Schakelhendelhouder R DLM533 | ||||
| 033 | 459856-2 | 2.08 | 2.52 | |
| Zeskant moer M4 | ||||
| 033C10 | 931102-0 | 0.83 | 1.00 | |
| Schroef 4x20 | ||||
| 034 | 911138-5 | 0.83 | 1.00 | |
| Schakelkastset DLM532/533 | ||||
| 035 | 183P40-0 | 4.08 | 4.94 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 035-1 | 183X73-3 | |||
| Label indicatie B | ||||
| 035C10 | 8007C6-9 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 036 | 459857-0 | |||
| Drukveer 15 DLM460 | ||||
| 037 | 231227-3 | 0.83 | 1.00 | |
| Schakelaar | ||||
| 038 | 632E26-0 | 11.32 | 13.70 | |
| Klemstrip | ||||
| 039 | 687124-5 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 040 | 266424-2 | 0.83 | 1.00 | |
| Schakelkastset DLM532/533 | ||||
| 041 | 183P40-0 | 4.08 | 4.94 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 041-1 | 183X73-3 | |||
| Label indicatie B | ||||
| 041C10 | 8007C6-9 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 042 | 266424-2 | 0.83 | 1.00 | |
| Draadboom DLM532/533 | ||||
| 043 | 699143-9 | 31.62 | 38.26 | |
| Duwboom boven DLM532/533 | ||||
| 044 | 327421-4 | 17.90 | 21.66 | |
| Moerkap M8 DLM532/533 | ||||
| 045 | 252278-3 | 0.83 | 1.00 | |
| Duwboom onder DLM533 | ||||
| 046 | 327491-3 | 17.90 | 21.66 | |
| Slotbout M8x38mm DLM532/533 | ||||
| 047 | 265A62-3 | 0.83 | 1.00 | |
| Slotbout M8x38mm DLM532/533 | ||||
| 048 | 265A62-3 | 0.83 | 1.00 | |
| Moerkap M8 DLM532/533 | ||||
| 049 | 252278-3 | 0.83 | 1.00 | |
| Kabelklem DLM532/533 | ||||
| 050 | 459905-5 | 0.83 | 1.00 | |
| Zeskantbout M8X25 * | ||||
| 051 | 921441-6 | 1.02 | 1.23 | |
| Kabelklem DLM532/533 | ||||
| 052 | 459905-5 | 0.83 | 1.00 | |
| Zeskantbout M8X25 * | ||||
| 053 | 921441-6 | 1.02 | 1.23 | |
| Draadboom A DLM532/533 | ||||
| 054 | 699142-1 | 5.22 | 6.32 | |
| Grasvangbak assy LM001C A | ||||
| 055 | 122B20-7 | 36.17 | 43.77 | |
| NULL | ||||
| 056 | 140S03-7 | 12.58 | 15.22 | |
| Label "waarsch" | ||||
| 056C10 | 890380-0 | 2.80 | 3.39 | |
| Stopring E-5 | ||||
| 057 | 961018-5 | 0.83 | 1.00 | |
| Stang 6mm DLM532/533 | ||||
| 058 | 327536-7 | 0.83 | 1.00 | |
| Veiligheidssleutel DLM460 | ||||
| 059 | 643535-4 | 3.22 | 3.90 | |
| Schroef M3x14 | ||||
| 060 | 266404-8 | 0.83 | 1.00 | |
| Schakelhendel A DLM532/533 | ||||
| 061 | 459851-2 | 1.01 | 1.22 | |
| O-ring 24mm DLM532/533 | ||||
| 062 | 213896-2 | 0.83 | 1.00 | |
| Blokkeerhendel DLM532/533 | ||||
| 063 | 459852-0 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 064 | 231037-8 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 065 | 266424-2 | 0.83 | 1.00 | |
| Maaidekafdekkap DLM532 | ||||
| 066 | 459847-3 | 16.07 | 19.44 | |
| Naamplaat DLM533 | ||||
| 067 | 856W23-2 | 2.80 | 3.39 | |
| Batterijhuis DLM462/532 | ||||
| 068 | 183N78-3 | 6.58 | 7.96 | |
| Rubber pen 6 | ||||
| 068C10 | 263005-3 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 069 | 266424-2 | 0.83 | 1.00 | |
| Label serienr DLM533 | ||||
| 070 | 856W30-5 | 0.83 | 1.00 | |
| Aansluitunit (3 contacten) | ||||
| 071 | 644809-6 | 4.08 | 4.94 | |
| Tapschroef 4x20 | ||||
| 072 | 266424-2 | 0.83 | 1.00 | |
| Batterijhuis DLM462/532 | ||||
| 073 | 183N78-3 | 6.58 | 7.96 | |
| Rubber pen 6 | ||||
| 073C10 | 263005-3 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 077 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip | ||||
| 078 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 079 | 687051-6 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 080 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip | ||||
| 081 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 082 | 687051-6 | 0.83 | 1.00 | |
| Controller DLM532/533 | ||||
| 083 | 620C45-6 | 334.47 | 404.71 | |
| Tapschroef 4x20 | ||||
| 084 | 266424-2 | 0.83 | 1.00 | |
| Draadboom B DLM532/533 | ||||
| 085 | 632P74-5 | 9.52 | 11.52 | |
| Buffer B DLM532/533 | ||||
| 086 | 422529-0 | 0.83 | 1.00 | |
| Controller DLM532/533 | ||||
| 087 | 620C47-2 | 102.31 | 123.80 | |
| Buffer A DLM532/533 | ||||
| 088 | 422528-2 | 0.83 | 1.00 | |
| Schakelaar 1703,4703 DLM532 | ||||
| 089 | 651444-3 | 12.58 | 15.22 | |
| Draadboom C DLM532/533 | ||||
| 090 | 699145-5 | 8.46 | 10.24 | |
| Tapschroef 4x20 | ||||
| 091 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip | ||||
| 092 | 687124-5 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 093 | 687051-6 | 0.83 | 1.00 | |
| Schroef Vk 20mm | ||||
| 094 | 911233-1 | 0.83 | 1.00 | |
| Onderplaat DLM532/533 | ||||
| 095 | 459848-1 | 17.90 | 21.66 | |
| Bovenste motorhuis DLM532/533 | ||||
| 096 | 319869-4 | 8.46 | 10.24 | |
| Veerring 19mm DLM532/533 | ||||
| 097 | 253455-0 | 0.83 | 1.00 | |
| Kogellager 6000ddw | ||||
| 098 | 210141-6 | 1.21 | 1.46 | |
| Motor assy DLM532/533 | ||||
| 099 | 519606-8 | 115.42 | 139.66 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 100 | 211387-7 | |||
| Parker 2x8mm DLM532/533 | ||||
| 101 | 265B29-7 | 0.83 | 1.00 | |
| Controller B DLM532/533 | ||||
| 102 | 620B88-2 | 19.80 | 23.96 | |
| Veld DLM532/533 | ||||
| 103 | 629465-3 | 115.42 | 139.66 | |
| Onderste motorhuis DLM532/533 | ||||
| 104 | 319870-9 | 9.52 | 11.52 | |
| Schroef 5X70 * | ||||
| 105 | 911691-1 | 1.21 | 1.46 | |
| Schroef M3X6 | ||||
| 106 | 652031-1 | 0.83 | 1.00 | |
| Schroef Vk 20mm | ||||
| 107 | 911233-1 | 0.83 | 1.00 | |
| Inbusbout | ||||
| 108 | 922456-6 | 0.83 | 1.00 | |
| Motorsteun DLM532/533 | ||||
| 109 | 319867-8 | 17.90 | 21.66 | |
| Motortussenplaat DLM532/533 | ||||
| 110 | 459853-8 | 2.08 | 2.52 | |
| Schroef 4x16 | ||||
| 111 | 911126-2 | 0.83 | 1.00 | |
| Waaier 170 DLM532/533 | ||||
| 112 | 240205-2 | 5.22 | 6.32 | |
| Cirkelmessteun DLM532/533 | ||||
| 113 | 319868-6 | 5.22 | 6.32 | |
| Tapschroef 4x20 | ||||
| 114 | 266424-2 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 115 | 191D52-7 | |||
| Maaimesbout M8x35mm DLM532 A | ||||
| 116 | 265A69-9 | 0.83 | 1.00 | |
| Mulchinleg DLM533 | ||||
| 117 | 127550-1 | 9.81 | 11.87 | |
| Blokkeerknop DLM462/532 | ||||
| 118 | 459884-7 | 1.02 | 1.23 | |
| Drukveer 7 | ||||
| 119 | 231401-3 | 0.83 | 1.00 | |
| Blokkeerknophouder DLM462/532 | ||||
| 120 | 459885-5 | 1.02 | 1.23 | |
| Tapschroef 4x20 | ||||
| 121 | 266424-2 | 0.83 | 1.00 | |
| Uitwerpdeksel DLM533 | ||||
| 123 | 162809-9 | 21.70 | 26.26 | |
| Label waarschuw | ||||
| 123C10 | 8007P8-6 | 0.83 | 1.00 | |
| Zeskantbout M8X25 * | ||||
| 124 | 921441-6 | 1.02 | 1.23 | |
| Torsieveer 6mm | ||||
| 126 | 233597-6 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 127 | 961018-5 | 0.83 | 1.00 | |
| Uitwerpdekselas 6mm DLM532 | ||||
| 128 | 327418-3 | 2.08 | 2.52 | |
| Achtergreep DLM533 | ||||
| 131 | 327492-1 | 8.46 | 10.24 | |
| Zeskantbout M8X25 * | ||||
| 134 | 921441-6 | 1.02 | 1.23 | |
| Veer tbv klep DLM532/533 | ||||
| 135 | 232628-8 | 3.22 | 3.90 | |
| Verbindingsas DLM533 | ||||
| 136 | 347647-2 | 26.11 | 31.59 | |
| Sluitring 6x12mm | ||||
| 137 | 941151-9 | 0.83 | 1.00 | |
| Borgmoer 6-10 | ||||
| 138 | 252014-7 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 139 | 267216-2 | 0.83 | 1.00 | |
| Borgmoer 6-10 | ||||
| 140 | 252014-7 | 0.83 | 1.00 | |
| Sluitring 6x12mm | ||||
| 141 | 941151-9 | 0.83 | 1.00 | |
| Ring 8 | ||||
| 142 | 253762-1 | 1.01 | 1.22 | |
| Kabeldoorvoer DLM533 | ||||
| 143 | 422526-6 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 144 | 922233-6 | |||
| Kabelbeschermer DLM533 | ||||
| 145 | 412262-2 | 2.44 | 2.95 | |
| Kabeltule DLM532/533 | ||||
| 146 | 683A20-1 | 0.83 | 1.00 | |
| Maaidek DLM533 P | ||||
| 147 | 319918-7 | 452.19 | 547.15 | |
| Hoogteplaat DLM532/533 | ||||
| 148 | 347582-4 | 4.09 | 4.95 | |
| Zeskantbout M8X25 * | ||||
| 149 | 921441-6 | 1.02 | 1.23 | |
| NULL | ||||
| 150 | 265905-3 | 0.83 | 1.00 | |
| Achterashouderkap DLM532/533 | ||||
| 151 | 313290-9 | 2.44 | 2.95 | |
| Achterashouderplt DLM532/533 | ||||
| 152 | 347649-8 | 1.01 | 1.22 | |
| Zeskantbout M8X25 * | ||||
| 164 | 921441-6 | 1.02 | 1.23 | |
| Handgreep voor DLM533 | ||||
| 165 | 162740-9 | 19.80 | 23.96 | |
| Label Makita DLM533 | ||||
| 166 | 412499-1 | 7.43 | 8.99 | |
| Onderplaat maaidek DLM533 | ||||
| 167 | 412263-0 | 10.81 | 13.08 | |
| NULL | ||||
| 168 | 265905-3 | 0.83 | 1.00 | |
| Flensbout M8x12 | ||||
| 169 | 265324-3 | 1.21 | 1.46 | |
| Kogellager 6002ddw | ||||
| 170 | 211236-8 | 9.52 | 11.52 | |
| Achterwiel assy DLM532/533 | ||||
| 171 | 127513-7 | 23.75 | 28.74 | |
| Kogellager 6002ddw | ||||
| 172 | 211236-8 | 9.52 | 11.52 | |
| Tandwiel 49 DLM532/533 | ||||
| 173 | 226941-4 | 14.23 | 17.22 | |
| Borgring S-12 | ||||
| 174 | 961052-5 | 0.83 | 1.00 | |
| Tandwiel 12 DLM532/533 | ||||
| 175 | 226940-6 | 4.08 | 4.94 | |
| Tandwielbevestigingsplaat DLM532 | ||||
| 176 | 347586-6 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 177 | 266424-2 | 0.83 | 1.00 | |
| Schroef 5x12 | ||||
| 178 | 911213-7 | 0.83 | 1.00 | |
| Wielkap DLM532/533 | ||||
| 179 | 459867-7 | 5.22 | 6.32 | |
| Schroef 5x12 | ||||
| 180 | 911213-7 | 0.83 | 1.00 | |
| Achterashouder DLM532/533 P | ||||
| 181 | 327426-4 | 6.58 | 7.96 | |
| NULL | ||||
| 182 | 210163-6 | 1.21 | 1.46 | |
| Achteras DLM532/533 | ||||
| 183 | 162689-3 | 26.11 | 31.59 | |
| Inusbout M6X12 | ||||
| 184 | 922311-2 | 0.83 | 1.00 | |
| Hoogteinstelling DLM532/533 | ||||
| 185 | 162694-0 | 8.46 | 10.24 | |
| Achterashouder DLM532/533 P | ||||
| 186 | 327426-4 | 6.58 | 7.96 | |
| NULL | ||||
| 187 | 210163-6 | 1.21 | 1.46 | |
| Schroef 5x12 | ||||
| 188 | 911213-7 | 0.83 | 1.00 | |
| Wielkap DLM532/533 | ||||
| 189 | 459867-7 | 5.22 | 6.32 | |
| Schroef 5x12 | ||||
| 190 | 911213-7 | 0.83 | 1.00 | |
| Tandwielbevestigingsplaat DLM532 | ||||
| 191 | 347586-6 | 0.83 | 1.00 | |
| Tandwiel 49 DLM532/533 | ||||
| 192 | 226941-4 | 14.23 | 17.22 | |
| Tandwiel 12 DLM532/533 | ||||
| 193 | 226940-6 | 4.08 | 4.94 | |
| Borgring S-12 | ||||
| 194 | 961052-5 | 0.83 | 1.00 | |
| Kogellager 6002ddw | ||||
| 195 | 211236-8 | 9.52 | 11.52 | |
| Achterwiel assy DLM532/533 | ||||
| 196 | 127513-7 | 23.75 | 28.74 | |
| Kogellager 6002ddw | ||||
| 197 | 211236-8 | 9.52 | 11.52 | |
| Flensbout M8x12 | ||||
| 198 | 265324-3 | 1.21 | 1.46 | |
| Tapschroef 5x16mm | ||||
| 199 | 266388-0 | 0.83 | 1.00 | |
| Hoogteinstelplt DLM533 | ||||
| 200 | 347646-4 | 1.43 | 1.73 | |
| NULL | ||||
| 201 | 265905-3 | 0.83 | 1.00 | |
| Aandrijfunit DLM532/533 | ||||
| 202 | 127510-3 | 115.42 | 139.66 | |
| Flensbout M8x12 | ||||
| 203 | 265324-3 | 1.21 | 1.46 | |
| Kogellager 6002ddw | ||||
| 204 | 211236-8 | 9.52 | 11.52 | |
| Voorwiel assy DLM532/533 | ||||
| 205 | 127514-5 | 21.70 | 26.26 | |
| Kogellager 6002ddw | ||||
| 206 | 211236-8 | 9.52 | 11.52 | |
| Vooras DLM532/533 | ||||
| 207 | 162688-5 | 19.80 | 23.96 | |
| Kogellager 6002ddw | ||||
| 208 | 211236-8 | 9.52 | 11.52 | |
| Voorwiel assy DLM532/533 | ||||
| 209 | 127514-5 | 21.70 | 26.26 | |
| Kogellager 6002ddw | ||||
| 210 | 211236-8 | 9.52 | 11.52 | |
| Flensbout M8x12 | ||||
| 211 | 265324-3 | 1.21 | 1.46 | |
| Voorasplaat DLM462 | ||||
| 212 | 347645-6 | 0.83 | 1.00 | |
| NULL | ||||
| 213 | 265905-3 | 0.83 | 1.00 | |
| Tapschroef 4x20 | ||||
| 214 | 266424-2 | 0.83 | 1.00 | |
| Achterasplaat DLM533 P | ||||
| 215 | 347648-0 | 8.52 | 10.31 | |
| NULL | ||||
| 216 | 265905-3 | 0.83 | 1.00 | |
| Voorashouder DLM533 | ||||
| 217 | 412264-8 | 1.01 | 1.22 | |
