Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DLM538'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

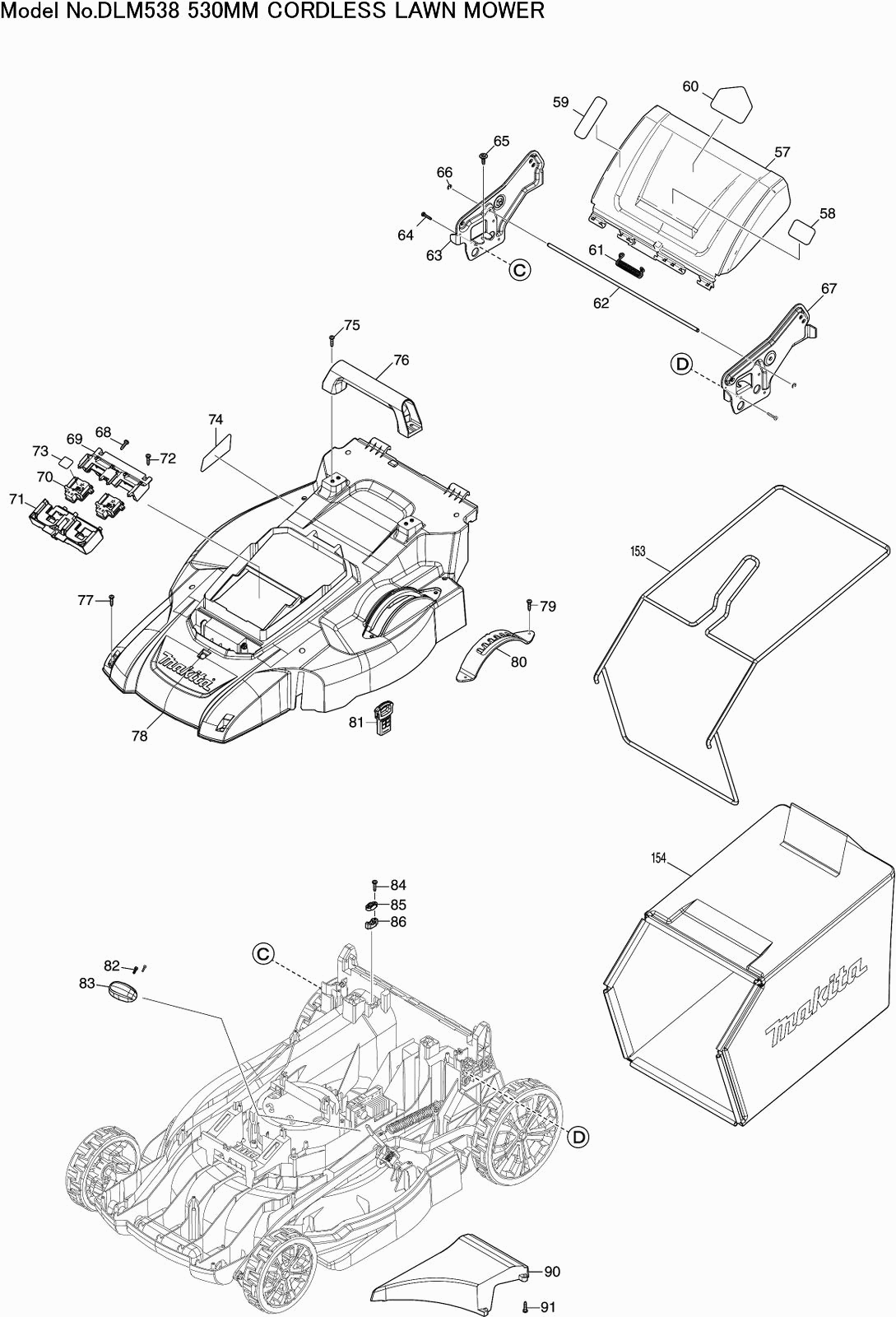

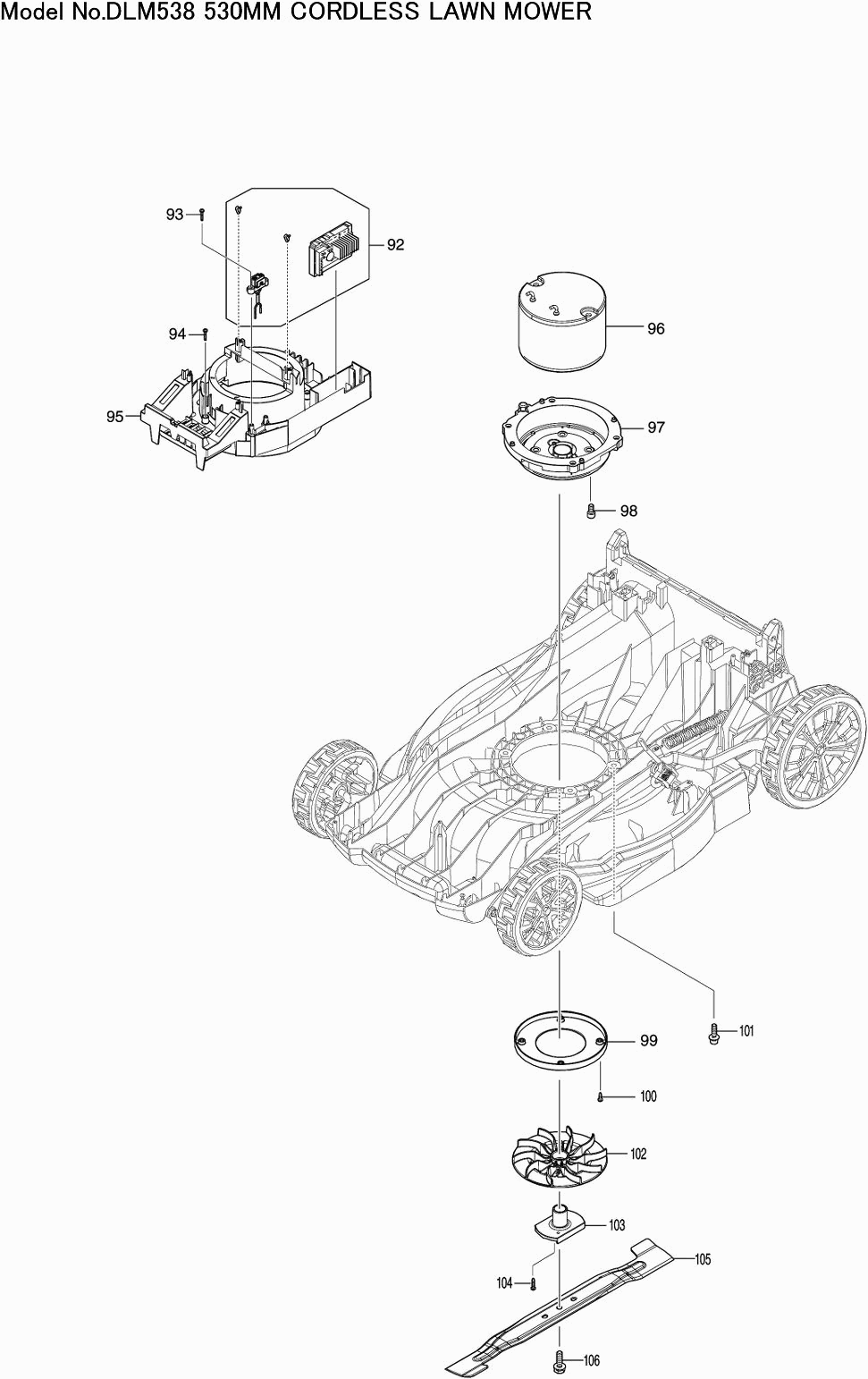

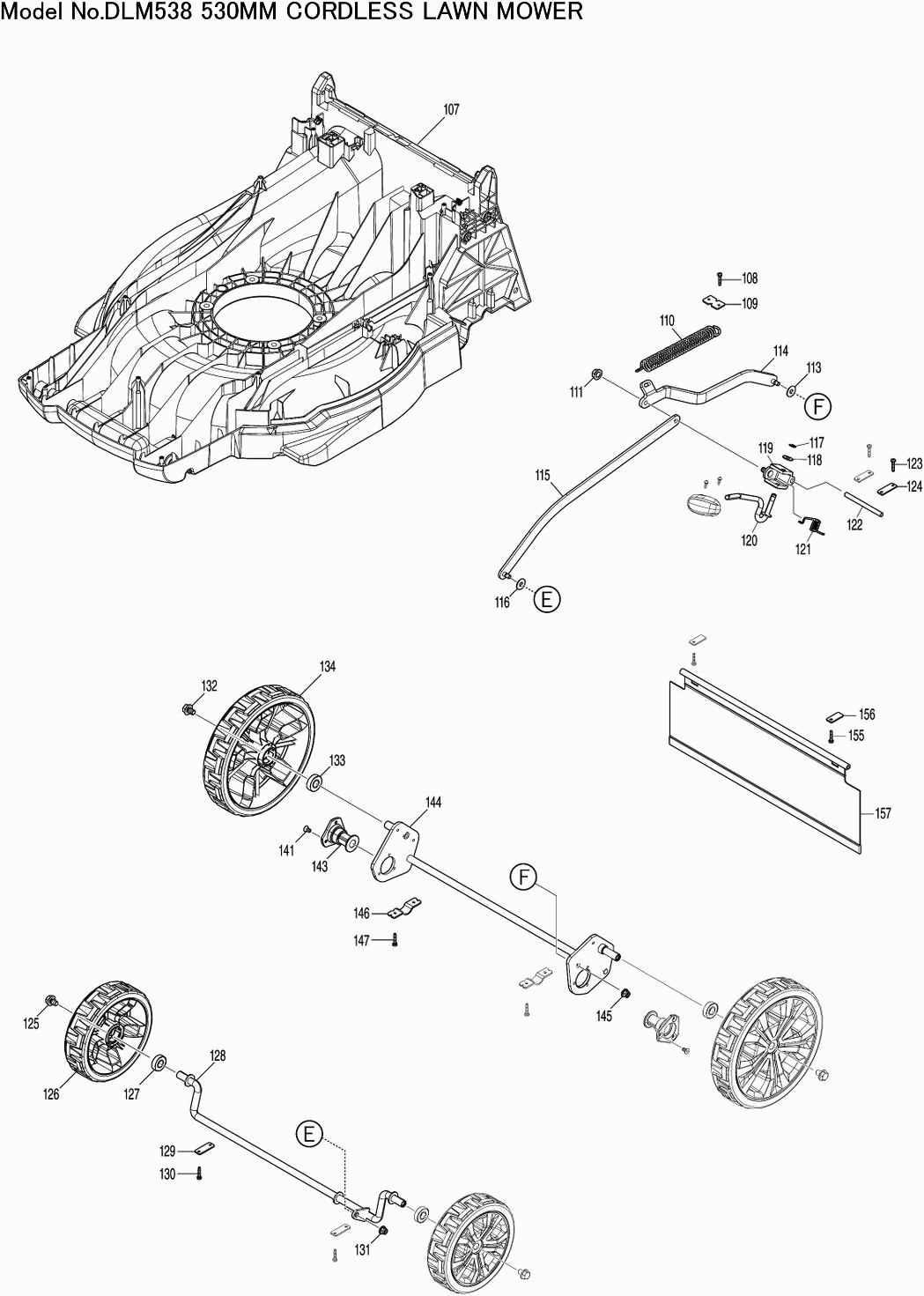

Tekeningen van de Makita DLM538
Onderdelen lijst van de Makita DLM538
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Schakelhendel DLM532/533 | ||||
| 012 | 327424-8 | 7.22 | 8.74 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 013 | 266424-2 | 0.83 | 1.00 | |
| Schakelhuis DLM480/538 | ||||
| 014 | 183V31-7 | 4.60 | 5.57 | |
| Label indicatie DLM480 | ||||
| 014C10 | 8045G7-5 | 0.83 | 1.00 | |
| Drukveer 15 DLM460 | ||||
| 015 | 231227-3 | 0.83 | 1.00 | |
| Schakelh.steun R DML481/539 | ||||
| 016 | 413A99-6 | 1.07 | 1.29 | |
| Zeskantmoer M4 A | ||||
| 016C10 | 931102-0 | 0.83 | 1.00 | |
| Vergrendel uit knop DML481/539 | ||||
| 017 | 413B00-7 | 1.26 | 1.52 | |
| Schroef 4X20 A | ||||
| 018 | 911138-5 | 0.83 | 1.00 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 019 | 651083-9 | 19.29 | 23.34 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 020 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip P | ||||
| 021 | 687053-2 | 0.83 | 1.00 | |
| Schakel circuit cpl DML481/539 | ||||
| 022 | 141H35-1 | 10.72 | 12.97 | |
| Label A/U AS1925 | ||||
| 022C10 | 810D46-0 | 2.71 | 3.28 | |
| Schakelhuis DLM480/538 | ||||
| 023 | 183V31-7 | 4.60 | 5.57 | |
| Label indicatie DLM480 | ||||
| 023C10 | 8045G7-5 | 0.83 | 1.00 | |
| Schakelhuis LM001/2J | ||||
| 027 | 183U21-4 | 1.82 | 2.20 | |
| Schakelhendelhouder L DLM533 | ||||
| 035 | 459863-5 | 1.67 | 2.02 | |
| Zeskantmoer M4 A | ||||
| 035C10 | 931102-0 | 0.83 | 1.00 | |
| Torsieveer 12 DLM532/533 | ||||
| 036 | 232575-3 | 0.83 | 1.00 | |
| Schroef 4X20 A | ||||
| 037 | 911138-5 | 0.83 | 1.00 | |
| Schakelhuis LM001/2J | ||||
| 038 | 183U21-4 | 1.82 | 2.20 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 039 | 266424-2 | 0.83 | 1.00 | |
| Kabelboom DLM538 | ||||
| 040 | 699199-2 | 19.12 | 23.14 | |
| Hendel boven LM001/2J | ||||
| 041 | 327871-3 | 17.45 | 21.11 | |
| Bout M8x50 LM001/2J | ||||
| 043 | 265C08-1 | 0.83 | 1.00 | |
| Vleugelmoer M8 LM001/2J | ||||
| 044 | 265C06-5 | 1.07 | 1.29 | |
| Draadklem LM001/2J | ||||
| 045 | 413944-9 | 0.83 | 1.00 | |
| Schroef 4X35 | ||||
| 046 | 911163-6 | 0.83 | 1.00 | |
| Hendel assy LM002J | ||||
| 047 | 122A72-2 | 17.45 | 21.11 | |
| Spanstift 2,5-16 | ||||
| 048 | 258004-8 | 0.83 | 1.00 | |
| Knop LM001J | ||||
| 049 | 413943-1 | 1.07 | 1.29 | |
| Borghouder LM001J | ||||
| 050 | 327877-1 | 1.82 | 2.20 | |
| Drukveer 8 Fs4300 | ||||
| 051 | 234121-8 | 0.83 | 1.00 | |
| Borgpen LM001J | ||||
| 052 | 327876-3 | 1.82 | 2.20 | |
| Moerbout M8 LM001/2J | ||||
| 053 | 265C07-3 | 0.83 | 1.00 | |
| Batterijkap cpl DLM480/539 P | ||||
| 054 | 141F56-1 | 12.53 | 15.16 | |
| Label Waarsc AM3623 P | ||||
| 054C10 | 890380-0 | 2.71 | 3.28 | |
| Drukveer 7 | ||||
| 055 | 231037-8 | 0.83 | 1.00 | |
| Borghendel DML481/539 | ||||
| 056 | 413B03-1 | 0.83 | 1.00 | |
| Achterklep cpl DLM538/539 P | ||||
| 057 | 141J52-3 | 9.52 | 11.52 | |
| Label waarschuwing DLM480 P | ||||
| 058 | 8047H5-8 | 0.83 | 1.00 | |
| Drukveer 8mm LM001/2J | ||||
| 061 | 232721-8 | 1.07 | 1.29 | |
| Uitwerpdekselas 6mm DLM532 | ||||
| 062 | 327418-3 | 2.02 | 2.44 | |
| Hendelsteun R LM001/2J | ||||
| 063 | 347867-8 | 10.72 | 12.97 | |
| Tapschroef 5X30 Ga9012C | ||||
| 064 | 266553-1 | 0.83 | 1.00 | |
| Parker 5x20mm LM001/2J | ||||
| 065 | 265C05-7 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 066 | 961018-5 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 066-1 | 259084-7 | 0.83 | 1.00 | |
| Hendelsteun L LM001/2J | ||||
| 067 | 347866-0 | 10.72 | 12.97 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 068 | 266424-2 | 0.83 | 1.00 | |
| Batterijhuis DLM382/432 | ||||
| 069 | 183N35-1 | 4.45 | 5.38 | |
| Rubber Pen 6 AC320H P | ||||
| 069C10 | 263005-3 | 0.83 | 1.00 | |
| Aansluitunit Djr186 A | ||||
| 070 | 644809-6 | 3.96 | 4.79 | |
| Batterijhuis DLM382/432 | ||||
| 071 | 183N35-1 | 4.45 | 5.38 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 072 | 266424-2 | 0.83 | 1.00 | |
| Label serienummer DLM538 | ||||
| 073 | 8114H0-3 | 0.83 | 1.00 | |
| Parker 5x30 DLM538 | ||||
| 074 | 8114G4-8 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 075 | 266424-2 | 0.83 | 1.00 | |
| Handgreep LM001/2J | ||||
| 076 | 413938-4 | 2.46 | 2.98 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 077 | 266424-2 | 0.83 | 1.00 | |
| Motorkap DLM538 | ||||
| 078 | 141J50-7 | 25.41 | 30.75 | |
| Afdichtingring DLM480 | ||||
| 078C10 | 422789-4 | 0.83 | 1.00 | |
| Label indicatie DLM480 | ||||
| 078C20 | 8031N0-1 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 079 | 266424-2 | 0.83 | 1.00 | |
| Hoogteplaat LM001/2J | ||||
| 080 | 162993-0 | 6.55 | 7.93 | |
| Veiligheidssleutel DLM460 | ||||
| 081 | 643535-4 | 3.12 | 3.78 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 082 | 265C97-6 | |||
| Hoogteversteller LM001/2J | ||||
| 083 | 413939-2 | 1.07 | 1.29 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 084 | 266424-2 | 0.83 | 1.00 | |
| Klemstrip P | ||||
| 085 | 687053-2 | 0.83 | 1.00 | |
| Klemstrip * | ||||
| 086 | 687051-6 | 0.83 | 1.00 | |
| Achterkap LM002J | ||||
| 090 | 413920-3 | 3.22 | 3.90 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 091 | 266424-2 | 0.83 | 1.00 | |
| Controller DLM480/538 | ||||
| 092 | 620G78-5 | 90.09 | 109.01 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 093 | 266424-2 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 094 | 266424-2 | 0.83 | 1.00 | |
| Motorkap DML481/539 | ||||
| 095 | 413B05-7 | 7.44 | 9.00 | |
| Dc-motor DML481/539 | ||||
| 096 | 629A90-6 | 213.68 | 258.55 | |
| Motorbeugel cpl DML481/539 | ||||
| 097 | 141H61-0 | 12.53 | 15.16 | |
| Inbusbout M8X16 | ||||
| 098 | 922422-3 | 0.83 | 1.00 | |
| Motortussenplaat DLM532/533 | ||||
| 099 | 459853-8 | 2.02 | 2.44 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| Inbusbout M8x30 LM001/2J | ||||
| 101 | 265C22-7 | 0.83 | 1.00 | |
| Waaier 170 LM001/2J | ||||
| 102 | 240229-8 | 3.59 | 4.34 | |
| Meshouder 53cm LM002J | ||||
| 103 | 313392-1 | 4.60 | 5.57 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 104 | 266424-2 | 0.83 | 1.00 | |
| Cirkelmes 53cm | ||||
| 105 | 191V96-5 | 19.77 | 23.92 | |
| Maaimesbout M8x35mm DLM532 A | ||||
| 106 | 265A69-9 | 0.83 | 1.00 | |
| Maaidek DLM538 | ||||
| 107 | 413A64-5 | 57.75 | 69.88 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 108 | 266424-2 | 0.83 | 1.00 | |
| Borgplaat LM001/2J | ||||
| 109 | 347870-9 | 0.83 | 1.00 | |
| Drukveer 17 LM001/2J | ||||
| 110 | 232717-9 | 2.15 | 2.60 | |
| Borgmoer M6 LM001/2J | ||||
| 111 | 252301-4 | 0.83 | 1.00 | |
| Controller DLM538 | ||||
| 112 | 8046H9-4 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 113 | 253731-2 | 0.83 | 1.00 | |
| Verbindingstang R LM001/2J | ||||
| 114 | 347873-3 | 9.52 | 11.52 | |
| Verbindingstang F LM002J | ||||
| 115 | 347871-7 | 6.55 | 7.93 | |
| Sluitring 8 | ||||
| 116 | 253731-2 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 117 | 961012-7 | |||
| Stopring E-6 | ||||
| 117-1 | 259085-5 | 0.83 | 1.00 | |
| Sluitring 8 Ga9010C | ||||
| 118 | 267281-1 | 0.83 | 1.00 | |
| Stanghouder LM001/2J | ||||
| 119 | 313389-0 | 8.38 | 10.14 | |
| Hoogteversteller LM001/2J | ||||
| 120 | 327872-1 | 3.22 | 3.90 | |
| Drukveer 9mm LM001/2J | ||||
| 121 | 232715-3 | 0.83 | 1.00 | |
| Stang 7mm LM001/2J | ||||
| 122 | 327873-9 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 123 | 266424-2 | 0.83 | 1.00 | |
| Plaat LM001/2J | ||||
| 124 | 347869-4 | 0.83 | 1.00 | |
| Flensbout M8X12 | ||||
| 125 | 265324-3 | 1.18 | 1.43 | |
| Voorwiel 180mm LM001/2J | ||||
| 126 | 141E34-5 | 11.09 | 13.42 | |
| Kogellager 6001Ddw A | ||||
| 127 | 210163-6 | 1.18 | 1.43 | |
| Vooras LM002J | ||||
| 128 | 162989-1 | 9.52 | 11.52 | |
| Plaat LM001/2J | ||||
| 129 | 347869-4 | 0.83 | 1.00 | |
| Tapschroef 4X20 Tm3000C P | ||||
| 130 | 266424-2 | 0.83 | 1.00 | |
| Borgmoer M6 LM001/2J | ||||
| 131 | 252301-4 | 0.83 | 1.00 | |
| Flensbout M8X12 | ||||
| 132 | 265324-3 | 1.18 | 1.43 | |
| Kogellager 6001Ddw A | ||||
| 133 | 210163-6 | 1.18 | 1.43 | |
| Achterwiel 230mm LM001/2J | ||||
| 134 | 141E35-3 | 12.53 | 15.16 | |
| Schroef 5X10 | ||||
| 141 | 251951-2 | 0.83 | 1.00 | |
| Ashouder achter LM001/2J | ||||
| 143 | 313390-5 | 2.46 | 2.98 | |
| As achter LM002J | ||||
| 144 | 162990-6 | 15.76 | 19.07 | |
| Borgmoer M6 LM001/2J | ||||
| 145 | 252301-4 | 0.83 | 1.00 | |
| Draadklem 19 LM001/2J | ||||
| 146 | 347865-2 | 0.83 | 1.00 | |
| Tapschroef 5X30 Ga9012C | ||||
| 147 | 266553-1 | 0.83 | 1.00 | |
| Grasvangzakbeugel LM002J P | ||||
| 153 | 162A27-5 | 12.53 | 15.16 | |
| Grasvangzak | ||||
| 154 | 162B25-5 | 17.87 | 21.62 | |
