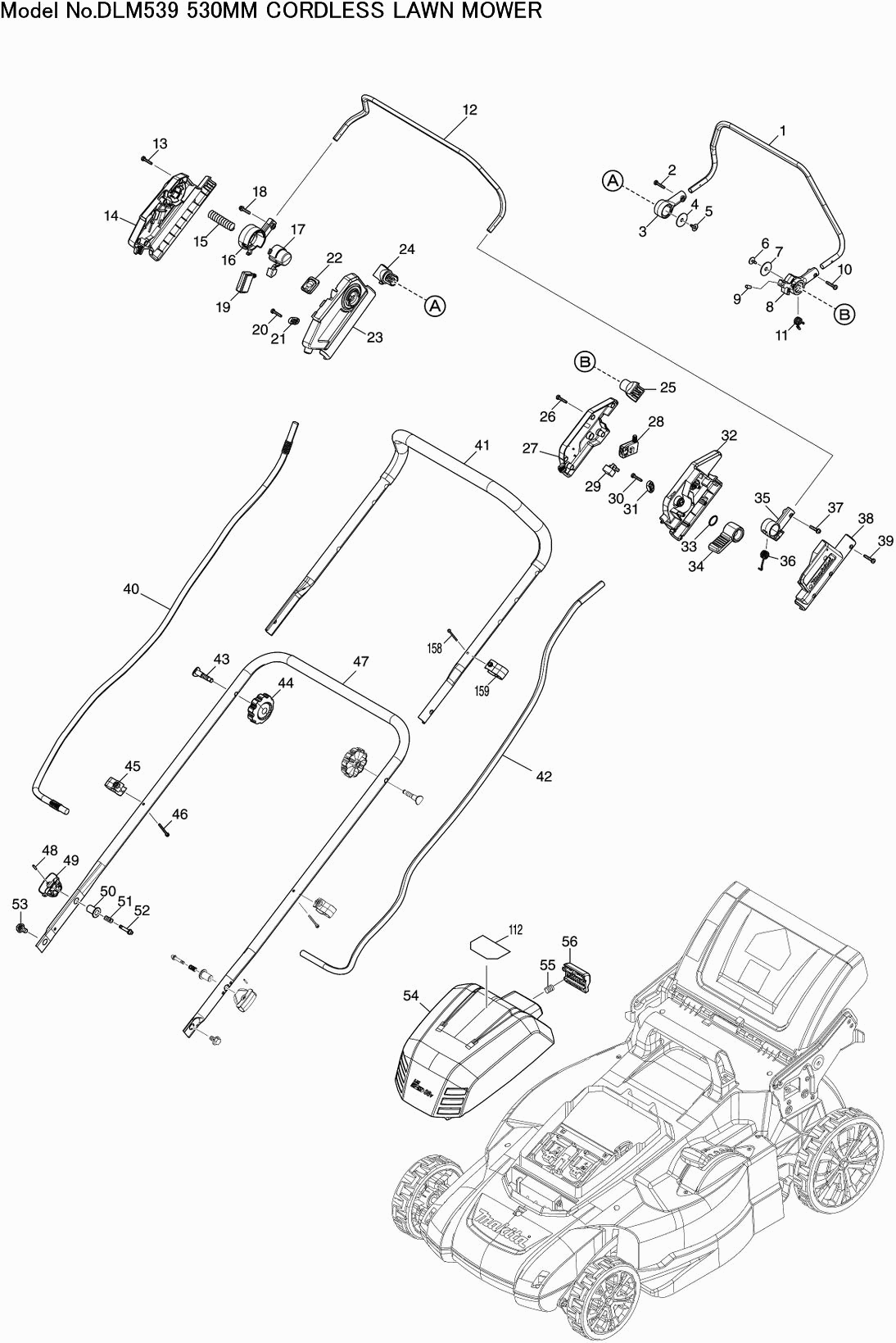

Tekeningen van de Makita DLM539
Onderdelen lijst van de Makita DLM539
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| AANDRIJFHENDEL DLM532/533 | ||||
| 001 | 327425-6 | 8.40 | 10.16 | |
| SCHROEF 4X20 A | ||||
| 002 | 911138-5 | 1.00 | 1.21 | |
| HENDELHOUDER R DLM532/533 | ||||
| 003 | 459858-8 | 2.40 | 2.90 | |
| ZESKANTMOER M4 A | ||||
| 003C10 | 931102-0 | 1.00 | 1.21 | |
| SLUITRING 8 | ||||
| 004 | 253814-8 | 1.20 | 1.45 | |
| MET.SCHR. 4X18MM DUC355 | ||||
| 005 | 265620-9 | 1.00 | 1.21 | |
| MET.SCHR. 4X18MM DUC355 | ||||
| 006 | 265620-9 | 1.00 | 1.21 | |
| SLUITRING 8 | ||||
| 007 | 253814-8 | 1.20 | 1.45 | |
| LOOPHENDELHOUDER L DLM481 | ||||
| 008 | 413B10-4 | 2.40 | 2.90 | |
| ZESKANTMOER M4 A | ||||
| 008C10 | 931102-0 | 1.00 | 1.21 | |
| PEN 5 GF600 | ||||
| 009 | 268225-4 | 1.00 | 1.21 | |
| SCHROEF 4X20 A | ||||
| 010 | 911138-5 | 1.00 | 1.21 | |
| TORSIEVEER 12 DLM532/533 | ||||
| 011 | 232566-4 | 1.00 | 1.21 | |
| SCHAKELHENDEL DLM532/533 | ||||
| 012 | 327424-8 | 8.40 | 10.16 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 013 | 266424-2 | 1.00 | 1.21 | |
| SCHAKELHUIS DLM481/539 | ||||
| 014 | 183V30-9 | 4.80 | 5.81 | |
| LABEL INDICATIE DLM480 | ||||
| 014C10 | 8045G7-5 | 2.40 | 2.90 | |
| DRUKVEER 15 DLM460 | ||||
| 015 | 231227-3 | 1.00 | 1.21 | |
| SCHAKELH.STEUN R DML481/539 | ||||
| 016 | 413A99-6 | 1.20 | 1.45 | |
| ZESKANTMOER M4 A | ||||
| 016C10 | 931102-0 | 1.00 | 1.21 | |
| VERGRENDEL UIT KNOP DML481/539 | ||||
| 017 | 413B00-7 | 2.40 | 2.90 | |
| SCHROEF 4X20 A | ||||
| 018 | 911138-5 | 1.00 | 1.21 | |
| SCHAKELAAR C3XA-1PSPM DSP600 | ||||
| 019 | 651083-9 | 19.80 | 23.96 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 020 | 266424-2 | 1.00 | 1.21 | |
| KLEMSTRIP P | ||||
| 021 | 687053-2 | 1.00 | 1.21 | |
| SCHAKEL CIRCUIT CPL DML481/539 | ||||
| 022 | 141H35-1 | 10.80 | 13.07 | |
| LABEL A/U AS1925 | ||||
| 022C10 | 810D46-0 | 2.40 | 2.90 | |
| SCHAKELHUIS DLM481/539 | ||||
| 023 | 183V30-9 | 4.80 | 5.81 | |
| LABEL INDICATIE DLM480 | ||||
| 023C10 | 8045G7-5 | 2.40 | 2.90 | |
| HOUDER RIJHENDEL DLM481/539 | ||||
| 024 | 413A98-8 | 1.20 | 1.45 | |
| HOUDER RIJHENDEL DLM481/539 | ||||
| 025 | 413A98-8 | 1.20 | 1.45 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 026 | 266424-2 | 1.00 | 1.21 | |
| HENDEL BOX SET DLM481/539 | ||||
| 027 | 183U35-3 | 3.60 | 4.36 | |
| SCHAKELAAR C3XA-1PSPM DSP600 | ||||
| 028 | 651083-9 | 19.80 | 23.96 | |
| CONTROLLE UNIT DUB362 | ||||
| 029 | 620415-1 | 11.00 | 13.31 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 030 | 266424-2 | 1.00 | 1.21 | |
| KLEMSTRIP P | ||||
| 031 | 687053-2 | 1.00 | 1.21 | |
| HENDEL BOX C DLM481/539 | ||||
| 032 | 413A95-4 | 3.60 | 4.36 | |
| O-RING 18 DLM481/539 | ||||
| 033 | 213A12-2 | 1.00 | 1.21 | |
| SNELHEIDSHENDEL DLM481/539 | ||||
| 034 | 413B01-5 | 1.20 | 1.45 | |
| SCHAKELHENDELHOUDER L DLM533 | ||||
| 035 | 459863-5 | 2.40 | 2.90 | |
| ZESKANTMOER M4 A | ||||
| 035C10 | 931102-0 | 1.00 | 1.21 | |
| TORSIEVEER 12 DLM532/533 | ||||
| 036 | 232575-3 | 1.00 | 1.21 | |
| SCHROEF 4X20 A | ||||
| 037 | 911138-5 | 1.00 | 1.21 | |
| HENDEL BOX SET DLM481/539 | ||||
| 038 | 183U35-3 | 3.60 | 4.36 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 039 | 266424-2 | 1.00 | 1.21 | |
| KABELBOOM DLM539 | ||||
| 040 | 699187-9 | 14.30 | 17.30 | |
| HENDEL BOVEN LM001/2J | ||||
| 041 | 327871-3 | 17.60 | 21.30 | |
| KABELBOOM DLM539 | ||||
| 042 | 699188-7 | 17.60 | 21.30 | |
| BOUT M8X50 LM001/2J | ||||
| 043 | 265C08-1 | 1.20 | 1.45 | |
| VLEUGELMOER M8 LM001/2J | ||||
| 044 | 265C06-5 | 1.20 | 1.45 | |
| DRAADKLEM LM001/2J | ||||
| 045 | 413944-9 | 1.20 | 1.45 | |
| ZESKANTMOER M4 A | ||||
| 045C10 | 931102-0 | 1.00 | 1.21 | |
| SCHROEF 4X35 | ||||
| 046 | 911163-6 | 1.00 | 1.21 | |
| HENDEL ASSY LM002J | ||||
| 047 | 122A72-2 | 17.60 | 21.30 | |
| SPANSTIFT 2,5-16 | ||||
| 048 | 258004-8 | 1.00 | 1.21 | |
| KNOP LM001J | ||||
| 049 | 413943-1 | 1.20 | 1.45 | |
| BORGHOUDER LM001J | ||||
| 050 | 327877-1 | 2.40 | 2.90 | |
| DRUKVEER 8 FS4300 P | ||||
| 051 | 234121-8 | 1.00 | 1.21 | |
| BORGPEN LM001J | ||||
| 052 | 327876-3 | 2.40 | 2.90 | |
| MOERBOUT M8 LM001/2J | ||||
| 053 | 265C07-3 | 1.00 | 1.21 | |
| BATTERIJKAP CPL DLM480/539 P | ||||
| 054 | 141F56-1 | 13.20 | 15.97 | |
| LABEL WAARSC AM3623 P | ||||
| 054C10 | 890380-0 | 2.40 | 2.90 | |
| DRUKVEER 7 | ||||
| 055 | 231037-8 | 1.00 | 1.21 | |
| BORGHENDEL DML481/539 | ||||
| 056 | 413B03-1 | 1.20 | 1.45 | |
| ACHTERKLEP CPL DLM538/539 P | ||||
| 057 | 141J52-3 | 9.60 | 11.62 | |
| LABEL WAARSCHUWING DLM480 P | ||||
| 058 | 8047H5-8 | 2.40 | 2.90 | |
| DRUKVEER 8MM LM001/2J | ||||
| 061 | 232721-8 | 1.20 | 1.45 | |
| UITWERPDEKSELAS 6MM DLM532 | ||||
| 062 | 327418-3 | 2.40 | 2.90 | |
| HENDELSTEUN R LM001/2J | ||||
| 063 | 347867-8 | 10.80 | 13.07 | |
| TAPSCHROEF 5X30 GA9012C | ||||
| 064 | 266553-1 | 1.00 | 1.21 | |
| PARKER 5X20MM LM001/2J | ||||
| 065 | 265C05-7 | 1.00 | 1.21 | |
| STOPRING E-5 | ||||
| 066 | 961018-5 | 1.00 | 1.21 | |
| STOPRING E-5 | ||||
| 066-1 | 259084-7 | 1.00 | 1.21 | |
| HENDELSTEUN L LM001/2J | ||||
| 067 | 347866-0 | 10.80 | 13.07 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 068 | 266424-2 | 1.00 | 1.21 | |
| BATTERIJHUIS DLM382/432 | ||||
| 069 | 183N35-1 | 7.20 | 8.71 | |
| RUBBER PEN 6 AC320H P | ||||
| 069C10 | 263005-3 | 1.00 | 1.21 | |
| AANSLUITUNIT DJR186 P | ||||
| 070 | 644809-6 | 4.80 | 5.81 | |
| BATTERIJHUIS DLM382/432 | ||||
| 071 | 183N35-1 | 7.20 | 8.71 | |
| RUBBER PEN 6 AC320H P | ||||
| 071C10 | 263005-3 | 1.00 | 1.21 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 072 | 266424-2 | 1.00 | 1.21 | |
| LABEL SERIENR. DLM539 | ||||
| 073 | 8114J9-9 | 2.40 | 2.90 | |
| NAAMPLAAT DLM539 | ||||
| 074 | 8114J3-1 | 1.00 | 1.21 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 075 | 266424-2 | 1.00 | 1.21 | |
| HANDGREEP LM001/2J | ||||
| 076 | 413938-4 | 2.40 | 2.90 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 077 | 266424-2 | 1.00 | 1.21 | |
| MOTORKAP DLM539 | ||||
| 078 | 141J49-2 | 26.40 | 31.94 | |
| AFDICHTINGRING DLM480 | ||||
| 078C10 | 422789-4 | 1.00 | 1.21 | |
| LABEL INDICATIE DLM480 | ||||
| 078C20 | 8031N0-1 | 2.40 | 2.90 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 079 | 266424-2 | 1.00 | 1.21 | |
| HOOGTEPLAAT LM001/2J | ||||
| 080 | 162993-0 | 7.20 | 8.71 | |
| VEILIGHEIDSSLEUTEL DLM460 | ||||
| 081 | 643535-4 | 3.60 | 4.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 082 | 265C97-6 | |||
| HOOGTEVERSTELLER LM001/2J | ||||
| 083 | 413939-2 | 1.20 | 1.45 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 084 | 266424-2 | 1.00 | 1.21 | |
| KLEMSTRIP P | ||||
| 085 | 687053-2 | 1.00 | 1.21 | |
| KLEMSTRIP LM001C | ||||
| 086 | 687051-6 | 1.20 | 1.45 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 087 | 266424-2 | 1.00 | 1.21 | |
| KABELHOES DLM481/539 | ||||
| 088 | 413B08-1 | 1.00 | 1.21 | |
| KABELBOOM DLM481/539 | ||||
| 089 | 699182-9 | 10.80 | 13.07 | |
| ACHTERKAP LM002J | ||||
| 090 | 413920-3 | 3.60 | 4.36 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 091 | 266424-2 | 1.00 | 1.21 | |
| CONTROLLER DLM481/539 | ||||
| 092 | 620G77-7 | 113.30 | 137.09 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 093 | 266424-2 | 1.00 | 1.21 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 094 | 266424-2 | 1.00 | 1.21 | |
| MOTORKAP DML481/539 | ||||
| 095 | 413B05-7 | 8.40 | 10.16 | |
| DC-MOTOR DML481/539 | ||||
| 096 | 629A90-6 | 214.50 | 259.54 | |
| MOTORBEUGEL CPL DML481/539 | ||||
| 097 | 141H61-0 | 13.20 | 15.97 | |
| INBUSBOUT M8X16 | ||||
| 098 | 922422-3 | 1.00 | 1.21 | |
| MOTORTUSSENPLAAT DLM532/533 | ||||
| 099 | 459853-8 | 2.40 | 2.90 | |
| TAPSCHR 4X14MM GA9070Y A | ||||
| 100 | 265B74-2 | 1.00 | 1.21 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 100 | 266385-6 | 0.83 | 1.00 | |
| INBUSBOUT M8X30 LM001/2J | ||||
| 101 | 265C22-7 | 1.00 | 1.21 | |
| WAAIER 170 LM001/2J | ||||
| 102 | 240229-8 | 3.60 | 4.36 | |
| MESHOUDER 53CM LM002J | ||||
| 103 | 313392-1 | 4.80 | 5.81 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 104 | 266424-2 | 1.00 | 1.21 | |
| CIRKELMES COMBI 53 CM | ||||
| 105 | 191V96-5 | 17.00 | 20.57 | |
| MAAIMESBOUT M8X35MM DLM532 A | ||||
| 106 | 265A69-9 | 1.20 | 1.45 | |
| MAAIDEK DLM539 | ||||
| 107 | 413A63-7 | 58.30 | 70.54 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 108 | 266424-2 | 1.00 | 1.21 | |
| BORGPLAAT LM001/2J | ||||
| 109 | 347870-9 | 1.00 | 1.21 | |
| DRUKVEER 17 LM001/2J | ||||
| 110 | 232717-9 | 2.40 | 2.90 | |
| BORGMOER M6 LM001/2J | ||||
| 111 | 252301-4 | 1.00 | 1.21 | |
| CONTROLLER DLM538 | ||||
| 112 | 8046H9-4 | 1.00 | 1.21 | |
| SLUITRING 8 | ||||
| 113 | 253731-2 | 1.00 | 1.21 | |
| VERBINDINGSTANG R LM001/2J | ||||
| 114 | 347873-3 | 9.60 | 11.62 | |
| VERBINDINGSTANG F LM002J | ||||
| 115 | 347871-7 | 7.20 | 8.71 | |
| SLUITRING 8 | ||||
| 116 | 253731-2 | 1.00 | 1.21 | |
| STOPRING E-6 A | ||||
| 117 | 961012-7 | 1.00 | 1.21 | |
| STOPRING E-6 | ||||
| 117-1 | 259085-5 | 1.00 | 1.21 | |
| SLUITRING 8 GA9010C | ||||
| 118 | 267281-1 | 1.00 | 1.21 | |
| STANGHOUDER LM001/2J | ||||
| 119 | 313389-0 | 8.40 | 10.16 | |
| HOOGTEVERSTELLER LM001/2J | ||||
| 120 | 327872-1 | 3.60 | 4.36 | |
| DRUKVEER 9MM LM001/2J | ||||
| 121 | 232715-3 | 1.00 | 1.21 | |
| STANG 7MM LM001/2J | ||||
| 122 | 327873-9 | 1.20 | 1.45 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 123 | 266424-2 | 1.00 | 1.21 | |
| PLAAT LM001/2J | ||||
| 124 | 347869-4 | 1.00 | 1.21 | |
| FLENSBOUT M8X12 | ||||
| 125 | 265324-3 | 1.20 | 1.45 | |
| VOORWIEL 180MM LM001/2J | ||||
| 126 | 141E34-5 | 12.10 | 14.64 | |
| KOGELLAGER 6001DDW A | ||||
| 127 | 210163-6 | 1.20 | 1.45 | |
| VOORAS LM002J | ||||
| 128 | 162989-1 | 9.60 | 11.62 | |
| PLAAT LM001/2J | ||||
| 129 | 347869-4 | 1.00 | 1.21 | |
| TAPSCHROEF 4X20 TM3000C P | ||||
| 130 | 266424-2 | 1.00 | 1.21 | |
| BORGMOER M6 LM001/2J | ||||
| 131 | 252301-4 | 1.00 | 1.21 | |
| FLENSBOUT M8X12 | ||||
| 132 | 265324-3 | 1.20 | 1.45 | |
| KOGELLAGER 6001DDW A | ||||
| 133 | 210163-6 | 1.20 | 1.45 | |
| WIEL 230 CPL DLM481/539 | ||||
| 134 | 141F63-4 | 14.30 | 17.30 | |
| TANDWIEL 49 DLM481/539 P | ||||
| 135 | 227913-2 | 7.20 | 8.71 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 135-1 | 227C38-0 | |||
| PARKER 4X12MM LM001J | ||||
| 136 | 265B00-1 | 1.00 | 1.21 | |
| KRUISKOPSCHROEF M5X10 P | ||||
| 137 | 911208-0 | 1.00 | 1.21 | |
| WIELKAP DLM481/539 | ||||
| 138 | 413B06-5 | 3.60 | 4.36 | |
| BORGRING S-12 | ||||
| 139 | 961052-5 | 1.00 | 1.21 | |
| TANDWIEL 11 DLM481/539 | ||||
| 140 | 227912-4 | 2.40 | 2.90 | |
| SCHROEF 5X10 | ||||
| 141 | 251951-2 | 1.00 | 1.21 | |
| KOGELLAGER 6001DDW A | ||||
| 142 | 210163-6 | 1.20 | 1.45 | |
| ASHOUDER ACHTER LM001/2J | ||||
| 143 | 313390-5 | 2.40 | 2.90 | |
| AS ACHTER LM002J | ||||
| 144 | 162990-6 | 16.50 | 19.96 | |
| BORGMOER M6 LM001/2J | ||||
| 145 | 252301-4 | 1.00 | 1.21 | |
| DRAADKLEM 19 LM001/2J | ||||
| 146 | 347865-2 | 1.20 | 1.45 | |
| TAPSCHROEF 5X30 GA9012C | ||||
| 147 | 266553-1 | 1.00 | 1.21 | |
| AANDRIJVING DLM539 | ||||
| 148 | 122B05-3 | 102.30 | 123.78 | |
| HAAKJE DLM481/539 | ||||
| 149 | 347887-2 | 1.20 | 1.45 | |
| TAPSCHROEF 5X16 UC30/35/4020A | ||||
| 150 | 266388-0 | 1.00 | 1.21 | |
| TAPSCHROEF 5X30 GA9012C | ||||
| 151 | 266553-1 | 1.00 | 1.21 | |
| KABELTULE DLM532/533 | ||||
| 152 | 683A20-1 | 1.00 | 1.21 | |
| Grasvangzakbeugel LM002J P | ||||
| 153 | 162A27-5 | 12.53 | 15.16 | |
| GRASVANGZAK LM002J | ||||
| 154 | 162B25-5 | 16.00 | 19.36 | |
| SCHROEF 4X35 | ||||
| 158 | 911163-6 | 1.00 | 1.21 | |
| DRAADKLEM LM001/2J | ||||
| 159 | 413944-9 | 1.20 | 1.45 | |
| ZESKANTMOER M4 A | ||||
| 159C10 | 931102-0 | 1.00 | 1.21 | |
