Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DLS111'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

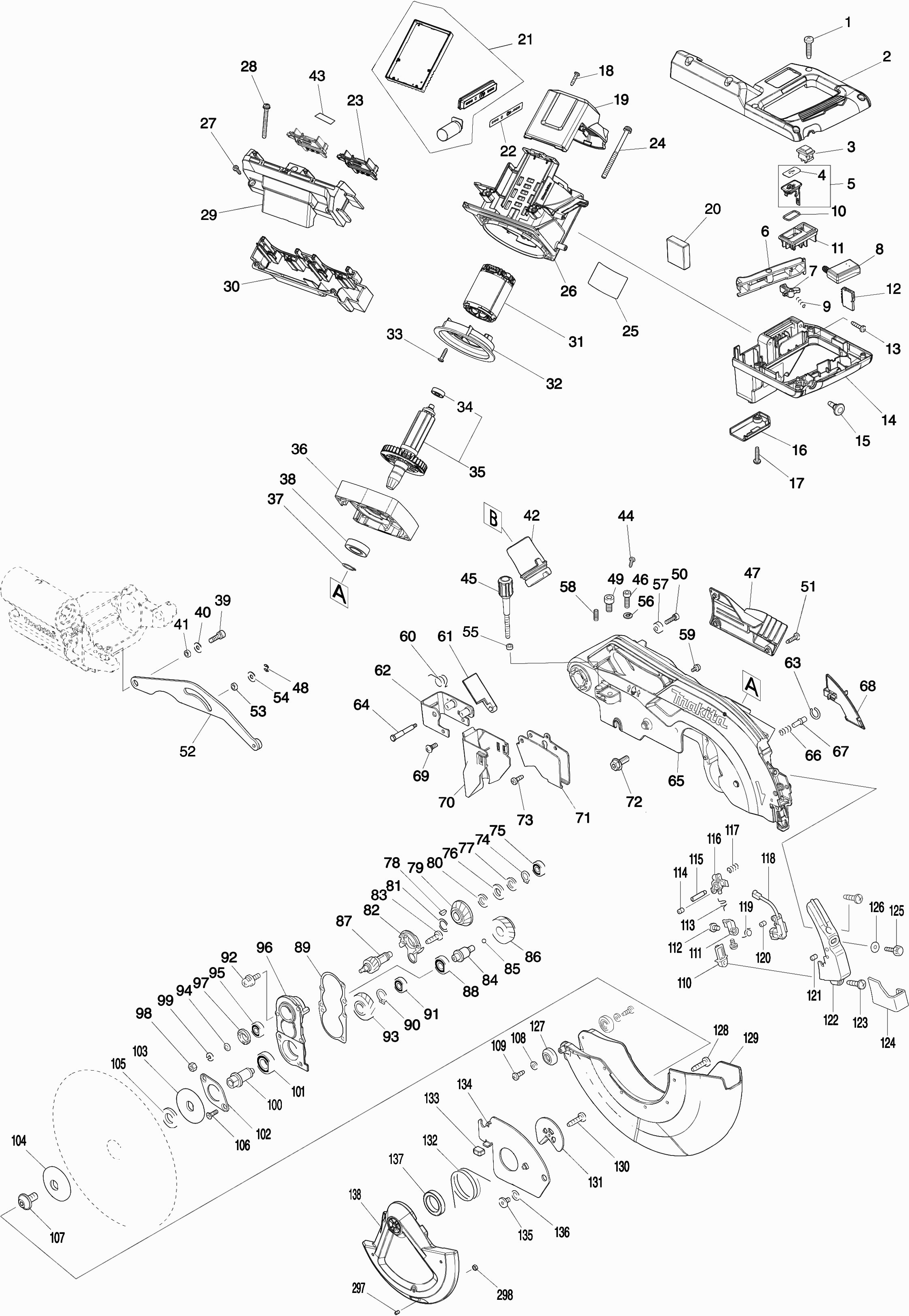

Tekeningen van de Makita DLS111
Onderdelen lijst van de Makita DLS111
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Tapschroef 4X18 A | ||||
| 001 | 265A48-7 | 0.83 | 1.00 | |
| Handgreepset Dls111 | ||||
| 002 | 183H70-3 | 14.02 | 16.96 | |
| Waarschuwingslabel Ls1016Lb | ||||
| 002C10 | 810486-8 | 2.71 | 3.28 | |
| Schakelunit Dls111 | ||||
| 003 | 632L09-2 | 10.50 | 12.70 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 004 | 813T75-8 | |||
| Kap Set DSP601/DGA514 P | ||||
| 005A | 183H92-3 | 2.71 | 3.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 005B | 183J85-2 | |||
| Schakelaarhandel Dls111 | ||||
| 006 | 457935-0 | 2.71 | 3.28 | |
| Deblokkeer Handel Lf1000 | ||||
| 007 | 416356-5 | 1.39 | 1.68 | |
| Schakelaar C3Xa-1Pspm Dsp600 | ||||
| 008 | 651083-9 | 19.29 | 23.34 | |
| Drukveer 4 A | ||||
| 009 | 231026-3 | 0.83 | 1.00 | |
| O-Ring 18 Hm0871C | ||||
| 010A | 213275-4 | 0.83 | 1.00 | |
| O-Ring 16 HK1820 P | ||||
| 010B | 213218-6 | 0.83 | 1.00 | |
| Schakelaarkap Dls111 | ||||
| 011 | 458079-9 | 7.21 | 8.72 | |
| Sub Controller Dls111 | ||||
| 012 | 620750-7 | 33.35 | 40.35 | |
| Tapschroef 4X18 A | ||||
| 013 | 265A48-7 | 0.83 | 1.00 | |
| Handgreepset Dls111 | ||||
| 014 | 183H70-3 | 14.02 | 16.96 | |
| Waarschuwingslabel Ls1016Lb | ||||
| 014C10 | 810486-8 | 2.71 | 3.28 | |
| Deblokkeerknop Ls1016Lb A | ||||
| 015 | 451037-4 | 1.00 | 1.21 | |
| Kabelbeschermhouder Ls1216Lb | ||||
| 016 | 451000-7 | 0.83 | 1.00 | |
| Tapschroef 4X18 A | ||||
| 017 | 265A48-7 | 0.83 | 1.00 | |
| Tapschroef 4X18 A | ||||
| 018 | 265A48-7 | 0.83 | 1.00 | |
| Achterdeksel Dls111 | ||||
| 019 | 457933-4 | 5.09 | 6.16 | |
| Stroomcircuit Dls111 | ||||
| 020 | 620742-6 | 15.60 | 18.88 | |
| Controle Unit DLS111 P | ||||
| 021 | 620728-0 | 161.29 | 195.16 | |
| Indicatielabel DLS111 | ||||
| 022 | 813T74-0 | 2.71 | 3.28 | |
| Aansluitunit Dhp483 | ||||
| 023 | 643874-2 | 3.54 | 4.28 | |
| Schroef M6X80Mm Ls1016Lb | ||||
| 024 | 911948-0 | 0.83 | 1.00 | |
| Naamplaat DLS111 | ||||
| 025 | 853T07-3 | 2.71 | 3.28 | |
| Motorhuis Dls111 | ||||
| 026 | 457906-7 | 12.19 | 14.75 | |
| Tapschroef 4X18 A | ||||
| 027 | 265A48-7 | 0.83 | 1.00 | |
| Schroef 5X50 | ||||
| 028 | 911273-9 | 0.83 | 1.00 | |
| Batteryijhuis Dls111 | ||||
| 029 | 183H65-6 | 6.38 | 7.72 | |
| Rubber Pen 6 AC320H P | ||||
| 029C10 | 263005-3 | 0.83 | 1.00 | |
| Batteryijhuis Dls111 | ||||
| 030 | 183H65-6 | 6.38 | 7.72 | |
| Rubber Pen 6 AC320H P | ||||
| 030C10 | 263005-3 | 0.83 | 1.00 | |
| Veld 2X18V Dls111 | ||||
| 031 | 629282-1 | 48.40 | 58.56 | |
| Tussenplaat Dls111* | ||||
| 032 | 457934-2 | 2.71 | 3.28 | |
| Tapschroef 4X18 A | ||||
| 033 | 265A48-7 | 0.83 | 1.00 | |
| Kogellager 607Llb A | ||||
| 034 | 211021-9 | 4.45 | 5.38 | |
| Anker Dls111 | ||||
| 035 | 519454-5 | 44.96 | 54.40 | |
| Motorsteun Ls1019L | ||||
| 036 | 319591-3 | 9.24 | 11.18 | |
| Borgring S-17 | ||||
| 037 | 961057-5 | 0.83 | 1.00 | |
| Kogellager 6003DDW P | ||||
| 038 | 210301-0 | 5.80 | 7.02 | |
| Inbusbout M6X20 A | ||||
| 039 | 265905-3 | 0.83 | 1.00 | |
| Sluitring 6 BLS713 P | ||||
| 040 | 253804-1 | 0.83 | 1.00 | |
| Ring 6x3,7 LS1013 | ||||
| 041 | 257163-5 | 1.20 | 1.45 | |
| Stofadapter DLS211 | ||||
| 042 | 459250-8 | 2.38 | 2.88 | |
| Serienummer label DLS111 | ||||
| 043 | 853T14-6 | 2.71 | 3.28 | |
| Tapschroef M4X12Mm Ck A | ||||
| 044 | 266026-4 | 0.83 | 1.00 | |
| Stelschroef M6X40 Ls1019L | ||||
| 045 | 251554-2 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 046 | 922332-4 | |||
| Afdekkap M/Logo Makita | ||||
| 047 | 457667-9 | 2.38 | 2.88 | |
| Stopring E-5 | ||||
| 048 | 961018-5 | 0.83 | 1.00 | |
| Inbusbout M8X25 Ls1019L | ||||
| 049 | 251547-9 | 0.83 | 1.00 | |
| Inbusbout M5X18Mm | ||||
| 050 | 922226-3 | 0.83 | 1.00 | |
| Tapschroef Ct4X16 A | ||||
| 051 | 266034-5 | 0.83 | 1.00 | |
| Verbindingsplaat Ls1019L | ||||
| 052 | 144529-7 | 8.21 | 9.93 | |
| Ring 6x3,7 LS1013 | ||||
| 053 | 257163-5 | 1.20 | 1.45 | |
| Sluitring 6 BLS713 P | ||||
| 054 | 253804-1 | 0.83 | 1.00 | |
| Kunststof Ring 5 P | ||||
| 055 | 262001-8 | 1.39 | 1.68 | |
| Veerring 6 A | ||||
| 056 | 253903-9 | 0.83 | 1.00 | |
| Bus 6 Ls1016Lb | ||||
| 057 | 257785-1 | 0.83 | 1.00 | |
| Stelschroef M6X16 Ls1016L | ||||
| 058 | 266321-2 | 0.83 | 1.00 | |
| Schroef 4X10 | ||||
| 059 | 911114-9 | 0.83 | 1.00 | |
| Torsieveer 11 Ls1019L | ||||
| 060 | 232412-1 | 0.83 | 1.00 | |
| Stofgeleider Plaat Ls1019L | ||||
| 061 | 457764-1 | 0.98 | 1.19 | |
| Montage Steun Ls1019L | ||||
| 062 | 161647-6 | 3.96 | 4.79 | |
| Borgring 8 | ||||
| 063 | 231928-3 | 0.83 | 1.00 | |
| Met. Schroef M4 Ls1019L | ||||
| 064 | 251544-5 | 0.83 | 1.00 | |
| Zaagkap Dls111 | ||||
| 065 | 144774-4 | 92.17 | 111.53 | |
| Pen geleider verb.plt LS1013 | ||||
| 065A | 322316-6 | 2.02 | 2.44 | |
| Rubber Pen 6 AC320H P | ||||
| 065C10 | 263005-3 | 0.83 | 1.00 | |
| Waarschuwingslabel Ls0714 | ||||
| 065C20 | 810064-4 | 2.84 | 3.44 | |
| Laser Straal Label Ls0714 A | ||||
| 065C30 | 810354-5 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 066 | 231240-1 | 0.83 | 1.00 | |
| Blokkeer Pen 6 4110C | ||||
| 067 | 256633-1 | 0.83 | 1.00 | |
| Kabelbeschermhouder Ls1019L* | ||||
| 068 | 457659-8 | 1.00 | 1.21 | |
| Kruiskop Schroef M4X11 P | ||||
| 069 | 265028-7 | 1.18 | 1.43 | |
| Afschermkap Ls1019L | ||||
| 070 | 422155-5 | 2.02 | 2.44 | |
| Geleidingsplaat Ls1019L | ||||
| 071 | 347215-1 | 2.02 | 2.44 | |
| Inbusbout M8X20Mm 5008Mg | ||||
| 072 | 266283-4 | 1.18 | 1.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 073 | 266020-6 | |||
| Borgring S-12 | ||||
| 074 | 961052-5 | 0.83 | 1.00 | |
| Kogellager 608Ddw A | ||||
| 075 | 210005-4 | 4.45 | 5.38 | |
| Rubber Ring 12 Ls1016Lb | ||||
| 076 | 261104-5 | 0.83 | 1.00 | |
| Sluitring 12 | ||||
| 077 | 253744-3 | 0.83 | 1.00 | |
| Inlegspie 4 | ||||
| 078 | 254001-2 | 0.83 | 1.00 | |
| Tandwiel 32 Ls1016Lb | ||||
| 079 | 227550-2 | 5.71 | 6.91 | |
| Sluitring 12 | ||||
| 080 | 253744-3 | 0.83 | 1.00 | |
| Dunne Sluitring 14 | ||||
| 081 | 253313-0 | 0.83 | 1.00 | |
| Afdichting Ls1016Lb | ||||
| 082 | 451002-3 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 083 | 266026-4 | 0.83 | 1.00 | |
| Tandwielas Ls1016Lb | ||||
| 084 | 325643-0 | 3.28 | 3.97 | |
| Stalen Kogel 4 | ||||
| 085 | 216024-8 | 0.83 | 1.00 | |
| Tandwiel 27 Ls1016Lb | ||||
| 086 | 227702-5 | 5.30 | 6.41 | |
| Tandwiel 14 Ls1016Lb | ||||
| 087 | 227701-7 | 5.30 | 6.41 | |
| Kogellager 6000Zz Ls10/1216L | ||||
| 088 | 210067-2 | 1.18 | 1.43 | |
| Pakking Ls1016Lb | ||||
| 089 | 442147-8 | 2.02 | 2.44 | |
| Borgring S-15 | ||||
| 090 | 961055-9 | 0.83 | 1.00 | |
| Kogellager 608Ddw A | ||||
| 091 | 210005-4 | 4.45 | 5.38 | |
| Schroef 5X16 A | ||||
| 092 | 911224-2 | 0.83 | 1.00 | |
| Tandwiel 28 Ls1016Lb | ||||
| 093 | 227703-3 | 5.30 | 6.41 | |
| Sluitring 5 | ||||
| 094 | 267010-2 | 0.83 | 1.00 | |
| Kogellager 608Ddw A | ||||
| 095 | 210005-4 | 4.45 | 5.38 | |
| Lagerhuis Ls1016Lb | ||||
| 096 | 158957-0 | 11.32 | 13.70 | |
| Rubber Pen 4 6413 A | ||||
| 096C10 | 263002-9 | 0.83 | 1.00 | |
| Lager Borgring 14-23 Bcs550 | ||||
| 097 | 285847-5 | 4.45 | 5.38 | |
| Zeskantmoer M5 A | ||||
| 098 | 931202-6 | 0.83 | 1.00 | |
| Veerring 5MM DLS211 | ||||
| 099 | 253427-5 | 0.83 | 1.00 | |
| Zaagas Ls1016Lb | ||||
| 100 | 325644-8 | 5.06 | 6.12 | |
| Kogellager 6002Ddw A | ||||
| 101 | 211236-8 | 9.24 | 11.18 | |
| Lagerborging 51 Ls1016Lb | ||||
| 102 | 285732-2 | 0.83 | 1.00 | |
| Binnenflens 53 Ls1016Lb | ||||
| 103 | 224431-1 | 3.54 | 4.28 | |
| Buitenflens 53 Ls1016Lb | ||||
| 104 | 224432-9 | 3.54 | 4.28 | |
| Reduceerring 30x15,88x4mm | ||||
| 105 | 257295-8 | 1.00 | 1.21 | |
| Verzonkenschroef M5 P | ||||
| 106 | 265034-2 | 0.83 | 1.00 | |
| Zeskantbout M10X20 Ls1214F A | ||||
| 107 | 266755-9 | 2.36 | 2.86 | |
| Sluitring M4 | ||||
| 108 | 941051-3 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 109 | 266020-6 | |||
| Lens Tbv Laserlijn Ls0714F | ||||
| 110 | 418104-8 | 2.02 | 2.44 | |
| Montageblok B >0506 Ls0714 A | ||||
| 111 | 419378-4 | 2.71 | 3.28 | |
| Schroef 3X6 | ||||
| 112 | 911003-8 | 0.83 | 1.00 | |
| Torsieveer 9 Ls0714 | ||||
| 113 | 231664-1 | 0.83 | 1.00 | |
| Inbusbout M4X6Mm Ls0714 | ||||
| 114 | 266318-1 | 0.83 | 1.00 | |
| Borstschroef M5 Ls0714 | ||||
| 115 | 266306-8 | 1.67 | 2.02 | |
| Montageblok C >0506 Ls0714 | ||||
| 116 | 419379-2 | 4.14 | 5.01 | |
| Drukveer 6 Ls0714 | ||||
| 117 | 233471-8 | 0.83 | 1.00 | |
| Circuit Tbv Laser Ls1216Lb | ||||
| 118 | 638651-5 | 28.02 | 33.90 | |
| Torsieveer 9 Ls0714 | ||||
| 119 | 231664-1 | 0.83 | 1.00 | |
| Inbusbout M4X6Mm Ls0714 | ||||
| 120 | 266318-1 | 0.83 | 1.00 | |
| Zeskantbout M5X8 | ||||
| 121 | 266229-0 | 0.83 | 1.00 | |
| Laserbeschermkap Ls1019L | ||||
| 122 | 457660-3 | 2.36 | 2.86 | |
| Tapschroef Ct4X16 A | ||||
| 123 | 266034-5 | 0.83 | 1.00 | |
| Beschermplaat Ls1019L | ||||
| 124 | 457664-5 | 0.83 | 1.00 | |
| Knopbout M5X24 | ||||
| 125 | 265753-0 | 1.39 | 1.68 | |
| Sluitring 5x3,5mm | ||||
| 126 | 253807-5 | 0.83 | 1.00 | |
| Roller Ls1016Lb | ||||
| 127 | 424193-3 | 0.83 | 1.00 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 128 | 266385-6 | 0.83 | 1.00 | |
| Zaagbeschermkap Ls1019L | ||||
| 129 | 457499-4 | 13.82 | 16.72 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 130 | 266385-6 | 0.83 | 1.00 | |
| Centreerplaat Ls1019L | ||||
| 131 | 347213-5 | 1.67 | 2.02 | |
| Torsieveer 45 Ls1016Lb | ||||
| 132 | 231634-0 | 2.02 | 2.44 | |
| Buffer Ls1016Lb | ||||
| 133 | 424190-9 | 0.83 | 1.00 | |
| Centreer Plaat Huis Ls1019L | ||||
| 134 | 347214-3 | 2.36 | 2.86 | |
| Zeskantbout M6 Ls1040 | ||||
| 135 | 265985-9 | 1.39 | 1.68 | |
| Veerring 10 | ||||
| 136 | 253932-2 | 0.83 | 1.00 | |
| Kogellager 6805Ddw Ls1019L | ||||
| 137 | 210168-6 | 2.02 | 2.44 | |
| Beschermkap A LS1219L A | ||||
| 138 | 458437-9 | 5.06 | 6.12 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 139 | 126751-8 | |||
| Tapschroef 4X18 A | ||||
| 140 | 265A48-7 | 0.83 | 1.00 | |
| Slangverbinder A | ||||
| 141 | 413J67-3 | 4.00 | 4.84 | |
| Slang 28Mm 45Cm Ls1019L | ||||
| 142 | 245041-1 | 10.50 | 12.70 | |
| Huls Ls1019L | ||||
| 143 | 457672-6 | 0.83 | 1.00 | |
| Stopper Ls1019L | ||||
| 144 | 457673-4 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 147 | 458198-1 | |||
| Slangverbinder A | ||||
| 148 | 413J67-3 | 4.00 | 4.84 | |
| Tapschroef Ct4X16 A | ||||
| 149 | 266034-5 | 0.83 | 1.00 | |
| Bus 17 Ls1019L | ||||
| 150 | 457665-3 | 1.00 | 1.21 | |
| Torsieveer 35Mm Ls1016Lb | ||||
| 152 | 233537-4 | 5.71 | 6.91 | |
| Schroef M6 | ||||
| 153 | 251267-5 | 0.83 | 1.00 | |
| Veerring 20 Ls0714 | ||||
| 154 | 253948-7 | 0.83 | 1.00 | |
| Sluitring 8X14X1Mm | ||||
| 155 | 253835-0 | 0.83 | 1.00 | |
| Blokkeerarm Ls1019L | ||||
| 156 | 347221-6 | 1.39 | 1.68 | |
| Voorarm Plaat Ls1019L | ||||
| 157 | 347222-4 | 0.83 | 1.00 | |
| Vilten Ring 30 Ls1019L | ||||
| 158 | 262076-7 | 2.38 | 2.88 | |
| Stang 16 Ls1019L | ||||
| 159 | 326994-4 | 1.99 | 2.41 | |
| Knop 22 Ls1019L | ||||
| 160 | 271437-0 | 0.83 | 1.00 | |
| Stopring E-7 | ||||
| 161 | 961013-5 | 0.83 | 1.00 | |
| Tapschroef Ct4X16 A | ||||
| 162 | 266034-5 | 0.83 | 1.00 | |
| Voorarm Compleet Ls1019L | ||||
| 163 | 144531-0 | 75.22 | 91.02 | |
| Rubber Pen 6 AC320H P | ||||
| 163C10 | 263005-3 | 0.83 | 1.00 | |
| Drukveer 4 A | ||||
| 164 | 231314-8 | 0.83 | 1.00 | |
| Pen 4 Ls1019L | ||||
| 165 | 256364-2 | 0.83 | 1.00 | |
| Drukveer 10 Ls1019L | ||||
| 166 | 232384-0 | 0.83 | 1.00 | |
| Blokkeerpen Ls1019L | ||||
| 167 | 326977-4 | 0.83 | 1.00 | |
| Afdekkap Ls1019L | ||||
| 168 | 457653-0 | 4.92 | 5.95 | |
| Houder Compleet Ls1019L | ||||
| 169 | 144658-6 | 11.82 | 14.30 | |
| Indicatielabel Ls1019L* | ||||
| 169C10 | 812X89-8 | 2.71 | 3.28 | |
| Platkop Schroef M5 A | ||||
| 170 | 265008-3 | 1.18 | 1.43 | |
| Poelie 17-19.3 Ls1019L | ||||
| 171 | 222191-9 | 5.06 | 6.12 | |
| Kogellager 6900Llb A | ||||
| 172 | 210057-5 | 3.59 | 4.34 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 173 | 267804-5 | |||
| As Ls1019L | ||||
| 174 | 326975-8 | 1.39 | 1.68 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 175 | 210167-8 | |||
| Schroef M8X12 Ls1019L | ||||
| 177 | 913416-9 | 0.83 | 1.00 | |
| Sleutelklem Ls800Dw | ||||
| 178 | 416536-3 | 1.75 | 2.12 | |
| Tapschroef M4X12Mm Ck A | ||||
| 179 | 266026-4 | 0.83 | 1.00 | |
| Spanstift 4-14 * | ||||
| 180 | 951107-4 | 0.83 | 1.00 | |
| Handgreep 50 B Ls1019L | ||||
| 181 | 273016-0 | 5.06 | 6.12 | |
| Inbusbout M5X30 | ||||
| 182 | 265919-2 | 3.38 | 4.09 | |
| Met. Bout M6 Ls1019L | ||||
| 183 | 251545-3 | 0.83 | 1.00 | |
| Stopper Pal Ls1019L | ||||
| 184 | 144657-8 | 2.02 | 2.44 | |
| Indicatielabel Ls1019L* | ||||
| 184C10 | 812X87-2 | 2.71 | 3.28 | |
| Veerring 20 Ls0714 | ||||
| 185 | 253948-7 | 0.83 | 1.00 | |
| Sluitring 8X14X1Mm | ||||
| 186 | 253835-0 | 0.83 | 1.00 | |
| Schroef M6 | ||||
| 187 | 251267-5 | 0.83 | 1.00 | |
| Pen 9-365 Ls1019L | ||||
| 188 | 326987-1 | 2.36 | 2.86 | |
| Sluitring 5 | ||||
| 189 | 253194-2 | 0.83 | 1.00 | |
| Bus 5 Ls1019L | ||||
| 190 | 257426-9 | 0.83 | 1.00 | |
| Sluitring 8 LF1000 P | ||||
| 191 | 253165-9 | 0.83 | 1.00 | |
| Bus 20 Ls1019L | ||||
| 192 | 457666-1 | 0.83 | 1.00 | |
| Blokkeerpen Ls1019L | ||||
| 193 | 326977-4 | 0.83 | 1.00 | |
| Poelie 17-87.8 Ls1019L | ||||
| 194 | 222192-7 | 5.71 | 6.91 | |
| Zeskantmoer M10-19 | ||||
| 195 | 326980-5 | 1.39 | 1.68 | |
| Aandrijfsnaar 15-756 | ||||
| 196 | 225101-5 | 19.23 | 23.27 | |
| Drukveer 10 Ls1019L | ||||
| 197 | 232384-0 | 0.83 | 1.00 | |
| Sluitring 10 | ||||
| 198 | 253388-9 | 0.83 | 1.00 | |
| Zeskantmoer M10-17 | ||||
| 199 | 252244-0 | 1.39 | 1.68 | |
| Ring 10 Lf1000 | ||||
| 200 | 253024-7 | 0.83 | 1.00 | |
| Druknaaldlager 1023 A | ||||
| 202 | 216413-7 | 2.71 | 3.28 | |
| Ring 10 Lf1000 | ||||
| 203 | 253024-7 | 0.83 | 1.00 | |
| Druknaaldlager 1023 A | ||||
| 204 | 216413-7 | 2.71 | 3.28 | |
| Stopring E-7 | ||||
| 205 | 961013-5 | 0.83 | 1.00 | |
| Knop 22 Ls1019L | ||||
| 206 | 271437-0 | 0.83 | 1.00 | |
| Ring 10 Lf1000 | ||||
| 207 | 253024-7 | 0.83 | 1.00 | |
| Arm Cpl Ls1019L | ||||
| 208 | 144530-2 | 92.95 | 112.47 | |
| Indicatielabel Ls1019L* | ||||
| 208C10 | 812X88-0 | 2.71 | 3.28 | |
| Inbusbout M8X25 Ls1019L | ||||
| 209 | 251547-9 | 0.83 | 1.00 | |
| Indicatieplaat R Ls1019L | ||||
| 210 | 457871-0 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 211 | 266026-4 | 0.83 | 1.00 | |
| Tapschroef Ct4X16 A | ||||
| 212 | 266034-5 | 0.83 | 1.00 | |
| Vergrendelknop Ls1016Lb | ||||
| 213 | 415208-7 | 1.39 | 1.68 | |
| Drukveer 12 | ||||
| 214 | 233031-6 | 0.83 | 1.00 | |
| Stofgeleider Houder Ls1019L | ||||
| 215 | 457654-8 | 3.54 | 4.28 | |
| Indicatieplaat L Ls1019L | ||||
| 216 | 457870-2 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 217 | 266026-4 | 0.83 | 1.00 | |
| Sluitring 94 | ||||
| 218 | 253389-7 | 0.83 | 1.00 | |
| Stofgeleider Ls1019L | ||||
| 219 | 422156-3 | 5.06 | 6.12 | |
| Stopper Ls1019L | ||||
| 220 | 319593-9 | 3.12 | 3.78 | |
| Torsieveer 14 Ls1016Lb | ||||
| 221 | 231646-3 | 0.83 | 1.00 | |
| Sluitring 12 | ||||
| 222 | 253744-3 | 0.83 | 1.00 | |
| Borgring S-12 | ||||
| 223 | 961052-5 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 224 | 266026-4 | 0.83 | 1.00 | |
| Houder Ls1019L | ||||
| 225 | 457668-7 | 0.83 | 1.00 | |
| Aanslag boven rechts | ||||
| 226 | 144650-2 | 16.00 | 19.36 | |
| Waarschuwingslabel Ls1016Lb | ||||
| 226C10 | 810503-4 | 2.71 | 3.28 | |
| Aanslag boven links | ||||
| 227 | 144646-3 | 16.00 | 19.36 | |
| Waarschuwingslabel Ls1016Lb | ||||
| 227C10 | 810503-4 | 2.71 | 3.28 | |
| Inbusbout M8X35 With Wr | ||||
| 228 | 922458-2 | 0.83 | 1.00 | |
| Vleugelbout M6X10mm | ||||
| 229 | 251887-5 | 0.92 | 1.11 | |
| Vleugelbout M6X10 A | ||||
| 229 | 924306-1 | 0.83 | 1.00 | |
| Inbusschroef M10X12 Ls1019L | ||||
| 230 | 251561-5 | 0.83 | 1.00 | |
| Achterlineaal Ls1019L | ||||
| 231 | 319565-4 | 38.75 | 46.89 | |
| Tapschroef M4X12Mm Ck A | ||||
| 232 | 266026-4 | 0.83 | 1.00 | |
| Inzaagplaat Ls1016Lb | ||||
| 233 | 451013-8 | 2.71 | 3.28 | |
| Zeskantbout 8X40 | ||||
| 235 | 265442-7 | 0.83 | 1.00 | |
| Ring 8 Ls1013 | ||||
| 236 | 253852-0 | 1.18 | 1.43 | |
| Druknaaldlager 1023 A | ||||
| 237 | 216413-7 | 2.71 | 3.28 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 239 | 812X86-4 | |||
| Inbusbout M8X25 Ls1019L | ||||
| 240 | 251547-9 | 0.83 | 1.00 | |
| Inbusbout M8X25 Ls1019L | ||||
| 241 | 251547-9 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 243 | 813L22-1 | |||
| Tapschroef M4X12Mm Ck A | ||||
| 244 | 266026-4 | 0.83 | 1.00 | |
| Indicatieplaat Ls1019L | ||||
| 245 | 457702-3 | 0.83 | 1.00 | |
| Blokkeerpen 8 Ls1019L | ||||
| 246 | 326970-8 | 1.20 | 1.45 | |
| Drukveer 6 Ls1016Lb | ||||
| 247 | 234122-6 | 0.83 | 1.00 | |
| Blokkeerhandel 25 Ls1019L | ||||
| 249 | 457657-2 | 0.83 | 1.00 | |
| Sluitring 6 BLS713 P | ||||
| 250 | 253804-1 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 251 | 961018-5 | 0.83 | 1.00 | |
| Draaiplateau Compleet Ls1019L | ||||
| 252 | 144654-4 | 127.34 | 154.08 | |
| Waarschuwingslabel Ls1019L* | ||||
| 253 | 812X85-6 | 2.71 | 3.28 | |
| Verlengstang Ls1019L | ||||
| 254 | 326973-2 | 2.02 | 2.44 | |
| Kap LS1019L | ||||
| 255 | 286039-9 | 0.83 | 1.00 | |
| Centreerbout Ls1019L | ||||
| 256 | 326976-6 | 2.02 | 2.44 | |
| Schroef 4X10 | ||||
| 257 | 911113-1 | 0.83 | 1.00 | |
| Drukveer 6 Ls0714 | ||||
| 258 | 231325-3 | 0.83 | 1.00 | |
| Draaistopper Ls1019L | ||||
| 259 | 310803-7 | 1.18 | 1.43 | |
| Hefboomplaat Ls1019L | ||||
| 260 | 347217-7 | 2.71 | 3.28 | |
| Pin 5 Ek7651H A | ||||
| 261 | 256186-0 | 0.98 | 1.19 | |
| Schroef M5X18 A | ||||
| 262 | 911230-7 | 0.89 | 1.08 | |
| Aanslag Ls1019L | ||||
| 263 | 347219-3 | 0.83 | 1.00 | |
| Borgstang Ls1019L | ||||
| 264 | 326971-6 | 0.83 | 1.00 | |
| Blokkeerhandel Ls1019L | ||||
| 265 | 457656-4 | 1.39 | 1.68 | |
| Blokkeerpin 6 Ls1019L | ||||
| 266 | 326969-3 | 1.26 | 1.52 | |
| Pen 3 T221Dw | ||||
| 267 | 256158-5 | 0.83 | 1.00 | |
| Drukveer 6 Ls0714 | ||||
| 268 | 231325-3 | 0.83 | 1.00 | |
| Nokkenplaat Ls1019L | ||||
| 269 | 347237-1 | 0.83 | 1.00 | |
| Pinhouder Ls1019L | ||||
| 270 | 319592-1 | 3.54 | 4.28 | |
| Zeskant Bout 5X20 LF1000 A | ||||
| 271 | 265550-4 | 0.83 | 1.00 | |
| Blokkeerplaat Ls1019L | ||||
| 272 | 347216-9 | 1.67 | 2.02 | |
| Stang 6 Ls1019L | ||||
| 274 | 326972-4 | 1.18 | 1.43 | |
| Stopring E-4 | ||||
| 275 | 961011-9 | 0.83 | 1.00 | |
| Ring 5 Ls1019L | ||||
| 276 | 257425-1 | 0.83 | 1.00 | |
| Sluitring 5 | ||||
| 277 | 253194-2 | 0.83 | 1.00 | |
| Zeskant Bout 5X20 LF1000 A | ||||
| 278 | 265550-4 | 0.83 | 1.00 | |
| Schroef 4X10 | ||||
| 279 | 911113-1 | 0.83 | 1.00 | |
| Blokkeerhandel Cmpl 25 Ls1019L | ||||
| 280 | 144656-0 | 0.83 | 1.00 | |
| Rubber Pen 6 AC320H P | ||||
| 280C10 | 263005-3 | 0.83 | 1.00 | |
| Schroef 3X8 Ls1019L | ||||
| 281 | 911008-8 | 0.83 | 1.00 | |
| Blokkeerplaat Ls0714 | ||||
| 282 | 345272-3 | 1.18 | 1.43 | |
| Handgreep 50 A Ls1019L | ||||
| 283 | 273015-2 | 5.06 | 6.12 | |
| Tapschroef M4X12Mm Ck A | ||||
| 284 | 266026-4 | 0.83 | 1.00 | |
| Geleideplaat Ls1019L | ||||
| 285 | 457655-6 | 1.67 | 2.02 | |
| Schaalverdeling LS1019L A | ||||
| 286 | 347412-9 | 6.38 | 7.72 | |
| Metaalschroef M5 Ls1019L | ||||
| 287 | 251546-1 | 0.83 | 1.00 | |
| Blokkeerplaat Ls1019L | ||||
| 288 | 347218-5 | 2.71 | 3.28 | |
| Schroef M5X16Mm Ls1016Lb | ||||
| 289 | 265786-5 | 0.83 | 1.00 | |
| Voetzool LS1019/DLS111 A | ||||
| 290 | 310891-4 | 111.57 | 135.00 | |
| Voetdop Ls1016Lb | ||||
| 291 | 421845-7 | 0.98 | 1.19 | |
| Sluitring 4 Dcs230T A | ||||
| 292 | 267195-4 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 293 | 266026-4 | 0.83 | 1.00 | |
| Houder Ls1019L | ||||
| 294 | 326978-2 | 5.71 | 6.91 | |
| Stopring E-9 | ||||
| 295 | 961015-1 | 0.83 | 1.00 | |
| Tapschroef M4X12Mm Ck A | ||||
| 296 | 266026-4 | 0.83 | 1.00 | |
| Inbusbout M4X6Mm Ls0714 | ||||
| 297 | 266318-1 | 0.83 | 1.00 | |
| Zeskantmoer M4 A | ||||
| 298 | 931102-0 | 0.83 | 1.00 | |
