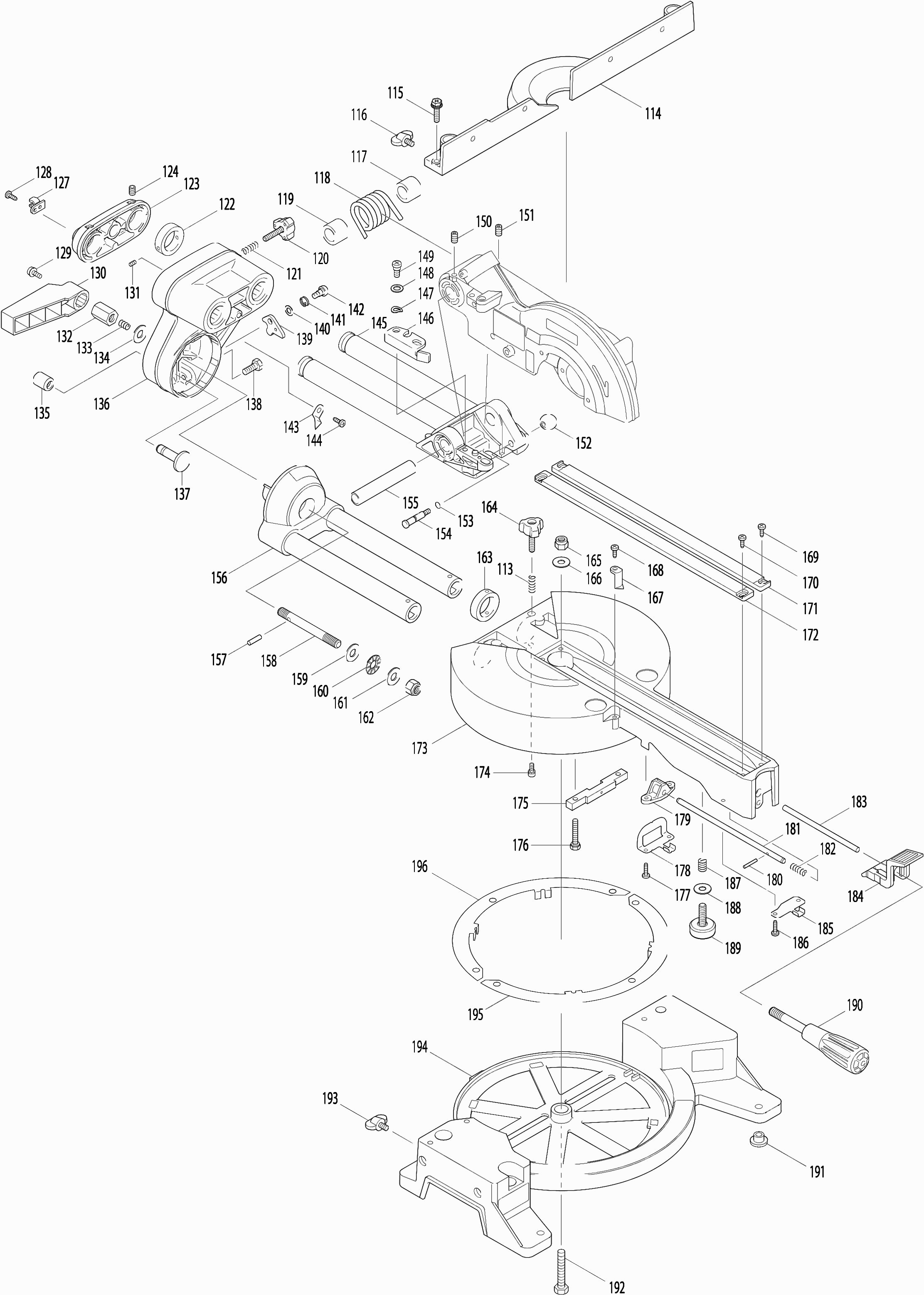

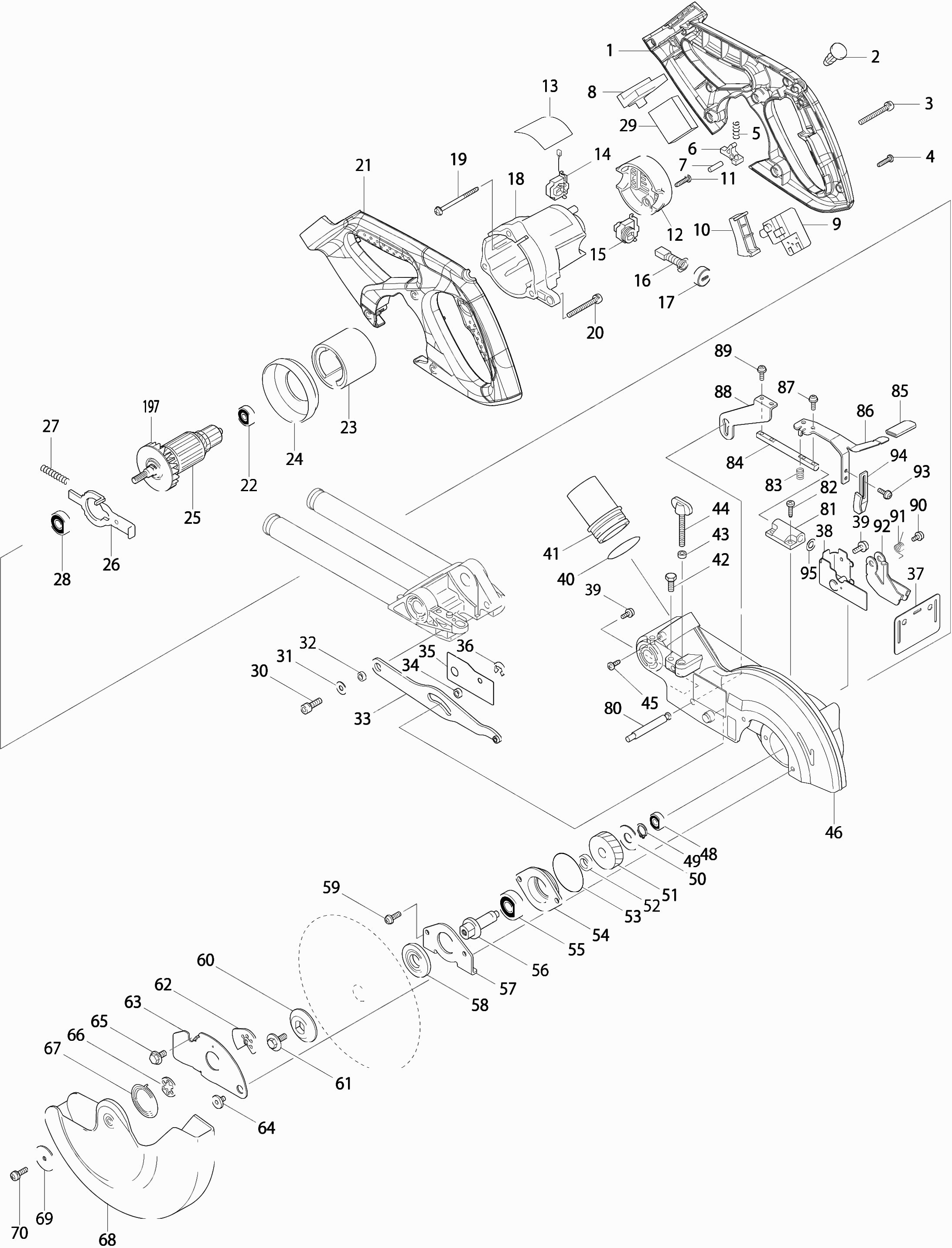

Tekeningen van de Makita DLS713
Onderdelen lijst van de Makita DLS713
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Achterhandgreep set | ||||
| 001 | 188961-5@141 | 35.99 | 43.55 | |
| Deblokkeerknop | ||||
| 002 | 417113-4@141 | 1.20 | 1.45 | |
| Schroef 5x45 | ||||
| 003 | 911268-2@141 | 0.83 | 1.00 | |
| Tapschroef 4x18 | ||||
| 004 | 265A48-7@141 | 0.90 | 1.09 | |
| Drukveer 4 | ||||
| 005 | 231026-3@141 | 0.83 | 1.00 | |
| Deblokkkeer Handel Ls800Dw | ||||
| 006 | 416533-9@141 | 1.43 | 1.73 | |
| Pen 5 | ||||
| 007 | 256123-4@141 | 1.43 | 1.73 | |
| Aansluitunit (3 contacten) | ||||
| 008 | 644808-8@141 | 3.65 | 4.42 | |
| Schakelaar 2 contacten | ||||
| 009 | 651956-6@141 | 12.58 | 15.22 | |
| Schakelaarhandel | ||||
| 010 | 452130-7@141 | 3.37 | 4.08 | |
| Tapschroef 4x18 | ||||
| 011 | 265A48-7@141 | 0.90 | 1.09 | |
| Achterdeksel | ||||
| 012 | 416639-3@141 | 5.46 | 6.61 | |
| Naamplaat Dls713 | ||||
| 013 | 815T55-0@141 | 2.80 | 3.39 | |
| Koolborstelhouder | ||||
| 014 | 643864-5@141 | 3.22 | 3.90 | |
| Koolborstelhouder | ||||
| 015 | 643863-7@141 | 3.22 | 3.90 | |
| Koolborstel set Cb-441 | ||||
| 016 | 194435-6@141 | 4.58 | 5.54 | |
| Koolborstelhouderdop | ||||
| 017 | 643941-3@141 | 2.44 | 2.95 | |
| Motorhuis | ||||
| 018 | 416909-0@141 | 18.80 | 22.75 | |
| Tapschroef 4x60 | ||||
| 019 | 266209-6@141 | 0.83 | 1.00 | |
| Schroef 5x45 | ||||
| 020 | 911268-2@141 | 0.83 | 1.00 | |
| Achterhandgreep set | ||||
| 021 | 188961-5@141 | 35.99 | 43.55 | |
| Kogellager 627ddw | ||||
| 022 | 210045-2@141 | 3.22 | 3.90 | |
| Magneet houder | ||||
| 023 | 632828-4@141 | 23.75 | 28.74 | |
| Tussenplaat | ||||
| 024 | 416907-4@141 | 2.44 | 2.95 | |
| Anker | ||||
| 025 | 519269-0@141 | 48.51 | 58.70 | |
| Asblokkering | ||||
| 026 | 344681-3@141 | 2.93 | 3.55 | |
| Drukveer 5 | ||||
| 027 | 233092-6@141 | 0.83 | 1.00 | |
| Kogellager 6000ddw | ||||
| 028 | 211088-7@141 | 5.22 | 6.32 | |
| Toerenregelcircuit Bls713 A | ||||
| 029 | 620263-8@141 | 31.61 | 38.25 | |
| Inbusbout M6x20 | ||||
| 030 | 265905-3@141 | 0.83 | 1.00 | |
| Sluitring 6 | ||||
| 031 | 253804-1@141 | 0.83 | 1.00 | |
| Ring 16 | ||||
| 032 | 257163-5@141 | 1.24 | 1.50 | |
| Verbindingsplaat | ||||
| 033 | 154643-1@141 | 14.23 | 17.22 | |
| Ring 16 | ||||
| 034 | 257163-5@141 | 1.24 | 1.50 | |
| Verbindingsdeksel | ||||
| 035 | 346330-8@141 | 0.83 | 1.00 | |
| Stopring E-5 | ||||
| 036 | 961018-5@141 | 0.83 | 1.00 | |
| Rubberplaat | ||||
| 037 | 421626-9@141 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 038 | 165414-1@141 | |||
| Schroef 4x10 | ||||
| 039 | 911113-1@141 | 0.83 | 1.00 | |
| O-ring 35 | ||||
| 040 | 213460-9@141 | 1.21 | 1.46 | |
| Stofafzuigadapter afkortzaag | ||||
| 041 | 419277-0@141 | 2.59 | 3.13 | |
| Zeskant bout 6x16 | ||||
| 042 | 265251-4@141 | 0.83 | 1.00 | |
| Kunststof Ring 5 | ||||
| 043 | 262001-8@141 | 1.43 | 1.73 | |
| Vleugelbout m6x43 | ||||
| 044 | 265717-4@141 | 2.05 | 2.48 | |
| Tapschroef M4x12mm Ck | ||||
| 045 | 266026-4@141 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 046 | 140607-1@141 | |||
| Rubber pen 4 | ||||
| 046A | 263002-9@141 | 0.83 | 1.00 | |
| Rubber pen 6 | ||||
| 046B | 263005-3@141 | 0.83 | 1.00 | |
| Waarschuwingslabel | ||||
| 046C | 810968-0@141 | 1.43 | 1.73 | |
| Kogellager 607llb | ||||
| 048 | 211021-9@141 | 4.58 | 5.54 | |
| Borgring S-12 | ||||
| 049 | 961052-5@141 | 0.83 | 1.00 | |
| Sluitring 12 | ||||
| 050 | 253813-0@141 | 1.24 | 1.50 | |
| Tandwiel 60 | ||||
| 051 | 226512-7@141 | 11.16 | 13.50 | |
| Ring 12 | ||||
| 052 | 257011-8@141 | 1.21 | 1.46 | |
| O-ring 46 | ||||
| 053 | 213623-7@141 | 0.83 | 1.00 | |
| Lagerhuis | ||||
| 054 | 317193-9@141 | 10.84 | 13.12 | |
| Kogellager 6201dw1 | ||||
| 055 | 211129-9@141 | 7.44 | 9.00 | |
| Zaagas | ||||
| 056 | 323798-5@141 | 11.16 | 13.50 | |
| Lagerborging | ||||
| 057 | 285736-4@141 | 1.72 | 2.08 | |
| Binnenflens 40 | ||||
| 058 | 224370-5@141 | 5.22 | 6.32 | |
| Schroef 5x16 | ||||
| 059 | 911224-2@141 | 0.83 | 1.00 | |
| Buitenflens 40 | ||||
| 060 | 224275-9@141 | 6.58 | 7.96 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 061 | 265461-3@141 | |||
| Centreerplaat | ||||
| 062 | 345585-2@141 | 2.80 | 3.39 | |
| Afdekplaat kap | ||||
| 063 | 346232-8@141 | 5.88 | 7.11 | |
| Zeskant bout M6 | ||||
| 064 | 265985-9@141 | 1.43 | 1.73 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 065 | 265473-6@141 | |||
| Centreerplaatring | ||||
| 066 | 345589-4@141 | 1.01 | 1.22 | |
| Torsieveer 24 | ||||
| 067 | 231934-8@141 | 2.44 | 2.95 | |
| Beschermplaat | ||||
| 068 | 453298-2@141 | 17.90 | 21.66 | |
| Ring 5 | ||||
| 069 | 267136-0@141 | 1.01 | 1.22 | |
| Schroef 5X20 | ||||
| 070 | 911228-4@141 | 0.83 | 1.00 | |
| Blokkeerpen | ||||
| 080 | 324455-8@141 | 2.08 | 2.52 | |
| Ashouder | ||||
| 081 | 452134-9@141 | 4.58 | 5.54 | |
| Tapschroef Ct4x16 | ||||
| 082 | 266034-5@141 | 0.83 | 1.00 | |
| Drukveer 7 | ||||
| 083 | 231316-4@141 | 0.83 | 1.00 | |
| Stang 8 | ||||
| 084 | 325980-2@141 | 1.72 | 2.08 | |
| Kap | ||||
| 085 | 421589-9@141 | 0.83 | 1.00 | |
| Deblokkeerhandel | ||||
| 086 | 346320-1@141 | 3.22 | 3.90 | |
| Schroef 4x10 | ||||
| 087 | 911113-1@141 | 0.83 | 1.00 | |
| Blokkerplaat | ||||
| 088 | 346322-7@141 | 1.43 | 1.73 | |
| Schroef 4x10 | ||||
| 089 | 911113-1@141 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 090 | 911114-9@141 | 0.83 | 1.00 | |
| Trekveer 8 | ||||
| 091 | 231690-0@141 | 0.83 | 1.00 | |
| Besch.pl assy (incl A t/m E) A | ||||
| 092 | 135511-7@141 | 5.22 | 6.32 | |
| Schroef 4x10 | ||||
| 093 | 911113-1@141 | 0.83 | 1.00 | |
| Hulphandel | ||||
| 094 | 346321-9@141 | 1.21 | 1.46 | |
| Sluitring 8 x 14 X 0,5mm | ||||
| 095 | 253215-0@141 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 113 | 231325-3@141 | 0.83 | 1.00 | |
| Achterlineaal | ||||
| 114 | 319193-5@141 | 43.10 | 52.15 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 115 | 265593-6@141 | |||
| Vleugelbout 6x10 | ||||
| 116 | 924306-1@141 | 0.83 | 1.00 | |
| Bus | ||||
| 117 | 416535-5@141 | 1.21 | 1.46 | |
| Torsieveer 28 | ||||
| 118 | 231638-2@141 | 5.88 | 7.11 | |
| Bus | ||||
| 119 | 416535-5@141 | 1.21 | 1.46 | |
| Vleugelbout M6x28 | ||||
| 120 | 265790-4@141 | 0.83 | 1.00 | |
| Drukveer 6 | ||||
| 121 | 231325-3@141 | 0.83 | 1.00 | |
| Ring 26 | ||||
| 122 | 257214-4@141 | 7.44 | 9.00 | |
| Geleide arm houder | ||||
| 123 | 318651-8@141 | 10.84 | 13.12 | |
| Inwendig zeskant bout M6x8 | ||||
| 124 | 265894-2@141 | 0.83 | 1.00 | |
| sleutelklem | ||||
| 127 | 416536-3@141 | 1.80 | 2.18 | |
| Trekontlaster | ||||
| 127A | 687045-1@141 | 2.93 | 3.55 | |
| Tapschroef M4x12mm Ck | ||||
| 128 | 266026-4@141 | 0.83 | 1.00 | |
| Schroef 4x10 | ||||
| 129 | 911113-1@141 | 0.83 | 1.00 | |
| Handgreep | ||||
| 130 | 416006-2@141 | 4.08 | 4.94 | |
| Stelschroef | ||||
| 131 | 913106-4@141 | 0.83 | 1.00 | |
| Zeskant moer 10x17 | ||||
| 132 | 252144-4@141 | 2.80 | 3.39 | |
| Veer 5 voor lever 100 | ||||
| 133 | 231266-3@141 | 0.83 | 1.00 | |
| Ring 10 | ||||
| 134 | 253024-7@141 | 0.83 | 1.00 | |
| Kap 16 | ||||
| 135 | 286236-7@141 | 0.83 | 1.00 | |
| Arm compleet | ||||
| 136 | 140609-7@141 | 74.76 | 90.46 | |
| Lineair kogell 2560 | ||||
| 136 | 211376-2@141 | 23.75 | 28.74 | |
| Vilten ring 25 | ||||
| 136 | 262077-5@141 | 1.43 | 1.73 | |
| Kap | ||||
| 136 | 344638-4@141 | 1.06 | 1.28 | |
| Rubber pen 6 | ||||
| 136 | 263005-3@141 | 0.83 | 1.00 | |
| Ontspanstift | ||||
| 137 | 324295-4@141 | 3.83 | 4.63 | |
| Zeskant bout 6x16 | ||||
| 138 | 265251-4@141 | 0.83 | 1.00 | |
| Afstandhouder | ||||
| 139 | 345299-3@141 | 1.70 | 2.06 | |
| Sluitring 6 | ||||
| 140 | 253726-5@141 | 0.83 | 1.00 | |
| Torsieveer 8 | ||||
| 141 | 231663-3@141 | 0.83 | 1.00 | |
| Schroef Ph L8 | ||||
| 142 | 265113-6@141 | 0.83 | 1.00 | |
| Markeerpunt | ||||
| 143 | 343678-9@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 144 | 266026-4@141 | 0.83 | 1.00 | |
| Voorarm cpl | ||||
| 145 | 140608-9@141 | 65.59 | 79.36 | |
| Blokkeerarm | ||||
| 146 | 344643-1@141 | 2.44 | 2.95 | |
| Veerring 20 | ||||
| 147 | 253948-7@141 | 0.83 | 1.00 | |
| Sluitring 8 x 14 x 1mm | ||||
| 148 | 253835-0@141 | 0.83 | 1.00 | |
| Schroef M6 | ||||
| 149 | 251267-5@141 | 0.83 | 1.00 | |
| Zeskant bout 6x10 | ||||
| 150 | 251961-9@141 | 0.83 | 1.00 | |
| Zeskant bout 6x10 | ||||
| 151 | 251961-9@141 | 0.83 | 1.00 | |
| Knop 20 | ||||
| 152 | 271601-3@141 | 0.83 | 1.00 | |
| O-ring 5 | ||||
| 153 | 213021-5@141 | 0.83 | 1.00 | |
| Blokkeerpen | ||||
| 154 | 324183-5@141 | 1.01 | 1.22 | |
| Pijp 16-90 | ||||
| 155 | 331350-5@141 | 5.88 | 7.11 | |
| Armhouder | ||||
| 156 | 140610-2@141 | 57.34 | 69.38 | |
| Schaalverdeling | ||||
| 156 | 816392-5@141 | 2.80 | 3.39 | |
| Pen 5 | ||||
| 157 | 256123-4@141 | 1.43 | 1.73 | |
| Tapeind M10 | ||||
| 158 | 266320-4@141 | 3.37 | 4.08 | |
| Ring 10 | ||||
| 159 | 253024-7@141 | 0.83 | 1.00 | |
| Druknaaldlager 1023 | ||||
| 160 | 216413-7@141 | 2.80 | 3.39 | |
| Ring 10 | ||||
| 161 | 253024-7@141 | 0.83 | 1.00 | |
| Moer M10-17 | ||||
| 162 | 264005-6@141 | 1.43 | 1.73 | |
| Ring 26 | ||||
| 163 | 257214-4@141 | 7.44 | 9.00 | |
| Vleugelbout M6x28 | ||||
| 164 | 265790-4@141 | 0.83 | 1.00 | |
| Borgmoer M8x13 hoog | ||||
| 165 | 252105-4@141 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 166 | 253731-2@141 | 0.83 | 1.00 | |
| Indicatieplaat | ||||
| 167 | 416355-7@141 | 2.93 | 3.55 | |
| Tapschroef M4x12mm Ck | ||||
| 168 | 266026-4@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 169 | 266026-4@141 | 0.83 | 1.00 | |
| Tapschroef M4x12mm Ck | ||||
| 170 | 266026-4@141 | 0.83 | 1.00 | |
| Inzaagplaat | ||||
| 171 | 419103-3@141 | 3.22 | 3.90 | |
| Inzaagplaat | ||||
| 172 | 419103-3@141 | 3.22 | 3.90 | |
| Draaiplateau | ||||
| 173 | 140614-4@141 | 166.57 | 201.55 | |
| Lineair kogell 2560 | ||||
| 173A | 211376-2@141 | 23.75 | 28.74 | |
| Vilten ring 25 | ||||
| 173B | 262077-5@141 | 1.43 | 1.73 | |
| Rubber pen 6 | ||||
| 173C | 263005-3@141 | 0.83 | 1.00 | |
| Kap | ||||
| 173D | 344638-4@141 | 1.06 | 1.28 | |
| Waarschuwingslabel | ||||
| 173E | 810495-7@141 | 2.93 | 3.55 | |
| Waarschuwingslabel | ||||
| 173F | 817283-3@141 | 0.83 | 1.00 | |
| Inbusbout M4x10 | ||||
| 174 | 922112-8@141 | 0.83 | 1.00 | |
| Vierkant pen | ||||
| 175 | 153580-6@141 | 11.32 | 13.70 | |
| Rubber pen 6 | ||||
| 175A | 263005-3@141 | 0.83 | 1.00 | |
| Zeskant bout 5x30 | ||||
| 176 | 925251-3@141 | 0.83 | 1.00 | |
| Tapschroef Ct4x16 | ||||
| 177 | 266034-5@141 | 0.83 | 1.00 | |
| Blokkeerplaat | ||||
| 178 | 344601-7@141 | 1.27 | 1.54 | |
| Pinhouder | ||||
| 179 | 317616-7@141 | 7.80 | 9.44 | |
| Pen 3 | ||||
| 180 | 256158-5@141 | 0.83 | 1.00 | |
| Blokkeerpin Ls0714 | ||||
| 181 | 324288-1@141 | 2.80 | 3.39 | |
| Drukveer 6 | ||||
| 182 | 231325-3@141 | 0.83 | 1.00 | |
| Stang 6mm | ||||
| 183 | 324289-9@141 | 1.01 | 1.22 | |
| Blokkeerhandel | ||||
| 184 | 416450-3@141 | 2.08 | 2.52 | |
| Blokkeerplaat | ||||
| 185 | 345272-3@141 | 1.21 | 1.46 | |
| Tapschroef Ct4x16 | ||||
| 186 | 266034-5@141 | 0.83 | 1.00 | |
| Drukveer 9 | ||||
| 187 | 231418-6@141 | 0.83 | 1.00 | |
| Sluitring 8 | ||||
| 188 | 253731-2@141 | 0.83 | 1.00 | |
| Stelbout M8x27 | ||||
| 189 | 266432-3@141 | 1.43 | 1.73 | |
| Handvat 32 | ||||
| 190 | 273658-0@141 | 14.23 | 17.22 | |
| Afdekkap | ||||
| 191 | 416972-3@141 | 1.02 | 1.23 | |
| Zeskant bout 8x50 | ||||
| 192 | 921472-5@141 | 0.83 | 1.00 | |
| Vleugelbout 6x10 | ||||
| 193 | 924306-1@141 | 0.83 | 1.00 | |
| Schaalverdeling | ||||
| 194 | 816339-9@141 | 7.44 | 9.00 | |
| Waarschuwingslabel | ||||
| 194A | 810486-8@141 | 2.80 | 3.39 | |
| Voetzool | ||||
| 194B | 140612-8@141 | 102.31 | 123.80 | |
| Glijplaat | ||||
| 195 | 344646-5@141 | 2.80 | 3.39 | |
| Glijplaat | ||||
| 196 | 344646-5@141 | 2.80 | 3.39 | |
| Waaier 55 | ||||
| 197 | 241873-4@141 | 2.93 | 3.55 | |
