Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DLS714N'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

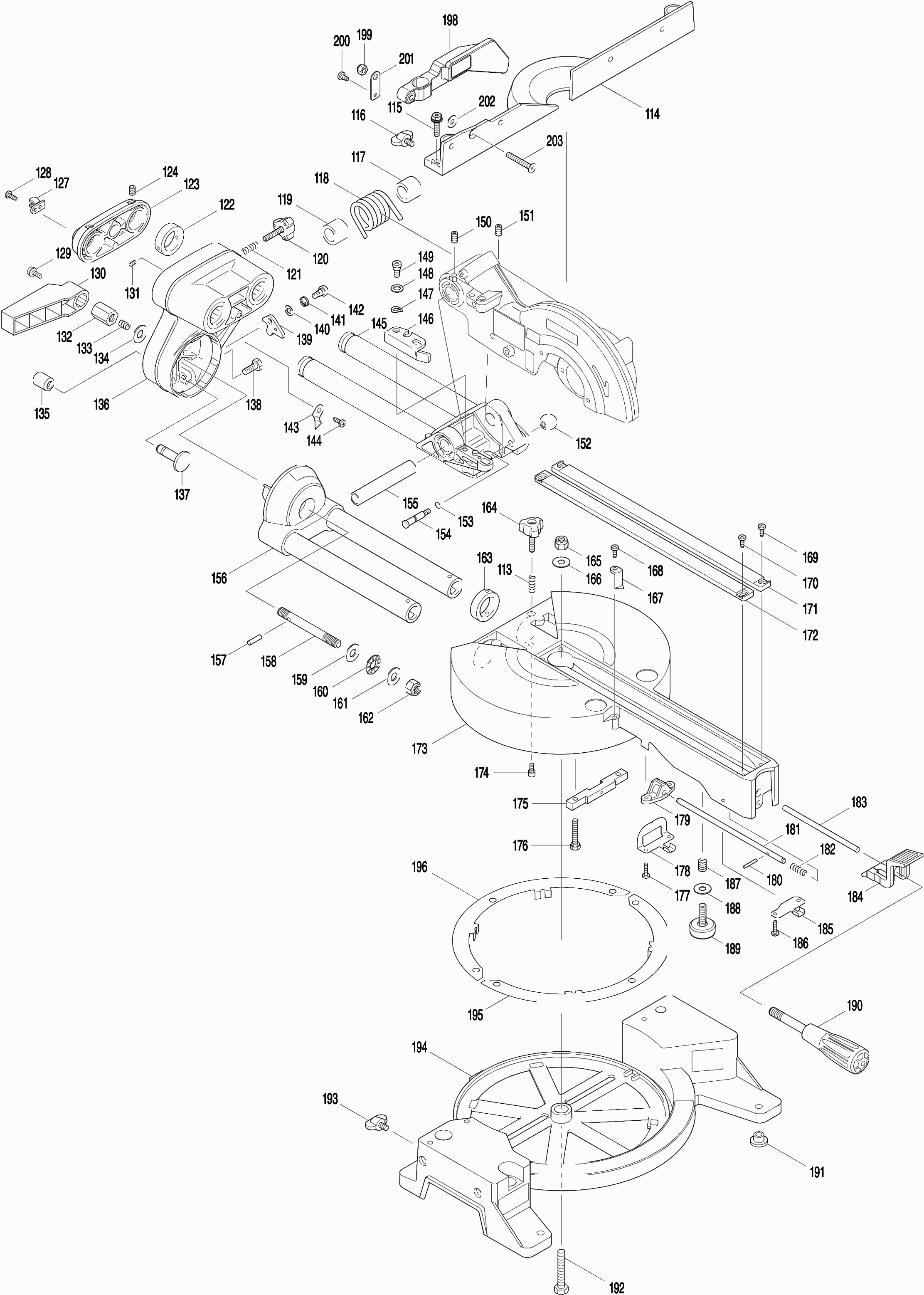

Tekeningen van de Makita DLS714N
Onderdelen lijst van de Makita DLS714N
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| HANDGREEP SET DLS714 | ||||
| 001 | 183B55-3 | 63.80 | 77.20 | |
| SCHROEF 5X45 | ||||
| 003 | 911268-2 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 004 | 265A48-7 | 1.00 | 1.21 | |
| DRUKVEER 4 | ||||
| 005 | 231397-8 | 1.00 | 1.21 | |
| BLOKKEERKNOP DLS714 | ||||
| 006 | 456024-8 | 3.60 | 4.36 | |
| AANSLUITUNIT BHR241 (3 CONT) A | ||||
| 008 | 644808-8 | 3.60 | 4.36 | |
| SCHAKELAAR DLS714 | ||||
| 009 | 650756-1 | 35.20 | 42.59 | |
| TAPSCHROEF 4X18 P | ||||
| 011 | 265A48-7 | 1.00 | 1.21 | |
| AFDEKKAP DLS714 | ||||
| 012 | 143268-6 | 7.20 | 8.71 | |
| RUBBER PEN 6 AC320H P | ||||
| 012A | 263005-3 | 1.00 | 1.21 | |
| NAAMPLAAT DLS714 | ||||
| 013 | 851E60-3 | 3.60 | 4.36 | |
| MOTORHUIS DLS714 | ||||
| 018 | 456022-2 | 10.80 | 13.07 | |
| TAPSCHROEF 4X18 P | ||||
| 019 | 265A48-7 | 1.00 | 1.21 | |
| SCHROEF 5X45 | ||||
| 020 | 911268-2 | 1.00 | 1.21 | |
| HANDGREEP SET DLS714 | ||||
| 021 | 183B55-3 | 63.80 | 77.20 | |
| KOGELLAGER 607LLB A | ||||
| 022 | 211021-9 | 4.80 | 5.81 | |
| VELD 2X18V DLS714 P | ||||
| 023 | 629157-4 | 38.72 | 46.85 | |
| VELD DSP600 A | ||||
| 023-1 | 629B69-3 | 12.10 | 14.64 | |
| TUSSENPLAAT DLS714* | ||||
| 024 | 456023-0 | 3.60 | 4.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 025 | 519373-5 | |||
| ASBLOKKERING BLS713 | ||||
| 026 | 344681-3 | 3.60 | 4.36 | |
| DRUKVEER 5 | ||||
| 027 | 233092-6 | 1.00 | 1.21 | |
| KOGELLAGER 629DDW P | ||||
| 028 | 211092-6 | 4.80 | 5.81 | |
| CONTROLLER DLS714 P | ||||
| 029 | 143291-1 | 248.60 | 300.81 | |
| CONTROLLER DLS714 | ||||
| 029-1 | 141P88-8 | 137.50 | 166.38 | |
| INBUSBOUT M6X20 A | ||||
| 030 | 265905-3 | 1.20 | 1.45 | |
| SLUITRING 6 BLS713 P | ||||
| 031 | 253804-1 | 1.00 | 1.21 | |
| RING 6X3,7 LS1013 | ||||
| 032 | 257163-5 | 1.20 | 1.45 | |
| VERBINDINGPLT + LAGER LS0714 A | ||||
| 033 | 154643-1 | 14.30 | 17.30 | |
| RING 6X3,7 LS1013 | ||||
| 034 | 257163-5 | 1.20 | 1.45 | |
| VERBINDINGSDEKSEL BLS713 | ||||
| 035 | 346330-8 | 1.20 | 1.45 | |
| STOPRING E-5 | ||||
| 036 | 961018-5 | 1.00 | 1.21 | |
| RUBBERPLAAT LS0714 A | ||||
| 037 | 421626-9 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 038 | 165414-1 | |||
| SCHROEF 4X10 | ||||
| 039 | 911113-1 | 1.00 | 1.21 | |
| O-RING 35 | ||||
| 040 | 213460-9 | 1.20 | 1.45 | |
| STOFAFZUIGADAPTER AFKORTZAAG | ||||
| 041 | 419277-0 | 2.00 | 2.42 | |
| ZESKANTBOUT M6X16 A | ||||
| 042 | 265251-4 | 1.00 | 1.21 | |
| Kunststof Ring 5 P | ||||
| 043 | 262001-8 | 1.39 | 1.68 | |
| VLEUGELBOUT M6X43 | ||||
| 044 | 265717-4 | 2.40 | 2.90 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 045 | 266026-4 | 1.00 | 1.21 | |
| BESCHERMKAP CPL DLS714 | ||||
| 046 | 140699-0 | 132.00 | 159.72 | |
| RUBBER PEN 4 6413 A | ||||
| 046A | 263002-9 | 1.00 | 1.21 | |
| RUBBER PEN 6 AC320H P | ||||
| 046B | 263005-3 | 1.00 | 1.21 | |
| WAARSCHUWINGSLABEL LC1230 | ||||
| 046C | 810968-0 | 2.40 | 2.90 | |
| KOGELLAGER 607LLB A | ||||
| 048 | 211021-9 | 4.80 | 5.81 | |
| BORGRING S-12 | ||||
| 049 | 961052-5 | 1.00 | 1.21 | |
| TANDWIEL 53 DLS714 | ||||
| 051 | 227810-2 | 7.20 | 8.71 | |
| ZESKANTBOUT M6X16MM LS0714 A | ||||
| 051 | 266733-9 | 1.20 | 1.45 | |
| RING 12 | ||||
| 052 | 257088-3 | 1.20 | 1.45 | |
| O-RING 46 | ||||
| 053 | 213623-7 | 1.00 | 1.21 | |
| LAGERHUIS LS800D * | ||||
| 054 | 317193-9 | 10.80 | 13.07 | |
| KOGELLAGER 6201DDW A | ||||
| 055 | 211129-9 | 8.40 | 10.16 | |
| ZAAGAS LS800DWB | ||||
| 056 | 323798-5 | 11.00 | 13.31 | |
| LAGERBORGING DLS714 | ||||
| 057 | 285736-4 | 2.40 | 2.90 | |
| BINNENFLENS 40 5704R/LS0714 | ||||
| 058 | 224370-5 | 6.00 | 7.26 | |
| SCHROEF 5X16 A | ||||
| 059 | 911224-2 | 1.00 | 1.21 | |
| BUITENFLENS 40 LS0714FL | ||||
| 060 | 224275-9 | 7.20 | 8.71 | |
| ZESKANTBOUT M6X16MM LS0714 A | ||||
| 061 | 266733-9 | 1.20 | 1.45 | |
| CENTREERPLAAT LS0714 A | ||||
| 062 | 345585-2 | 3.60 | 4.36 | |
| AFDEKPLAAT KAP BLS713 | ||||
| 063 | 346232-8 | 6.00 | 7.26 | |
| O-RING 46 | ||||
| 063 | 213623-7 | 1.00 | 1.21 | |
| ZESKANTBOUT M6 LS1040 | ||||
| 064 | 265985-9 | 2.40 | 2.90 | |
| ZESKANTBOUT M6X16MM BLS713 A | ||||
| 065 | 266732-1 | 1.20 | 1.45 | |
| CENTREERPLAATRING LS0714 A | ||||
| 066 | 345589-4 | 1.20 | 1.45 | |
| TORSIEVEER 24 LS0714FL | ||||
| 067 | 231934-8 | 2.40 | 2.90 | |
| BESCHERMPLAAT BLS713 A | ||||
| 068 | 453298-2 | 17.60 | 21.30 | |
| RING 5 | ||||
| 069 | 267136-0 | 1.20 | 1.45 | |
| ZESKANTBOUT M5X16 DA4031 | ||||
| 070 | 265491-4 | 1.00 | 1.21 | |
| BLOKKEERPEN LS0714 | ||||
| 080 | 324455-8 | 2.40 | 2.90 | |
| ASHOUDER DLS714N | ||||
| 081 | 452134-9 | 4.80 | 5.81 | |
| TAPSCHROEF CT4X16 A | ||||
| 082 | 266034-5 | 1.00 | 1.21 | |
| DRUKVEER 7 | ||||
| 083 | 231316-4 | 1.00 | 1.21 | |
| STANG 8 DLS714 | ||||
| 084 | 325980-2 | 2.40 | 2.90 | |
| KAP LS1013 | ||||
| 085 | 421589-9 | 1.20 | 1.45 | |
| DEBLOKKEERHANDEL BLS713 * | ||||
| 086 | 346320-1 | 3.60 | 4.36 | |
| SCHROEF 4X10 | ||||
| 087 | 911113-1 | 1.00 | 1.21 | |
| BLOKKEERPLAAT BLS713 | ||||
| 088 | 346322-7 | 2.40 | 2.90 | |
| SCHROEF 4X10 | ||||
| 089 | 911113-1 | 1.00 | 1.21 | |
| SCHROEF 4X10 | ||||
| 090 | 911114-9 | 1.00 | 1.21 | |
| TREKVEER 8 LS0714 | ||||
| 091 | 231690-0 | 1.20 | 1.45 | |
| AFSCHERMKAP DLS714 | ||||
| 092 | 346550-4 | 2.40 | 2.90 | |
| SCHROEF 4X10 | ||||
| 093 | 911113-1 | 1.00 | 1.21 | |
| HULPHANDEL BLS713 * | ||||
| 094 | 346321-9 | 1.20 | 1.45 | |
| SLUITRING 8X14X0,5 MM | ||||
| 095 | 253215-0 | 1.00 | 1.21 | |
| DRUKVEER 6 LS0714 | ||||
| 113 | 231325-3 | 1.00 | 1.21 | |
| ACHTERLINEAAL BLS713 A | ||||
| 114 | 319193-5 | 42.90 | 51.91 | |
| ZESKANTBOUT M6X25 A | ||||
| 115 | 922344-7 | 1.00 | 1.21 | |
| VLEUGELBOUT M6X10 A | ||||
| 116 | 924306-1 | 1.20 | 1.45 | |
| BUS LS0714 | ||||
| 117 | 416535-5 | 1.20 | 1.45 | |
| TORSIEVEER 28 DLS714 | ||||
| 118 | 233520-1 | 3.60 | 4.36 | |
| BUS LS0714 | ||||
| 119 | 416535-5 | 1.20 | 1.45 | |
| VLEUGELBOUT M6X28 BLS713 | ||||
| 120 | 265790-4 | 1.00 | 1.21 | |
| DRUKVEER 6 LS0714 | ||||
| 121 | 231325-3 | 1.00 | 1.21 | |
| RING 26 LS0714 | ||||
| 122 | 257214-4 | 8.40 | 10.16 | |
| GELEIDE ARM HOUDER BLS713 | ||||
| 123 | 318651-8 | 10.80 | 13.07 | |
| INWENDIG ZESKANT BOUT M6X8 | ||||
| 124 | 265894-2 | 1.00 | 1.21 | |
| SLEUTELHOUDER BLS713 | ||||
| 127 | 687045-1 | 3.60 | 4.36 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 128 | 266026-4 | 1.00 | 1.21 | |
| SCHROEF 4X10 | ||||
| 129 | 911113-1 | 1.00 | 1.21 | |
| HANDGREEP 1914H2-8 | ||||
| 130 | 416006-2 | 4.80 | 5.81 | |
| STELSCHROEF M4X8 DLS713 | ||||
| 131 | 913106-4 | 1.00 | 1.21 | |
| ZESKANTMOER 10_17 | ||||
| 132 | 252144-4 | 3.60 | 4.36 | |
| VEER 5 VOOR LEVER 100 LF1000 P | ||||
| 133 | 231266-3 | 1.20 | 1.45 | |
| RING 10 LF1000 | ||||
| 134 | 253024-7 | 1.00 | 1.21 | |
| KAP 16 LC1230 | ||||
| 135 | 286236-7 | 1.00 | 1.21 | |
| ARM COMPLEET BLS713 | ||||
| 136 | 140609-7 | 72.60 | 87.85 | |
| LINEAIR KOGELL 2560 LS0714 | ||||
| 136A | 211376-2 | 23.10 | 27.95 | |
| VILTEN RING 25 LS0714 | ||||
| 136B | 262077-5 | 2.40 | 2.90 | |
| RUBBER PEN 6 AC320H P | ||||
| 136C | 263005-3 | 1.00 | 1.21 | |
| BORGPLAATLS0714 | ||||
| 136D | 344638-4 | 1.20 | 1.45 | |
| ONTSPANSTIFT LS0714 | ||||
| 137 | 324295-4 | 3.60 | 4.36 | |
| ZESKANTBOUT M6X16 A | ||||
| 138 | 265251-4 | 1.00 | 1.21 | |
| AFSTANDHOUDER LS0714 | ||||
| 139 | 345299-3 | 2.40 | 2.90 | |
| SLUITRING 6 | ||||
| 140 | 253726-5 | 1.00 | 1.21 | |
| TORSIEVEER 8 LS0714 | ||||
| 141 | 231663-3 | 1.00 | 1.21 | |
| SCHROEF PH L8* | ||||
| 142 | 265113-6 | 1.00 | 1.21 | |
| MARKEERPUNT LS0714 | ||||
| 143 | 343678-9 | 1.20 | 1.45 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 144 | 266026-4 | 1.00 | 1.21 | |
| VOORARM CPL BLS713 | ||||
| 145 | 140608-9 | 63.80 | 77.20 | |
| BLOKKEERARM LS0714 | ||||
| 146 | 344643-1 | 2.40 | 2.90 | |
| VEERRING 20 LS0714 | ||||
| 147 | 253948-7 | 1.00 | 1.21 | |
| SLUITRING 8X14X1MM | ||||
| 148 | 253835-0 | 1.00 | 1.21 | |
| SCHROEF M6 | ||||
| 149 | 251267-5 | 1.00 | 1.21 | |
| ZESKANTBOUT 6X10 | ||||
| 150 | 251961-9 | 1.00 | 1.21 | |
| ZESKANTBOUT 6X10 | ||||
| 151 | 251961-9 | 1.00 | 1.21 | |
| KNOP 20 | ||||
| 152 | 271601-3 | 1.00 | 1.21 | |
| O-RING 5 | ||||
| 153 | 213021-5 | 1.00 | 1.21 | |
| BLOKKEERPEN LS1013 A | ||||
| 154 | 324183-5 | 1.20 | 1.45 | |
| PIJP 16-90 LS1030 | ||||
| 155 | 331350-5 | 6.00 | 7.26 | |
| ARMHOUDER BLS713 | ||||
| 156 | 140610-2 | 56.10 | 67.88 | |
| SCHAALVERDELING LS0714 | ||||
| 156A | 816392-5 | 3.60 | 4.36 | |
| PEN 5 | ||||
| 157 | 256123-4 | 2.40 | 2.90 | |
| TAPEIND M10 LS0714 | ||||
| 158 | 266320-4 | 3.60 | 4.36 | |
| RING 10 LF1000 | ||||
| 159 | 253024-7 | 1.00 | 1.21 | |
| DRUKNAALDLAGER 1023 A | ||||
| 160 | 216413-7 | 3.60 | 4.36 | |
| RING 10 LF1000 | ||||
| 161 | 253024-7 | 1.00 | 1.21 | |
| MOER M10-17 A | ||||
| 162 | 264005-6 | 2.40 | 2.90 | |
| RING 26 LS0714 | ||||
| 163 | 257214-4 | 8.40 | 10.16 | |
| VLEUGELBOUT M6X28 BLS713 | ||||
| 164 | 265790-4 | 1.00 | 1.21 | |
| BORGMOER M8X13 HOOG | ||||
| 165 | 252105-4 | 1.20 | 1.45 | |
| SLUITRING 8 | ||||
| 166 | 253731-2 | 1.00 | 1.21 | |
| INDICATIEPLAAT BLS731 | ||||
| 167 | 416355-7 | 3.60 | 4.36 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 168 | 266026-4 | 1.00 | 1.21 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 169 | 266026-4 | 1.00 | 1.21 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 170 | 266026-4 | 1.00 | 1.21 | |
| INZAAGPLAAT BLS713 | ||||
| 171 | 419103-3 | 3.60 | 4.36 | |
| INZAAGPLAAT BLS713 | ||||
| 172 | 419103-3 | 3.60 | 4.36 | |
| DRAAIPLATEAU BLS713 | ||||
| 173 | 140614-4 | 162.80 | 196.99 | |
| LINEAIR KOGELL 2560 LS0714 | ||||
| 173A | 211376-2 | 23.10 | 27.95 | |
| VILTEN RING 25 LS0714 | ||||
| 173B | 262077-5 | 2.40 | 2.90 | |
| RUBBER PEN 6 AC320H P | ||||
| 173C | 263005-3 | 1.00 | 1.21 | |
| BORGPLAATLS0714 | ||||
| 173D | 344638-4 | 1.20 | 1.45 | |
| WAARSCHUWINGSLABEL LS1016LB | ||||
| 173E | 810495-7 | 2.40 | 2.90 | |
| WAARSCHUWINGSLABEL LS1013 | ||||
| 173F | 817283-3 | 1.00 | 1.21 | |
| INBUSBOUT M4X10 BPT350 A | ||||
| 174 | 922112-8 | 1.00 | 1.21 | |
| VIERKANT PEN LS0714 | ||||
| 175 | 153580-6 | 11.00 | 13.31 | |
| RUBBER PEN 6 AC320H P | ||||
| 175A | 263005-3 | 1.00 | 1.21 | |
| ZESKANTBOUT M5X30 LS0714 | ||||
| 176 | 925251-3 | 1.00 | 1.21 | |
| TAPSCHROEF CT4X16 A | ||||
| 177 | 266034-5 | 1.00 | 1.21 | |
| BLOKKEERPLAAT LS800DW | ||||
| 178 | 344601-7 | 2.40 | 2.90 | |
| PINHOUDER LS0714 | ||||
| 179 | 317616-7 | 8.40 | 10.16 | |
| PEN 3 T221DW | ||||
| 180 | 256158-5 | 1.20 | 1.45 | |
| BLOKKEERPIN LS0714 | ||||
| 181 | 324288-1 | 3.60 | 4.36 | |
| DRUKVEER 6 LS0714 | ||||
| 182 | 231325-3 | 1.00 | 1.21 | |
| STANG 6MM LS0714 | ||||
| 183 | 324289-9 | 1.20 | 1.45 | |
| BLOKKEERHANDEL LS800DW | ||||
| 184 | 416450-3 | 2.40 | 2.90 | |
| BLOKKEERPLAAT LS0714 | ||||
| 185 | 345272-3 | 1.20 | 1.45 | |
| TAPSCHROEF CT4X16 A | ||||
| 186 | 266034-5 | 1.00 | 1.21 | |
| DRUKVEER 9 | ||||
| 187 | 231418-6 | 1.00 | 1.21 | |
| SLUITRING 8 | ||||
| 188 | 253731-2 | 1.00 | 1.21 | |
| STELBOUT M8X27 LS0714 ABS A | ||||
| 189 | 266432-3 | 2.40 | 2.90 | |
| HANDVAT 32 BLS713 | ||||
| 190 | 273658-0 | 14.30 | 17.30 | |
| RUBBER VOET LS1013/LS0714 | ||||
| 191 | 286212-1 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 192 | 921472-5 | |||
| VLEUGELBOUT M6X10 A | ||||
| 193 | 924306-1 | 1.20 | 1.45 | |
| VOETZOOL DLS714 | ||||
| 194 | 140612-8 | 100.10 | 121.12 | |
| SCHAALVERDELING LS0714 | ||||
| 194A | 816339-9 | 8.40 | 10.16 | |
| WAARSCHUWINGSLABEL LS1016LB | ||||
| 194B | 810486-8 | 2.40 | 2.90 | |
| GLIJPLAAT LS0714FL | ||||
| 195 | 344646-5 | 3.60 | 4.36 | |
| GLIJPLAAT LS0714FL | ||||
| 196 | 344646-5 | 3.60 | 4.36 | |
| WAAIER 57 9562 | ||||
| 197 | 240033-5 | 4.80 | 5.81 | |
| AANSLAG DLS714 | ||||
| 198 | 142811-8 | 22.00 | 26.62 | |
| VEILIGHEIDSLABEL DLS714 | ||||
| 198A | 805R08-5 | 2.40 | 2.90 | |
| BORGMOER M6 | ||||
| 199 | 252014-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X8 | ||||
| 200 | 266061-2 | 1.00 | 1.21 | |
| HULPAANSLAGPL. LS0714F/DLS713 | ||||
| 201 | 345359-1 | 1.00 | 1.21 | |
| SLUITRING 6 BLS713 P | ||||
| 202 | 253804-1 | 1.00 | 1.21 | |
| VERZONKEN SCHROEF M6X35 | ||||
| 203 | 912357-6 | 1.00 | 1.21 | |
| CONTROLLER B DHW080 | ||||
| 204 | 620K96-7 | 13.20 | 15.97 | |
| MET.SCHR M2X6MM | ||||
| 205 | 652119-7 | 1.00 | 1.21 | |
