Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DML809'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

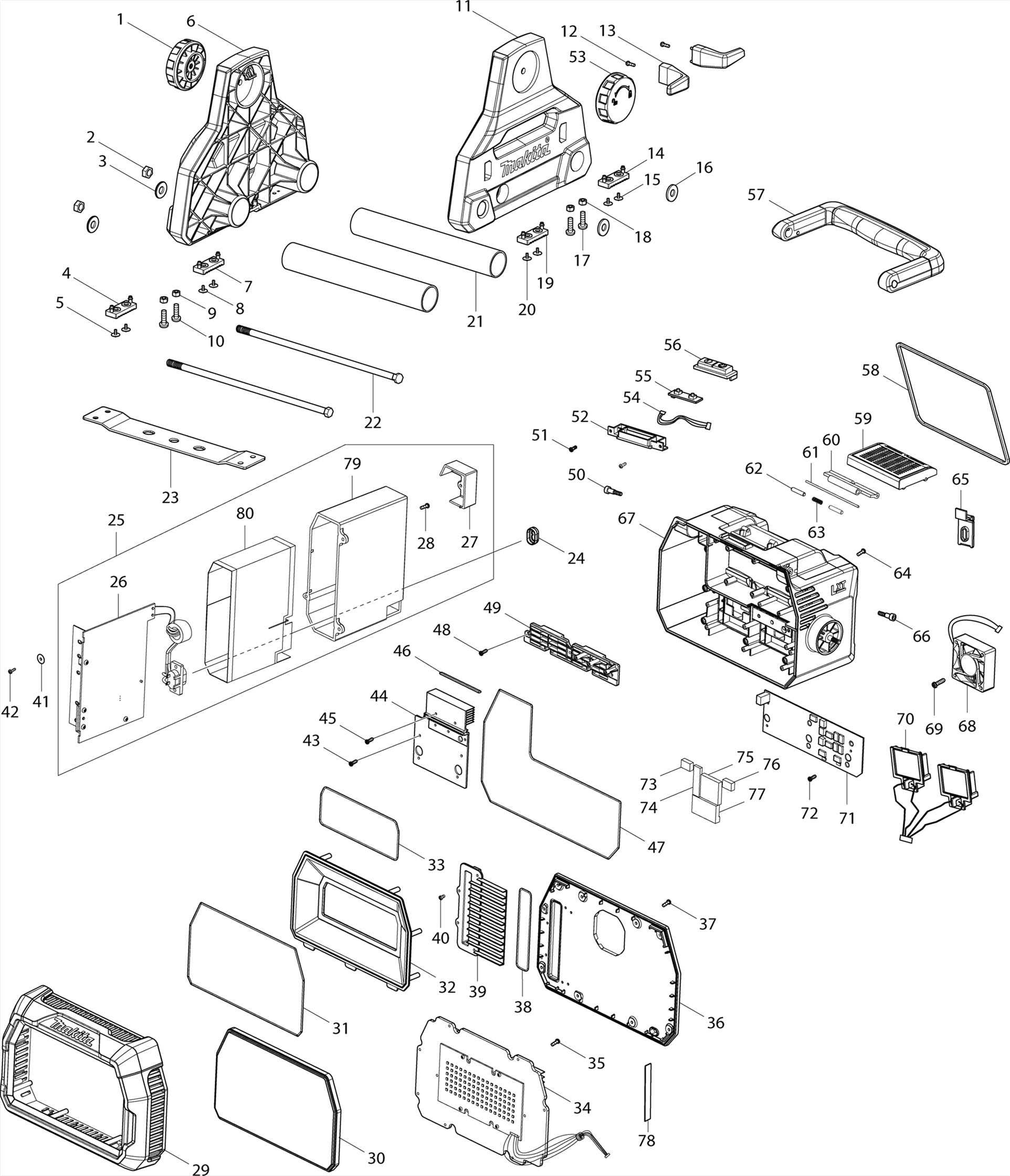

Tekeningen van de Makita DML809
Onderdelen lijst van de Makita DML809
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| A01 | GM00002127 | |||
| STATIEF VOOR BOUWLAMP | ||||
| F01 | GM00002378 | 116.00 | 140.36 | |
| LAMPENKAP BOUWLAMP | ||||
| F04 | GM00002286 | 14.00 | 16.94 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| F05 | GM00002379 | |||
| KNOP DML811 | ||||
| 001 | GM00002160 | 4.80 | 5.81 | |
| MOER M8 DML811 | ||||
| 002 | GM00002158 | 1.20 | 1.45 | |
| REVET 8MM DML811 | ||||
| 003 | GM00002157 | 1.20 | 1.45 | |
| VOETJE DML811 | ||||
| 004 | GM00002154 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 004-1 | GM00002572 | |||
| SCHROEF 3X6MM DML811 | ||||
| 005 | GM00002164 | 1.00 | 1.21 | |
| STAANDER L DML811 | ||||
| 006 | GM00002162 | 14.30 | 17.30 | |
| VOETJE DML811 | ||||
| 007 | GM00002154 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 007-1 | GM00002572 | |||
| SCHROEF 3X6MM DML811 | ||||
| 008 | GM00002164 | 1.00 | 1.21 | |
| MOER M5 DML811 | ||||
| 009 | GM00002155 | 1.00 | 1.21 | |
| SCHROEF 5X15MM DML815DML811 | ||||
| 010 | GM00002156 | 1.00 | 1.21 | |
| STAANDER R DML811 | ||||
| 011 | GM00002161 | 14.30 | 17.30 | |
| SCHROEF 3X18MM DML811 | ||||
| 012 | GM00002165 | 1.00 | 1.21 | |
| KABELHAKEN DML811 | ||||
| 013 | GM00002159 | 2.40 | 2.90 | |
| VOETJE DML811 | ||||
| 014 | GM00002154 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 014-1 | GM00002572 | |||
| SCHROEF 3X6MM DML811 | ||||
| 015 | GM00002164 | 1.00 | 1.21 | |
| REVET 8MM DML811 | ||||
| 016 | GM00002157 | 1.20 | 1.45 | |
| SCHROEF 5X15MM DML815DML811 | ||||
| 017 | GM00002156 | 1.00 | 1.21 | |
| MOER M5 DML811 | ||||
| 018 | GM00002155 | 1.00 | 1.21 | |
| VOETJE DML811 | ||||
| 019 | GM00002154 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 019-1 | GM00002572 | |||
| SCHROEF 3X6MM DML811 | ||||
| 020 | GM00002164 | 1.00 | 1.21 | |
| BUIS DML809 | ||||
| 021 | GM00002192 | 9.60 | 11.62 | |
| BOUT M8 DML809 | ||||
| 022 | GM00002191 | 7.20 | 8.71 | |
| PLAATHOUDER DML809 | ||||
| 023 | GM00002190 | 14.30 | 17.30 | |
| KABELDOORVOER DML811 | ||||
| 024 | GM00002150 | 1.20 | 1.45 | |
| CIRCUIT AC DML809 ASSY | ||||
| 025 | GM00002264 | 127.60 | 154.40 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 026 | GM00002262 | |||
| RINGHOUDER DML809 | ||||
| 027 | GM00002187 | 1.20 | 1.45 | |
| SCHROEF 3X8MM DML806 | ||||
| 028 | GM00001332 | 1.00 | 1.21 | |
| RAND DML809 | ||||
| 029 | GM00002167 | 19.80 | 23.96 | |
| LENS DML809 | ||||
| 030 | GM00002168 | 14.30 | 17.30 | |
| PAKKINGRING DML809 | ||||
| 031 | GM00002169 | 2.40 | 2.90 | |
| REFLECTOR DML809 | ||||
| 032 | GM00002170 | 13.20 | 15.97 | |
| HITTESCHILD DML809 | ||||
| 033 | GM00002171 | 2.40 | 2.90 | |
| CIRCUIT LED DML809 | ||||
| 034 | GM00002172 | 105.60 | 127.78 | |
| SCHROEF 3X18MM DML811 | ||||
| 035 | GM00002165 | 1.00 | 1.21 | |
| MIDDENHUISKAP DML809 | ||||
| 036 | GM00002173 | 17.60 | 21.30 | |
| SCHROEF 3X18MM DML811 | ||||
| 037 | GM00002165 | 1.00 | 1.21 | |
| RUBBERHITTESCHILD DML809 | ||||
| 038 | GM00002175 | 2.40 | 2.90 | |
| HITTESCHILD AC DML809 | ||||
| 039 | GM00002174 | 10.80 | 13.07 | |
| SCHROEF 3X8MM DML806 | ||||
| 040 | GM00001332 | 1.00 | 1.21 | |
| SLUITRING DML809 | ||||
| 041 | GM00002254 | 1.00 | 1.21 | |
| SCHROEF 3X13MM DML809 | ||||
| 042 | GM00002260 | 1.00 | 1.21 | |
| SCHROEF 3X18MM DML811 | ||||
| 043 | GM00002165 | 1.00 | 1.21 | |
| HITTESCHILD DML809 | ||||
| 044 | GM00002253 | 8.40 | 10.16 | |
| SCHROEF 3X18MM DML811 | ||||
| 045 | GM00002165 | 1.00 | 1.21 | |
| PAKKING A DML809 | ||||
| 046 | GM00002178 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 046-1 | GM00002571 | |||
| PAKKING B DML809 | ||||
| 047 | GM00002176 | 1.20 | 1.45 | |
| SCHROEF 3X18MM DML811 | ||||
| 048 | GM00002165 | 1.00 | 1.21 | |
| CIRCUITHOUDER DML809 | ||||
| 049 | GM00002180 | 2.40 | 2.90 | |
| INBUSBOUT DML811 | ||||
| 050 | GM00002137 | 1.20 | 1.45 | |
| SCHROEF 3X12MM DML806 | ||||
| 051 | GM00001333 | 1.00 | 1.21 | |
| SCHAKELAARHOUDER DML811 | ||||
| 052 | GM00002138 | 1.20 | 1.45 | |
| KNOP DML811 | ||||
| 053 | GM00002160 | 4.80 | 5.81 | |
| DRAADBOOM DML809 | ||||
| 054 | GM00002181 | 2.40 | 2.90 | |
| SCHAKELCIRCUIT DML809 | ||||
| 055 | GM00002182 | 3.60 | 4.36 | |
| SCHAKELAAR DML811 | ||||
| 056 | GM00002141 | 2.40 | 2.90 | |
| HANDGREEP DML809 | ||||
| 057 | GM00002185 | 11.00 | 13.31 | |
| O-RING DML809 | ||||
| 058 | GM00002183 | 2.40 | 2.90 | |
| SLUITING A DML809 | ||||
| 059 | GM00002258 | 2.40 | 2.90 | |
| SLUITING B DML809 | ||||
| 060 | GM00002257 | 1.20 | 1.45 | |
| AS B DML809 | ||||
| 061 | GM00002256 | 1.20 | 1.45 | |
| AS A DML809 | ||||
| 062 | GM00002255 | 1.20 | 1.45 | |
| VEER DML809 | ||||
| 063 | GM00002259 | 1.00 | 1.21 | |
| SCHROEF 3X18MM DML811 | ||||
| 064 | GM00002165 | 1.00 | 1.21 | |
| AC CONTACT DML811 | ||||
| 065 | GM00002142 | 2.40 | 2.90 | |
| INBUSBOUT DML811 | ||||
| 066 | GM00002137 | 1.20 | 1.45 | |
| MIDDENHUIS DML809 | ||||
| 067 | GM00002184 | 39.60 | 47.92 | |
| WAAIER DML809 | ||||
| 068 | GM00002194 | 39.60 | 47.92 | |
| SCHROEF 4X30MM | ||||
| 069 | GM00002193 | 1.00 | 1.21 | |
| BATTERIJHOUDER DML809 | ||||
| 070 | GM00002200 | 16.50 | 19.96 | |
| CIRCUIT HOOFD DML809 | ||||
| 071 | GM00002202 | 88.00 | 106.48 | |
| SCHROEF 3X18MM DML811 | ||||
| 072 | GM00002165 | 1.00 | 1.21 | |
| AFDICHTRUBBER 15X10X5,7 DML809 | ||||
| 073 | GM00002195 | 1.20 | 1.45 | |
| AFDICHTRUBBER 38X10X3,5 DML809 | ||||
| 074 | GM00002196 | 2.40 | 2.90 | |
| AFDICHTRUBBER 30X30X5,7 DML809 | ||||
| 075 | GM00002197 | 3.60 | 4.36 | |
| AFDICHTRUBBER 15X10X5,7 DML809 | ||||
| 076 | GM00002195 | 1.20 | 1.45 | |
| AFDICHTRUBBER 40X23X7,1 DML809 | ||||
| 077 | GM00002198 | 3.60 | 4.36 | |
| STOOTRUBBER 2 B DML811 | ||||
| 078 | GM00002134 | 1.00 | 1.21 | |
| CIRCUITKAST DML809 P | ||||
| 079 | GM00002186 | 9.60 | 11.62 | |
| ISOLATIEKAST DML809 P | ||||
| 080 | GM00002201 | 4.80 | 5.81 | |
