Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DML810'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

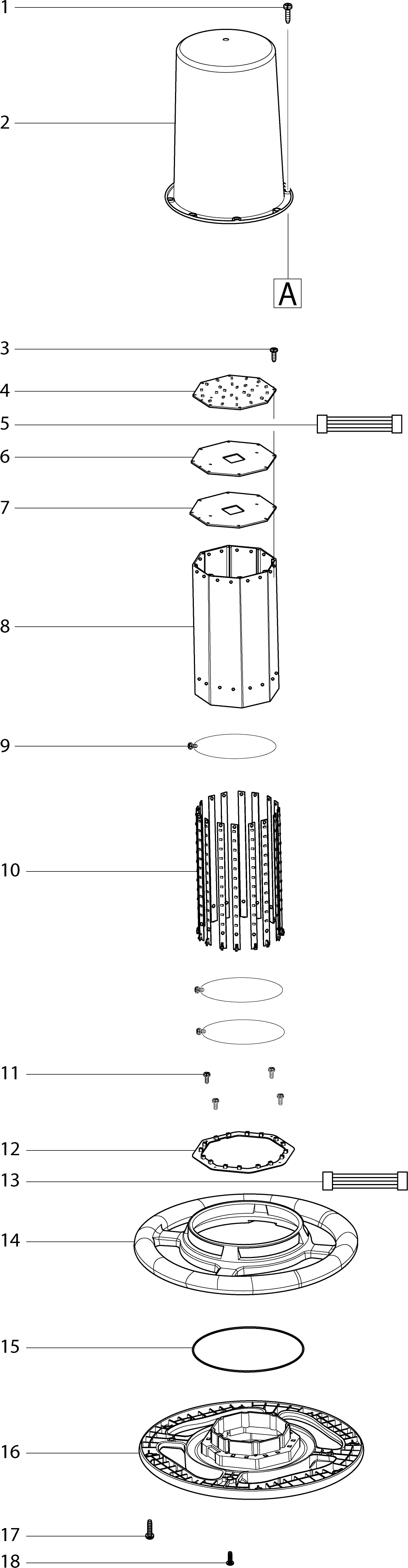

Tekeningen van de Makita DML810
Onderdelen lijst van de Makita DML810
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| A01 | QY00000081 | |||
| KABEL EU DML810 | ||||
| A01-1 | QY00000093 | 14.30 | 17.30 | |
| TAPSCHROEF 4X20MM DML810 | ||||
| 001 | QY00000001 | 1.20 | 1.45 | |
| LEDKAP DML810 | ||||
| 002 | QY00000002 | 23.10 | 27.95 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 003 | QY00000003 | 1.00 | 1.21 | |
| LEDPLAAT DML810 | ||||
| 004 | QY00000004 | 10.80 | 13.07 | |
| KABELSET 6X300 DML810 | ||||
| 005 | QY00000005 | 3.60 | 4.36 | |
| HITTESCHILD DML810 | ||||
| 006 | QY00000006 | 2.40 | 2.90 | |
| WARMTEPLAATKAP DML810 | ||||
| 007 | QY00000007 | 4.80 | 5.81 | |
| WARMTEPLAAT DML810 | ||||
| 008 | QY00000008 | 34.10 | 41.26 | |
| TAPSCHR 3X6MM DML810 | ||||
| 009 | QY00000009 | 1.00 | 1.21 | |
| LEDPLAAT LANG DML810 | ||||
| 010 | QY00000010 | 4.80 | 5.81 | |
| TAPSCHR 3X12MM DML810 | ||||
| 011 | QY00000011 | 1.00 | 1.21 | |
| CIRCUIT LED DML810 | ||||
| 012 | QY00000012 | 19.80 | 23.96 | |
| KABELSET 6X1000 DML810 | ||||
| 013 | QY00000013 | 4.80 | 5.81 | |
| HANDGREEP BOVEN DML810 | ||||
| 014 | QY00000014 | 11.00 | 13.31 | |
| O-RING DML810 | ||||
| 015 | QY00000015 | 4.80 | 5.81 | |
| HANDGREEP ONDER DML810 | ||||
| 016 | QY00000016 | 13.20 | 15.97 | |
| TAPSCHROEF 4X20MM DML810 | ||||
| 017 | QY00000001 | 1.20 | 1.45 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 018 | QY00000017 | 1.00 | 1.21 | |
| SCHAKELKAP DML810 | ||||
| 019 | QY00000018 | 9.60 | 11.62 | |
| INDICATIEKAP DML810 | ||||
| 020 | QY00000019 | 1.20 | 1.45 | |
| INDICATIEUNIT DML810 | ||||
| 021 | QY00000020 | 6.00 | 7.26 | |
| SCHAKELCIRCUIT DML810 | ||||
| 022 | QY00000021 | 3.60 | 4.36 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 023 | QY00000017 | 1.00 | 1.21 | |
| SCHAKELAAR DML810 | ||||
| 024 | QY00000022 | 8.40 | 10.16 | |
| KABELSET 10X850 DML810 | ||||
| 025 | QY00000023 | 4.80 | 5.81 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 026 | QY00000017 | 1.00 | 1.21 | |
| TAPSCHR 5X20MM DML810 | ||||
| 027 | QY00000024 | 1.00 | 1.21 | |
| BEHUIZING DML810 | ||||
| 028 | QY00000073 | 78.10 | 94.50 | |
| TAPSCHR 3X8MM DML810 | ||||
| 029 | QY00000026 | 1.00 | 1.21 | |
| REFLECTOR DML810 | ||||
| 030 | QY00000027 | 2.40 | 2.90 | |
| BEHUIZING DML810 | ||||
| 031 | QY00000073 | 78.10 | 94.50 | |
| SLUITING DML810 | ||||
| 032 | QY00000029 | 2.40 | 2.90 | |
| PIN 2,5X73MM DML810 | ||||
| 033 | QY00000030 | 1.00 | 1.21 | |
| PIN 4X75MM DML810 | ||||
| 034 | QY00000031 | 1.00 | 1.21 | |
| BATTERIJKAP DML810 | ||||
| 035 | QY00000032 | 1.00 | 1.21 | |
| BATTERIJKAP DML810 | ||||
| 036 | QY00000033 | 8.40 | 10.16 | |
| PIN 2,5X52,5MM DML810 | ||||
| 037 | QY00000034 | 1.00 | 1.21 | |
| BATTERIJKAPBASIS DML810 | ||||
| 038 | QY00000035 | 2.40 | 2.90 | |
| TAPSCHR 3X12MM DML810 | ||||
| 039 | QY00000036 | 1.00 | 1.21 | |
| BATTERIJKAPPAKKING DML810 | ||||
| 040 | QY00000037 | 8.40 | 10.16 | |
| KABEL DML810 P | ||||
| 041 | QY00000038 | 8.40 | 10.16 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 041-1 | QY00000092 | |||
| ONDERPLAATKAP DML810 | ||||
| 042 | QY00000039 | 3.60 | 4.36 | |
| CIRCUITBORD DML810 | ||||
| 043 | QY00000040 | 28.60 | 34.61 | |
| AFDEKKAP DML810 | ||||
| 044 | QY00000041 | 1.20 | 1.45 | |
| TAPSCHR 3X12MM DML810 | ||||
| 045 | QY00000011 | 1.00 | 1.21 | |
| KABELSET 400 DML810 | ||||
| 046 | QY00000042 | 3.60 | 4.36 | |
| PAKKING DML810 | ||||
| 047 | QY00000043 | 3.60 | 4.36 | |
| BATTERIJBAK ONDER DML810 | ||||
| 048 | QY00000044 | 10.80 | 13.07 | |
| TAPSCHROEF 4X20MM DML810 | ||||
| 049 | QY00000001 | 1.20 | 1.45 | |
| HOOFDCIRCUIT DML810 | ||||
| 050 | QY00000045 | 39.60 | 47.92 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 051 | QY00000017 | 1.00 | 1.21 | |
| STATION DML810 | ||||
| 052 | QY00000046 | 6.00 | 7.26 | |
| KABELSET 300 DML810 | ||||
| 053 | QY00000047 | 6.00 | 7.26 | |
| CONTROLLERKAST DML810 | ||||
| 054 | QY00000048 | 3.60 | 4.36 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 055 | QY00000017 | 1.00 | 1.21 | |
| BATTERIJSTATIONPLAAT DML810 | ||||
| 056 | QY00000049 | 2.40 | 2.90 | |
| TAPSCHR 3,5X14MM DML810 | ||||
| 057 | QY00000017 | 1.00 | 1.21 | |
| BOVENHANDGREEP DML810 | ||||
| 058 | QY00000050 | 9.60 | 11.62 | |
| TAPSCHR 5X20MM DML810 | ||||
| 059 | QY00000024 | 1.00 | 1.21 | |
| HANDGREEP ONDER DML810 | ||||
| 060 | QY00000051 | 10.80 | 13.07 | |
| TAPSCHR 5X20MM DML810 | ||||
| 061 | QY00000024 | 1.00 | 1.21 | |
| AC STOPCONTACT OUT DML810 | ||||
| 062 | QY00000052 | 4.80 | 5.81 | |
| TAPSCHR 3X12MM DML810 | ||||
| 063 | QY00000036 | 1.00 | 1.21 | |
| AC STOPCONTACTKAP DML810 | ||||
| 064 | QY00000071 | 2.40 | 2.90 | |
| AC INLAAT D ML010G | ||||
| 065 | QY00000067 | 13.20 | 15.97 | |
| DOORVOERKAST DML810 | ||||
| 066 | QY00000055 | 2.40 | 2.90 | |
| HUIZINGSET DML810 | ||||
| 067 | QY00000056 | 3.60 | 4.36 | |
| STOPCONTACTFRAME DML810 | ||||
| 068 | QY00000057 | 2.40 | 2.90 | |
| AC STOPCONTACT IN DML810 | ||||
| 069 | QY00000058 | 1.20 | 1.45 | |
| TAPSCHR 3X12MM DML810 | ||||
| 070 | QY00000036 | 1.00 | 1.21 | |
| STOPCONTACTKAP DML810 | ||||
| 071 | QY00000059 | 6.00 | 7.26 | |
| ONDERHUIS DML810 | ||||
| 072 | QY00000060 | 23.10 | 27.95 | |
| TAPSCHR 5X20MM DML810 | ||||
| 073 | QY00000024 | 1.00 | 1.21 | |
| TAPSCHR 5X20MM DML810 | ||||
| 074 | QY00000024 | 1.00 | 1.21 | |
| SLUITRING 5MM DML810 | ||||
| 075 | QY00000061 | 1.00 | 1.21 | |
| GEWICHT DML810 | ||||
| 076 | QY00000062 | 72.60 | 87.85 | |
| GEWICHTKAP DML810 | ||||
| 077 | QY00000063 | 16.50 | 19.96 | |
| TAPSCHR 5X20MM DML810 | ||||
| 078 | QY00000064 | 1.00 | 1.21 | |
| TAPSCHR 3X12MM DML810 | ||||
| 079 | QY00000011 | 1.00 | 1.21 | |
