Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR105'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

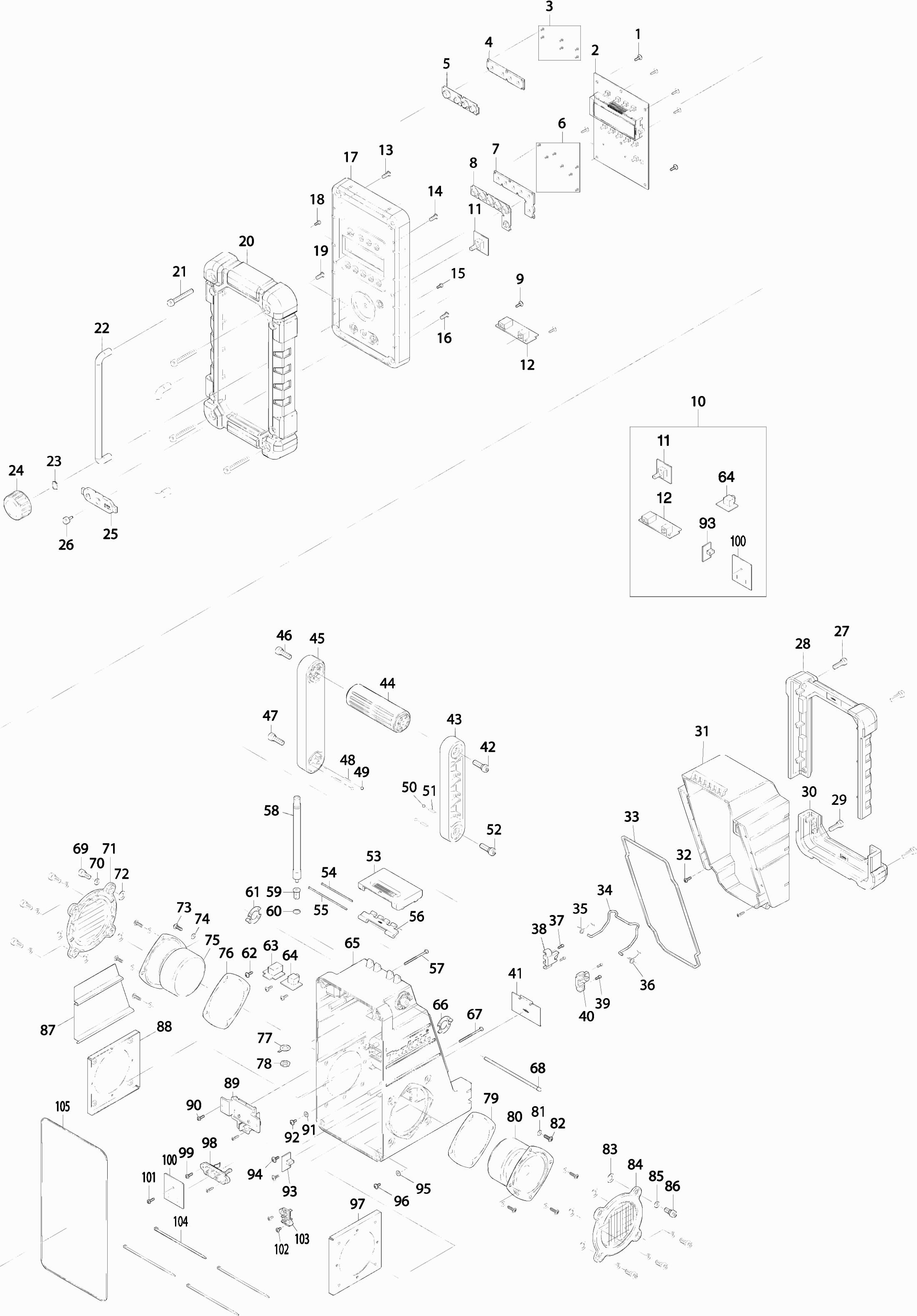

Tekeningen van de Makita DMR105
Onderdelen lijst van de Makita DMR105
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Schroef M3x10 | ||||
| 001 | SE09163102 | 0.83 | 1.00 | |
| Circuit "a" | ||||
| 002 | SE00000323 | 136.16 | 164.75 | |
| Tapschroef 1.7 | ||||
| 003 | SE09090011 | 0.83 | 1.00 | |
| Aan uit knop | ||||
| 004 | SE020PC020 | 1.02 | 1.23 | |
| Aan uit knop | ||||
| 005 | SE00000274 | 1.72 | 2.08 | |
| Tapschroef 1.7 | ||||
| 006 | SE09090011 | 0.83 | 1.00 | |
| Bandknophouder | ||||
| 007 | SE020PC030 | 1.02 | 1.23 | |
| Presetknop | ||||
| 008 | SE00000275 | 1.70 | 2.06 | |
| Tapschroef 3x10mm | ||||
| 009 | SE00000193 | 0.83 | 1.00 | |
| Circuit "p" all | ||||
| 010 | SE00000276 | 39.92 | 48.30 | |
| Circuit "p" encoder | ||||
| 011 | SE00000277 | 9.52 | 11.52 | |
| Circuit "p" dc-jack | ||||
| 012 | SE00000278 | 8.52 | 10.31 | |
| Schroef M4x16 | ||||
| 013 | SE09064161 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 014 | SE09064161 | 0.83 | 1.00 | |
| Schroef M3x10 | ||||
| 015 | SE09163102 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 016 | SE09064161 | 0.83 | 1.00 | |
| Voorpaneel | ||||
| 017 | SE00000308 | 14.90 | 18.03 | |
| Schroef M3x10 | ||||
| 018 | SE09163102 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 019 | SE09064161 | 0.83 | 1.00 | |
| Stootrubber | ||||
| 020 | SE00000159 | 28.73 | 34.76 | |
| Tapschroef 6x47mm | ||||
| 021 | SE00000160 | 0.83 | 1.00 | |
| Stootgreep | ||||
| 022 | SE0338PC5Z | 9.54 | 11.54 | |
| Volumeknopring | ||||
| 023 | SE21B1110A | 0.83 | 1.00 | |
| Draaiknop | ||||
| 024 | SE00000161 | 2.05 | 2.48 | |
| Afdekrubber | ||||
| 025 | SE0335PC5Z | 2.05 | 2.48 | |
| Schroef M3x10 | ||||
| 026 | SE09173106 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 027 | SE09176166 | 0.83 | 1.00 | |
| Battery dekselbuffer | ||||
| 028 | SE00000162 | 14.23 | 17.22 | |
| Schroef M6x16 | ||||
| 029 | SE09176166 | 0.83 | 1.00 | |
| Stootrubber "achter" | ||||
| 030 | SE00000165 | 11.32 | 13.70 | |
| Battery deksel | ||||
| 031 | SE00000166 | 16.07 | 19.44 | |
| Schroef M3x10 | ||||
| 032 | SE09163102 | 0.83 | 1.00 | |
| Pakking | ||||
| 033 | SE00000168 | 7.43 | 8.99 | |
| Valbescherming | ||||
| 034 | SE00000169 | 2.80 | 3.39 | |
| Drukveer "l" | ||||
| 035 | SE00000170 | 0.83 | 1.00 | |
| Drukveer "r" | ||||
| 036 | SE00000171 | 0.83 | 1.00 | |
| Schroef M3x10 | ||||
| 037 | SE09163102 | 0.83 | 1.00 | |
| Drukveerhouder "l" | ||||
| 038 | SE00000175 | 0.83 | 1.00 | |
| Schroef M3x10 | ||||
| 039 | SE09163102 | 0.83 | 1.00 | |
| Drukveerhouder "r" | ||||
| 040 | SE00000173 | 0.83 | 1.00 | |
| Batterijplaat | ||||
| 041 | SE00000282 | 1.02 | 1.23 | |
| Tapschroef 6x20mm | ||||
| 042 | SE00000176 | 0.83 | 1.00 | |
| Handgreephouder "r" | ||||
| 043 | SE00000177 | 2.44 | 2.95 | |
| Handgreep | ||||
| 044 | SE00000179 | 4.58 | 5.54 | |
| Handgreephouder "l" | ||||
| 045 | SE00000180 | 2.44 | 2.95 | |
| Tapschroef 6x20mm | ||||
| 046 | SE00000176 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 047 | SE09176166 | 0.83 | 1.00 | |
| Drukveer | ||||
| 048 | SE00000184 | 0.83 | 1.00 | |
| Kogel | ||||
| 049 | SE09994007 | 0.83 | 1.00 | |
| Kogel | ||||
| 050 | SE09994007 | 0.83 | 1.00 | |
| Drukveer | ||||
| 051 | SE00000184 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 052 | SE09176166 | 0.83 | 1.00 | |
| Battery dekselsluiting | ||||
| 053 | SE00000190 | 1.21 | 1.46 | |
| Montagestift | ||||
| 054 | SE021PC050 | 0.83 | 1.00 | |
| Montagestift | ||||
| 055 | SE021PC040 | 0.83 | 1.00 | |
| Sluitplaat | ||||
| 056 | SE00000067 | 0.83 | 1.00 | |
| Schroef M3x45 | ||||
| 057 | SE09163452 | 0.83 | 1.00 | |
| Antenne | ||||
| 058 | SE00000284 | 5.87 | 7.10 | |
| Antennehouder | ||||
| 059 | SE021J9032 | 1.01 | 1.22 | |
| Pakking | ||||
| 060 | SE024J9050 | 0.83 | 1.00 | |
| Handgreepplaat "l" | ||||
| 061 | SE00000192 | 1.01 | 1.22 | |
| Tapschroef 3x10mm | ||||
| 062 | SE00000193 | 0.83 | 1.00 | |
| Circuit "g" usb | ||||
| 063 | SE00000285 | 7.80 | 9.44 | |
| Circuit "p" aux | ||||
| 064 | SE00000286 | 7.43 | 8.99 | |
| Achterhuis | ||||
| 065 | SE00000289 | 30.23 | 36.58 | |
| Handgreepplaat "r" | ||||
| 066 | SE00000187 | 1.01 | 1.22 | |
| Schroef M3x45 | ||||
| 067 | SE09163452 | 0.83 | 1.00 | |
| Scharnierpen batt.deksel | ||||
| 068 | SE021PC030 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 069 | SE9076146A | 0.83 | 1.00 | |
| Pakking | ||||
| 070 | SE024J9040 | 0.83 | 1.00 | |
| Luidsprekergaas | ||||
| 071 | SE00000205 | 4.09 | 4.95 | |
| Pakking | ||||
| 072 | SE024J9090 | 0.83 | 1.00 | |
| Schroef M4x12 | ||||
| 073 | SE09090023 | 0.83 | 1.00 | |
| Pakking | ||||
| 074 | SE024J9070 | 0.83 | 1.00 | |
| Luidspreker | ||||
| 075 | SE01620771 | 17.92 | 21.68 | |
| Pakking | ||||
| 076 | SE024J9030 | 1.72 | 2.08 | |
| Antenne-aansluiting | ||||
| 077 | SE021PC100 | 1.01 | 1.22 | |
| Moer | ||||
| 078 | SE021P0020 | 0.83 | 1.00 | |
| Pakking | ||||
| 079 | SE024J9030 | 1.72 | 2.08 | |
| Luidspreker | ||||
| 080 | SE01620771 | 17.92 | 21.68 | |
| Pakking | ||||
| 081 | SE024J9070 | 0.83 | 1.00 | |
| Schroef M4x12 | ||||
| 082 | SE09090023 | 0.83 | 1.00 | |
| Pakking | ||||
| 083 | SE024J9090 | 0.83 | 1.00 | |
| Luidsprekergaas | ||||
| 084 | SE00000205 | 4.09 | 4.95 | |
| Pakking | ||||
| 085 | SE024J9040 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 086 | SE9076146A | 0.83 | 1.00 | |
| Luidsprekerhouder | ||||
| 087 | SE00000291 | 3.55 | 4.30 | |
| Luidsprekerhouder | ||||
| 088 | SE021J9010 | 2.16 | 2.61 | |
| Aansluitunit "d" | ||||
| 089 | SE00000197 | 4.09 | 4.95 | |
| Schroef M3x10 | ||||
| 090 | SE09163102 | 0.83 | 1.00 | |
| Revet | ||||
| 091 | SE00000199 | 0.83 | 1.00 | |
| Tapschroef 3x10mm | ||||
| 092 | SE00000193 | 0.83 | 1.00 | |
| Circuit "p" Sw | ||||
| 093 | SE00000292 | 8.52 | 10.31 | |
| Tapschroef 3x10mm | ||||
| 094 | SE00000193 | 0.83 | 1.00 | |
| Revet | ||||
| 095 | SE00000199 | 0.83 | 1.00 | |
| Tapschroef 3x10mm | ||||
| 096 | SE00000193 | 0.83 | 1.00 | |
| Luidsprekerhouder | ||||
| 097 | SE021J9010 | 2.16 | 2.61 | |
| Blokaccuhouder | ||||
| 098 | SE00000098 | 1.43 | 1.73 | |
| Schroef M3x10 | ||||
| 099 | SE09163102 | 0.83 | 1.00 | |
| Circuit "p" batt | ||||
| 100 | SE00000293 | 9.52 | 11.52 | |
| Schroef M3x10 | ||||
| 101 | SE09163102 | 0.83 | 1.00 | |
| Schroef M3x6 | ||||
| 102 | SE09163062 | 0.83 | 1.00 | |
| Aansluitunit "c" | ||||
| 103 | SE00000200 | 2.93 | 3.55 | |
| W/ties 100mm | ||||
| 104 | SE00000195 | 0.83 | 1.00 | |
| Pakking | ||||
| 105 | SE024PC040 | 1.51 | 1.83 | |
