Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR108'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

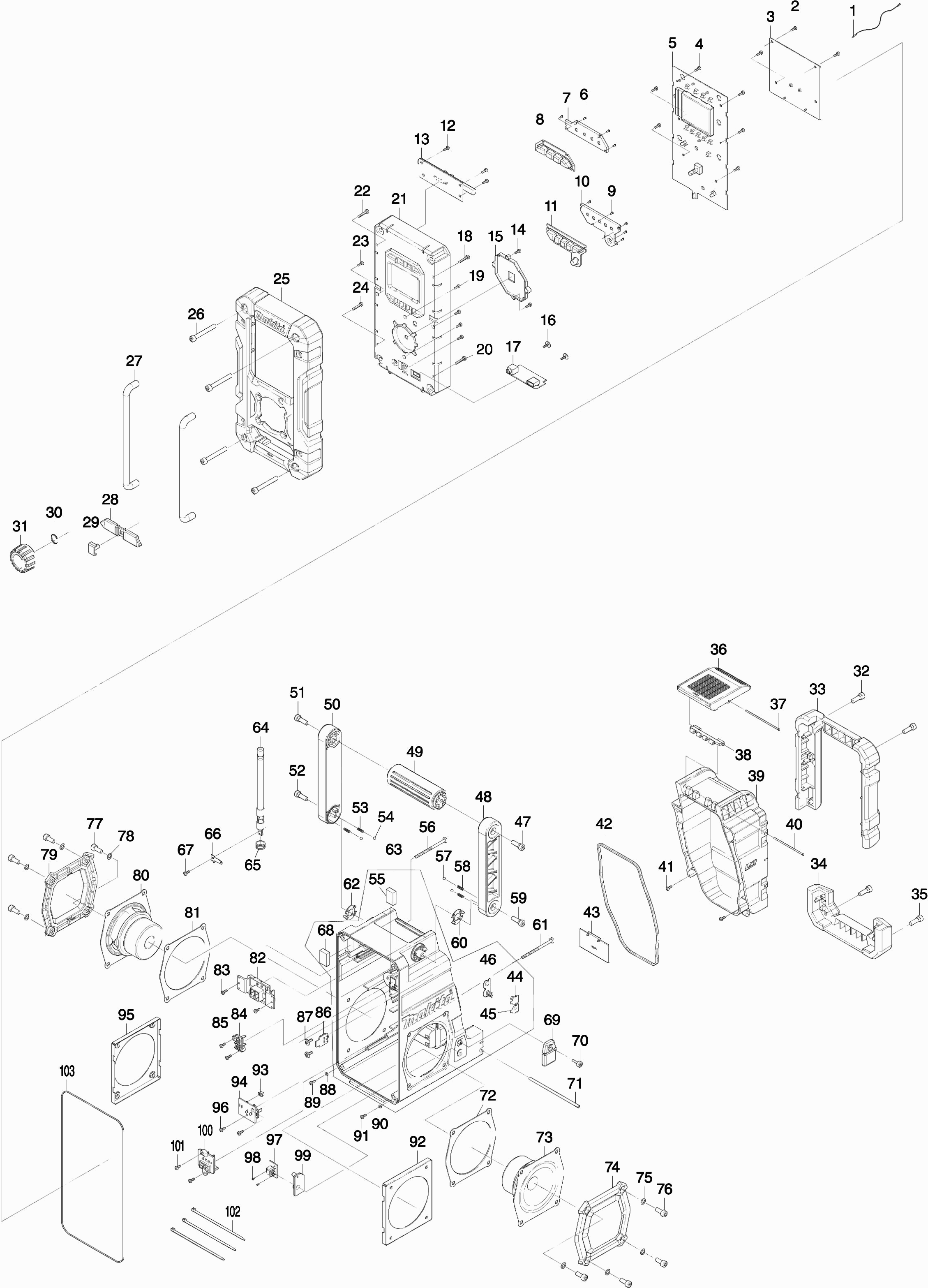

Tekeningen van de Makita DMR108
Onderdelen lijst van de Makita DMR108
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Draad | ||||
| 001 | SE00000437 | 1.24 | 1.50 | |
| Schroef 3 x 8mm | ||||
| 002 | SE00000325 | 0.83 | 1.00 | |
| CIRCUIT A DMR108 A | ||||
| 003 | SE00000595 | 80.00 | 96.80 | |
| CIRCUIT A DMR108 A | ||||
| 003-1 | SE00000595 | 80.00 | 96.80 | |
| Schroef 3 x 8mm | ||||
| 004 | SE00000325 | 0.83 | 1.00 | |
| Circuit "c" | ||||
| 005 | SE00000480 | 49.85 | 60.32 | |
| Tapschroef 1.7 | ||||
| 006 | SE09090011 | 0.83 | 1.00 | |
| Houder | ||||
| 007 | SE00000333 | 2.57 | 3.11 | |
| Aan uit knop | ||||
| 008 | SE00000334 | 2.45 | 2.96 | |
| Tapschroef 1.7 | ||||
| 009 | SE09090011 | 0.83 | 1.00 | |
| Houder | ||||
| 010 | SE00000336 | 2.05 | 2.48 | |
| Preset knop | ||||
| 011 | SE00000337 | 2.80 | 3.39 | |
| Schroef 3 x 8mm | ||||
| 012 | SE00000325 | 0.83 | 1.00 | |
| Circuit Pcb Ant | ||||
| 013 | SE00000339 | 9.96 | 12.05 | |
| Schroef 3 x 8mm | ||||
| 014 | SE00000325 | 0.83 | 1.00 | |
| Schakelknophouder MR103 A | ||||
| 015 | SE00000656 | 1.01 | 1.22 | |
| Schakelknophouder MR103 A | ||||
| 015-1 | SE00000656 | 1.01 | 1.22 | |
| Tapschroef 3x10mm | ||||
| 016 | SE00000193 | 0.83 | 1.00 | |
| Circuit Pcb P Usb | ||||
| 017 | SE00000343 | 10.84 | 13.12 | |
| Schroef M4x16 | ||||
| 018 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 019 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 020 | SE09064161 | 0.83 | 1.00 | |
| Voorpanneel | ||||
| 021 | SE00000347 | 21.87 | 26.46 | |
| Schroef M4x16 | ||||
| 022 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 023 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 024 | SE09064161 | 0.83 | 1.00 | |
| Stootrubber | ||||
| 025 | SE00000351 | 31.61 | 38.25 | |
| Tapschroef 6x47mm | ||||
| 026 | SE00000160 | 0.83 | 1.00 | |
| Stootgreep | ||||
| 027 | SE0338PC5Z | 9.54 | 11.54 | |
| Afdekkap rubber | ||||
| 028 | SE00000355 | 2.16 | 2.61 | |
| Afdekkap | ||||
| 029 | SE00000356 | 1.27 | 1.54 | |
| Volumeknopring | ||||
| 030 | SE21B1110A | 0.83 | 1.00 | |
| Volumeknop | ||||
| 031 | SE00000482 | 2.45 | 2.96 | |
| Schroef M6x16 | ||||
| 032 | SE09176166 | 0.83 | 1.00 | |
| Stootrubber achter | ||||
| 033 | SE00000357 | 19.88 | 24.05 | |
| Stootrubber achter | ||||
| 034 | SE00000359 | 11.19 | 13.54 | |
| Schroef M6x16 | ||||
| 035 | SE09176166 | 0.83 | 1.00 | |
| Sluiting | ||||
| 036 | SE00000362 | 5.87 | 7.10 | |
| Pen 73,5mm | ||||
| 037 | SE00000364 | 0.83 | 1.00 | |
| Sluitplaat | ||||
| 038 | SE00000365 | 1.02 | 1.23 | |
| Accu afdekkap | ||||
| 039 | SE00000483 | 16.13 | 19.52 | |
| Pen 64,5mm | ||||
| 040 | SE00000369 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 041 | SE00000325 | 0.83 | 1.00 | |
| Pakking | ||||
| 042 | SE00000371 | 7.80 | 9.44 | |
| Batterijplaat | ||||
| 043 | SE0307PC5Z | 1.02 | 1.23 | |
| Contactstrip (+) | ||||
| 044 | SE00000466 | 0.83 | 1.00 | |
| Contactstrip (-) | ||||
| 045 | SE00000467 | 0.83 | 1.00 | |
| Contactstrip +/- | ||||
| 046 | SE021E9030 | 1.06 | 1.28 | |
| Tapschroef 6x20mm | ||||
| 047 | SE00000176 | 0.83 | 1.00 | |
| Handgreephouder "r" | ||||
| 048 | SE00000177 | 2.44 | 2.95 | |
| Handgreep | ||||
| 049 | SE00000179 | 4.58 | 5.54 | |
| Handgreephouder "l" | ||||
| 050 | SE00000180 | 2.44 | 2.95 | |
| Tapschroef 6x20mm | ||||
| 051 | SE00000176 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 052 | SE09176166 | 0.83 | 1.00 | |
| Drukveer | ||||
| 053 | SE00000184 | 0.83 | 1.00 | |
| Kogel | ||||
| 054 | SE09994007 | 0.83 | 1.00 | |
| Demper 25x18x5.5 | ||||
| 055 | SE023PC020 | 0.83 | 1.00 | |
| Verzonken schroef 3x45 (ni) | ||||
| 056 | SE00000445 | 0.83 | 1.00 | |
| Kogel | ||||
| 057 | SE09994007 | 0.83 | 1.00 | |
| Drukveer | ||||
| 058 | SE00000184 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 059 | SE09176166 | 0.83 | 1.00 | |
| Handgreepplaat "r" | ||||
| 060 | SE00000187 | 1.01 | 1.22 | |
| Verzonken schroef 3x45 (ni) | ||||
| 061 | SE00000445 | 0.83 | 1.00 | |
| Handgreepplaat "l" | ||||
| 062 | SE00000192 | 1.01 | 1.22 | |
| Achterhuis | ||||
| 063 | SE00000485 | 31.61 | 38.25 | |
| Antenne | ||||
| 064 | SE00000395 | 9.52 | 11.52 | |
| Antennepakking | ||||
| 065 | SE00000398 | 0.83 | 1.00 | |
| Antenne aanluiting | ||||
| 066 | SE00000396 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 067 | SE00000325 | 0.83 | 1.00 | |
| Demper 25x18x5.5 | ||||
| 068 | SE023PC020 | 0.83 | 1.00 | |
| Afdekkap | ||||
| 069 | SE00000403 | 2.45 | 2.96 | |
| Schroef 3x14mm | ||||
| 070 | SE00000404 | 0.83 | 1.00 | |
| Scharnierpen batt.deksel | ||||
| 071 | SE021PC030 | 0.83 | 1.00 | |
| Speakerpakking | ||||
| 072 | SE00000406 | 1.70 | 2.06 | |
| Speaker "r" | ||||
| 073 | SE00000407 | 19.80 | 23.96 | |
| Speakerpaneel | ||||
| 074 | SE00000408 | 7.44 | 9.00 | |
| Pakking | ||||
| 075 | SE024J9040 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 076 | SE9076146A | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 077 | SE9076146A | 0.83 | 1.00 | |
| Pakking | ||||
| 078 | SE024J9040 | 0.83 | 1.00 | |
| Speakerpaneel | ||||
| 079 | SE00000408 | 7.44 | 9.00 | |
| Speaker "r" | ||||
| 080 | SE00000407 | 19.80 | 23.96 | |
| Speakerpakking | ||||
| 081 | SE00000406 | 1.70 | 2.06 | |
| Aanluitunit E | ||||
| 082 | SE00000416 | 4.58 | 5.54 | |
| Schroef 3 x 8mm | ||||
| 083 | SE00000325 | 0.83 | 1.00 | |
| Aansluitunit "c" | ||||
| 084 | SE00000200 | 2.93 | 3.55 | |
| Schroef 3 x 8mm | ||||
| 085 | SE00000325 | 0.83 | 1.00 | |
| Circuit B aux-in | ||||
| 086 | SE00000423 | 9.54 | 11.54 | |
| Tapschroef 3x10mm | ||||
| 087 | SE00000193 | 0.83 | 1.00 | |
| Revet | ||||
| 088 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 089 | SE00000325 | 0.83 | 1.00 | |
| Revet | ||||
| 090 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 091 | SE00000325 | 0.83 | 1.00 | |
| Speakerhouder | ||||
| 092 | SE00000422 | 2.44 | 2.95 | |
| Schakelknop | ||||
| 093 | SE00000430 | 0.83 | 1.00 | |
| Batterijswitch | ||||
| 094 | SE00000488 | 14.24 | 17.23 | |
| Speakerhouder | ||||
| 095 | SE00000422 | 2.44 | 2.95 | |
| Schroef 3 x 8mm | ||||
| 096 | SE00000325 | 0.83 | 1.00 | |
| Circuit Dc-jack | ||||
| 097 | SE00000830 | 7.44 | 9.00 | |
| Tapschroef 1.7 | ||||
| 098 | SE09090011 | 0.83 | 1.00 | |
| Houder "dc-jack" | ||||
| 099 | SE00000435 | 1.02 | 1.23 | |
| Aansluitunit Dmr107 | ||||
| 100 | SE00000473 | 4.09 | 4.95 | |
| Schroef 3 x 8mm | ||||
| 101 | SE00000325 | 0.83 | 1.00 | |
| W/ties 100mm | ||||
| 102 | SE00000195 | 0.83 | 1.00 | |
| Pakking | ||||
| 103 | SE024PC040 | 1.51 | 1.83 | |
