Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR108N'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

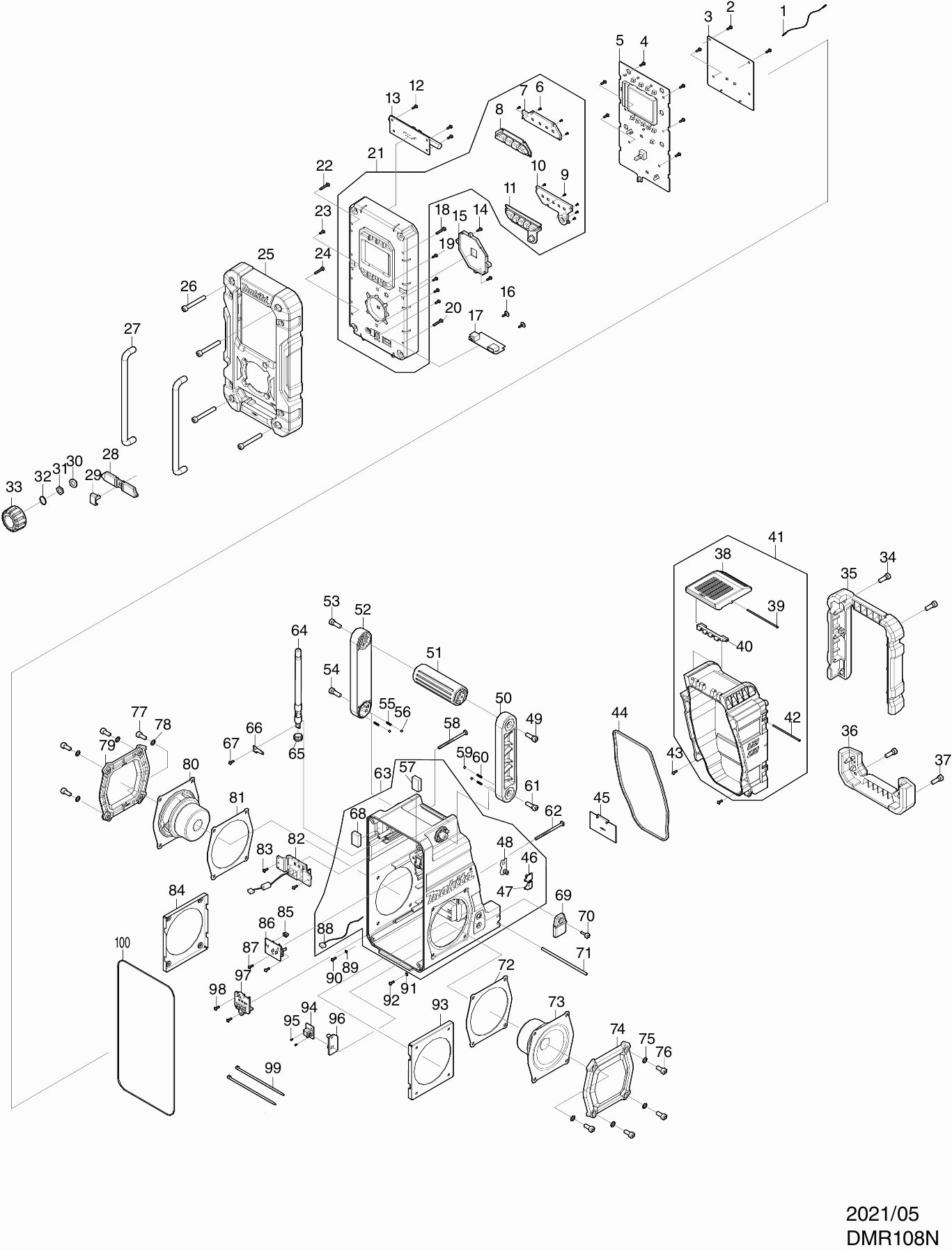

Tekeningen van de Makita DMR108N
Onderdelen lijst van de Makita DMR108N
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Draad Dmr106B* | ||||
| 001 | SE00000437 | 1.20 | 1.45 | |
| Schroef 3X8Mm | ||||
| 002 | SE00000325 | 0.83 | 1.00 | |
| Circuit A DMR108N | ||||
| 003 | SE00001058 | 84.32 | 102.03 | |
| Schroef 3X8Mm | ||||
| 004 | SE00000325 | 0.83 | 1.00 | |
| Circuit C DMR108N | ||||
| 005 | SE00001061 | 43.89 | 53.11 | |
| Tapschroef 1.7 Bmr100 | ||||
| 006 | SE09090011 | 0.83 | 1.00 | |
| Houder Dmr106B | ||||
| 007 | SE00000333 | 2.50 | 3.02 | |
| Aan/Uit Knop Dmr106B | ||||
| 008 | SE00000334 | 2.38 | 2.88 | |
| Tapschroef 1.7 Bmr100 | ||||
| 009 | SE09090011 | 0.83 | 1.00 | |
| Houder Dmr106B* | ||||
| 010 | SE00000336 | 1.99 | 2.41 | |
| Preset Knop Dmr106B* | ||||
| 011 | SE00000337 | 2.71 | 3.28 | |
| Schroef 3X8Mm | ||||
| 012 | SE00000325 | 0.83 | 1.00 | |
| Circuit Pcb P Ant Dmr106B | ||||
| 013 | SE00000339 | 9.67 | 11.70 | |
| Schroef 3X8Mm | ||||
| 014 | SE00000325 | 0.83 | 1.00 | |
| Schakelknophouder MR103 A | ||||
| 015 | SE00000656 | 1.08 | 1.31 | |
| Tapschroef 3X10Mm Bmr102 | ||||
| 016 | SE00000193 | 0.83 | 1.00 | |
| Circuit Pcb P Usb Dmr106B | ||||
| 017 | SE00000343 | 10.52 | 12.73 | |
| Schroef M4X16 Bmr100 | ||||
| 018 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 019 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4X16 Bmr100 | ||||
| 020 | SE09064161 | 0.83 | 1.00 | |
| Voorhuis assy DMR116/108N | ||||
| 021 | SE00001063 | 25.41 | 30.75 | |
| Schroef M4X16 Bmr100 | ||||
| 022 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 023 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4X16 Bmr100 | ||||
| 024 | SE09064161 | 0.83 | 1.00 | |
| Stootrubber Dmr108 * | ||||
| 025 | SE00000351 | 30.69 | 37.13 | |
| Tapschroef 6X47Mm Bmr102 | ||||
| 026 | SE00000160 | 0.83 | 1.00 | |
| Stootgreep Bmr100 | ||||
| 027 | SE0338PC5Z | 9.26 | 11.20 | |
| Afdekkap Rubber Dmr106B | ||||
| 028 | SE00000355 | 2.10 | 2.54 | |
| Afdekkap Dmr106B | ||||
| 029 | SE00000356 | 1.24 | 1.50 | |
| Borgring DMR115 | ||||
| 030 | SE00000754 | 0.83 | 1.00 | |
| Borgmoer DMR115 | ||||
| 031 | SE00000755 | 0.83 | 1.00 | |
| Volumeknopring Bmr100 | ||||
| 032 | SE21B1110A | 0.83 | 1.00 | |
| Volumeknop Dmr108 | ||||
| 033 | SE00000482 | 2.38 | 2.88 | |
| Schroef M6X16 Bmr100 | ||||
| 034 | SE09176166 | 0.83 | 1.00 | |
| Stootrubber Achter Dmr108 | ||||
| 035 | SE00000357 | 19.29 | 23.34 | |
| Stootrubber Achter Dmr108 | ||||
| 036 | SE00000359 | 11.84 | 14.33 | |
| Schroef M6X16 Bmr100 | ||||
| 037 | SE09176166 | 0.83 | 1.00 | |
| Sluiting Dmr108 | ||||
| 038 | SE00000362 | 5.70 | 6.90 | |
| Pen 73,5Mm | ||||
| 039 | SE00000364 | 0.83 | 1.00 | |
| Sluitplaat Dmr108 | ||||
| 040 | SE00000365 | 1.00 | 1.21 | |
| Batterijdeksel DMR108N | ||||
| 041 | SE00001064 | 20.91 | 25.30 | |
| Pen 64,5Mm | ||||
| 042 | SE00000369 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 043 | SE00000325 | 0.83 | 1.00 | |
| Pakking Dmr106B | ||||
| 044 | SE00000371 | 7.57 | 9.16 | |
| Batterijplaat Bmr100 | ||||
| 045 | SE0307PC5Z | 1.00 | 1.21 | |
| Contactstrip (+) Dmr107* | ||||
| 046 | SE00000466 | 0.83 | 1.00 | |
| Contactstrip (-) Dmr107* | ||||
| 047 | SE00000467 | 0.83 | 1.00 | |
| Contactstrip +/- Bmr100 | ||||
| 048 | SE021E9030 | 1.02 | 1.23 | |
| Tapschroef 6X20Mm Bmr102 | ||||
| 049 | SE00000176 | 0.83 | 1.00 | |
| Handgreephouder R BMR102 | ||||
| 050 | SE00000177 | 2.36 | 2.86 | |
| Handgreep Bmr102 | ||||
| 051 | SE00000179 | 4.45 | 5.38 | |
| Handgreephouder L Bmr102 | ||||
| 052 | SE00000180 | 2.36 | 2.86 | |
| Tapschroef 6X20Mm Bmr102 | ||||
| 053 | SE00000176 | 0.83 | 1.00 | |
| Schroef M6X16 Bmr100 | ||||
| 054 | SE09176166 | 0.83 | 1.00 | |
| Drukveer Bmr102 | ||||
| 055 | SE00000184 | 0.83 | 1.00 | |
| Kogel Bmr100 | ||||
| 056 | SE09994007 | 0.83 | 1.00 | |
| Demper 25X18X5.5 Bmr100 | ||||
| 057 | SE023PC020 | 0.83 | 1.00 | |
| Verzonken Schroef 3X45 Dmr106 | ||||
| 058 | SE00000445 | 0.83 | 1.00 | |
| Kogel Bmr100 | ||||
| 059 | SE09994007 | 0.83 | 1.00 | |
| Drukveer Bmr102 | ||||
| 060 | SE00000184 | 0.83 | 1.00 | |
| Schroef M6X16 Bmr100 | ||||
| 061 | SE09176166 | 0.83 | 1.00 | |
| Verzonken Schroef 3X45 Dmr106 | ||||
| 062 | SE00000445 | 0.83 | 1.00 | |
| Achterhuis assy DMR108N | ||||
| 063 | SE00001066 | 32.69 | 39.55 | |
| Antenne Dmr106B | ||||
| 064 | SE00000395 | 9.24 | 11.18 | |
| Antenne Pakking Dmr106 | ||||
| 065 | SE00000398 | 0.83 | 1.00 | |
| Antenne Aanluitunit Dmr106 | ||||
| 066 | SE00000396 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 067 | SE00000325 | 0.83 | 1.00 | |
| Demper 25X18X5.5 Bmr100 | ||||
| 068 | SE023PC020 | 0.83 | 1.00 | |
| Afdekkap Dmr106 | ||||
| 069 | SE00000403 | 2.38 | 2.88 | |
| Schroef 3X14Mm | ||||
| 070 | SE00000404 | 0.83 | 1.00 | |
| Scharnierpen Batt.Dek.Bmr100 | ||||
| 071 | SE021PC030 | 0.83 | 1.00 | |
| Speaker Pakking Dmr106 | ||||
| 072 | SE00000406 | 1.66 | 2.01 | |
| Luidspreker R DMR116/108N | ||||
| 073 | SE00001068 | 19.12 | 23.14 | |
| Speakerpaneel Dmr106 | ||||
| 074 | SE00000408 | 7.22 | 8.74 | |
| Pakking Bmr100 | ||||
| 075 | SE024J9040 | 0.83 | 1.00 | |
| Schroef M6X14 Bmr100 | ||||
| 076 | SE9076146A | 0.83 | 1.00 | |
| Schroef M6X14 Bmr100 | ||||
| 077 | SE9076146A | 0.83 | 1.00 | |
| Pakking Bmr100 | ||||
| 078 | SE024J9040 | 0.83 | 1.00 | |
| Speakerpaneel Dmr106 | ||||
| 079 | SE00000408 | 7.22 | 8.74 | |
| Luidspreker L DMR116/108N | ||||
| 080 | SE00001069 | 19.12 | 23.14 | |
| Speaker Pakking Dmr106 | ||||
| 081 | SE00000406 | 1.66 | 2.01 | |
| Aansluitunit E DMR116/108N | ||||
| 082 | SE00001080 | 4.60 | 5.57 | |
| Schroef 3X8Mm | ||||
| 083 | SE00000325 | 0.83 | 1.00 | |
| Speakerhouder Dmr106 | ||||
| 084 | SE00000422 | 2.36 | 2.86 | |
| Schakelknop Dmr106 | ||||
| 085 | SE00000430 | 0.83 | 1.00 | |
| Circuit D DMR116/108N | ||||
| 086 | SE00001070 | 11.09 | 13.42 | |
| Schroef 3X8Mm | ||||
| 087 | SE00000325 | 0.83 | 1.00 | |
| Draadboom m/aansl MR001/2G | ||||
| 088 | SE00000587 | 0.83 | 1.00 | |
| Revet Bmr102 | ||||
| 089 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 090 | SE00000325 | 0.83 | 1.00 | |
| Revet Bmr102 | ||||
| 091 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 092 | SE00000325 | 0.83 | 1.00 | |
| Speakerhouder Dmr106 | ||||
| 093 | SE00000422 | 2.36 | 2.86 | |
| Circuit F DMR116/108N | ||||
| 094 | SE00001071 | 6.55 | 7.93 | |
| Tapschroef 1.7 Bmr100 | ||||
| 095 | SE09090011 | 0.83 | 1.00 | |
| Houder DC-jack DMR106 | ||||
| 096 | SE00000435 | 1.00 | 1.21 | |
| Aansluitunit CXT DMR116/108N | ||||
| 097 | SE00001072 | 5.17 | 6.26 | |
| Schroef 3X8Mm | ||||
| 098 | SE00000325 | 0.83 | 1.00 | |
| W/Ties 100Mm Bmr102 | ||||
| 099 | SE00000195 | 0.83 | 1.00 | |
| Pakking Bmr100 | ||||
| 100 | SE024PC040 | 1.46 | 1.77 | |
