Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR112'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

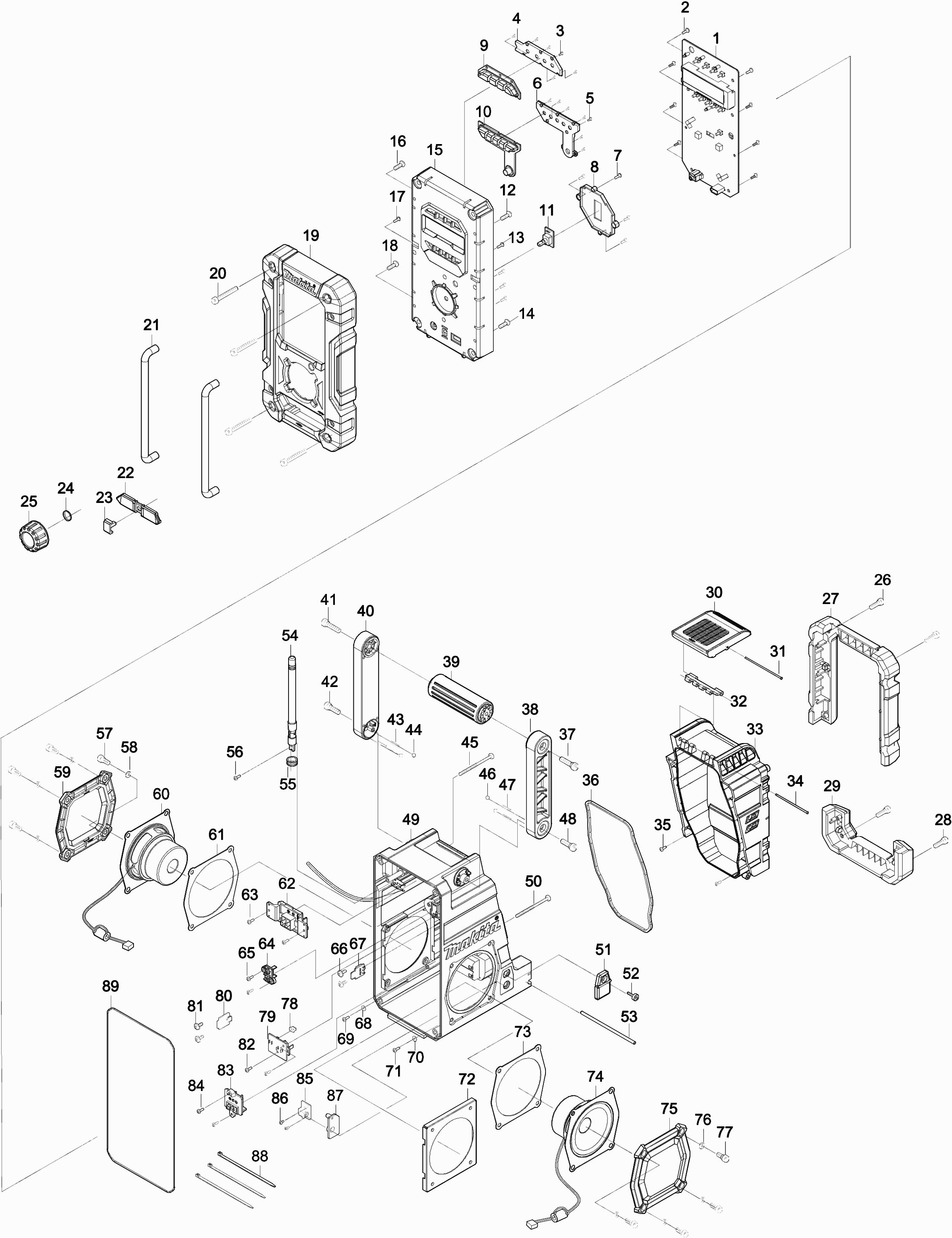

Tekeningen van de Makita DMR112
Onderdelen lijst van de Makita DMR112
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Display circuit A DMR112 | ||||
| 001 | SE00000658 | 174.88 | 211.60 | |
| Schroef 3 x 8mm | ||||
| 002 | SE00000325 | 0.83 | 1.00 | |
| Tapschroef 1.7 | ||||
| 003 | SE09090011 | 0.83 | 1.00 | |
| Aan/Uit knop houder DMR112 | ||||
| 004 | SE00000659 | 1.21 | 1.46 | |
| Tapschroef 1.7 | ||||
| 005 | SE09090011 | 0.83 | 1.00 | |
| Preset knop houder DMR112 | ||||
| 006 | SE00000660 | 1.43 | 1.73 | |
| Schroef 3 x 8mm | ||||
| 007 | SE00000325 | 0.83 | 1.00 | |
| Schakelknophouder MR103 A | ||||
| 008 | SE00000656 | 1.01 | 1.22 | |
| Aan/Uit knop DMR112 | ||||
| 009 | SE00000661 | 2.08 | 2.52 | |
| Preset knop DMR112 | ||||
| 010 | SE00000662 | 2.08 | 2.52 | |
| Encoder circuit DMR112 | ||||
| 011 | SE00000663 | 7.44 | 9.00 | |
| Schroef M4x16 | ||||
| 012 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 013 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 014 | SE09064161 | 0.83 | 1.00 | |
| Voorpaneel DMR112 | ||||
| 015 | SE00000664 | 19.88 | 24.05 | |
| Schroef M4x16 | ||||
| 016 | SE09064161 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 017 | SE00000325 | 0.83 | 1.00 | |
| Schroef M4x16 | ||||
| 018 | SE09064161 | 0.83 | 1.00 | |
| Stootrubber DMR112 | ||||
| 019 | SE00000666 | 21.70 | 26.26 | |
| Tapschroef 6x47mm | ||||
| 020 | SE00000160 | 0.83 | 1.00 | |
| Stootgreep | ||||
| 021 | SE0338PC5Z | 9.54 | 11.54 | |
| Afdekkap rubber | ||||
| 022 | SE00000355 | 2.16 | 2.61 | |
| Afdekkap | ||||
| 023 | SE00000356 | 1.27 | 1.54 | |
| Volumeknopring | ||||
| 024 | SE21B1110A | 0.83 | 1.00 | |
| Volumeknop | ||||
| 025 | SE00000482 | 2.45 | 2.96 | |
| Schroef M6x16 | ||||
| 026 | SE09176166 | 0.83 | 1.00 | |
| Stootrubber achter | ||||
| 027 | SE00000357 | 19.88 | 24.05 | |
| Schroef M6x16 | ||||
| 028 | SE09176166 | 0.83 | 1.00 | |
| Stootrubber achter | ||||
| 029 | SE00000359 | 11.19 | 13.54 | |
| Sluiting | ||||
| 030 | SE00000362 | 5.87 | 7.10 | |
| Pen 73,5mm | ||||
| 031 | SE00000364 | 0.83 | 1.00 | |
| Sluitplaat | ||||
| 032 | SE00000365 | 1.02 | 1.23 | |
| Accu afdekkap | ||||
| 033 | SE00000483 | 16.13 | 19.52 | |
| Pen 64,5mm | ||||
| 034 | SE00000369 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 035 | SE00000325 | 0.83 | 1.00 | |
| Pakking | ||||
| 036 | SE00000371 | 7.80 | 9.44 | |
| Tapschroef 6x20mm | ||||
| 037 | SE00000176 | 0.83 | 1.00 | |
| Handgreephouder "r" | ||||
| 038 | SE00000177 | 2.44 | 2.95 | |
| Handgreep | ||||
| 039 | SE00000179 | 4.58 | 5.54 | |
| Handgreephouder "l" | ||||
| 040 | SE00000180 | 2.44 | 2.95 | |
| Tapschroef 6x20mm | ||||
| 041 | SE00000176 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 042 | SE09176166 | 0.83 | 1.00 | |
| Drukveer | ||||
| 043 | SE00000184 | 0.83 | 1.00 | |
| Kogel | ||||
| 044 | SE09994007 | 0.83 | 1.00 | |
| Verzonken schroef 3x45 (ni) | ||||
| 045 | SE00000445 | 0.83 | 1.00 | |
| Kogel | ||||
| 046 | SE09994007 | 0.83 | 1.00 | |
| Drukveer | ||||
| 047 | SE00000184 | 0.83 | 1.00 | |
| Schroef M6x16 | ||||
| 048 | SE09176166 | 0.83 | 1.00 | |
| Achterpaneel DMR112 | ||||
| 049 | SE00000667 | 43.02 | 52.05 | |
| Verzonken schroef 3x45 (ni) | ||||
| 050 | SE00000445 | 0.83 | 1.00 | |
| Afdekkap | ||||
| 051 | SE00000403 | 2.45 | 2.96 | |
| Schroef 3x14mm | ||||
| 052 | SE00000404 | 0.83 | 1.00 | |
| Scharnierpen batt.deksel | ||||
| 053 | SE021PC030 | 0.83 | 1.00 | |
| Antenne 88-108 DMR112 | ||||
| 054 | SE00000669 | 9.54 | 11.54 | |
| Antennepakking | ||||
| 055 | SE00000398 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 056 | SE00000325 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 057 | SE9076146A | 0.83 | 1.00 | |
| Pakking | ||||
| 058 | SE024J9040 | 0.83 | 1.00 | |
| Speakerpaneel | ||||
| 059 | SE00000408 | 7.44 | 9.00 | |
| Luidspreker L+R DMR112 | ||||
| 060 | SE00000670 | 21.87 | 26.46 | |
| Speakerpakking | ||||
| 061 | SE00000406 | 1.70 | 2.06 | |
| Aanluitunit E | ||||
| 062 | SE00000416 | 4.58 | 5.54 | |
| Schroef 3 x 8mm | ||||
| 063 | SE00000325 | 0.83 | 1.00 | |
| Aansluitunit "c" | ||||
| 064 | SE00000200 | 2.93 | 3.55 | |
| Schroef 3 x 8mm | ||||
| 065 | SE00000325 | 0.83 | 1.00 | |
| Tapschroef 3x10mm | ||||
| 066 | SE00000193 | 0.83 | 1.00 | |
| Circuit B Aux DMR112 | ||||
| 067 | SE00000671 | 7.44 | 9.00 | |
| Revet | ||||
| 068 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 069 | SE00000325 | 0.83 | 1.00 | |
| Revet | ||||
| 070 | SE00000199 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 071 | SE00000325 | 0.83 | 1.00 | |
| Speakerhouder | ||||
| 072 | SE00000422 | 2.44 | 2.95 | |
| Speakerpakking | ||||
| 073 | SE00000406 | 1.70 | 2.06 | |
| Luidspreker L+R DMR112 | ||||
| 074 | SE00000670 | 21.87 | 26.46 | |
| Speakerpaneel | ||||
| 075 | SE00000408 | 7.44 | 9.00 | |
| Pakking | ||||
| 076 | SE024J9040 | 0.83 | 1.00 | |
| Schroef M6x14 | ||||
| 077 | SE9076146A | 0.83 | 1.00 | |
| Schakelknop | ||||
| 078 | SE00000430 | 0.83 | 1.00 | |
| Circuit D bat-switch DMR112 | ||||
| 079 | SE00000673 | 11.16 | 13.50 | |
| Circuit G USB DMR112 | ||||
| 080 | SE00000674 | 7.44 | 9.00 | |
| Tapschroef 3x10mm | ||||
| 081 | SE00000193 | 0.83 | 1.00 | |
| Schroef 3 x 8mm | ||||
| 082 | SE00000325 | 0.83 | 1.00 | |
| Aansluitunit Dmr107 | ||||
| 083 | SE00000473 | 4.09 | 4.95 | |
| Schroef 3 x 8mm | ||||
| 084 | SE00000325 | 0.83 | 1.00 | |
| Circuit F DC jack DMR112 | ||||
| 085 | SE00000675 | 9.54 | 11.54 | |
| Tapschroef 1.7 | ||||
| 086 | SE09090011 | 0.83 | 1.00 | |
| Houder "dc-jack" | ||||
| 087 | SE00000435 | 1.02 | 1.23 | |
| W/ties 100mm | ||||
| 088 | SE00000195 | 0.83 | 1.00 | |
| Pakking | ||||
| 089 | SE024PC040 | 1.51 | 1.83 | |
