Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR116'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

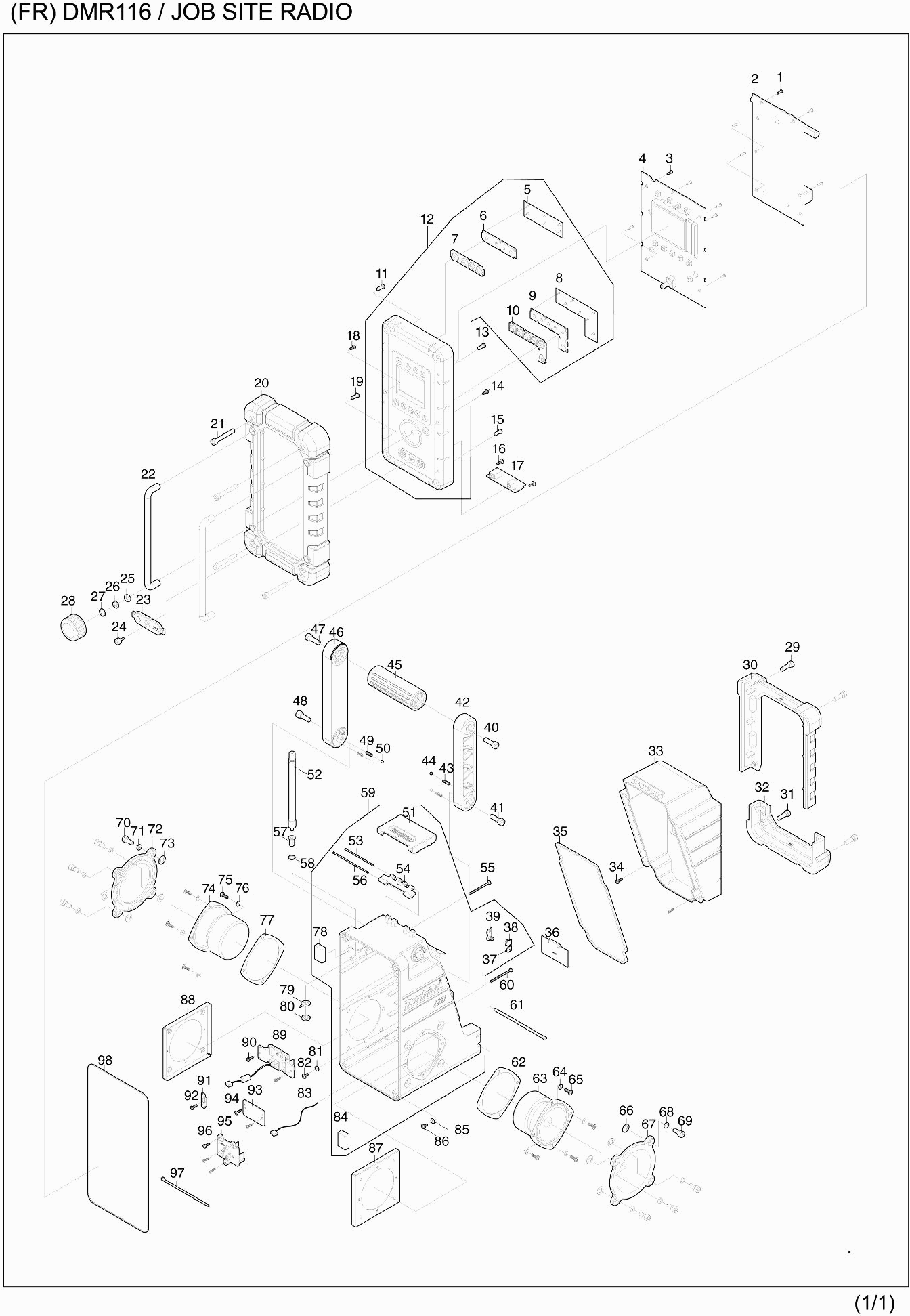

Tekeningen van de Makita DMR116
Onderdelen lijst van de Makita DMR116
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Borgring DMR115 | ||||
| 001 | SE00000754 | 0.83 | 1.00 | |
| Luidsprekerhouder Bmr100 | ||||
| 002 | SE021J9010 | 2.10 | 2.54 | |
| Borgmoer DMR115 | ||||
| 003 | SE00000755 | 0.83 | 1.00 | |
| Antennehouder Bmr100 | ||||
| 004 | SE021J9032 | 0.98 | 1.19 | |
| Pakking Bmr100/102 | ||||
| 006 | SE024J9070 | 0.83 | 1.00 | |
| Aan/Uitknop Bmr102 | ||||
| 007 | SE00000157 | 2.38 | 2.88 | |
| Pakking Bmr100 | ||||
| 009 | SE024J9090 | 0.83 | 1.00 | |
| Preset Knop Bmr102 | ||||
| 010 | SE00000158 | 1.66 | 2.01 | |
| Moer Bmr100 | ||||
| 012 | SE021P0020 | 0.83 | 1.00 | |
| Revet Bmr102 | ||||
| 016 | SE00000199 | 0.83 | 1.00 | |
| Circuit G DMR116 | ||||
| 017 | SE00001081 | 6.55 | 7.93 | |
| Stootrubber Bmr102 | ||||
| 020 | SE00000159 | 27.90 | 33.76 | |
| Tapschroef 6X47Mm Bmr102 | ||||
| 021 | SE00000160 | 0.83 | 1.00 | |
| Afdekrubber Bmr100 (Mp3) | ||||
| 023 | SE00000042 | 2.38 | 2.88 | |
| Bandknop Houder Bmr100 | ||||
| 025 | SE020PC030 | 1.00 | 1.21 | |
| Contactstrip +/- Bmr100 | ||||
| 026 | SE021E9030 | 1.02 | 1.23 | |
| Circuit E DMR116 | ||||
| 028 | SE00001082 | 11.09 | 13.42 | |
| Battery Deksel Buffer Bmr102 | ||||
| 030 | SE00000162 | 13.82 | 16.72 | |
| Stootrubber Bmr102 | ||||
| 032 | SE00000165 | 10.99 | 13.30 | |
| Battery Deksel Bmr102 | ||||
| 033 | SE00000166 | 15.60 | 18.88 | |
| Printplaat A assy DMR116 | ||||
| 034 | SE00001073 | 70.46 | 85.26 | |
| Pakking Bmr102 | ||||
| 035 | SE00000168 | 7.21 | 8.72 | |
| Aansluitunit G DMR116 | ||||
| 037 | SE00001083 | 5.17 | 6.26 | |
| Luidspreker Dmr100 | ||||
| 038 | SE01620771 | 17.40 | 21.05 | |
| Pakking Bmr100 | ||||
| 039 | SE024PC040 | 1.46 | 1.77 | |
| Tapschroef 6X20Mm Bmr102 | ||||
| 040 | SE00000176 | 0.83 | 1.00 | |
| Handgreep Bmr102 | ||||
| 042 | SE00000179 | 4.45 | 5.38 | |
| Battery Dekselsluiting Bmr102 | ||||
| 043 | SE00000190 | 1.18 | 1.43 | |
| Handgreephouder L Bmr102 | ||||
| 045 | SE00000180 | 2.36 | 2.86 | |
| Drukveer Bmr102 | ||||
| 046 | SE00000184 | 0.83 | 1.00 | |
| Handgreephouder R BMR102 | ||||
| 047 | SE00000177 | 2.36 | 2.86 | |
| Antenne Bmr102 | ||||
| 049 | SE00000191 | 5.06 | 6.12 | |
| Tapschroef 3X10Mm Bmr102 | ||||
| 051 | SE00000193 | 0.83 | 1.00 | |
| W/Ties 100Mm Bmr102 | ||||
| 052 | SE00000195 | 0.83 | 1.00 | |
| Schroef M3X45 Bmr100 | ||||
| 053 | SE09163452 | 0.83 | 1.00 | |
| Sluitplaat Bmr100 A | ||||
| 054 | SE00000067 | 0.83 | 1.00 | |
| Schroef M3X10 Bmr100 | ||||
| 056 | SE09163102 | 0.83 | 1.00 | |
| Schroef M4X16 Bmr100 | ||||
| 057 | SE09064161 | 0.83 | 1.00 | |
| Scharnierpen Batt.Dek.Bmr100 | ||||
| 059 | SE021PC030 | 0.83 | 1.00 | |
| Montagestift Bmr100 | ||||
| 059-1 | SE021PC040 | 0.83 | 1.00 | |
| Schroef M4X12 Bmr100 | ||||
| 061 | SE09090023 | 0.83 | 1.00 | |
| Volumeknopring Bmr100 | ||||
| 062 | SE21B1110A | 0.83 | 1.00 | |
| Pakking Bmr100 | ||||
| 063 | SE024J9040 | 0.83 | 1.00 | |
| Contactstrip (-) Dmr107* | ||||
| 067 | SE00000467 | 0.83 | 1.00 | |
| Draadboom m/aansl MR001/2G | ||||
| 072 | SE00000587 | 0.83 | 1.00 | |
| Pakking Bmr100 | ||||
| 074 | SE024J9050 | 0.83 | 1.00 | |
| Schroef M6X14 Bmr100 | ||||
| 077 | SE9076146A | 0.83 | 1.00 | |
| Schroef M6X16 Bmr100 | ||||
| 078 | SE09176166 | 0.83 | 1.00 | |
| Schroef M3X10 Bmr100 | ||||
| 079 | SE09173106 | 0.83 | 1.00 | |
| Tapschroef 1.7 Bmr100 | ||||
| 080 | SE09090011 | 0.83 | 1.00 | |
| Volumeknop Dmr107 | ||||
| 081 | SE00000465 | 1.66 | 2.01 | |
| Luidsprekergaas Bmr102 | ||||
| 082 | SE00000205 | 3.97 | 4.80 | |
| Aan/Uitknop Houder Bmr100* | ||||
| 083 | SE020PC020 | 1.00 | 1.21 | |
| Kogel Bmr100 | ||||
| 084 | SE09994007 | 0.83 | 1.00 | |
| Contactstrip (+) Dmr107* | ||||
| 085 | SE00000466 | 0.83 | 1.00 | |
| Schroef 3X8Mm | ||||
| 086 | SE00000325 | 0.83 | 1.00 | |
| Batterijplaat Bmr100 | ||||
| 087 | SE0307PC5Z | 1.00 | 1.21 | |
| Stootgreep Bmr100 | ||||
| 088 | SE0338PC5Z | 9.26 | 11.20 | |
| Montagestift Bmr100 | ||||
| 089 | SE021PC050 | 0.83 | 1.00 | |
| Circuit C DMR116 | ||||
| 090 | SE00001075 | 53.71 | 64.99 | |
| Antenne-Aansluiting Bmr100 | ||||
| 091 | SE021PC100 | 0.98 | 1.19 | |
| Voorhuis assy DMR116 | ||||
| 092 | SE00001077 | 15.76 | 19.07 | |
| Demper 25X18X5.5 Bmr100 | ||||
| 093 | SE023PC020 | 0.83 | 1.00 | |
| Achterhuis assy DMR116 | ||||
| 094 | SE00001078 | 35.11 | 42.48 | |
| Pakking Bmr100 | ||||
| 095 | SE024J9030 | 1.67 | 2.02 | |
| Aansluitunit E DMR116/108N | ||||
| 096 | SE00001080 | 4.60 | 5.57 | |
| Houder Dc-Jack Dmr107 | ||||
| 097 | SE00000464 | 8.27 | 10.01 | |
