Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DMR203'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

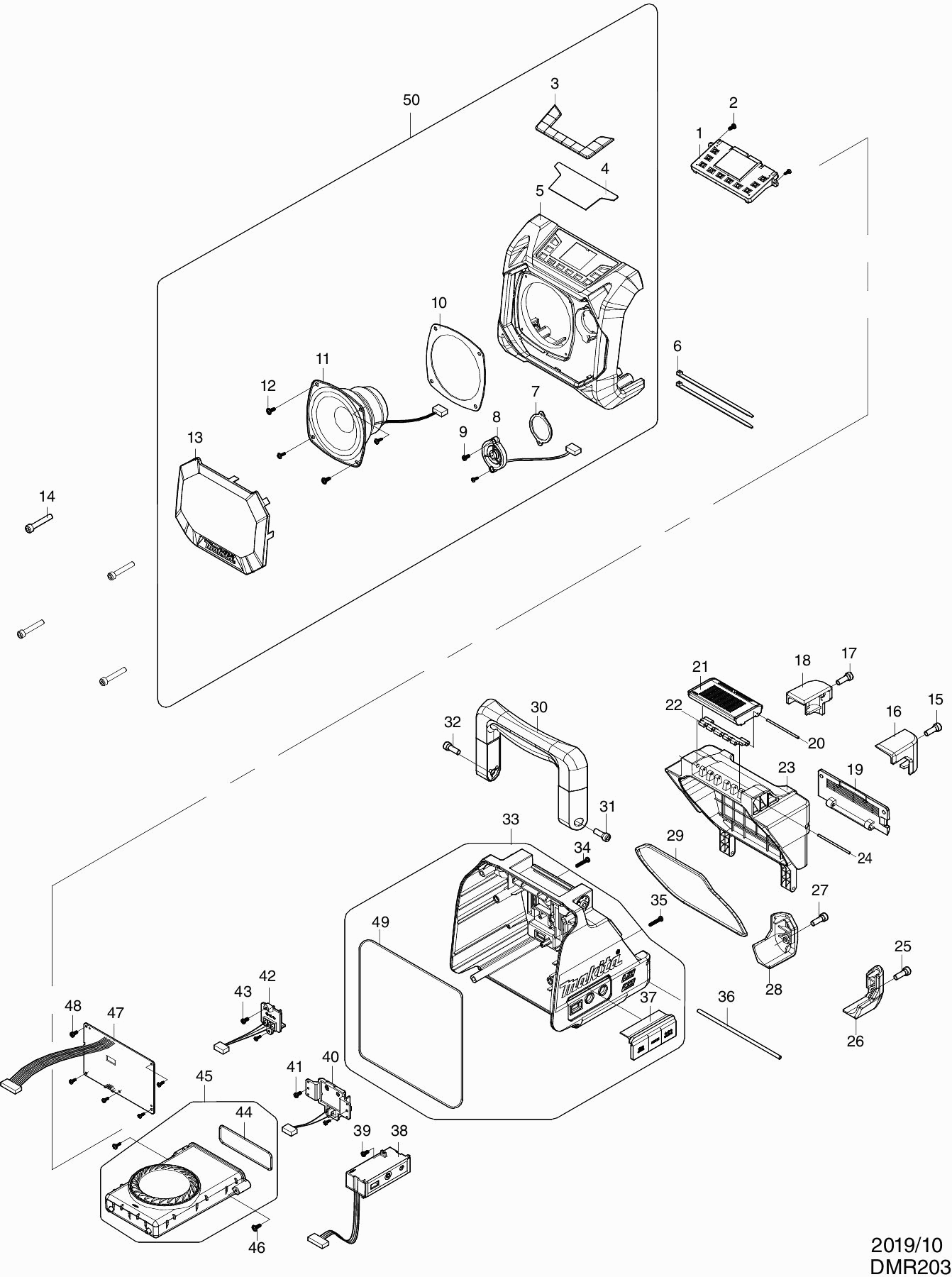

Tekeningen van de Makita DMR203
Onderdelen lijst van de Makita DMR203
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Display circuit C DMR203 | ||||
001 | SE00000796 | 23.75 | 28.74 | |
Schroef 3x8 | ||||
002 | SE00000521 | 0.83 | 1.00 | |
Rubber plaat DMR203 | ||||
003 | SE00000797 | 5.22 | 6.32 | |
Display DMR203 | ||||
004 | SE00000798 | 3.22 | 3.90 | |
Voorhuis blauw DMR203 | ||||
005 | SE00000799 | 39.89 | 48.27 | |
W/ties 100mm | ||||
006 | SE00000195 | 0.83 | 1.00 | |
Speaker Pakking B DMR203 | ||||
007 | SE00000801 | 1.21 | 1.46 | |
Luidspr. tweeter DMR203 | ||||
008 | SE00000802 | 8.46 | 10.24 | |
Schroef 3x8 | ||||
009 | SE00000521 | 0.83 | 1.00 | |
Speaker Pakking A DMR203 | ||||
010 | SE00000803 | 1.72 | 2.08 | |
Luidspr. hoofd DMR203 | ||||
011 | SE00000804 | 19.80 | 23.96 | |
Schroef Ptpw 3x10 | ||||
012 | SE00000557 | 0.83 | 1.00 | |
Luidsprekergaas DMR203 | ||||
013 | SE00000805 | 10.81 | 13.08 | |
Schroef Pthe 6x37 | ||||
014 | SE00000530 | 0.83 | 1.00 | |
Schroef M6x16 | ||||
015 | SE09176166 | 0.83 | 1.00 | |
Stootrubber rechts | ||||
016 | SE00000531 | 1.24 | 1.50 | |
Schroef M6x16 | ||||
017 | SE09176166 | 0.83 | 1.00 | |
Stootrubber links | ||||
018 | SE00000532 | 1.24 | 1.50 | |
Afdekkap | ||||
019 | SE00000534 | 1.70 | 2.06 | |
Pin 2x88mm | ||||
020 | SE00000533 | 0.83 | 1.00 | |
Sluiting | ||||
021 | SE00000535 | 4.58 | 5.54 | |
Sluitplaat | ||||
022 | SE00000536 | 1.02 | 1.23 | |
Battery deksel | ||||
023 | SE00000537 | 8.52 | 10.31 | |
Pin 2x77mm | ||||
024 | SE00000539 | 0.83 | 1.00 | |
Schroef M6x16 | ||||
025 | SE09176166 | 0.83 | 1.00 | |
Stootrubber rechtsachter | ||||
026 | SE00000541 | 1.24 | 1.50 | |
Schroef M6x16 | ||||
027 | SE09176166 | 0.83 | 1.00 | |
Stootrubber linksachter | ||||
028 | SE00000540 | 1.24 | 1.50 | |
Batterijpakking | ||||
029 | SE00000542 | 1.01 | 1.22 | |
Handgreep | ||||
030 | SE00000543 | 11.19 | 13.54 | |
Schroef M6x16 | ||||
031 | SE09176166 | 0.83 | 1.00 | |
Schroef M6x16 | ||||
032 | SE09176166 | 0.83 | 1.00 | |
Achterhuis blauw DMR203 | ||||
033 | SE00000808 | 23.75 | 28.74 | |
Schroef Ptb 3x20 | ||||
034 | SE00000548 | 0.83 | 1.00 | |
Schroef Ptb 3x20 | ||||
035 | SE00000548 | 0.83 | 1.00 | |
Pin | ||||
036 | SE00000549 | 1.43 | 1.73 | |
Afdekkap DMR203 | ||||
037 | SE00000810 | 1.72 | 2.08 | |
Aansluitpolaat jack DMR202 | ||||
038 | SE00000654 | 19.88 | 24.05 | |
Schroef 3x8 | ||||
039 | SE00000521 | 0.83 | 1.00 | |
Aansluitplaat D DMR202 | ||||
040 | SE00000652 | 9.54 | 11.54 | |
Schroef 3x8 | ||||
041 | SE00000521 | 0.83 | 1.00 | |
Aansluitplaat 10,8V DMR202 | ||||
042 | SE00000651 | 9.54 | 11.54 | |
Schroef 3x8 | ||||
043 | SE00000521 | 0.83 | 1.00 | |
Telefoonhouderpakking | ||||
044 | SE00000556 | 0.83 | 1.00 | |
telefoonhouder | ||||
045 | SE00000555 | 10.84 | 13.12 | |
Schroef Ptpw 3x10 | ||||
046 | SE00000557 | 0.83 | 1.00 | |
Circuit A DMR203 | ||||
047 | SE00000812 | 121.98 | 147.60 | |
Schroef 3x8 | ||||
048 | SE00000521 | 0.83 | 1.00 | |
Pakking | ||||
049 | SE024PC040 | 1.51 | 1.83 | |
Voorhuis assy P | ||||
050 | SE00000806 | 86.18 | 104.28 |
