Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DSC102'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

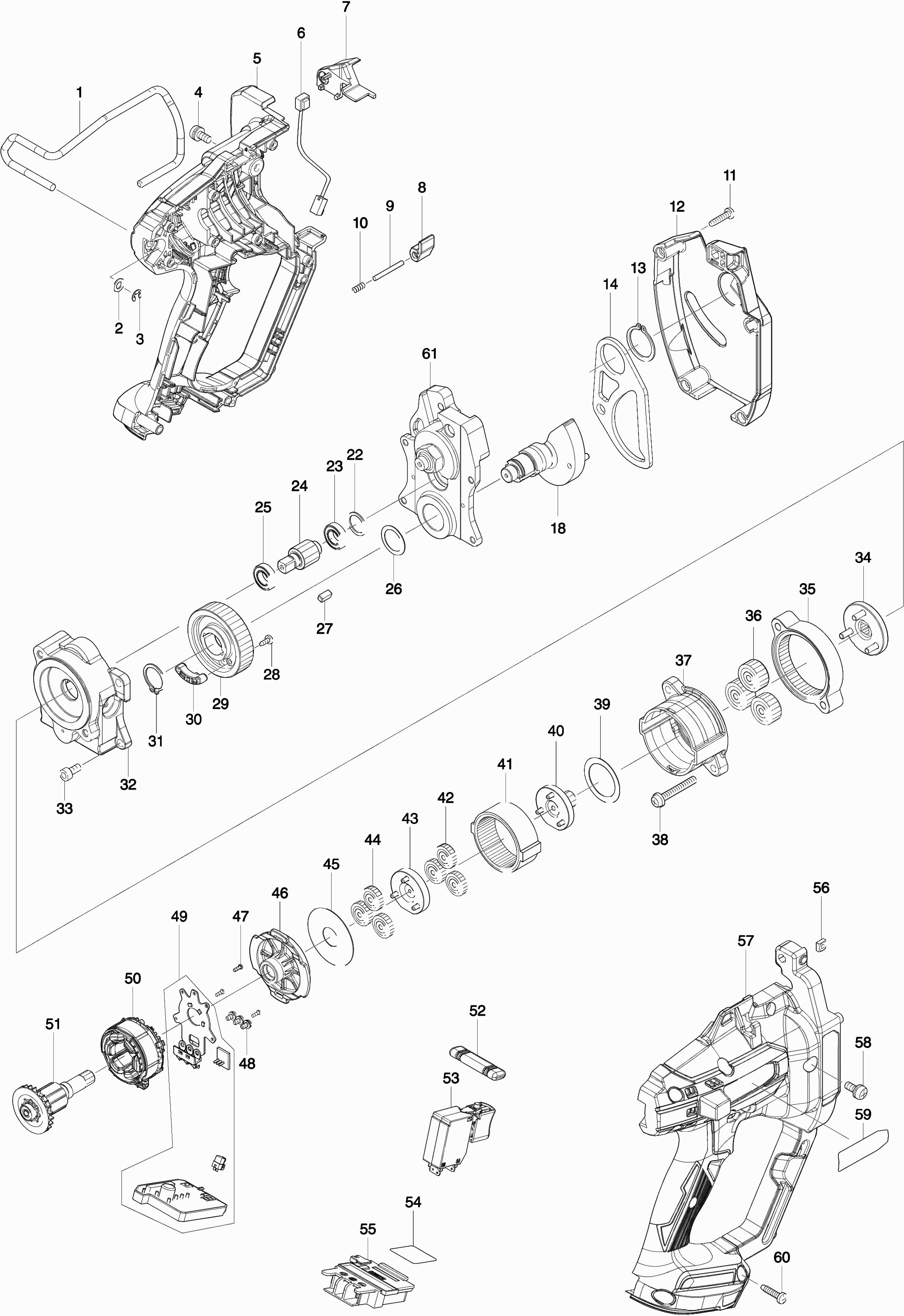

Tekeningen van de Makita DSC102
Onderdelen lijst van de Makita DSC102
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| DRAAGHAAK DRAADEINDSCHAAR | ||||
| 001 | 281019-0 | 6.00 | 7.26 | |
| SLUITRING 5 DCU180 P | ||||
| 002 | 941102-2 | 1.00 | 1.21 | |
| STOPRING E-4 | ||||
| 003 | 961011-9 | 1.00 | 1.21 | |
| SCHROEF M5X12 A | ||||
| 004 | 911213-7 | 1.00 | 1.21 | |
| MACHINEHUIS SC102D | ||||
| 005 | 183J34-9 | 34.10 | 41.26 | |
| RUBBER PEN 4 6413 A | ||||
| 005C10 | 263002-9 | 1.00 | 1.21 | |
| RUBBER PEN 6 AC320H P | ||||
| 005C20 | 263005-3 | 1.00 | 1.21 | |
| INDICATIELABEL DSC102* | ||||
| 005C30 | 816U42-8 | 2.40 | 2.90 | |
| WAARSCHUWINGSLABEL DSC102* | ||||
| 005C40 | 816V02-6 | 2.40 | 2.90 | |
| LED CIRCUIT SC102D | ||||
| 006 | 620821-0 | 6.00 | 7.26 | |
| LED HOUDER SC102D | ||||
| 007 | 458373-9 | 2.40 | 2.90 | |
| SCHROEFGELEIDER SC102D* | ||||
| 008 | 458379-7 | 1.20 | 1.45 | |
| PEN 3 SC102D* | ||||
| 009 | 256267-0 | 1.00 | 1.21 | |
| DRUKVEER 3 | ||||
| 010 | 231403-9 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 011 | 265A48-7 | 1.00 | 1.21 | |
| TANDWIELHUISDEKSEL SC102D | ||||
| 012 | 140B24-7 | 8.40 | 10.16 | |
| WAARSCHUWINGSLABEL DSC102* | ||||
| 012C10 | 816U44-4 | 2.40 | 2.90 | |
| BORGRING S-24 * | ||||
| 013 | 961104-2 | 1.00 | 1.21 | |
| PLAAT SC102D | ||||
| 014 | 347350-5 | 2.40 | 2.90 | |
| NOKKENSCHIJF COMPLEET SC102D | ||||
| 018 | 144986-9 | 78.10 | 94.50 | |
| SLUITRING 14 HR2300 | ||||
| 022 | 267447-3 | 1.00 | 1.21 | |
| KOGELLAGER 6800LLU P | ||||
| 023 | 211485-7 | 6.00 | 7.26 | |
| TANDWIEL 10C SC102D* | ||||
| 024 | 226168-6 | 6.00 | 7.26 | |
| KOGELLAGER 6800LLU P | ||||
| 025 | 211485-7 | 6.00 | 7.26 | |
| SLUITRING 17* | ||||
| 026 | 253409-7 | 1.00 | 1.21 | |
| INLEGSPIE 4 | ||||
| 027 | 254202-2 | 1.00 | 1.21 | |
| TAPSCHROEF PT3X8 | ||||
| 028 | 265954-0 | 1.00 | 1.21 | |
| TANDWIEL 39 SC102D | ||||
| 029 | 226169-4 | 9.60 | 11.62 | |
| MAGNETISCHE HOUDER SC102D* | ||||
| 030 | 144990-8 | 4.80 | 5.81 | |
| BORGRING S-17 | ||||
| 031 | 961057-5 | 1.00 | 1.21 | |
| TANDWIELHUIS DEKSEL SC102D | ||||
| 032 | 144992-4 | 22.00 | 26.62 | |
| INBUSBOUT M5X12 | ||||
| 033 | 922212-4 | 1.00 | 1.21 | |
| TANDWIELDRAGER CPL SC102D | ||||
| 034 | 144989-3 | 22.00 | 26.62 | |
| INTERN TANDWIEL 48 SC102D | ||||
| 035 | 226166-0 | 7.20 | 8.71 | |
| TANDWIEL 19 SC102D* | ||||
| 036 | 226165-2 | 1.20 | 1.45 | |
| TANDWIELHUIS SC102D* | ||||
| 037 | 458374-7 | 4.80 | 5.81 | |
| SCHROEF 5X35 A | ||||
| 038 | 911258-5 | 1.00 | 1.21 | |
| SLUITRING 26 4305/34D | ||||
| 039 | 253792-2 | 1.00 | 1.21 | |
| TANDWIEL 9 COMPLEET SC102D* | ||||
| 040 | 144988-5 | 8.40 | 10.16 | |
| INTERN TANDWIEL 53 SC102D* | ||||
| 041 | 226164-4 | 3.60 | 4.36 | |
| TANDWIEL 21 DSC102* | ||||
| 042 | 226163-6 | 1.00 | 1.21 | |
| TANDWIEL 10B COMPLEET SC102D* | ||||
| 043 | 144987-7 | 8.40 | 10.16 | |
| TANDWIEL 21 DSC102* | ||||
| 044 | 226163-6 | 1.00 | 1.21 | |
| SLUITRING 15* | ||||
| 045 | 253410-2 | 1.00 | 1.21 | |
| TANDWIELHUISDEKSEL SC102D* | ||||
| 046 | 458375-5 | 2.40 | 2.90 | |
| PARKER CK 2X6MM DDF483 A | ||||
| 047 | 266490-9 | 1.00 | 1.21 | |
| KRUISKOP SCHROEF M3X6 | ||||
| 048 | 652069-6 | 1.00 | 1.21 | |
| CONTROLLER SC102D P | ||||
| 049 | 620820-2 | 69.30 | 83.85 | |
| VELD SC102D | ||||
| 050 | 629339-8 | 26.40 | 31.94 | |
| ANKER SC102D | ||||
| 051 | 619512-8 | 41.80 | 50.58 | |
| VERSTELKNOP F/R SC102D* | ||||
| 052 | 458378-9 | 1.20 | 1.45 | |
| SCHAKELAAR SC102D | ||||
| 053 | 651367-5 | 26.40 | 31.94 | |
| SERIENR LABEL DSC102* | ||||
| 054 | 854H32-5 | 2.40 | 2.90 | |
| AANSLUITUNIT DHP483 | ||||
| 055 | 643874-2 | 3.60 | 4.36 | |
| MOER M6 4-K BTD123F * | ||||
| 056 | 252173-7 | 1.00 | 1.21 | |
| MACHINEHUIS SC102D | ||||
| 057 | 183J34-9 | 34.10 | 41.26 | |
| RUBBER PEN 4 6413 A | ||||
| 057C10 | 263002-9 | 1.00 | 1.21 | |
| RUBBER PEN 6 AC320H P | ||||
| 057C20 | 263005-3 | 1.00 | 1.21 | |
| INDICATIELABEL DSC102* | ||||
| 057C30 | 816U42-8 | 2.40 | 2.90 | |
| WAARSCHUWINGSLABEL DSC102* | ||||
| 057C40 | 816V02-6 | 2.40 | 2.90 | |
| SCHROEF M5X12 A | ||||
| 058 | 911213-7 | 1.00 | 1.21 | |
| NAAMPLAAT DSC102* | ||||
| 059 | 854H30-9 | 3.60 | 4.36 | |
| TAPSCHROEF 4X18 P | ||||
| 060 | 265A48-7 | 1.00 | 1.21 | |
| SLIJPARM DSC102 | ||||
| 061 | 126984-5 | 375.10 | 453.87 | |
