Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DSC191Z'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

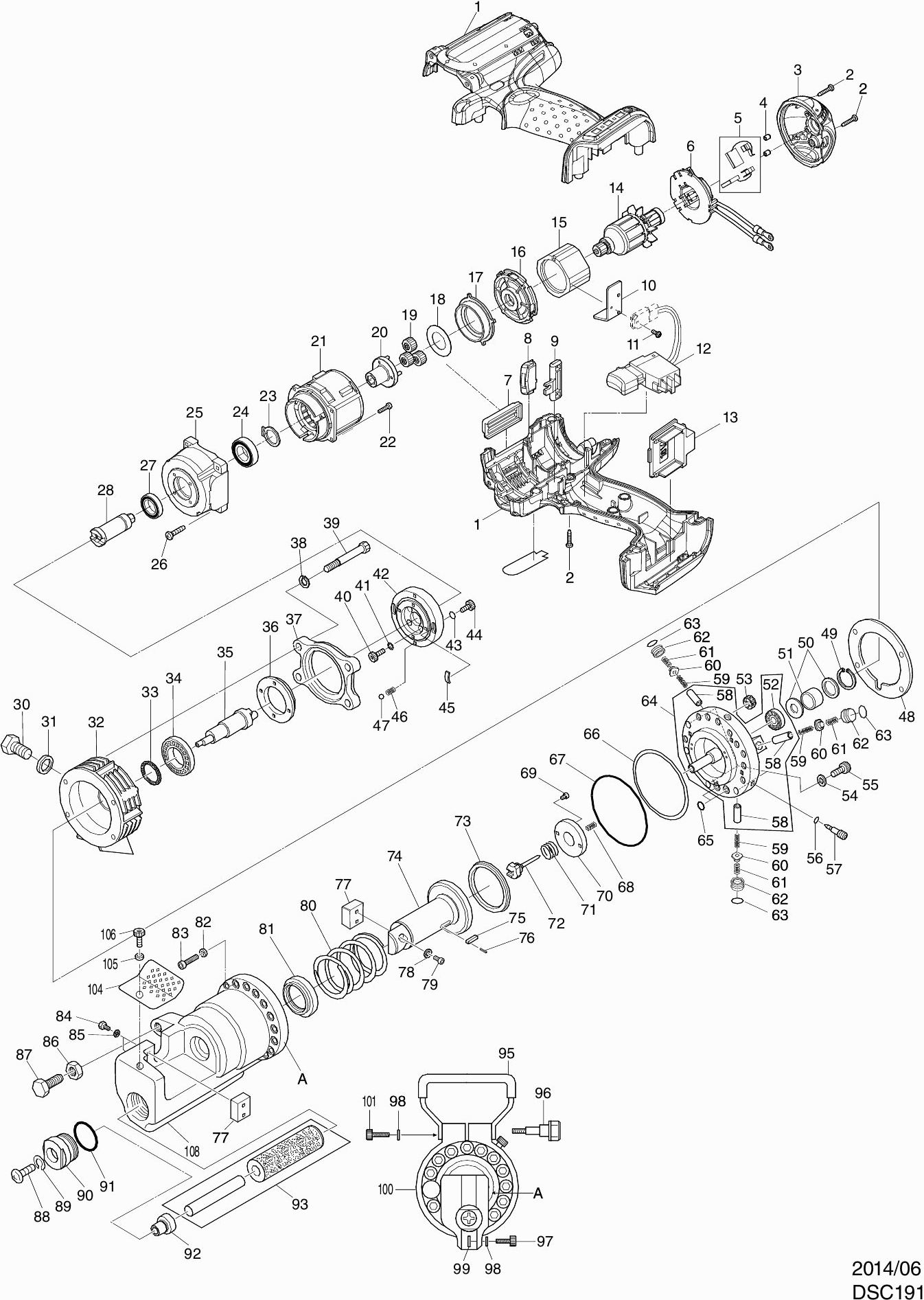

Tekeningen van de Makita DSC191Z
Onderdelen lijst van de Makita DSC191Z
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Motorhuisset DPP200 A | ||||
001 | 183G51-1 | 19.23 | 23.27 | |
Rubber Pen 6 AC320H P | ||||
001C10 | 263005-3 | 0.83 | 1.00 | |
Tapschroef 3X16 A | ||||
002 | 266130-9 | 0.83 | 1.00 | |
Achterdeksel Bdf441 A | ||||
003 | 419642-3 | 8.21 | 9.93 | |
Rubber Pen 4 Btd130F | ||||
004 | 263032-0 | 0.83 | 1.00 | |
Koolborstel Set Cb-448 A | ||||
005 | 196855-0 | 3.54 | 4.28 | |
Koolborstelhouder DPP200 | ||||
006 | 638849-4 | 3.96 | 4.79 | |
Afdekkap DPP200 | ||||
007 | 451163-9 | 3.12 | 3.78 | |
Lenshuis DPP200 | ||||
008 | 687216-0 | 0.98 | 1.19 | |
Blokkeerhandel Bcg140Z | ||||
009 | 451162-1 | 3.44 | 4.16 | |
Hitteschild Bdf441 | ||||
010 | 689145-3 | 0.83 | 1.00 | |
Schroef M3X9 A | ||||
011 | 652066-2 | 0.83 | 1.00 | |
Schakelaar Bdf441 (3 Cont.) | ||||
012 | 650653-1 | 28.02 | 33.90 | |
Aansluitunit Bhr241 (3 Cont) A | ||||
013 | 644808-8 | 3.54 | 4.28 | |
Anker Bdf451 | ||||
014 | 619165-3 | 19.23 | 23.27 | |
Magneet Unit Bdf441/456 A | ||||
015 | 632J71-5 | 21.08 | 25.51 | |
Motorsteun DPP200 | ||||
016 | 450386-6 | 0.83 | 1.00 | |
Tandwiel 46 DPP200 | ||||
017 | 227129-9 | 1.99 | 2.41 | |
Sluitring 18 | ||||
018 | 267789-5 | 0.83 | 1.00 | |
Tandwiel 16 DPP200 | ||||
019 | 154468-3 | 0.83 | 1.00 | |
Tandwieldrager DPP200 | ||||
020 | 141744-4 | 7.21 | 8.72 | |
Tandwielkast DPP200 | ||||
021 | 419252-6 | 3.54 | 4.28 | |
Schroef 3X12 * | ||||
022 | 911017-7 | 0.83 | 1.00 | |
Borgring S-15 | ||||
023 | 961055-9 | 0.83 | 1.00 | |
Kogellager 6902Llu Bo6030 A | ||||
024 | 211244-9 | 11.82 | 14.30 | |
Tandwielkast B DPP200 | ||||
025 | 318455-8 | 33.35 | 40.35 | |
Tapschroef Pt4X20 A | ||||
026 | 266045-0 | 0.83 | 1.00 | |
Kogellager 6802Llb | ||||
027 | 211246-5 | 8.59 | 10.39 | |
As DPP200 | ||||
028 | 326213-8 | 15.60 | 18.88 | |
Zeskantbout 10X15 DSC163 | ||||
030 | SC00000061 | 2.38 | 2.88 | |
Afdichtingsring Sc120+130Dra | ||||
031 | SC00000489 | 5.70 | 6.90 | |
Pomphuis DSC191 | ||||
032 | SC03213510 | 452.06 | 546.99 | |
Keerring DSC191 | ||||
033 | SC00000054 | 12.22 | 14.79 | |
Kogellager 6002Ru Sc120+130Dra | ||||
034 | SC00000050 | 23.04 | 27.88 | |
Excentrische As DSC191 | ||||
035 | SC03501390 | 92.95 | 112.47 | |
Drukdeksel DSC191 | ||||
036 | SC03251400 | 63.68 | 77.05 | |
Motordeksel DSC191 | ||||
037 | SC03221700 | 68.53 | 82.92 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
038 | SC00000066 | |||
Inbusbout M6x60 | ||||
039 | 922382-9 | 0.83 | 1.00 | |
Bout HB4x15 DSC191 | ||||
040 | SC07511020 | 1.39 | 1.68 | |
Ring 4 DSC163 | ||||
041 | SC00000068 | 1.18 | 1.43 | |
Motor montagedeksel DSC191 | ||||
042 | SC03222300 | 68.53 | 82.92 | |
Ring 4 DSC163 | ||||
043 | SC00000068 | 1.18 | 1.43 | |
Bout HB4x15 DSC191 | ||||
044 | SC07511020 | 1.39 | 1.68 | |
Bladveer DSC163 | ||||
045 | SC04007620 | 13.82 | 16.72 | |
Drukveer DSC163 | ||||
046 | SC04007430 | 8.27 | 10.01 | |
Stalen Kogel S4 | ||||
047 | SC07900010 | 1.18 | 1.43 | |
Balansplaat DSC191 | ||||
048 | SC04601470 | 5.06 | 6.12 | |
Borgring RTW-26 | ||||
049 | SC07411020 | 2.71 | 3.28 | |
Naaldlagerhouder DSC191 | ||||
050 | SC00000019 | 5.71 | 6.91 | |
Naaldlager DSC191 | ||||
051 | SC00000048 | 68.13 | 82.44 | |
Kogellager 608 A | ||||
052 | 210007-0 | 5.71 | 6.91 | |
Magneet Sc120+130Dra | ||||
053 | SC00000020 | 5.70 | 6.90 | |
Sluitring M8 A | ||||
054 | 941202-8 | 0.83 | 1.00 | |
Inbusbout M8x20 | ||||
055 | SC00000376 | 1.39 | 1.68 | |
O-Ring S4 DSC163 | ||||
056 | SC06505300 | 2.71 | 3.28 | |
Ventiel DSC163 | ||||
057 | SC03501420 | 19.23 | 23.27 | |
Zuiger DSC191 | ||||
058 | SC00000015 | 33.36 | 40.37 | |
Plunjerretourveer Sc120Dra | ||||
059 | SC00000022 | 2.71 | 3.28 | |
Controleklep Sc120+130Dra | ||||
060 | SC00000464 | 30.70 | 37.15 | |
Controle Klepveer DSC163 | ||||
061 | SC00000021 | 2.71 | 3.28 | |
Pakking DSC163 | ||||
062 | SC03500540 | 11.84 | 14.33 | |
O-Ring S-8 DSC163 | ||||
063 | SC06505590 | 2.71 | 3.28 | |
Cilinder DSC191 | ||||
064 | SC03206140 | 1082.39 | 1309.69 | |
O-Ring P6 DSC163 | ||||
065 | SC06505010 | 3.11 | 3.76 | |
Ondersteuningsring G70 DSC191 | ||||
066 | SC06503260 | 9.24 | 11.18 | |
O-ring G70 DSC191 | ||||
067 | SC06505350 | 5.06 | 6.12 | |
Veer Voor Onluchtingsklep Sc13 | ||||
068 | SC00000023 | 5.70 | 6.90 | |
Inbusschroef 4X6 DSC163 | ||||
069 | SC00000060 | 1.39 | 1.68 | |
Aanslagplaat Sc120+130Dra | ||||
070 | SC00000481 | 45.48 | 55.03 | |
Klepveer DSC163 | ||||
071 | SC00000032 | 5.70 | 6.90 | |
Vrijlaatklep DSC191 | ||||
072 | SC03500310 | 68.13 | 82.44 | |
Pakkingring DPP200 | ||||
073 | SC00000096 | 51.84 | 62.73 | |
Snijas DSC191 | ||||
074 | SC03112300 | 439.32 | 531.58 | |
Spie DPP200 | ||||
075 | SC03700020 | 7.22 | 8.74 | |
Borgpen Sc120+130Dra | ||||
076 | SC00000070 | 1.18 | 1.43 | |
Messenset betonstaalschaar | ||||
077 | SC09002030 | 199.00 | 240.79 | |
Ring 5 DSC163 | ||||
078 | SC00000067 | 1.20 | 1.45 | |
Inbusbout M5x15mm DSC163 | ||||
079 | SC00000098 | 1.39 | 1.68 | |
Terugslagveer DPP200 | ||||
080 | SC04000050 | 41.84 | 50.63 | |
Stofafdichting | ||||
081 | SC06503510 | 30.69 | 37.13 | |
Sluitring 8mm DPP200 | ||||
082 | SC07620040 | 1.18 | 1.43 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
083 | 922441-9 | |||
Inbusbout M6x18 | ||||
084 | SC00000057 | 1.39 | 1.68 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
085 | SC00000066 | |||
Geen informatie beschikbaar, niet bestelbaar | ||||
086 | 931601-2 | |||
Asbout DSC191 | ||||
087 | SC00000134 | 17.38 | 21.03 | |
Schroef 5X60 Sc120+130Dra | ||||
088 | SC00000034 | 9.26 | 11.20 | |
Veerring 8mm DSC163 | ||||
089 | SC00000065 | 1.18 | 1.43 | |
Bushouder DPP200 | ||||
090 | SC03507010 | 68.13 | 82.44 | |
O-Ring 26 DSC163 | ||||
091 | SC06505320 | 11.84 | 14.33 | |
Bus DSC191 | ||||
092 | SC03507000 | 30.70 | 37.15 | |
Balancer DPP200 | ||||
093 | SC09004910 | 21.23 | 25.69 | |
Handgreep DSC191 | ||||
095 | SC03302640 | 28.02 | 33.90 | |
Schroevenset DSC191 | ||||
096 | SC09030630 | 51.83 | 62.71 | |
Bout HB6x18 | ||||
097 | SC07513030 | 1.18 | 1.43 | |
Sluitring SW6 DSC191 | ||||
098 | SC07610040 | 1.18 | 1.43 | |
Afstandhouder DSC191 | ||||
099 | SC03302650 | 2.71 | 3.28 | |
Handgreepring DSC191 | ||||
100 | SC03223430 | 118.43 | 143.30 | |
Inbusschroef M6X22 Dsc250* | ||||
101 | SC07513090 | 1.20 | 1.45 | |
Beschermkap DSC191 | ||||
104 | SC03505790 | 23.06 | 27.90 | |
Sluitring 5mm DSC163 | ||||
105 | SC07610030 | 1.18 | 1.43 | |
Bout Hb5X10 * | ||||
106 | SC07512010 | 1.20 | 1.45 | |
Stanghouder DSC191 | ||||
108 | SC03103210 | 910.47 | 1101.67 |
