Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita DTR180'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

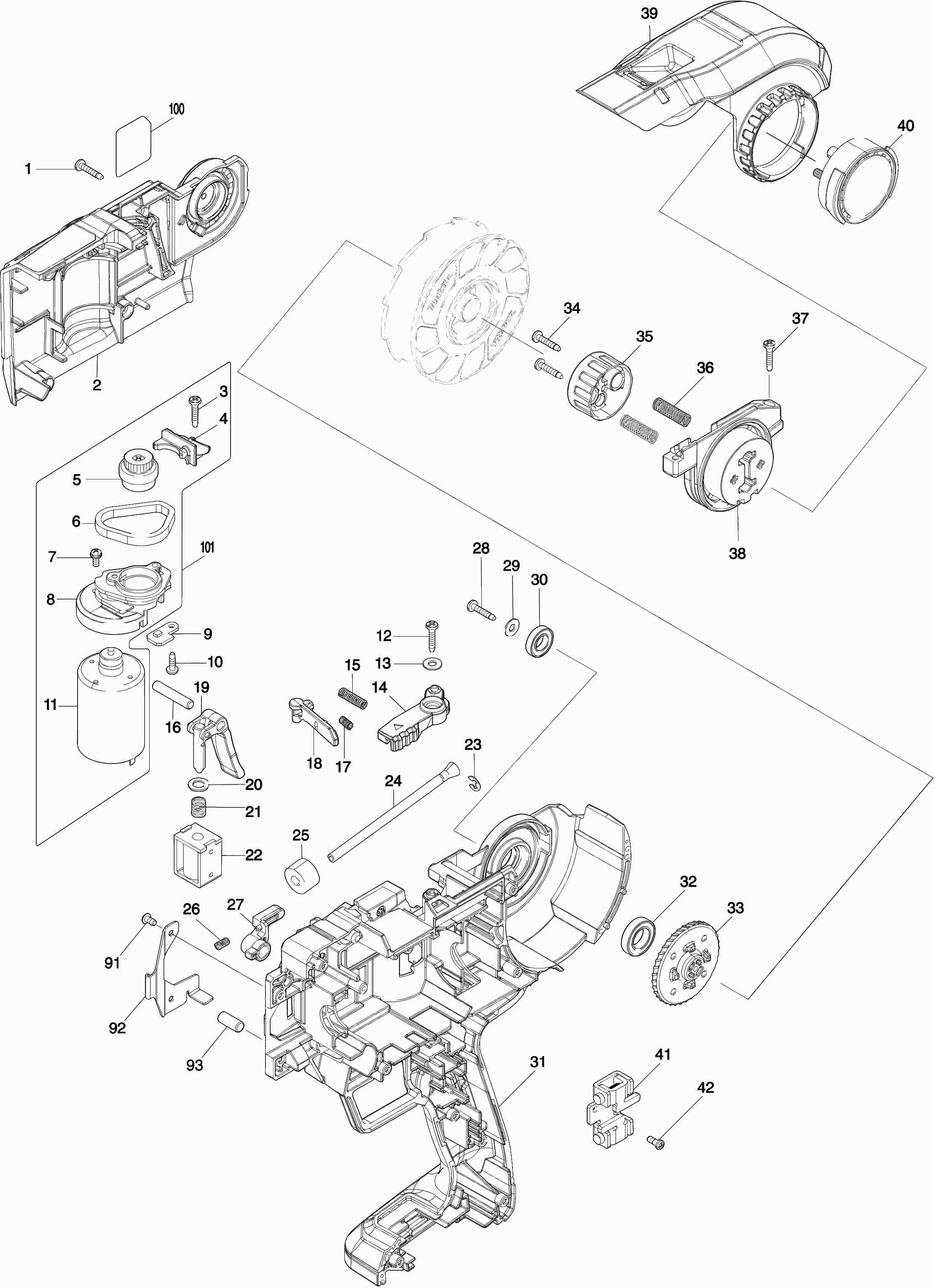

Tekeningen van de Makita DTR180
Onderdelen lijst van de Makita DTR180
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Tapschroef 3x16 | ||||
001 | 266130-9 | 0.83 | 1.00 | |
Motordeksel DTR180 P | ||||
002 | 140J78-2 | 19.80 | 23.96 | |
Indicatielabel DTR180 | ||||
002C10 | 817A35-8 | 2.80 | 3.39 | |
Waarschuwingslabel A DTR180 | ||||
002C20 | 817A42-1 | 3.22 | 3.90 | |
Waarschuwingslabel B DTR180 | ||||
002C30 | 817A44-7 | 2.80 | 3.39 | |
Tapschroef 3x16 | ||||
003 | 266130-9 | 0.83 | 1.00 | |
Geleidebus A DTR180 | ||||
004 | 310864-7 | 9.52 | 11.52 | |
Tandwiel 30A DTR180 | ||||
005 | 135968-2 | 34.36 | 41.58 | |
Sponsrubber A DTR180 | ||||
006 | 422247-0 | 0.83 | 1.00 | |
Schroef 3x8 | ||||
007 | 911008-8 | 0.83 | 1.00 | |
Motorbasis DTR180 | ||||
008 | 458222-0 | 3.22 | 3.90 | |
Sensorcircuit DTR180 | ||||
009 | 620913-5 | 14.23 | 17.22 | |
Tapschroef Pt3x10 | ||||
010 | 266007-8 | 0.83 | 1.00 | |
Motor 18V DTR180 | ||||
011 | 629346-1 | 46.31 | 56.04 | |
Tapschroef 3x16 | ||||
012 | 266130-9 | 0.83 | 1.00 | |
Sluitring 4 | ||||
013 | 941051-3 | 0.83 | 1.00 | |
Tandwiel 30B DTR180 | ||||
014 | 135969-0 | 37.12 | 44.92 | |
Drukveer 3mm DTR180 | ||||
015 | 232443-0 | 0.83 | 1.00 | |
Pen 5 | ||||
016 | 256098-7 | 0.83 | 1.00 | |
Drukveer 3mm DTR180 | ||||
017 | 232442-2 | 0.83 | 1.00 | |
Deblokkeerhandel DTR180 | ||||
018 | 458223-8 | 2.80 | 3.39 | |
Remschakelknop DTR180 | ||||
019 | 140A85-1 | 21.70 | 26.26 | |
Sluitring 6Mm A | ||||
020 | 267214-6 | 0.83 | 1.00 | |
Drukveer 7mm DTR180 | ||||
021 | 232446-4 | 0.83 | 1.00 | |
Magneetschakelaar DTR180 | ||||
022 | 679032-4 | 28.85 | 34.91 | |
Stopring E-4 | ||||
023 | 961011-9 | 0.83 | 1.00 | |
Geleidebus | ||||
024 | 140L14-0 | 4.58 | 5.54 | |
Sponsrubber B DTR180 | ||||
025 | 422249-6 | 0.83 | 1.00 | |
Drukveer 3mm DTR180 | ||||
026 | 232442-2 | 0.83 | 1.00 | |
Magneet arm DTR180 | ||||
027 | 144901-3 | 5.88 | 7.11 | |
Tapschroef 3x16 | ||||
028 | 266130-9 | 0.83 | 1.00 | |
Sluitring 4 | ||||
029 | 941051-3 | 0.83 | 1.00 | |
Kogellager 689zz | ||||
030 | 211099-2 | 6.58 | 7.96 | |
Motorhuis DTR180 | ||||
031 | 183J56-9 | 49.85 | 60.32 | |
Rubber pen 6 | ||||
031C10 | 263005-3 | 0.83 | 1.00 | |
Borgmoer M4x7mm | ||||
031C20 | 252126-6 | 0.83 | 1.00 | |
Zeskant moer M3 | ||||
031C30 | 931002-4 | 0.83 | 1.00 | |
Waarschuwingsl C DTR180 | ||||
031C40 | 817A46-3 | 2.80 | 3.39 | |
Kogellager 6801llb | ||||
032 | 210112-3 | 5.22 | 6.32 | |
Magneetwiel DTR180 | ||||
033 | 140H97-6 | 10.84 | 13.12 | |
Tapschroef 3x16 | ||||
034 | 266130-9 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
035 | 319665-0 | |||
Drukveer 6 | ||||
036 | 231294-8 | 0.83 | 1.00 | |
Tapschroef 3x16 | ||||
037 | 266130-9 | 0.83 | 1.00 | |
Lagerhuis DTR180 | ||||
038 | 458225-4 | 4.09 | 4.95 | |
Lagerhuiskap DTR180 | ||||
039 | 458216-5 | 11.19 | 13.54 | |
Lagerhouder DTR180 | ||||
040 | 458221-2 | 5.88 | 7.11 | |
Aanslag DTR180 | ||||
041 | 126743-7 | 46.31 | 56.04 | |
Schroef M3x8 | ||||
042 | 265199-0 | 0.83 | 1.00 | |
Schroef 3X12 | ||||
043 | 911017-7 | 0.83 | 1.00 | |
Lagerborging DTR180 | ||||
044 | 310866-3 | 2.44 | 2.95 | |
Hoofdgeleider cpl DTR181 A | ||||
045 | 141D23-4 | 139.47 | 168.76 | |
Sensorcircuit DTR180 | ||||
046 | 620913-5 | 14.23 | 17.22 | |
Tapschroef Pt3x10 | ||||
047 | 266007-8 | 0.83 | 1.00 | |
Aandrijfeenheid DTR180 | ||||
048 | 126838-6 | 53.38 | 64.59 | |
Anker 18v DTR180 | ||||
049 | 619520-9 | 49.85 | 60.32 | |
Veld 18V DTR180 | ||||
050 | 629343-7 | 21.70 | 26.26 | |
Kruiskop Schroef M3X6 | ||||
051 | 652069-6 | 0.83 | 1.00 | |
Parker Ck 2x6mm | ||||
052 | 266490-9 | 0.83 | 1.00 | |
Controller DTR180 | ||||
053 | 140B68-7 | 203.29 | 245.98 | |
Indicatielabel B DTR180 | ||||
053C10 | 817A37-4 | 2.80 | 3.39 | |
Motorhuis DTR180 | ||||
054 | 183J56-9 | 49.85 | 60.32 | |
Rubber pen 6 | ||||
054C10 | 263005-3 | 0.83 | 1.00 | |
Borgmoer M4x7mm | ||||
054C20 | 252126-6 | 0.83 | 1.00 | |
Zeskant moer M3 | ||||
054C30 | 931002-4 | 0.83 | 1.00 | |
Waarschuwingsl C DTR180 | ||||
054C40 | 817A46-3 | 2.80 | 3.39 | |
Tapschroef 3x16 | ||||
055 | 266130-9 | 0.83 | 1.00 | |
Schakelhandel DTR180 | ||||
056 | 458219-9 | 2.45 | 2.96 | |
Drukveer 5 | ||||
057 | 234037-7 | 0.83 | 1.00 | |
Schakelknop DTR180 | ||||
058 | 458220-4 | 2.80 | 3.39 | |
Schakelaar DTR180 | ||||
059 | 632L94-5 | 11.16 | 13.50 | |
Schakelaarplaat DTR180 | ||||
060 | 140B67-9 | 7.44 | 9.00 | |
Indicatielabel DTR180 | ||||
060C10 | 817A39-0 | 2.80 | 3.39 | |
Schakelcircuit DTR180 | ||||
061 | 620924-0 | 43.02 | 52.05 | |
Aansluitunit Bcl182D(3 Cont) A | ||||
062 | 643523-1 | 5.22 | 6.32 | |
Naamplaat DTR180 | ||||
063 | 854L26-4 | 2.80 | 3.39 | |
Inb.schr. M3x20mm DTR180 | ||||
064 | 265633-0 | 0.83 | 1.00 | |
Contactplaatdeksel DTR180 | ||||
065 | 458217-3 | 5.88 | 7.11 | |
Contactplaat DTR180 | ||||
066 | 347331-9 | 23.75 | 28.74 | |
Pen 5 DTR180 | ||||
067 | 256573-3 | 0.83 | 1.00 | |
Magneetbasis DTR180 | ||||
068 | 144903-9 | 5.22 | 6.32 | |
Schroef 3x8 | ||||
069 | 911008-8 | 0.83 | 1.00 | |
Inb.schr. M3x8mm DTR180 | ||||
070 | 265634-8 | 0.83 | 1.00 | |
Draadgeleider B DTR180 | ||||
071 | 140C95-0 | 108.87 | 131.73 | |
Draadmes B DTR180 | ||||
072 | 310815-0 | 11.19 | 13.54 | |
Draadmes A DTR180 | ||||
073 | 310814-2 | 10.84 | 13.12 | |
Koppelarm A DTR180 | ||||
074 | 161872-9 | 11.16 | 13.50 | |
Bovenplaat DTR180 | ||||
075 | 347328-8 | 9.52 | 11.52 | |
Geleideplaat A DTR180 | ||||
076 | 347326-2 | 19.80 | 23.96 | |
Stopring E-3 | ||||
077 | 961017-7 | 0.83 | 1.00 | |
Trekplaat DTR180 A | ||||
078 | 347720-8 | 3.65 | 4.42 | |
Koppelarm B DTR180 | ||||
079 | 161873-7 | 14.23 | 17.22 | |
Geleidearm A DTR180 | ||||
080 | 347370-9 | 65.59 | 79.36 | |
Drukplaat DTR180 | ||||
081 | 347329-6 | 4.08 | 4.94 | |
Torsieveer 7 DTR180 | ||||
082 | 232445-6 | 0.83 | 1.00 | |
Kraagpen 4 DTR180 | ||||
083 | 256400-4 | 1.24 | 1.50 | |
Kraagpen 4 DTR180 | ||||
084 | 256399-3 | 1.24 | 1.50 | |
Geleideplaat B DTR180 | ||||
085 | 347327-0 | 17.92 | 21.68 | |
Inb.schr. M3x6mm DTR180 | ||||
086 | 265635-6 | 0.83 | 1.00 | |
Sluitring 3 DTR180 | ||||
087 | 941001-8 | 0.83 | 1.00 | |
Drukveer 4mm DTR180 | ||||
088 | 232444-8 | 0.83 | 1.00 | |
Pen 3mm DTR180 | ||||
089 | 256390-1 | 3.22 | 3.90 | |
Geleidering houder DTR180 | ||||
090 | 458226-2 | 3.20 | 3.87 | |
Inb.schr. M3x6mm DTR180 | ||||
091 | 265635-6 | 0.83 | 1.00 | |
Zijplaat R DTR180 | ||||
092 | 347333-5 | 9.52 | 11.52 | |
Rubber pen 6 | ||||
093 | 263040-1 | 1.21 | 1.46 | |
Torsieveer 6 DTR180 | ||||
094 | 232448-0 | 0.83 | 1.00 | |
Splintergeleider DTR180 | ||||
095 | 161867-2 | 57.06 | 69.04 | |
Pen 5 DTR180 | ||||
096 | 256573-3 | 0.83 | 1.00 | |
Rubber pen 6 | ||||
097 | 263040-1 | 1.21 | 1.46 | |
Zijplaat L DTR180 | ||||
098 | 347332-7 | 9.52 | 11.52 | |
Inb.schr. M3x6mm DTR180 | ||||
099 | 265635-6 | 0.83 | 1.00 | |
Naamplaat DTR180 | ||||
100 | 854L20-6 | 2.80 | 3.39 | |
Dc Motor 18V DTR180 | ||||
101 | 135999-1 | 95.74 | 115.85 | |
Geleidearm DTR180 A | ||||
102 | 136184-9 | 321.34 | 388.82 |
