Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita EG601A'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

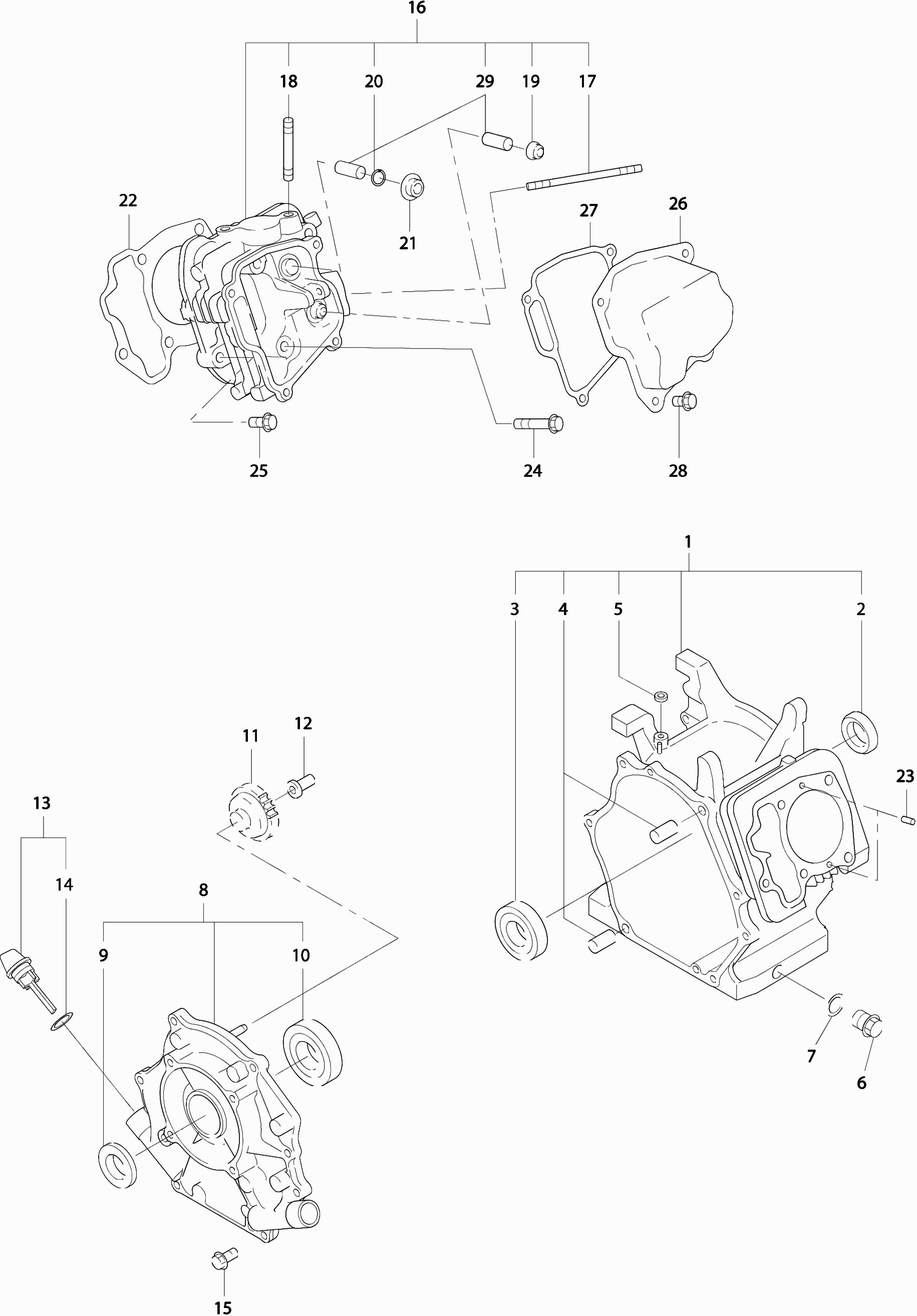

Tekeningen van de Makita EG601A
Onderdelen lijst van de Makita EG601A
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 001 | 20E1010421 | |||
| Oliekeerring Eg601A A | ||||
| 002 | 0440350091 | 9.96 | 12.05 | |
| Kogellager Eg601A | ||||
| 003 | 0600350240 | 23.75 | 28.74 | |
| Pasbus 10 10.3X8.5X14 Eg241 * | ||||
| 004 | 2771501103 | 0.83 | 1.00 | |
| Keerring G4100R/Eg601A | ||||
| 005 | 0440080010 | 4.58 | 5.54 | |
| Carterplug Eg-Series | ||||
| 006 | 0401140030 | 2.56 | 3.10 | |
| Pakking G2400-3500-550 | ||||
| 007 | 0211140020 | 0.83 | 1.00 | |
| Hoofdlagerdeksel | ||||
| 008 | 20B1100411 | 143.65 | 173.82 | |
| Oliekeerring Eg601A A | ||||
| 009 | 0440350091 | 9.96 | 12.05 | |
| Kogellager Eg601A | ||||
| 010 | 0600350240 | 23.75 | 28.74 | |
| Regelateurtandwiel Eg601 A | ||||
| 011 | 20B4500311 | 14.24 | 17.23 | |
| Regulateurbus G28/4300L A | ||||
| 012 | 2774190201 | 31.62 | 38.26 | |
| Oliepeilstok | ||||
| 013 | 2796360130 | 5.87 | 7.10 | |
| Pakking Oliepeilstok G6100R A | ||||
| 014 | 0213200050 | 2.05 | 2.48 | |
| Bout Eg601A | ||||
| 015 | 0110080340 | 5.24 | 6.34 | |
| Cilinderkop | ||||
| 016 | 20B1300100 | 282.00 | 341.22 | |
| Tapeind M6X980Mm G2800L | ||||
| 017 | 0105060351 | 6.60 | 7.99 | |
| Tapeind Uitlaat * | ||||
| 018 | 0105080290 | 1.43 | 1.73 | |
| Afdichting | ||||
| 019 | 13211AA110 | 6.90 | 8.35 | |
| Clip Tbv Inl. Klep. Eg601A | ||||
| 020 | 0565100050 | 1.02 | 1.23 | |
| Borgplaat | ||||
| 021 | 2633534103 | 3.20 | 3.87 | |
| Koppakking Eg601A | ||||
| 022 | 20B1500133 | 11.19 | 13.54 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 023 | 0310060010 | |||
| Bout G4100R | ||||
| 024 | 0110100040 | 2.45 | 2.96 | |
| Flensbout G4300L * | ||||
| 025 | 0010408350 | 1.43 | 1.73 | |
| Kleppendeksel | ||||
| 026 | 20B1550101 | 37.16 | 44.96 | |
| kleppendeksel | ||||
| 027 | 20B1600103 | 3.83 | 4.63 | |
| Flensbout G24/35/5500 | ||||
| 028 | 0110060020 | 1.72 | 2.08 | |
| Klepgeleider | ||||
| 029 | 20B1420203 | 12.58 | 15.22 | |
| Pakkingset Eg601A A | ||||
| 030 | 20B9900137 | 28.73 | 34.76 | |
| Krukas | ||||
| 031 | 20B2070101 | 359.76 | 435.31 | |
| Paspen Eg601A | ||||
| 032 | 0053205401 | 4.09 | 4.95 | |
| Drijfstang | ||||
| 033 | 20B2250100 | 65.59 | 79.36 | |
| Flens Bout Eg601A | ||||
| 034 | 0010508400 | 5.24 | 6.34 | |
| Zuigerpen | ||||
| 035 | 2632330133 | 11.68 | 14.13 | |
| Borgring G6100R | ||||
| 036 | 0565210020 | 1.06 | 1.28 | |
| Zuiger | ||||
| 037 | 20B23401H3 | 46.85 | 56.69 | |
| Zuiger (0,25mm) | ||||
| 037A | 20B23403H3 | 43.10 | 52.15 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 037B | 20B23404H3 | |||
| Zuigerveerset Eg601A A | ||||
| 038 | 22B2350107 | 31.61 | 38.25 | |
| Zuigerveerset 0,25mm | ||||
| 038A | 20B2350207 | 26.11 | 31.59 | |
| Niet meer leverbaar, geen vervanging | ||||
| 038B | 20B2350307 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 039 | 20B3160100 | |||
| Nokkenas | ||||
| 039A | 20B3160110 | 151.14 | 182.88 | |
| Veerpen Eg601A | ||||
| 040 | 0051904100 | 0.83 | 1.00 | |
| Vrijloophaak G2800L * | ||||
| 041 | 2773640103 | 10.81 | 13.08 | |
| Retourveer | ||||
| 042 | 20B3870103 | 4.57 | 5.53 | |
| Borgring | ||||
| 043 | 20B3650103 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 044 | 20B3510121 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 045 | 20B3510103 | |||
| O-Ring Eg601A A | ||||
| 046 | 0240070021 | 1.43 | 1.73 | |
| Bout G2400-3500-550 * | ||||
| 047 | 0110060010 | 1.43 | 1.73 | |
| Inlaatklep | ||||
| 048 | 20B33401H3 | 17.92 | 21.68 | |
| Uitlaatklep | ||||
| 049 | 20B33501H3 | 31.61 | 38.25 | |
| Kleppenveer | ||||
| 050 | 2463361103 | 3.55 | 4.30 | |
| Borgplaat | ||||
| 051 | 2463371113 | 5.87 | 7.10 | |
| Tegenklep | ||||
| 052 | 2463550103 | 1.70 | 2.06 | |
| Kleppenarm | ||||
| 053 | 20B3610100 | 19.88 | 24.05 | |
| Stelschroef M5 G28/4300L * | ||||
| 054 | 0149050020 | 2.80 | 3.39 | |
| Moer M5 G28/4300L * | ||||
| 055 | 0170050030 | 1.02 | 1.23 | |
| Kleppenarm | ||||
| 056 | 20B3610210 | 21.70 | 26.26 | |
| Stelschroef M5 G28/4300L * | ||||
| 057 | 0149050020 | 2.80 | 3.39 | |
| Moer M5 G28/4300L * | ||||
| 058 | 0170050030 | 1.02 | 1.23 | |
| Tuimelaarpen | ||||
| 059 | 20B3500101 | 10.84 | 13.12 | |
| Borgring Eg601A | ||||
| 060 | 0031306000 | 0.83 | 1.00 | |
| Nokkenasketting | ||||
| 061 | 20B35601H1 | 23.74 | 28.73 | |
| Nokkenasketting | ||||
| 062 | 2773691103 | 3.22 | 3.90 | |
| Spanveer | ||||
| 063 | 2773710103 | 3.22 | 3.90 | |
| Pen 6x13x34mm | ||||
| 064 | 2773690203 | 3.55 | 4.30 | |
| Kettinggeleider | ||||
| 065 | 2773691313 | 2.80 | 3.39 | |
| Uitlaatpakking | ||||
| 066 | 20B3520103 | 1.70 | 2.06 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 067 | 9802008280 | |||
| Uitlaatpijp | ||||
| 068 | 20B3400101 | 70.59 | 85.41 | |
| Tapeind Uitlaat * | ||||
| 069 | 0105080290 | 1.43 | 1.73 | |
| Rubber slang | ||||
| 070 | X851100170 | 6.60 | 7.99 | |
| Sponsbeschermer | ||||
| 071 | 20B69001H3 | 5.87 | 7.10 | |
| Moer M/Revet G28/6100R | ||||
| 072 | 0023806000 | 1.24 | 1.50 | |
| Flensbout Eg241A A | ||||
| 073 | 0010406140 | 1.02 | 1.23 | |
| Luchtfilter | ||||
| 074 | 20B32621H0 | 70.18 | 84.92 | |
| Beschermkap | ||||
| 075 | 20B32640H8 | 23.74 | 28.73 | |
| Luchtfilterpakking | ||||
| 077 | 20B32720H8 | 5.87 | 7.10 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 078 | 20B32610H7 | |||
| Bout | ||||
| 079 | 20B32650H8 | 0.83 | 1.00 | |
| Pin | ||||
| 080 | 20B32850H8 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 081 | 20B4230110 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 082 | 0011406250 | |||
| Moer G2400-3500-550 | ||||
| 083 | 0186060020 | 1.01 | 1.22 | |
| Regulateurpen | ||||
| 084 | 20B4220101 | 10.84 | 13.12 | |
| Borgring Eg601A | ||||
| 085 | 0031306000 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 086 | 0031108000 | |||
| Borgring Eg601A | ||||
| 087 | 0031306000 | 0.83 | 1.00 | |
| Regulateurstang | ||||
| 088 | 20B4270113 | 3.65 | 4.42 | |
| Veer tbv as | ||||
| 089 | 20B4280113 | 2.80 | 3.39 | |
| Regulateurveer | ||||
| 090 | 20B4250213 | 5.24 | 6.34 | |
| Toerenregelhendel | ||||
| 091 | 20B4335103 | 21.87 | 26.46 | |
| Toerenregelhendel | ||||
| 092 | 20B4600121 | 37.16 | 44.96 | |
| Pakking "3" | ||||
| 093 | 20B3590313 | 0.83 | 1.00 | |
| Borgmoer Eg601A | ||||
| 094 | 0023506000 | 1.70 | 2.06 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 095 | 0043106400 | |||
| Moer M6 Htr5600 A | ||||
| 096 | 0022706000 | 0.83 | 1.00 | |
| Flensbout G24/35/5500 | ||||
| 097 | 0110060020 | 1.72 | 2.08 | |
| Vliegwielhuis | ||||
| 098 | 20B51201H1 | 46.85 | 56.69 | |
| Circuit vlotter | ||||
| 099 | KU31107601 | 70.59 | 85.41 | |
| Stopkabel | ||||
| 100 | 20B7310201 | 4.09 | 4.95 | |
| Schroef En Ring Eg601A | ||||
| 101 | 0043604120 | 0.83 | 1.00 | |
| Label (Warning) Eg601A A | ||||
| 102 | 0732005760 | 3.55 | 4.30 | |
| Flensbout Eg241A A | ||||
| 103 | 0010406140 | 1.02 | 1.23 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 104 | 0732005820 | 4.09 | 4.95 | |
| Bout M/Revet Eg441A | ||||
| 105 | 0130060281 | 0.83 | 1.00 | |
| Startersteun | ||||
| 106 | 20B5510102 | 31.61 | 38.25 | |
| Bout Eg601A | ||||
| 107 | 0100080440 | 8.52 | 10.31 | |
| Bout Eg601A | ||||
| 108 | 0100080450 | 8.52 | 10.31 | |
| Moer M/Revet G28/6100R | ||||
| 109 | 0023806000 | 1.24 | 1.50 | |
| Tussenplaat Eg441A * | ||||
| 110 | 2795271111 | 10.84 | 13.12 | |
| Bout G5500R | ||||
| 111 | 0016508120 | 0.83 | 1.00 | |
| Tussenplaat | ||||
| 112 | 20B52702H1 | 21.87 | 26.46 | |
| Flensbout G24/35/5500 | ||||
| 113 | 0110060020 | 1.72 | 2.08 | |
| Afdekkap | ||||
| 114 | 20B5500103 | 16.13 | 19.52 | |
| Flensbout G24/35/5500 | ||||
| 115 | 0110060020 | 1.72 | 2.08 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 116 | 20B5070120 | |||
| Koordhaspel | ||||
| 118 | 20B5012008 | 21.87 | 26.46 | |
| Pal | ||||
| 119 | 1615012508 | 6.60 | 7.99 | |
| Startveer | ||||
| 120 | 2775015508 | 17.92 | 21.68 | |
| Frictieveer | ||||
| 121 | 2275013108 | 4.08 | 4.94 | |
| Drukveer | ||||
| 122 | 2275013508 | 4.09 | 4.95 | |
| Palgeleider | ||||
| 123 | 1615015008 | 8.52 | 10.31 | |
| Schroef | ||||
| 124 | 20B5010108 | 4.09 | 4.95 | |
| Starterkoord | ||||
| 125 | 20B5011008 | 14.90 | 18.03 | |
| Starter greep | ||||
| 126 | 2615010018 | 11.19 | 13.54 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 127 | 20B5014608 | |||
| Spruitstuk | ||||
| 128 | 20B32901J1 | 19.88 | 24.05 | |
| Pakking "1" | ||||
| 129 | 20B35901H3 | 3.22 | 3.90 | |
| Pakking "2" | ||||
| 130 | 20B35902H3 | 3.22 | 3.90 | |
| Carburateur | ||||
| 131 | 20E6230130 | 121.98 | 147.60 | |
| Afstelschroef | ||||
| 132 | 20B6235308 | 1.72 | 2.08 | |
| Schroefset | ||||
| 133 | 2616235208 | 2.08 | 2.52 | |
| Schroef | ||||
| 134 | 20B6245308 | 1.72 | 2.08 | |
| Gasklep | ||||
| 135 | 20B6253508 | 10.84 | 13.12 | |
| Chokeklep | ||||
| 136 | 20B6252608 | 5.87 | 7.10 | |
| Luchtfilter | ||||
| 137 | 2266258008 | 2.45 | 2.96 | |
| Filter | ||||
| 138 | 2586255408 | 2.05 | 2.48 | |
| Vlotterpen | ||||
| 139 | 2636251508 | 2.08 | 2.52 | |
| O-ring | ||||
| 140 | 20B6254108 | 2.56 | 3.10 | |
| Afstandhouder | ||||
| 141 | 20B6254008 | 11.32 | 13.70 | |
| Afstandhouder | ||||
| 142 | 20B6252008 | 19.88 | 24.05 | |
| Stelveer | ||||
| 143 | 20B6244508 | 10.84 | 13.12 | |
| Vlotter | ||||
| 144 | 20B6250508 | 16.13 | 19.52 | |
| Vlotterklep | ||||
| 145 | 20B6250008 | 14.23 | 17.22 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 146 | 20B6252718 | |||
| Gaskleppen | ||||
| 147 | 20B6253008 | 19.88 | 24.05 | |
| Sproeier Eg601A A | ||||
| 148 | 20B6242108 | 17.92 | 21.68 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 149 | 20B6243608 | |||
| O-ring | ||||
| 150 | 20B6254208 | 2.08 | 2.52 | |
| Vlotterkamer | ||||
| 151 | 20B6255008 | 43.10 | 52.15 | |
| Aftapschroef | ||||
| 152 | 20B6235408 | 4.58 | 5.54 | |
| Gasnaald (stationair) | ||||
| 153 | 20B6235708 | 14.24 | 17.23 | |
| Vliegwiel | ||||
| 154 | 20B79230H1 | 143.65 | 173.82 | |
| Ontsteking | ||||
| 155 | 20B79430H1 | 61.09 | 73.92 | |
| Bougiedop Eg241A | ||||
| 156 | 0655000320 | 28.73 | 34.76 | |
| Bout M/Revet G4100R | ||||
| 157 | 0011406300 | 0.83 | 1.00 | |
| Waaier | ||||
| 158 | 20B54101H3 | 26.11 | 31.59 | |
| Flensmoer M18 G4300L * | ||||
| 159 | 0180180010 | 7.43 | 8.99 | |
| Bougie Br6Hs | ||||
| 160 | 0650140150 | 11.32 | 13.70 | |
| Kabel | ||||
| 161 | 20B7310101 | 14.24 | 17.23 | |
| Beugel | ||||
| 162 | 2147900601 | 5.24 | 6.34 | |
| Bout G2400-3500-550 * | ||||
| 163 | 0110060010 | 1.43 | 1.73 | |
| Oliesensor | ||||
| 164 | 2797630151 | 31.62 | 38.26 | |
| Flensbout Eg241A A | ||||
| 165 | 0010406140 | 1.02 | 1.23 | |
| Kabelklem | ||||
| 166 | 20B7550103 | 2.45 | 2.96 | |
| Tapbout G3501R | ||||
| 167 | 0152060050 | 0.83 | 1.00 | |
| Veldwikkeling | ||||
| 168 | 36D2000108 | 988.94 | 1196.62 | |
| Anker | ||||
| 169 | 36D2010108 | 988.94 | 1196.62 | |
| Spanningsregelaar | ||||
| 170 | 36D2020108 | 108.68 | 131.50 | |
| Koolborstel | ||||
| 171 | 36A2030008 | 17.92 | 21.68 | |
| Tanksteun (1) | ||||
| 172 | 36D2200008 | 102.31 | 123.80 | |
| Steun | ||||
| 173 | 36C2210008 | 70.59 | 85.41 | |
| Steun | ||||
| 174 | 36C2220008 | 127.41 | 154.17 | |
| Montageplaat | ||||
| 175 | 36C2300008 | 31.61 | 38.25 | |
| Bus | ||||
| 176 | 36C2500008 | 5.24 | 6.34 | |
| Bout | ||||
| 177 | 36D2100008 | 8.52 | 10.31 | |
| Bout | ||||
| 178 | 36A8000508 | 5.24 | 6.34 | |
| Flens bout | ||||
| 179 | 36A8000108 | 2.05 | 2.48 | |
| Schroef en ring | ||||
| 180 | 36A8010008 | 1.02 | 1.23 | |
| Flens bout | ||||
| 181 | 36A8000208 | 1.72 | 2.08 | |
| Diode | ||||
| 182 | 36A2500108 | 28.73 | 34.76 | |
| Schroef en ring | ||||
| 183 | 36A8010108 | 1.43 | 1.73 | |
| Slang | ||||
| 184 | 36C2500208 | 26.11 | 31.59 | |
| Doorvoer | ||||
| 185 | 36A2500308 | 9.54 | 11.54 | |
| Connector | ||||
| 186 | 36A7000008 | 5.87 | 7.10 | |
| Connector | ||||
| 187 | 36A7000408 | 3.55 | 4.30 | |
| Connector | ||||
| 188 | 36A7000208 | 2.45 | 2.96 | |
| Borgring | ||||
| 189 | 36A7010108 | 1.70 | 2.06 | |
| Borgring | ||||
| 190 | 36A7010008 | 2.08 | 2.52 | |
| Draad (groen) | ||||
| 191 | 36A7101308 | 12.58 | 15.22 | |
| Draad (wit) | ||||
| 192 | 36A7100108 | 14.24 | 17.23 | |
| Schroef | ||||
| 193 | 36A8020008 | 4.58 | 5.54 | |
| Verbinding | ||||
| 194 | 36A7000508 | 16.13 | 19.52 | |
| Bout | ||||
| 195 | 36D2110008 | 19.88 | 24.05 | |
| Sponsfilter | ||||
| 196 | 36C2500408 | 21.87 | 26.46 | |
| Label (Trade Mark)Eg241/601A A | ||||
| 197 | 0732005820 | 4.09 | 4.95 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 198 | 36D3000108 | |||
| Controlekast | ||||
| 199 | 36C4000108 | 321.02 | 388.43 | |
| Schroef en ring | ||||
| 200 | 36A8010408 | 2.05 | 2.48 | |
| Schroef en ring | ||||
| 201 | 36A8010508 | 1.24 | 1.50 | |
| Tanksteun | ||||
| 202 | 36D3400008 | 85.25 | 103.15 | |
| Geleideplaat | ||||
| 203 | 36D3410008 | 121.16 | 146.60 | |
| Uitlaatkap (r) | ||||
| 204 | 36D3200008 | 282.00 | 341.22 | |
| Uitlaatkap | ||||
| 205 | 36D3210008 | 74.76 | 90.46 | |
| Bout met ring | ||||
| 206 | 36A8030008 | 2.45 | 2.96 | |
| Uitlaatsteun | ||||
| 207 | 36D3250008 | 70.59 | 85.41 | |
| Uitlaatsteun | ||||
| 208 | 36D3260008 | 49.85 | 60.32 | |
| Bevestigingselement | ||||
| 209 | 36D3300008 | 70.59 | 85.41 | |
| Bout | ||||
| 210 | 36A8100208 | 2.05 | 2.48 | |
| Bout | ||||
| 211 | 36A8000608 | 8.52 | 10.31 | |
| Bout | ||||
| 212 | 36A8100308 | 2.45 | 2.96 | |
| Bout | ||||
| 213 | 36A8000708 | 2.80 | 3.39 | |
| Flens bout | ||||
| 214 | 36A8000808 | 3.55 | 4.30 | |
| Bout | ||||
| 215 | 36A8100408 | 1.24 | 1.50 | |
| Bevestigingselement | ||||
| 216 | 36D3700008 | 16.13 | 19.52 | |
| Flens bout | ||||
| 217 | 36A8000408 | 1.43 | 1.73 | |
| Borgring filter | ||||
| 218 | 36A8200108 | 0.83 | 1.00 | |
| Spons | ||||
| 219 | 36A2500508 | 2.80 | 3.39 | |
| Spons tbv tank | ||||
| 220 | 36D3500008 | 16.13 | 19.52 | |
| Spons | ||||
| 221 | 36C3500108 | 6.60 | 7.99 | |
| Draad (groen/geel) | ||||
| 222 | 36A7101908 | 16.13 | 19.52 | |
| Label (spec) Eg601a | ||||
| 223 | 36D9100208 | 5.22 | 6.32 | |
| Benzinekraanlabel | ||||
| 224 | 36A9800308 | 16.13 | 19.52 | |
| Benzinekraanlabel | ||||
| 225 | 36A9800108 | 6.60 | 7.99 | |
| Uitlaat | ||||
| 226 | 36D1100111 | 203.29 | 245.98 | |
| Vonkenvanger | ||||
| 227 | 2673760101 | 21.87 | 26.46 | |
| Tapschroef M4X6L G1700I | ||||
| 228 | 0150040060 | 0.83 | 1.00 | |
| Moer Eg601A A | ||||
| 229 | 0021808000 | 2.80 | 3.39 | |
| Veerring G2400-3500-550 | ||||
| 230 | 0032008000 | 0.83 | 1.00 | |
| Uitlaatpijp | ||||
| 231 | 36D1400101 | 94.93 | 114.87 | |
| Bout Eg601A/G7300R | ||||
| 232 | 0103080070 | 2.45 | 2.96 | |
| Veerring Eg601A | ||||
| 233 | 0203080010 | 1.70 | 2.06 | |
| Uitlaatpakking | ||||
| 234 | 2703520101 | 4.09 | 4.95 | |
| Bedieningspaneel | ||||
| 235 | 36D4100108 | 158.64 | 191.95 | |
| Motorschakelaar | ||||
| 236 | 36A4900008 | 21.87 | 26.46 | |
| Stopcontact | ||||
| 237 | 36A4700108 | 27.35 | 33.09 | |
| Stroomonderbreker Dc 10a | ||||
| 238 | 36C4800008 | 53.39 | 64.60 | |
| Voltmeter | ||||
| 239 | 36A4900108 | 83.82 | 101.42 | |
| Dc-geheugen | ||||
| 240 | 36A4710108 | 11.19 | 13.54 | |
| Circuitonderbreker Dc 10a | ||||
| 241 | 36A4800108 | 31.61 | 38.25 | |
| Schroef en ring | ||||
| 242 | 36A8010208 | 1.43 | 1.73 | |
| Borgring filter | ||||
| 243 | 36A8200008 | 0.83 | 1.00 | |
| Bout | ||||
| 244 | 36A8100008 | 1.24 | 1.50 | |
| Dop revet Eg241/321a | ||||
| 245 | 36A8210008 | 2.05 | 2.48 | |
| Ring | ||||
| 246 | 36A8220008 | 0.83 | 1.00 | |
| Veerring | ||||
| 247 | 36A8230008 | 0.83 | 1.00 | |
| Vleugelmoer | ||||
| 248 | 36A8110008 | 2.80 | 3.39 | |
| Connector | ||||
| 249 | 36A7000308 | 3.55 | 4.30 | |
| Connector | ||||
| 250 | 36A7000108 | 7.43 | 8.99 | |
| Borgring | ||||
| 251 | 36A7010108 | 1.70 | 2.06 | |
| Borgring | ||||
| 252 | 36A7010008 | 2.08 | 2.52 | |
| Schroef en ring | ||||
| 253 | 36A8010308 | 1.24 | 1.50 | |
| Schroef | ||||
| 254 | 36A8020108 | 1.02 | 1.23 | |
| Bout | ||||
| 255 | 36A8100108 | 1.24 | 1.50 | |
| Doorvoer | ||||
| 256 | 36C4990008 | 7.43 | 8.99 | |
| Draad (wit) | ||||
| 257 | 36A7100208 | 17.92 | 21.68 | |
| Draad (wit) | ||||
| 258 | 36A7100308 | 17.92 | 21.68 | |
| Draad (zwart) | ||||
| 259 | 36A7100408 | 14.24 | 17.23 | |
| Draad (groen) | ||||
| 260 | 36A7101408 | 37.16 | 44.96 | |
| Draad (zwart) | ||||
| 261 | 36A7100608 | 17.92 | 21.68 | |
| Draad (groen/geel) | ||||
| 262 | 36A7101508 | 10.84 | 13.12 | |
| Draad (groen/geel) | ||||
| 263 | 36A7101608 | 19.88 | 24.05 | |
| Draad (groen) | ||||
| 264 | 36A7101708 | 11.19 | 13.54 | |
| Draad (blauw) | ||||
| 265 | 36A7101808 | 49.85 | 60.32 | |
| Label (handelsmerk) Eg601a | ||||
| 266 | 36D9000208 | 8.52 | 10.31 | |
| Chokelabel | ||||
| 267 | 36A9800408 | 3.55 | 4.30 | |
| Benzinetank | ||||
| 268 | 31H3600501 | 216.10 | 261.48 | |
| Tank Dop G2800R | ||||
| 269 | 0430590011 | 37.12 | 44.92 | |
| Benzinefilter Eg-Series | ||||
| 270 | 0641540011 | 11.19 | 13.54 | |
| Benzinemeter G2800L | ||||
| 271 | 0648001500 | 39.92 | 48.30 | |
| Bout Eg241A | ||||
| 272 | 0110060220 | 2.45 | 2.96 | |
| Rubber ring (tank) | ||||
| 273 | 3913900013 | 3.65 | 4.42 | |
| Benzinekraan Eg601A | ||||
| 274 | 0642006400 | 20.76 | 25.12 | |
| Kijkglas Eg601A | ||||
| 275 | 0642004210 | 4.09 | 4.95 | |
| Pakking Tbv Benz.Kr. G4100R | ||||
| 276 | 0642006410 | 1.43 | 1.73 | |
| Filter | ||||
| 277 | 0642006420 | 1.43 | 1.73 | |
| Moer | ||||
| 278 | 0642006430 | 1.72 | 2.08 | |
| Pakking, Rubber | ||||
| 279 | 0642006440 | 1.02 | 1.23 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 280 | 0851061860 | |||
| Slangklem Eg-serie | ||||
| 281 | 0561100030 | 0.83 | 1.00 | |
| Slang 150mm | ||||
| 282 | 36D6000108 | 12.58 | 15.22 | |
| Label (symbooltank) Eg241/601a | ||||
| 283 | 36A9800208 | 16.13 | 19.52 | |
| Rolpen Eg601A | ||||
| 284 | 0318050020 | 1.70 | 2.06 | |
| Dempingsring | ||||
| 285 | 20B3760211 | 79.95 | 96.74 | |
| Schroef Eg601A | ||||
| 286 | 0043104160 | 5.22 | 6.32 | |
| Uitlaatpakking | ||||
| 287 | 2703520101 | 4.09 | 4.95 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 288 | 0023808000 | |||
| Bout M8X40 G2400-3500-01R | ||||
| 289 | 0110080010 | 3.20 | 3.87 | |
| Flensbout G4300L * | ||||
| 290 | 0110080320 | 1.43 | 1.73 | |
| Klem | ||||
| 291 | 20B3920301 | 8.52 | 10.31 | |
| Rubber slang | ||||
| 292 | 20B66001H0 | 9.54 | 11.54 | |
| Niet meer leverbaar, geen vervanging | ||||
| 293 | 20B3280101 | |||
| Label, Choke- Eg241A A | ||||
| 294 | 0732004430 | 5.88 | 7.11 | |
| Etiket Gevaar Eg601A | ||||
| 295 | 0732005570 | 3.55 | 4.30 | |
| Spons Eg601a | ||||
| 296 | 20B5960103 | 10.84 | 13.12 | |
| Spons Eg601a | ||||
| 297 | 20B5960203 | 11.19 | 13.54 | |
| Ring | ||||
| 298 | 36A8220208 | 16.13 | 19.52 | |
| Geluidsfilter | ||||
| 299 | 36A7500108 | 321.02 | 388.43 | |
| Bout met ring | ||||
| 300 | 36A8030008 | 2.45 | 2.96 | |
| Schroef + Ring | ||||
| 301 | 36A8010708 | 1.24 | 1.50 | |
| Label "gevaar" | ||||
| 302 | 36A9802108 | 9.54 | 11.54 | |
| Label (spec) Eg441a | ||||
| 303 | 36C9800108 | 16.13 | 19.52 | |
