Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita ES2135A'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

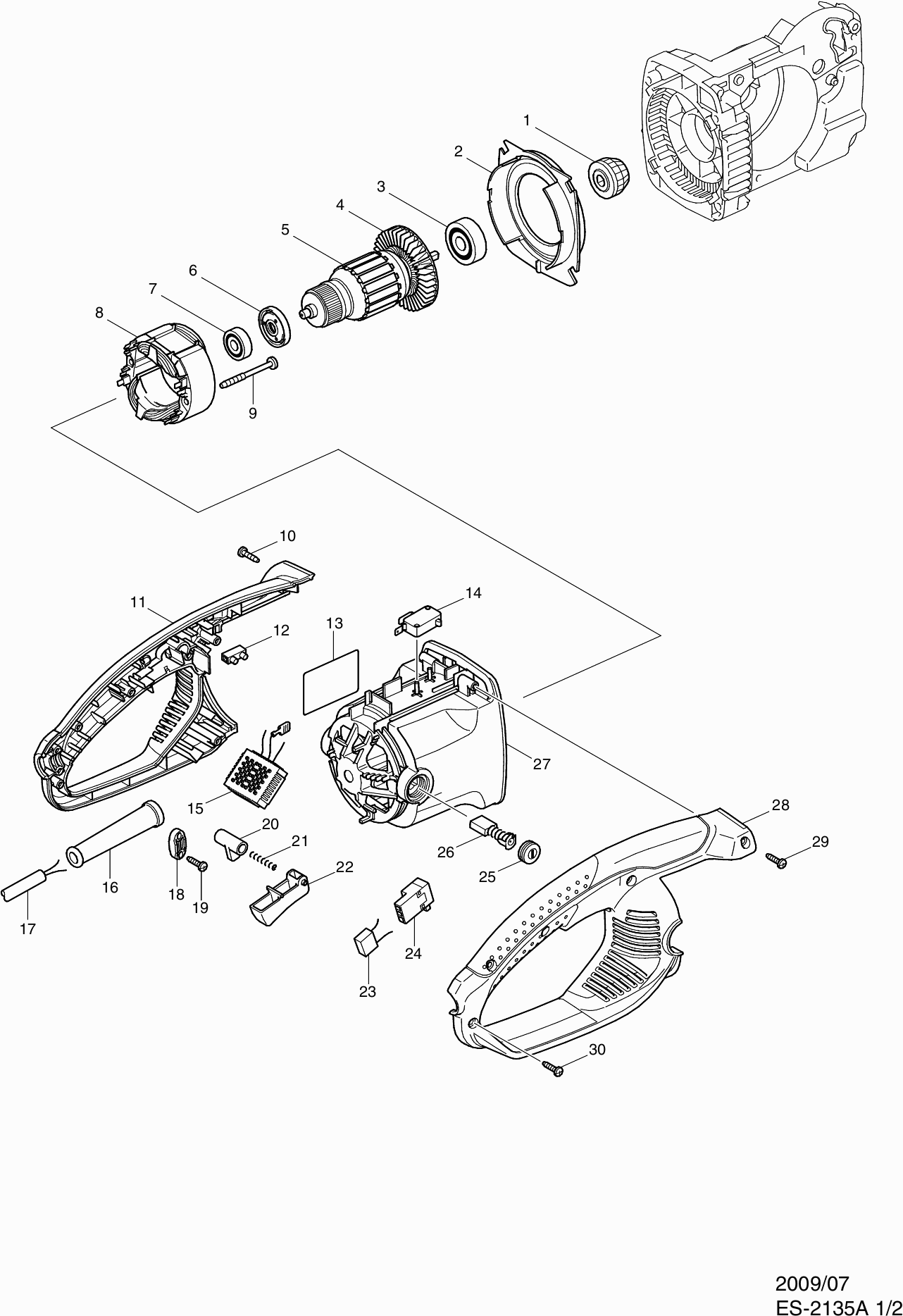

Tekeningen van de Makita ES2135A
Onderdelen lijst van de Makita ES2135A
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| TANDWIEL Z=14 UC3000A A | ||||
| 001 | 226743-8 | 4.80 | 5.81 | |
| TANDWIEL Z=14 UC3000A A | ||||
| 1 | 226743-8 | 4.80 | 5.81 | |
| LUCHTVERPLAATSER UC35/40/4530* | ||||
| 002 | 419410-4 | 2.40 | 2.90 | |
| LUCHTVERPLAATSER UC35/40/4530* | ||||
| 2 | 419410-4 | 2.40 | 2.90 | |
| KOGELLAGER 6301LLB A | ||||
| 003 | 211132-0 | 9.60 | 11.62 | |
| KOGELLAGER 6301LLB A | ||||
| 3 | 211132-0 | 9.60 | 11.62 | |
| WAAIER 80 LS1013 | ||||
| 004 | 240001-8 | 3.60 | 4.36 | |
| WAAIER 80 LS1013 | ||||
| 4 | 240001-8 | 3.60 | 4.36 | |
| ANKER 230V UC35/40/4530A A | ||||
| 005 | 616969-4 | 34.10 | 41.26 | |
| ANKER 230V UC35/40/4530A A | ||||
| 5 | 616969-4 | 34.10 | 41.26 | |
| ISOLEERRING UC35/40/4530A A | ||||
| 006 | 681666-1 | 1.20 | 1.45 | |
| ISOLEERRING UC35/40/4530A A | ||||
| 6 | 681666-1 | 1.20 | 1.45 | |
| KOGELLAGER 629 2ZR A | ||||
| 007 | 211057-8 | 6.00 | 7.26 | |
| KOGELLAGER 629 2ZR A | ||||
| 7 | 211057-8 | 6.00 | 7.26 | |
| VELD 230V UC35/40/4530A A | ||||
| 008 | 639530-0 | 34.10 | 41.26 | |
| VELD 230V UC35/40/4530A A | ||||
| 8 | 639530-0 | 34.10 | 41.26 | |
| TAPSCHROEF PT 5X55 HR5001C A | ||||
| 009 | 266095-5 | 1.20 | 1.45 | |
| TAPSCHROEF PT 5X55 HR5001C A | ||||
| 9 | 266095-5 | 1.20 | 1.45 | |
| TAPSCHROEF 4X18 P | ||||
| 010 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 10 | 265A48-7 | 1.00 | 1.21 | |
| HANDGREEP ES153/2145 * | ||||
| 011 | 188819-8 | 17.60 | 21.30 | |
| VEILIGHEIDLABEL UC35/4030A A | ||||
| 011 | 810198-3 | 2.40 | 2.90 | |
| HANDGREEP ES153/2145 * | ||||
| 11 | 188819-8 | 17.60 | 21.30 | |
| KROONSTEEN BO4553-BO4554 A | ||||
| 012 | 654475-1 | 1.00 | 1.21 | |
| KROONSTEEN BO4553-BO4554 A | ||||
| 12 | 654475-1 | 1.00 | 1.21 | |
| SCHAKELAAR UC30/35/4020A | ||||
| 014 | 650577-1 | 2.40 | 2.90 | |
| SCHAKELAAR UC30/35/4020A | ||||
| 14 | 650577-1 | 2.40 | 2.90 | |
| CONTROLEUNIT UC35/40/4530A P | ||||
| 015 | 631719-6 | 68.20 | 82.52 | |
| CONTROLEUNIT UC35/40/4530A P | ||||
| 15 | 631719-6 | 68.20 | 82.52 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 016 | 682574-9 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 16 | 682574-9 | |||
| NETSNOER UC35/40/4530A A | ||||
| 017 | 665894-6 | 13.20 | 15.97 | |
| NETSNOER UC35/40/4530A A | ||||
| 17 | 665894-6 | 13.20 | 15.97 | |
| KLEMSTRIP 9555NB/BO3711 A | ||||
| 018 | 687124-5 | 1.00 | 1.21 | |
| KLEMSTRIP 9555NB/BO3711 A | ||||
| 18 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 019 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 19 | 265A48-7 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 020 | 416178-3 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 20 | 416178-3 | |||
| DRUKVEER 4 DLM382 A | ||||
| 021 | 233173-6 | 1.00 | 1.21 | |
| DRUKVEER 4 DLM382 A | ||||
| 21 | 233173-6 | 1.00 | 1.21 | |
| A/U SCHAKELKNOP UC35/40/4530 A | ||||
| 022 | 419411-2 | 6.00 | 7.26 | |
| A/U SCHAKELKNOP UC35/40/4530 A | ||||
| 22 | 419411-2 | 6.00 | 7.26 | |
| CONDENSATOR 4329 A | ||||
| 023 | 645239-4 | 2.40 | 2.90 | |
| CONDENSATOR 4329 A | ||||
| 23 | 645239-4 | 2.40 | 2.90 | |
| SCHAKELAAR SW-127 | ||||
| 024 | 651923-1 | 13.20 | 15.97 | |
| SCHAKELAAR SW-127 | ||||
| 24 | 651923-1 | 13.20 | 15.97 | |
| KOOLBORSTELHOUDERDOP A | ||||
| 025 | 643650-4 | 1.20 | 1.45 | |
| KOOLBORSTELHOUDERDOP A | ||||
| 25 | 643650-4 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-153 A | ||||
| 026 | 194985-1 | 4.80 | 5.81 | |
| KOOLBORSTEL SET CB-153 A | ||||
| 26 | 194985-1 | 4.80 | 5.81 | |
| MOTORHUIS ES153/2145 A | ||||
| 027 | 154868-7 | 13.20 | 15.97 | |
| MOTORHUIS ES153/2145 A | ||||
| 27 | 154868-7 | 13.20 | 15.97 | |
| HANDGREEP ES153/2145 * | ||||
| 028 | 188819-8 | 17.60 | 21.30 | |
| VEILIGHEIDLABEL UC35/4030A A | ||||
| 028 | 810198-3 | 2.40 | 2.90 | |
| HANDGREEP ES153/2145 * | ||||
| 28 | 188819-8 | 17.60 | 21.30 | |
| TAPSCHROEF 4X18 P | ||||
| 029 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 29 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 030 | 265A48-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 30 | 265A48-7 | 1.00 | 1.21 | |
| OLIETANKDOP UC35/40/4530A A | ||||
| 032 | 154870-0 | 4.80 | 5.81 | |
| OLIETANKDOP UC35/40/4530A A | ||||
| 32 | 154870-0 | 4.80 | 5.81 | |
| MOTORHUISKAP UC35/40/4530A A | ||||
| 033 | 419412-0 | 13.20 | 15.97 | |
| OLIEPOMP ASSY UC35/40/4530 A | ||||
| 034 | 187573-1 | 17.60 | 21.30 | |
| OLIEPOMP ASSY UC35/40/4530 A | ||||
| 34 | 187573-1 | 17.60 | 21.30 | |
| O-RING 6 UC30/35/4020A A | ||||
| 035 | 213039-6 | 1.00 | 1.21 | |
| O-RING 6 UC30/35/4020A A | ||||
| 35 | 213039-6 | 1.00 | 1.21 | |
| PAKKING UC35/40/4530A A | ||||
| 036 | 421959-2 | 2.40 | 2.90 | |
| PAKKING UC35/40/4530A A | ||||
| 36 | 421959-2 | 2.40 | 2.90 | |
| OLIETANK UC35/40/4530A A | ||||
| 037 | 419407-3 | 8.40 | 10.16 | |
| OLIETANK UC35/40/4530A A | ||||
| 37 | 419407-3 | 8.40 | 10.16 | |
| AFDEKKAP DCS230T A | ||||
| 038 | 416274-7 | 1.00 | 1.21 | |
| AFDEKKAP DCS230T A | ||||
| 38 | 416274-7 | 1.00 | 1.21 | |
| DRUKVEER DCS230T | ||||
| 039 | 231975-4 | 1.00 | 1.21 | |
| DRUKVEER DCS230T | ||||
| 39 | 231975-4 | 1.00 | 1.21 | |
| OLIELEIDING UC35/40/4530A A | ||||
| 040 | 421958-4 | 2.40 | 2.90 | |
| OLIELEIDING UC35/40/4530A A | ||||
| 40 | 421958-4 | 2.40 | 2.90 | |
| TANDWIELHUIS UC35/40/45A A | ||||
| 041 | 419408-1 | 9.60 | 11.62 | |
| TANDWIELHUIS UC35/40/45A A | ||||
| 41 | 419408-1 | 9.60 | 11.62 | |
| SCHAKELSTANG UC35/40/4530A P | ||||
| 042 | 419413-8 | 2.40 | 2.90 | |
| SCHAKELSTANG UC35/40/4530A P | ||||
| 42 | 419413-8 | 2.40 | 2.90 | |
| VEER VOOR HANDBESCHERMING A | ||||
| 043 | 233174-4 | 1.20 | 1.45 | |
| VEER VOOR HANDBESCHERMING A | ||||
| 43 | 233174-4 | 1.20 | 1.45 | |
| HANDBESCHERMING UC30/35/4030 A | ||||
| 044 | 451130-4 | 6.00 | 7.26 | |
| HANDBESCHERMING UC30/35/4030 A | ||||
| 44 | 451130-4 | 6.00 | 7.26 | |
| REMBANDHOUDER UC3000A A | ||||
| 045 | 158044-5 | 9.60 | 11.62 | |
| REMBANDHOUDER UC3000A A | ||||
| 45 | 158044-5 | 9.60 | 11.62 | |
| VEER UC35/40/4530A A | ||||
| 046 | 234005-0 | 2.40 | 2.90 | |
| VEER UC35/40/4530A A | ||||
| 46 | 234005-0 | 2.40 | 2.90 | |
| O-RING 6 UC30/35/4020A A | ||||
| 047 | 213039-6 | 1.00 | 1.21 | |
| O-RING 6 UC30/35/4020A A | ||||
| 47 | 213039-6 | 1.00 | 1.21 | |
| KOGELLAGER 606ZZ A | ||||
| 048 | 210137-7 | 1.20 | 1.45 | |
| KOGELLAGER 606ZZ A | ||||
| 48 | 210137-7 | 1.20 | 1.45 | |
| OLIEPOMPAANDRIJVING UC3020A A | ||||
| 049 | 450230-7 | 2.40 | 2.90 | |
| OLIEPOMPAANDRIJVING UC3020A A | ||||
| 49 | 450230-7 | 2.40 | 2.90 | |
| OPVULRING UC30/35/4020A A | ||||
| 050 | 417405-1 | 1.20 | 1.45 | |
| OPVULRING UC30/35/4020A A | ||||
| 50 | 417405-1 | 1.20 | 1.45 | |
| BORGRING 10X1,2 ES-SERIES A | ||||
| 051 | 259034-2 | 1.00 | 1.21 | |
| BORGRING 10X1,2 ES-SERIES A | ||||
| 51 | 259034-2 | 1.00 | 1.21 | |
| TAPSCHROEF PT 5X55 HR5001C A | ||||
| 052 | 266095-5 | 1.20 | 1.45 | |
| TAPSCHROEF PT 5X55 HR5001C A | ||||
| 52 | 266095-5 | 1.20 | 1.45 | |
| TAPSCHROEF PT 5X30 A | ||||
| 053 | 266173-1 | 1.00 | 1.21 | |
| TAPSCHROEF PT 5X30 A | ||||
| 53 | 266173-1 | 1.00 | 1.21 | |
| TANDWIEL Z=43 UC3000A A | ||||
| 054 | 226741-2 | 4.80 | 5.81 | |
| TANDWIEL Z=43 UC3000A A | ||||
| 54 | 226741-2 | 4.80 | 5.81 | |
| TANDWIELAS CPL UC35/40/4530A A | ||||
| 055 | 324662-3 | 10.80 | 13.07 | |
| TANDWIELAS CPL UC35/40/4530A A | ||||
| 55 | 324662-3 | 10.80 | 13.07 | |
| KOGELLAGER 6201DDW A | ||||
| 056 | 211129-9 | 8.40 | 10.16 | |
| KOGELLAGER 6201DDW A | ||||
| 56 | 211129-9 | 8.40 | 10.16 | |
| BEUGELGREEP UC35/40/4530A A | ||||
| 057 | 455487-5 | 17.60 | 21.30 | |
| BEUGELGREEP UC35/40/4530A A | ||||
| 57 | 455487-5 | 17.60 | 21.30 | |
| TAPSCHROEF PT 5X30 A | ||||
| 058 | 266173-1 | 1.00 | 1.21 | |
| TAPSCHROEF PT 5X30 A | ||||
| 58 | 266173-1 | 1.00 | 1.21 | |
| ZESKANTBOUT 8X30 A | ||||
| 059 | 921452-1 | 1.00 | 1.21 | |
| ZESKANTBOUT 8X30 A | ||||
| 59 | 921452-1 | 1.00 | 1.21 | |
| KOGELLAGERHUIS UC35/4030A A | ||||
| 060 | 318013-0 | 9.60 | 11.62 | |
| KOGELLAGERHUIS UC35/4030A A | ||||
| 60 | 318013-0 | 9.60 | 11.62 | |
| BOOMAANSLAG UC30/35/4020A A | ||||
| 063 | 345651-5 | 3.60 | 4.36 | |
| BOOMAANSLAG UC30/35/4020A A | ||||
| 63 | 345651-5 | 3.60 | 4.36 | |
| TAPSCHROEF PT 5X30 A | ||||
| 064 | 266173-1 | 1.00 | 1.21 | |
| TAPSCHROEF PT 5X30 A | ||||
| 64 | 266173-1 | 1.00 | 1.21 | |
| REMBAND UC35/40/4530A A | ||||
| 065 | 168426-3 | 11.00 | 13.31 | |
| REMBAND UC35/40/4530A A | ||||
| 65 | 168426-3 | 11.00 | 13.31 | |
| SLUITRING 4 DCS230T A | ||||
| 066 | 267195-4 | 1.20 | 1.45 | |
| SLUITRING 4 DCS230T A | ||||
| 66 | 267195-4 | 1.20 | 1.45 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 067 | 266026-4 | 1.00 | 1.21 | |
| TAPSCHROEF M4X12MM CK A | ||||
| 67 | 266026-4 | 1.00 | 1.21 | |
| KOPPELINGSTROM.UC35/40/4530A A | ||||
| 068 | 123886-6 | 23.10 | 27.95 | |
| KOPPELINGSTROM.UC35/40/4530A A | ||||
| 68 | 123886-6 | 23.10 | 27.95 | |
| SLUITRING 8X14X0,5 MM | ||||
| 069 | 253215-0 | 1.00 | 1.21 | |
| SLUITRING 8X14X0,5 MM | ||||
| 69 | 253215-0 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 070 | 259033-4 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 70 | 259033-4 | |||
| TAPSCHROEF PT3X10 A | ||||
| 071 | 266007-8 | 1.00 | 1.21 | |
| TAPSCHROEF PT3X10 A | ||||
| 71 | 266007-8 | 1.00 | 1.21 | |
| DEKSEL UC30/35/4020A | ||||
| 072 | 419241-1 | 1.00 | 1.21 | |
| DEKSEL UC30/35/4020A | ||||
| 72 | 419241-1 | 1.00 | 1.21 | |
| TANDWIEL 14 UC30/35/4020A | ||||
| 073 | 227496-2 | 4.80 | 5.81 | |
| TANDWIEL 14 UC30/35/4020A | ||||
| 074 | 227495-4 | 6.00 | 7.26 | |
| TANDWIEL 14 UC30/35/4020A | ||||
| 74 | 227495-4 | 6.00 | 7.26 | |
| Niet meer leverbaar, geen vervanging | ||||
| 075 | 187088-8 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 75 | 187088-8 | |||
| DRAAIKNOP UC30/35/4020A A | ||||
| 076 | 419233-0 | 1.00 | 1.21 | |
| DRAAIKNOP UC30/35/4020A A | ||||
| 76 | 419233-0 | 1.00 | 1.21 | |
| SLUITRING 4 A | ||||
| 077 | 253874-0 | 1.00 | 1.21 | |
| SLUITRING 4 A | ||||
| 77 | 253874-0 | 1.00 | 1.21 | |
| SCHROEF M4 UC30/35/4020A | ||||
| 078 | 915106-0 | 1.00 | 1.21 | |
| SCHROEF M4 UC30/35/4020A | ||||
| 78 | 915106-0 | 1.00 | 1.21 | |
| DRUKVEER 4 UC30/35/4020A A | ||||
| 079 | 233033-2 | 1.00 | 1.21 | |
| DRUKVEER 4 UC30/35/4020A A | ||||
| 79 | 233033-2 | 1.00 | 1.21 | |
| STALEN KOGEL 4 A | ||||
| 080 | 216008-6 | 1.00 | 1.21 | |
| STALEN KOGEL 4 A | ||||
| 80 | 216008-6 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 081 | 187089-6 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 81 | 187089-6 | |||
| SPANSTIFT 4-28 | ||||
| 082 | 951122-8 | 1.00 | 1.21 | |
| SPANSTIFT 4-28 | ||||
| 82 | 951122-8 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 083 | 419271-2 | |||
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 83 | 419271-2 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 084 | 187089-6 | |||
| Niet meer leverbaar, geen vervanging | ||||
| 84 | 187089-6 | |||
| DRUKVEER 8 LF1000 P | ||||
| 085 | 231025-5 | 1.00 | 1.21 | |
| DRUKVEER 8 LF1000 P | ||||
| 85 | 231025-5 | 1.00 | 1.21 | |
| MOER M8-13 UC30/35/4020A A | ||||
| 086 | 252168-0 | 2.40 | 2.90 | |
| MOER M8-13 UC30/35/4020A A | ||||
| 86 | 252168-0 | 2.40 | 2.90 | |
| STELPEN UC30/35/4020A A | ||||
| 087 | 324621-7 | 1.00 | 1.21 | |
| STELPEN UC30/35/4020A A | ||||
| 87 | 324621-7 | 1.00 | 1.21 | |
| STELSCHROEF UC30/35/4020A | ||||
| 088 | 324620-9 | 1.00 | 1.21 | |
| STELSCHROEF UC30/35/4020A | ||||
| 88 | 324620-9 | 1.00 | 1.21 | |
