Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HK1820'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

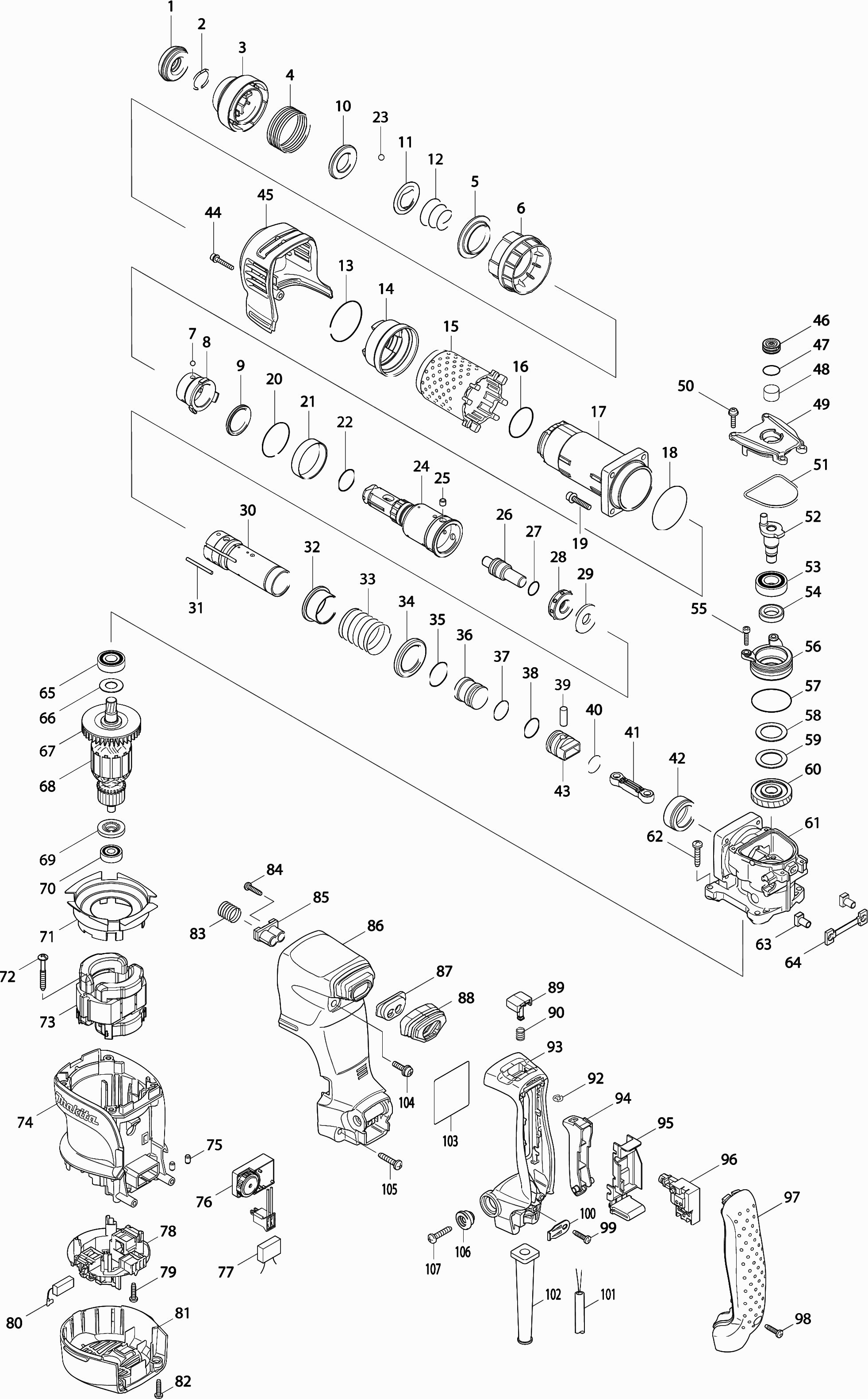

Tekeningen van de Makita HK1820
Onderdelen lijst van de Makita HK1820
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Beitelhouderkap Hk1820 | ||||
| 001* | 286283-8 | 1.67 | 2.02 | |
| Borgring 19 Hk1820 | ||||
| 002 | 233966-1 | 1.39 | 1.68 | |
| Beitelblokkeerkap Hk1820 | ||||
| 003 | 450275-5 | 3.96 | 4.79 | |
| Drukveer 42 Hk1820 | ||||
| 004 | 234039-3 | 0.98 | 1.19 | |
| Kogelgeleider Hk1820 | ||||
| 005 | 345874-5 | 5.71 | 6.91 | |
| Verwisselring Hk1820 | ||||
| 006 | 450274-7 | 3.96 | 4.79 | |
| Stalen Kogel 4.8 | ||||
| 007 | 216002-8 | 0.83 | 1.00 | |
| Ring 25 Hk1820 | ||||
| 008 | 331796-5 | 9.24 | 11.18 | |
| Urethaan Ring 26 Hk1820 | ||||
| 009* | 262142-0 | 1.67 | 2.02 | |
| Ring 21 Hk1820 | ||||
| 010 | 257288-5 | 8.21 | 9.93 | |
| Geleidering Hk1820 | ||||
| 011 | 345873-7 | 1.99 | 2.41 | |
| Drukveer 21-29 Hr2440/50 | ||||
| 012 | 233916-6 | 0.83 | 1.00 | |
| Veerring 43 Hr5001C | ||||
| 013 | 231985-1 | 1.02 | 1.23 | |
| Slaghuishouder Hk1820 | ||||
| 014 | 450273-9 | 3.12 | 3.78 | |
| Slaghuishuls Hk1820 | ||||
| 015 | 424066-0 | 3.28 | 3.97 | |
| O-Ring 31 Hk1820 | ||||
| 016 | 213465-9 | 0.83 | 1.00 | |
| Slaghuis Hm1820 | ||||
| 017 | 318196-6 | 26.55 | 32.13 | |
| O-Ring 48 | ||||
| 018 | 213606-7 | 1.67 | 2.02 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 019 | 922243-3 | |||
| Borgring 37 Hk1820 | ||||
| 020 | 233956-4 | 0.83 | 1.00 | |
| Ring 39 Hk1820 A | ||||
| 021 | 257296-6 | 13.82 | 16.72 | |
| O-Ring 22.4 | ||||
| 022 | 213008-7 | 0.98 | 1.19 | |
| Stalen Kogel 7.0 Hr2400 | ||||
| 023* | 216022-2 | 0.83 | 1.00 | |
| Beitelhouder Hk1820 | ||||
| 024 | 324837-4 | 146.44 | 177.19 | |
| Pen 6 Hk1820 | ||||
| 025 | 268226-2 | 1.26 | 1.52 | |
| Plaatje Hk18/1820 | ||||
| 025A | 423122-3 | 0.83 | 1.00 | |
| Slagbout Hk1820 | ||||
| 026 | 324844-7 | 5.71 | 6.91 | |
| O-Ring 12 Hr2440/50 | ||||
| 027* | 213128-7 | 0.83 | 1.00 | |
| Rubber Ring 13 Hk1820 | ||||
| 028* | 424065-2 | 7.22 | 8.74 | |
| Sluitring 12 Hk1820 | ||||
| 029 | 267363-9 | 6.70 | 8.11 | |
| Cilinder Hk1820 A | ||||
| 030 | 331849-0 | 71.56 | 86.59 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 031 | 256833-3 | |||
| Ring 29 Hk1820 | ||||
| 032 | 331799-9 | 10.50 | 12.70 | |
| Drukveer 32 Hk1820 | ||||
| 033 | 234041-6 | 1.20 | 1.45 | |
| Schotelring 29 Hk1820 | ||||
| 034 | 345872-9 | 2.48 | 3.00 | |
| O-Ring 26 Hr3000C | ||||
| 035 | 213435-8 | 0.83 | 1.00 | |
| Slaghamer Hk1820 | ||||
| 036 | 324847-1 | 7.57 | 9.16 | |
| O-Ring 18 Hk1820 | ||||
| 037* | 213283-5 | 1.67 | 2.02 | |
| O-Ring 18 Hk1820 | ||||
| 038* | 213283-5 | 1.67 | 2.02 | |
| Pen 7 Hk1820 | ||||
| 039 | 256087-2 | 0.83 | 1.00 | |
| O-Ring 18 | ||||
| 040 | 213262-3 | 0.98 | 1.19 | |
| Drijfstang Hk1820 | ||||
| 041 | 450278-9 | 2.10 | 2.54 | |
| Bus 29 Hk1820 | ||||
| 042 | 331797-3 | 3.97 | 4.80 | |
| Zuiger Hk1820 | ||||
| 043 | 450298-3 | 4.14 | 5.01 | |
| Zeskantbout Hr5210C | ||||
| 044 | 922148-7 | 0.83 | 1.00 | |
| Krukashuisbedekking Hk1820 | ||||
| 045 | 450277-1 | 7.22 | 8.74 | |
| Filterkap Hk1820 | ||||
| 046 | 419988-7 | 0.83 | 1.00 | |
| O-Ring 16 HK1820 P | ||||
| 047 | 213218-6 | 0.83 | 1.00 | |
| Filter Hk1820 | ||||
| 048 | 443129-3 | 0.83 | 1.00 | |
| Krukashuisdeksel Hk1820 | ||||
| 049 | 450276-3 | 4.14 | 5.01 | |
| Schroef 4X18 | ||||
| 050 | 911133-5 | 0.83 | 1.00 | |
| Pakkingring Hk1820 | ||||
| 051 | 424067-8 | 0.83 | 1.00 | |
| Krukas Hk1820 | ||||
| 052 | 324845-5 | 10.99 | 13.30 | |
| Kogellager 6002Llb | ||||
| 053 | 211201-7 | 7.22 | 8.74 | |
| Keerring 15 | ||||
| 054 | 213219-4 | 3.12 | 3.78 | |
| Inbusbout M4X16 A | ||||
| 055 | 266437-3 | 0.83 | 1.00 | |
| Lagerhuis Hk1820 | ||||
| 056 | 318202-7 | 3.44 | 4.16 | |
| O-Ring 39 Hk1820 | ||||
| 057 | 213513-4 | 0.83 | 1.00 | |
| Sluitring 22 | ||||
| 058 | 267126-3 | 0.98 | 1.19 | |
| Sluitring 22 | ||||
| 059 | 267126-3 | 0.98 | 1.19 | |
| Tandwiel 36 Hk1820 | ||||
| 060 | 226675-9 | 12.80 | 15.49 | |
| Krukashuis Hk1820 | ||||
| 061 | 158523-3 | 55.67 | 67.36 | |
| O-Ring 28 | ||||
| 061 | 213415-4 | 0.83 | 1.00 | |
| Tapschroef 5X25 A | ||||
| 062 | 266041-8 | 0.83 | 1.00 | |
| Passtuk Hk1820 | ||||
| 063 | 331798-1 | 5.30 | 6.41 | |
| Vibratieplaat Hk1820 | ||||
| 064 | 424068-6 | 0.83 | 1.00 | |
| Kogellager 6001DW P | ||||
| 065 | 211131-2 | 9.24 | 11.18 | |
| Sluitring 12* | ||||
| 066 | 253748-5 | 0.83 | 1.00 | |
| Waaier 60 Hk1820 | ||||
| 067 | 241879-2 | 3.96 | 4.79 | |
| Anker Hk1820 | ||||
| 068 | 513743-0 | 62.04 | 75.07 | |
| Isolatiering | ||||
| 069 | 681644-1 | 0.83 | 1.00 | |
| Kogellager 608Ddw A | ||||
| 070 | 210005-4 | 4.45 | 5.38 | |
| Opvulplaat Hk1820 | ||||
| 071 | 450265-8 | 2.71 | 3.28 | |
| Tapschroef 5X40Mm | ||||
| 072 | 266211-9 | 0.83 | 1.00 | |
| Veld Hk1820 | ||||
| 073 | 625809-5 | 25.36 | 30.69 | |
| Motorhuis Hk1820 | ||||
| 074 | 450263-2 | 17.40 | 21.05 | |
| Rubber Pen 4 6413 A | ||||
| 075 | 263002-9 | 0.83 | 1.00 | |
| Toerenregelaar Hk1820 | ||||
| 076 | 631793-4 | 33.35 | 40.35 | |
| Condensator 5704R 0,22Uf P | ||||
| 077 | 645190-8 | 2.36 | 2.86 | |
| Koolborstelhoud.Hk1820 | ||||
| 078 | 638577-1 | 10.99 | 13.30 | |
| Tapschroef 4X18 A | ||||
| 079 | 265A48-7 | 0.83 | 1.00 | |
| Koolborstelset Cb-350 Hr4010CA | ||||
| 080* | 195004-6 | 5.71 | 6.91 | |
| Achterdeksel Hk1820 | ||||
| 081 | 450264-0 | 7.22 | 8.74 | |
| Tapschroef 4X18 A | ||||
| 082 | 265A48-7 | 0.83 | 1.00 | |
| Drukveer 14 Hk1820 | ||||
| 083 | 234022-0 | 0.83 | 1.00 | |
| Tapschroef 4X18 A | ||||
| 084 | 265A48-7 | 0.83 | 1.00 | |
| Veergeleider Hk1820 | ||||
| 085 | 450280-2 | 2.10 | 2.54 | |
| Handgreepbasis Hk1820 | ||||
| 086 | 450272-1 | 10.99 | 13.30 | |
| Stofkap Hk1820 | ||||
| 087 | 450279-7 | 2.02 | 2.44 | |
| Stofkap Hk1820 | ||||
| 088 | 424069-4 | 3.28 | 3.97 | |
| Blokkeerknop Hk1820 | ||||
| 089 | 450271-3 | 2.10 | 2.54 | |
| Drukveer 8 Hk1820 | ||||
| 090 | 234040-8 | 0.83 | 1.00 | |
| Stopring E-4 | ||||
| 092 | 961011-9 | 0.83 | 1.00 | |
| Handgreepset Hk1820 | ||||
| 093 | 188495-8 | 9.67 | 11.70 | |
| Schakelknop Hk1820 | ||||
| 094 | 450269-0 | 3.28 | 3.97 | |
| Schakelknophouder Hk1820 | ||||
| 095 | 158522-5 | 3.28 | 3.97 | |
| Schakelaar Hk1820 | ||||
| 096 | 650597-5 | 13.82 | 16.72 | |
| Handgreepkap Hk1820 | ||||
| 097 | 450267-4 | 10.99 | 13.30 | |
| Tapschroef 4X18 A | ||||
| 098 | 265A48-7 | 0.83 | 1.00 | |
| Tapschroef 4X18 A | ||||
| 099 | 265A48-7 | 0.83 | 1.00 | |
| Trekontlaster Hp1621 | ||||
| 100 | 687169-3 | 0.83 | 1.00 | |
| Netsnoer 2X1.50 4.0Mtr A | ||||
| 101 | 695123-3 | 21.08 | 25.51 | |
| Kabeltule 10 Ga9010C A | ||||
| 102 | 682573-1 | 1.39 | 1.68 | |
| Naamplaat HK1820 P | ||||
| 103 | 864601-6 | 2.84 | 3.44 | |
| Schroef M5X20 A | ||||
| 104 | 911234-9 | 0.83 | 1.00 | |
| Tapschroef 5X25 A | ||||
| 105 | 266041-8 | 0.83 | 1.00 | |
| Kraagbus 6 HK1820 P | ||||
| 106 | 313139-3 | 1.20 | 1.45 | |
| Tapschroef 5X25 A | ||||
| 107 | 266041-8 | 0.83 | 1.00 | |
| O-Ring 35 | ||||
| 109 | 213142-3 | 0.83 | 1.00 | |
