Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HM1100C'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

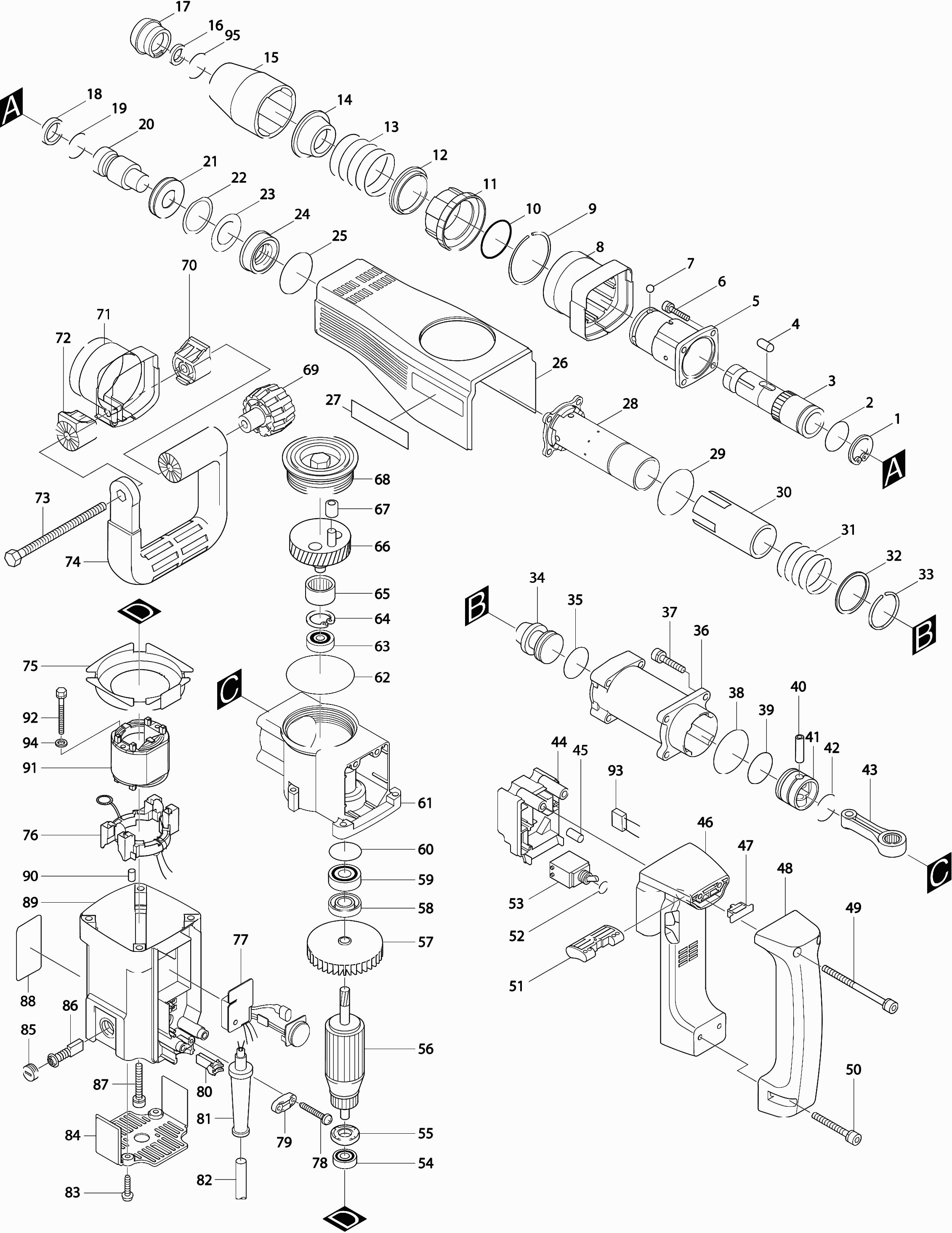

Tekeningen van de Makita HM1100C
Onderdelen lijst van de Makita HM1100C
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| BORGRING R-36 | ||||
| 001 | 962154-0 | 1.20 | 1.45 | |
| O-RING 33 | ||||
| 002 | 213479-8 | 1.00 | 1.21 | |
| BEITELHOUDER HM1100C A | ||||
| 003 | 322982-9 | 137.50 | 166.38 | |
| ROLLER 8 HM1100C | ||||
| 004 | 322908-1 | 4.80 | 5.81 | |
| HOUDER VOOR BEITELHOUD HM110 * | ||||
| 005 | 322882-3 | 127.60 | 154.40 | |
| ZESKANT BOUT 6X30 LF1000 P | ||||
| 006 | 922351-0 | 1.00 | 1.21 | |
| STALEN KOGEL 5.6 A | ||||
| 007 | 216041-8 | 1.00 | 1.21 | |
| STEUN VOOR ZIJHANDGR HM1100C | ||||
| 008 | 416086-8 | 6.00 | 7.26 | |
| BORGRING 52 | ||||
| 009 | 231972-0 | 1.00 | 1.21 | |
| O-RING 44 | ||||
| 010 | 213554-0 | 2.40 | 2.90 | |
| VERWISSELRING HM1100C | ||||
| 011 | 416087-6 | 4.80 | 5.81 | |
| KOGELGELEIDER HM1100C | ||||
| 012 | 331489-4 | 9.60 | 11.62 | |
| DRUKVEER 44 HM1100C | ||||
| 013 | 233167-1 | 2.40 | 2.90 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 014 | 331504-4 | |||
| BEITELHOUDER BESCHERM HM1100C | ||||
| 015 | 416085-0 | 6.00 | 7.26 | |
| X-RING 18 HM1100C | ||||
| 016* | 213270-4 | 3.60 | 4.36 | |
| BEITELHOUDERKAP HM1100C | ||||
| 017* | 286246-4 | 2.40 | 2.90 | |
| X-RING 19 HM1100C | ||||
| 018* | 213269-9 | 3.60 | 4.36 | |
| O-RING 19 | ||||
| 019* | 213311-6 | 2.40 | 2.90 | |
| SLAGSTUK HM1100C NIEUW A | ||||
| 020 | 323845-2 | 11.00 | 13.31 | |
| SLAGSTUKGELEIDER HM1100C | ||||
| 021 | 331487-8 | 9.60 | 11.62 | |
| RING 36 | ||||
| 022 | 421570-0 | 1.20 | 1.45 | |
| O-RING 25 | ||||
| 023 | 213391-2 | 6.00 | 7.26 | |
| BUSSTEUN HM1100C* | ||||
| 024 | 331488-6 | 8.40 | 10.16 | |
| O-RING 44 | ||||
| 025 | 213554-0 | 2.40 | 2.90 | |
| HUISDEKSEL HM1100C * | ||||
| 026 | 415698-4 | 14.30 | 17.30 | |
| CILINDER HM1100C * | ||||
| 028 | 322757-6 | 161.70 | 195.66 | |
| O-RING 50 | ||||
| 029 | 213614-8 | 1.20 | 1.45 | |
| DRUKVEER 39 HM1100C A | ||||
| 031 | 233190-6 | 1.20 | 1.45 | |
| PLATTE RING 39 | ||||
| 032 | 267156-4 | 1.20 | 1.45 | |
| BORGRING 36 | ||||
| 033 | 231971-2 | 1.00 | 1.21 | |
| ZWEVENDE ZUIGER HM1100C | ||||
| 034 | 322907-3 | 13.20 | 15.97 | |
| O-RING 27 | ||||
| 035* | 213429-3 | 1.20 | 1.45 | |
| SLAGHUIS HM1100C * | ||||
| 036 | 316672-4 | 34.10 | 41.26 | |
| ZESKANTBOUT M6X25 | ||||
| 037 | 922341-3 | 1.00 | 1.21 | |
| O-RING 48 | ||||
| 038 | 213606-7 | 2.40 | 2.90 | |
| O-RING 27 | ||||
| 039* | 213429-3 | 1.20 | 1.45 | |
| PEN 8 A | ||||
| 040 | 256165-8 | 1.20 | 1.45 | |
| ZUIGER HM1100C | ||||
| 041 | 415773-6 | 4.80 | 5.81 | |
| O-RING 28 | ||||
| 042* | 213415-4 | 1.00 | 1.21 | |
| DRIJFSTANG HM1100C | ||||
| 043 | 415689-5 | 13.20 | 15.97 | |
| SCHAKELAAR DOOS HM1100C * | ||||
| 044 | 415699-2 | 6.00 | 7.26 | |
| RUBBER PEN 4 6413 A | ||||
| 045 | 263002-9 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 046 | 417447-5 | |||
| STOPPER HM1100C | ||||
| 047 | 415692-6 | 4.80 | 5.81 | |
| HANDGREEP HM1100C | ||||
| 048 | 421507-7 | 28.60 | 34.61 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 049 | 266135-9 | |||
| INBUSBOUT M6X50 HM0810B P | ||||
| 050 | 922371-4 | 1.20 | 1.45 | |
| SCHAKELAARHANDEL HM1100C | ||||
| 051 | 415691-8 | 2.40 | 2.90 | |
| O-RING 12 | ||||
| 052 | 213107-5 | 1.00 | 1.21 | |
| SCHAKELAAR SW-124 6514817 A | ||||
| 053 | 651481-7 | 19.80 | 23.96 | |
| KOGELLAGER 608DDW A | ||||
| 054 | 210005-4 | 4.80 | 5.81 | |
| Niet meer leverbaar, geen vervanging | ||||
| 055 | 681637-8 | |||
| ANKER HM1100C incl 54,55,57,58,59 | ||||
| 056 | 516288-7 | 93.50 | 113.14 | |
| WAAIER 76 5603R | ||||
| 057 | 241876-8 | 4.80 | 5.81 | |
| KEERRING 14 | ||||
| 058 | 213160-1 | 4.80 | 5.81 | |
| KOGELLAGER | ||||
| 059 | 211143-5 | 9.00 | 10.89 | |
| KOGELLAGER 6201DDW A | ||||
| 059 | 211129-9 | 8.40 | 10.16 | |
| KRUKASHUIS HM1100C NIEUW A | ||||
| 061 | 134875-6 | 81.40 | 98.49 | |
| O-RING 67 HR2400 | ||||
| 062 | 213720-9 | 2.40 | 2.90 | |
| Koggellage | ||||
| 063 | 211088-7 | 10.00 | 12.10 | |
| KOGELLAGER 6000DDW A | ||||
| 063 | 210315-9 | 6.00 | 7.26 | |
| BORGRING R-26 A | ||||
| 064 | 962105-3 | 1.00 | 1.21 | |
| NAALDLAGER 2116 | ||||
| 065 | 212259-9 | 13.20 | 15.97 | |
| KRUKAS HM1130C | ||||
| 066 | 153249-2 | 28.60 | 34.61 | |
| BINNENBUS 812 | ||||
| 067 | 216116-3 | 7.20 | 8.71 | |
| VULDOP HM1100C | ||||
| 068 | 415690-0 | 7.20 | 8.71 | |
| KNOP M8 HM1213/14C | ||||
| 069 | 252640-2 | 6.00 | 7.26 | |
| HANDGREEP BASIS A | ||||
| 070 | 152620-7 | 16.50 | 19.96 | |
| HANDGREEP BASIS A | ||||
| 071 | 152620-7 | 16.50 | 19.96 | |
| HANDGREEP BASIS A | ||||
| 072 | 152620-7 | 16.50 | 19.96 | |
| ZESKANTBOUT M8X150 | ||||
| 073 | 265439-6 | 3.60 | 4.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 074 | 416009-6 | |||
| TUSSENPLAAT HM1100C * | ||||
| 075 | 415693-4 | 3.60 | 4.36 | |
| STEUN HM1100C * | ||||
| 076 | 632678-7 | 4.80 | 5.81 | |
| Klembus 1,25Mm Tbv Stat.Veer P | ||||
| 076A | 654501-6 | 0.83 | 1.00 | |
| STATORVEERTJE CB-7 | ||||
| 076B | 654019-7 | 1.20 | 1.45 | |
| WEERSTAND 5604R | ||||
| 076C | 646077-7 | 4.80 | 5.81 | |
| TOERENREGELUNIT HM1100C* | ||||
| 077 | 631204-9 | 77.00 | 93.17 | |
| TAPSCHROEF 4X18 P | ||||
| 078 | 265A48-7 | 1.00 | 1.21 | |
| KLEMSTRIP P | ||||
| 079 | 687053-2 | 1.00 | 1.21 | |
| KLEMSTRIP 9555NB/BO3711 A | ||||
| 079 | 687124-5 | 1.00 | 1.21 | |
| BEVESTIGINGSSTANG HM1100C# | ||||
| 080 | 417715-6 | 1.39 | 1.68 | |
| Niet meer leverbaar, geen vervanging | ||||
| 081 | 682505-8 | |||
| NETSNOER 2X1.50 4.0MTR A | ||||
| 082 | 695123-3 | 22.00 | 26.62 | |
| TAPSCHROEF 5X20 A | ||||
| 083 | 266021-4 | 1.20 | 1.45 | |
| ACHTERDEKSEL HM1100C | ||||
| 084 | 415700-3 | 3.60 | 4.36 | |
| Koolborsteldop | ||||
| 085 | 643515-0 | 1.00 | 1.21 | |
| KOOLBORSTEL SET CB-327 A | ||||
| 086* | 195003-8 | 8.21 | 9.93 | |
| ZESKANTBOUT 6X40 | ||||
| 087 | 922364-1 | 1.20 | 1.45 | |
| MOTORHUIS HM1100C * | ||||
| 089 | 152662-1 | 33.00 | 39.93 | |
| KOOLBORSTELHOUDER 5X11 A | ||||
| 089A | 644501-4 | 2.40 | 2.90 | |
| WEERSTAND 5604R | ||||
| 089B | 646077-7 | 4.80 | 5.81 | |
| RUBBER PEN 4 | ||||
| 090 | 263014-2 | 1.00 | 1.21 | |
| VELD HM1100C | ||||
| 091 | 634283-6 | 28.60 | 34.61 | |
| ZESKANTBOUT M5X60 * | ||||
| 092 | 265345-5 | 2.40 | 2.90 | |
| CONDENSATOR 0.1UF A | ||||
| 093 | 645105-5 | 3.60 | 4.36 | |
| HANDGREEP BASIS A | ||||
| 094 | 152620-7 | 16.50 | 19.96 | |
| O-RING 24 HR2400 | ||||
| 095* | 213385-7 | 3.60 | 4.36 | |
| BUS 39 HM1100C | ||||
| 097 | 331486-0 | 26.40 | 31.94 | |
