Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HM1200'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

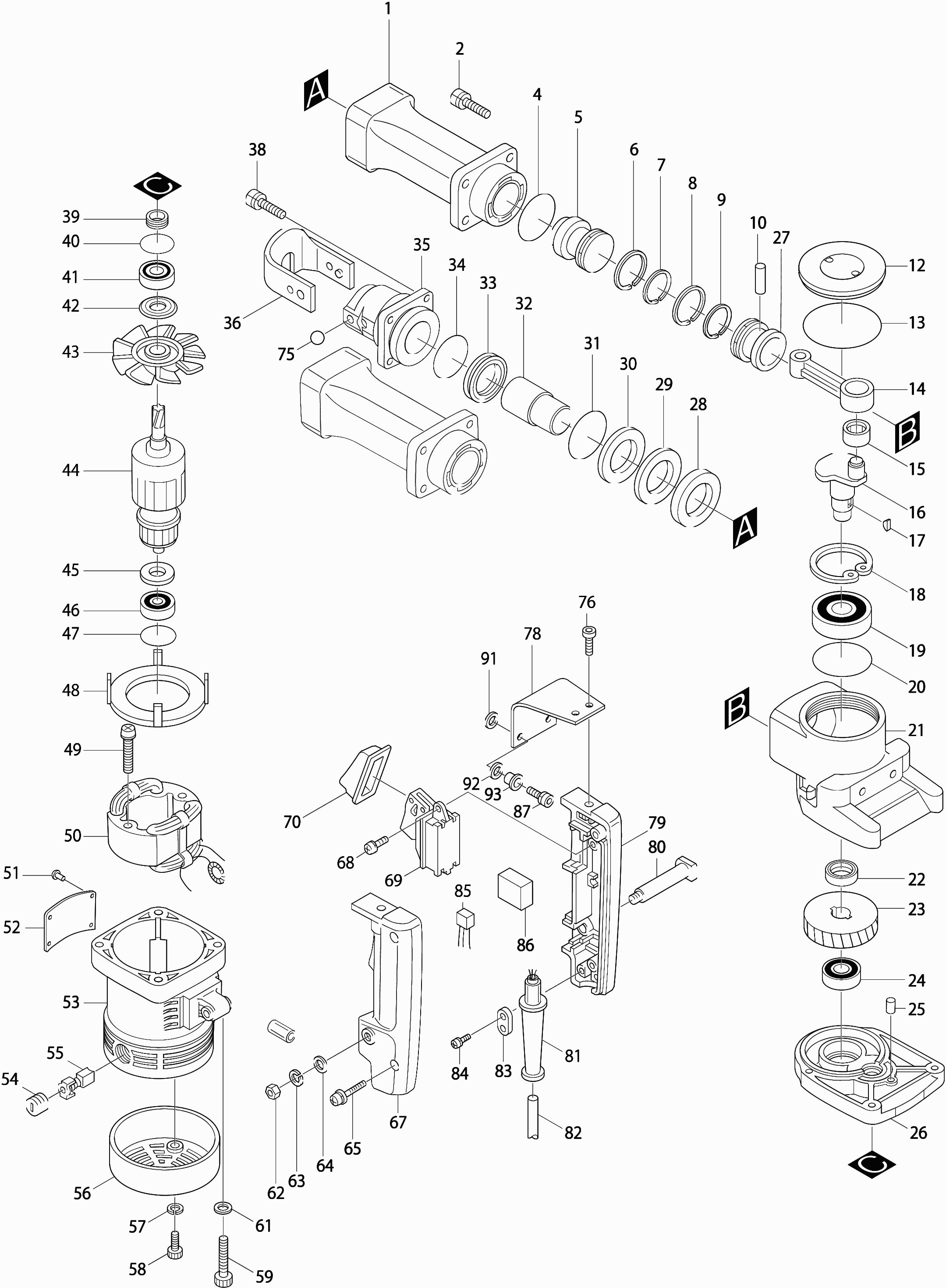

Tekeningen van de Makita HM1200
Onderdelen lijst van de Makita HM1200
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Slaghuis Hm1200 | ||||
| 001 | 151310-9 | 137.41 | 166.27 | |
| Inbusbout M8X30 | ||||
| 002 | 922452-4 | 0.83 | 1.00 | |
| O-Ring 56 | ||||
| 004 | 213655-4 | 1.67 | 2.02 | |
| Zwevende Zuiger Hm1200-Hm1200K | ||||
| 005 | 321732-9 | 20.15 | 24.38 | |
| Zuigerveer 40 Hm1200-Hm1200K | ||||
| 006* | 412049-2 | 15.60 | 18.88 | |
| Binnenring 36 Hm1200-Hm1200K | ||||
| 007* | 341862-0 | 3.96 | 4.79 | |
| Zuigerveer 40 Hm1200-Hm1200K | ||||
| 008* | 412049-2 | 15.60 | 18.88 | |
| Binnenring 36 Hm1200-Hm1200K | ||||
| 009* | 341862-0 | 3.96 | 4.79 | |
| Pen 10 | ||||
| 010 | 256120-0 | 2.71 | 3.28 | |
| Vuldop Hm1200 Hm1200K A | ||||
| 012 | 414218-1 | 9.24 | 11.18 | |
| O-Ring 71 Hm1202C | ||||
| 013 | 213754-2 | 2.02 | 2.44 | |
| Drijfstang Hm1200-Hm1200K | ||||
| 014 | 315419-3 | 19.23 | 23.27 | |
| Naaldlager 1516 | ||||
| 015 | 212208-6 | 13.82 | 16.72 | |
| Krukas Hm1200-Hm1200K | ||||
| 016 | 152180-9 | 26.55 | 32.13 | |
| Inlegspie 4 | ||||
| 017 | 254001-2 | 0.83 | 1.00 | |
| Borgring R-52 | ||||
| 018 | 962251-2 | 1.39 | 1.68 | |
| Kogellager 6304Llu A | ||||
| 019 | 211327-5 | 10.50 | 12.70 | |
| O-Ring 53 | ||||
| 020 | 213656-2 | 1.18 | 1.43 | |
| Krukashuis Hm1200-Hm1200K | ||||
| 021 | 156863-3 | 71.38 | 86.37 | |
| Keerring 20 | ||||
| 022 | 213306-9 | 2.71 | 3.28 | |
| Tandwiel 50 Hm1200-Hm1200K | ||||
| 023 | 221701-9 | 38.75 | 46.89 | |
| Kogellager 6202Llb A | ||||
| 024 | 211228-7 | 7.22 | 8.74 | |
| Pen Hm1200K/1304 | ||||
| 025 | 256111-1 | 1.46 | 1.77 | |
| Tandwielhuis Hm1200-Hm1200K | ||||
| 026 | 157072-7 | 32.15 | 38.90 | |
| Zuiger Hm1200-Hm1200K | ||||
| 027 | 321441-0 | 28.02 | 33.90 | |
| Sluitring 32 | ||||
| 028 | 267058-4 | 11.82 | 14.30 | |
| Kunststof Ring 32 | ||||
| 029 | 261054-4 | 3.80 | 4.60 | |
| Sluitring 31 | ||||
| 030 | 253845-7 | 10.52 | 12.73 | |
| O-Ring 50 | ||||
| 031 | 213604-1 | 1.67 | 2.02 | |
| Slagstuk Hm1200- | ||||
| 032 | 322107-5 | 29.35 | 35.51 | |
| X-Ring 35 A | ||||
| 033* | 213472-2 | 22.87 | 27.67 | |
| O-Ring 32 | ||||
| 034* | 213464-1 | 5.98 | 7.24 | |
| Beitelgeleider Hm1200 | ||||
| 035 | 321440-2 | 71.38 | 86.37 | |
| Gereedschapklem Hm1200 | ||||
| 036 | 164617-4 | 24.16 | 29.23 | |
| Inbusbout M8X30 | ||||
| 038 | 922452-4 | 0.83 | 1.00 | |
| Keerring Hm1200-Hm1200K | ||||
| 039 | 331180-4 | 3.54 | 4.28 | |
| O-Ring 35 | ||||
| 040 | 213460-9 | 1.18 | 1.43 | |
| Kogellager 6202Llb A | ||||
| 041 | 211228-7 | 7.22 | 8.74 | |
| Stofafdichting 15 | ||||
| 042 | 213202-1 | 1.18 | 1.43 | |
| Waaier 94 | ||||
| 043 | 241638-4 | 7.57 | 9.16 | |
| Anker Hm1200-Hm1200K | ||||
| 044 | 514778-4 | 105.70 | 127.90 | |
| Isolatiering A | ||||
| 045 | 681635-2 | 0.83 | 1.00 | |
| Kogellager 6200Llb | ||||
| 046 | 211066-7 | 4.45 | 5.38 | |
| O-Ring 30 | ||||
| 047 | 213406-5 | 1.18 | 1.43 | |
| Tussenplaat Hm1200-Hm1200K | ||||
| 048 | 410163-8 | 4.67 | 5.65 | |
| Schroef 5X45 * | ||||
| 049 | 911266-6 | 0.83 | 1.00 | |
| Veld Hm1200 Hr3850 A | ||||
| 050 | 528910-4 | 68.53 | 82.92 | |
| Motorhuis Hm1200-K-Hr3850-K | ||||
| 053 | 159034-1 | 38.72 | 46.85 | |
| Koolborstelhouderdop A | ||||
| 054 | 643650-4 | 0.83 | 1.00 | |
| Koolborstel Set Cb-155 P | ||||
| 055* | 181048-2 | 9.24 | 11.18 | |
| Achterdeksel | ||||
| 056 | 284055-5 | 11.86 | 14.35 | |
| Veerring 5MM DLS211 | ||||
| 057 | 253427-5 | 0.83 | 1.00 | |
| Inbusbout M5X16 A | ||||
| 058 | 922221-3 | 0.83 | 1.00 | |
| Inbusbout M6X50 HM0810B P | ||||
| 059 | 922371-4 | 0.83 | 1.00 | |
| Sluitring 6Mm A | ||||
| 061 | 267214-6 | 0.83 | 1.00 | |
| Zeskantmoer M6 | ||||
| 062 | 931302-2 | 0.83 | 1.00 | |
| Veerring 6 A | ||||
| 063 | 253903-9 | 0.83 | 1.00 | |
| Sluitring 6X12Mm A | ||||
| 064 | 941151-9 | 0.83 | 1.00 | |
| Schroef 5X25 | ||||
| 065 | 911241-2 | 0.83 | 1.00 | |
| Handgreep Hm1200-K-Hr3850-Etca | ||||
| 067 | 182077-8 | 17.38 | 21.03 | |
| Schroef 4X16 | ||||
| 068 | 911126-2 | 0.83 | 1.00 | |
| Schakelaar Sw-52 6511322 | ||||
| 069 | 651145-3 | 25.36 | 30.69 | |
| Stofkap Voor Schakelaar | ||||
| 070 | 421265-5 | 2.36 | 2.86 | |
| Klemblok Hm1200 * | ||||
| 072 | 343321-0 | 6.38 | 7.72 | |
| Klem Moer Hm1200 * | ||||
| 073 | 321949-4 | 15.65 | 18.94 | |
| Handgreepbeugel Hm1200* | ||||
| 074 | 343322-8 | 33.35 | 40.35 | |
| Stalen Kogel 10 | ||||
| 075 | 216003-6 | 0.83 | 1.00 | |
| Inbusbout M6X14 A | ||||
| 076 | 922316-2 | 0.83 | 1.00 | |
| Veerring 6 A | ||||
| 077 | 253903-9 | 0.83 | 1.00 | |
| Beugel Hm1200 | ||||
| 078 | 343755-7 | 5.06 | 6.12 | |
| Borstbout Hm1200 | ||||
| 080 | 321210-9 | 2.46 | 2.98 | |
| Kabeltule 10-90 A | ||||
| 081 | 682505-8 | 1.67 | 2.02 | |
| Netsnoer 2X1.50 4.0Mtr A | ||||
| 082 | 695123-3 | 21.08 | 25.51 | |
| Klemstrip Sr2600 | ||||
| 083 | 687031-2 | 0.83 | 1.00 | |
| Schroef 4X18 Sr2600 | ||||
| 084 | 911131-9 | 0.83 | 1.00 | |
| Condensator Voor 9541/9542 A | ||||
| 085 | 645253-0 | 4.45 | 5.38 | |
| Inbusbout M6X14 A | ||||
| 087 | 922316-2 | 0.83 | 1.00 | |
| Veerring 6 A | ||||
| 088 | 253903-9 | 0.83 | 1.00 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 089 | 423156-6 | |||
| Klembus 2Mm Tbv Stat.Veer | ||||
| 090 | 654502-4 | 0.83 | 1.00 | |
| Statorveertje Cb5 | ||||
| 091 | 654020-2 | 0.83 | 1.00 | |
| Splitpen 3-20 A | ||||
| 092 | 952257-8 | 0.83 | 1.00 | |
| Inbusbout M10X25 | ||||
| 093 | 922542-3 | 0.98 | 1.19 | |
| Veerring M10 | ||||
| 094 | 942251-8 | 0.83 | 1.00 | |
| Handgreep 38 Hr5000-Hr5000K A | ||||
| 095 | 273492-8 | 10.99 | 13.30 | |
