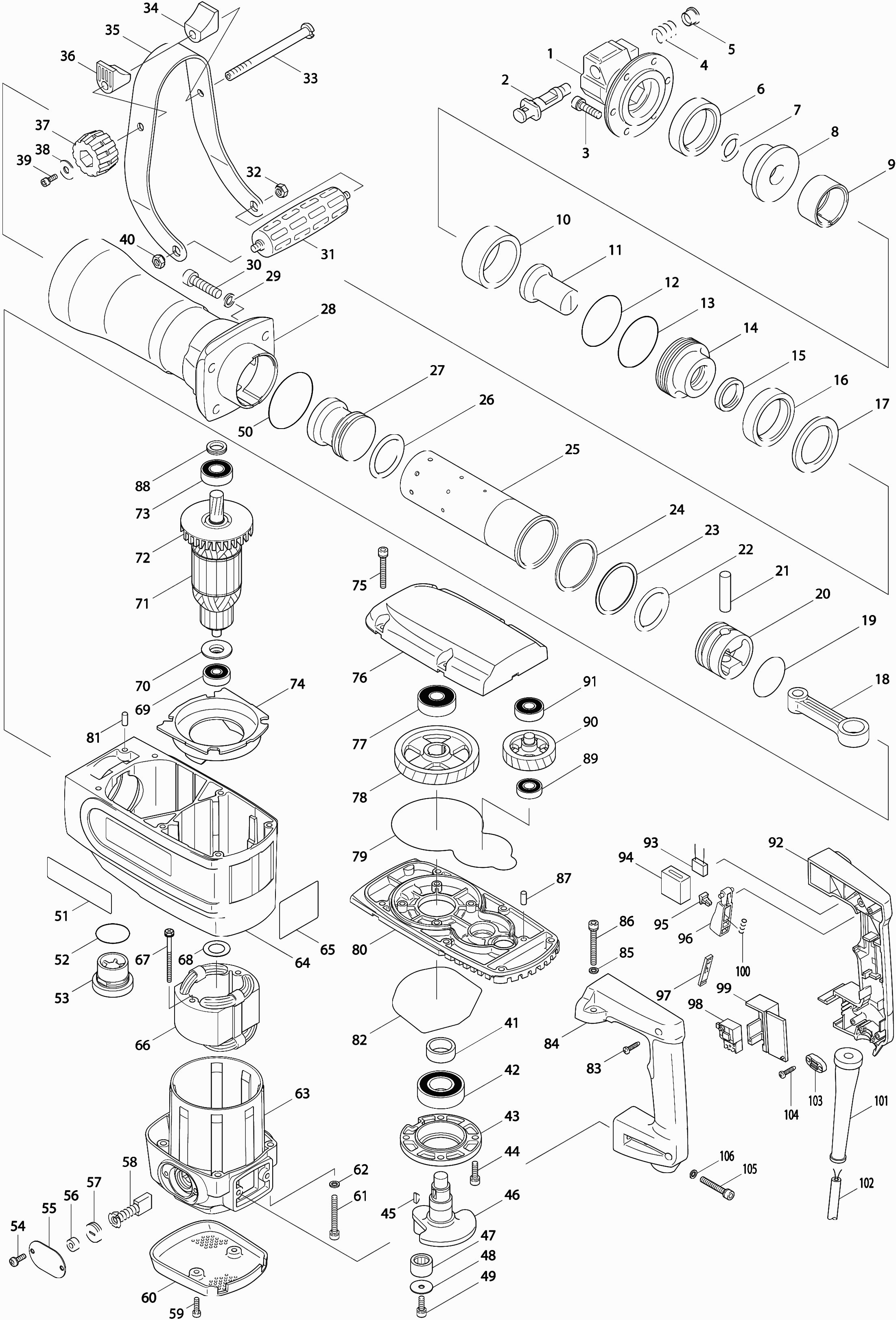

Tekeningen van de Makita HM1304
Onderdelen lijst van de Makita HM1304
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| BOORHOUDER HM1304 | ||||
| 001 | 324098-6 | 92.40 | 111.80 | |
| GEREEDSCHAPKLEM HM1304 | ||||
| 002 | 324099-4 | 4.80 | 5.81 | |
| INBUSBOUT M8X30 | ||||
| 003 | 266010-9 | 2.40 | 2.90 | |
| DRUKVEER 16MM HM1304 | ||||
| 004 | 233309-7 | 2.40 | 2.90 | |
| BUS VOOR BLOKKEERPEN HM1304 | ||||
| 005 | 324135-6 | 6.00 | 7.26 | |
| URETHANE RING 48 HM1304 | ||||
| 006 | 262098-7 | 11.00 | 13.31 | |
| O-RING 24 HM1304 | ||||
| 007* | 213388-1 | 3.60 | 4.36 | |
| Niet meer leverbaar, geen vervanging | ||||
| 008 | 324167-3 | |||
| VANGRING HM1304 | ||||
| 009 | 324166-5 | 17.60 | 21.30 | |
| RUBBER RING 52 HM1304 | ||||
| 010 | 262099-5 | 4.80 | 5.81 | |
| SLAGBOUT HM1304 | ||||
| 011 | 324101-3 | 19.80 | 23.96 | |
| O-RING 61 HM1800 | ||||
| 012 | 213721-7 | 7.20 | 8.71 | |
| O-RING 61 HM1800 | ||||
| 013 | 213721-7 | 7.20 | 8.71 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 014 | 324165-7 | |||
| X-RING 30 HM1304 | ||||
| 015* | 213443-9 | 11.00 | 13.31 | |
| URETHANE RING 48 HM1304 | ||||
| 016 | 262098-7 | 11.00 | 13.31 | |
| SLUITRING 48 HM1304 | ||||
| 017 | 267232-4 | 10.80 | 13.07 | |
| VERBINDINGSSTANG HM1304 | ||||
| 018 | 317448-2 | 39.60 | 47.92 | |
| O-RING 47 HM1304 | ||||
| 019* | 213617-2 | 1.20 | 1.45 | |
| ZUIGER HM1304 | ||||
| 020 | 317447-4 | 27.50 | 33.28 | |
| ZUIGERPEN 12 HM1304 | ||||
| 021 | 268066-8 | 3.60 | 4.36 | |
| O-RING 44 HM1304 | ||||
| 022* | 213572-8 | 4.80 | 5.81 | |
| SLUITRING 55 HM1304 | ||||
| 023 | 267233-2 | 2.40 | 2.90 | |
| KUNSTSTOF RING 55 HM1304 | ||||
| 024 | 261121-5 | 2.40 | 2.90 | |
| CILINDER 54 HM1304 * | ||||
| 025 | 331600-8 | 146.30 | 177.02 | |
| O-RING 44 HM1304 | ||||
| 026* | 213572-8 | 4.80 | 5.81 | |
| SLAGHAMER HM1304 | ||||
| 027 | 324102-1 | 26.40 | 31.94 | |
| CILINDER HM1304 * | ||||
| 028 | 317444-0 | 155.10 | 187.67 | |
| SLUITRING M10 | ||||
| 029 | 941252-3 | 1.00 | 1.21 | |
| ZESKANTBOUT M10X40 HM1304 | ||||
| 030 | 266276-1 | 2.40 | 2.90 | |
| Niet meer leverbaar, geen vervanging | ||||
| 031 | 273518-6 | |||
| BORGMOER M8X13 | ||||
| 032 | 252005-8 | 1.20 | 1.45 | |
| HANDGREEPBOUT M10X122 HM1304 | ||||
| 033 | 266298-1 | 6.00 | 7.26 | |
| HANDGREEPBASIS HM1303 | ||||
| 034 | 416228-4 | 2.40 | 2.90 | |
| ZIJHANDGREEP HM1304 | ||||
| 035 | 345279-9 | 27.50 | 33.28 | |
| HANDGREEPBASIS HM1303 | ||||
| 036 | 416228-4 | 2.40 | 2.90 | |
| DRAAIKNOP M10 | ||||
| 037 | 252633-9 | 8.40 | 10.16 | |
| SLUITRING 5 | ||||
| 038 | 253194-2 | 1.00 | 1.21 | |
| INBUSBOUT M5X16 A | ||||
| 039 | 922221-3 | 1.00 | 1.21 | |
| BORGMOER M8X13 | ||||
| 040 | 252005-8 | 1.20 | 1.45 | |
| RING 25 * | ||||
| 041 | 257196-0 | 2.40 | 2.90 | |
| KOGELLAGER 6205LLU | ||||
| 042 | 211373-8 | 10.80 | 13.07 | |
| LAGERHUIS HM1303 | ||||
| 043 | 316730-6 | 10.80 | 13.07 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 044 | 265366-7 | |||
| INLEGSPIE 4 | ||||
| 045 | 254001-2 | 1.00 | 1.21 | |
| KRUKAS HM1304 * | ||||
| 046 | 324100-5 | 20.90 | 25.29 | |
| NAALDLAGER 1715 HM1304 | ||||
| 047 | 212261-2 | 7.20 | 8.71 | |
| CARR.RING 6X25MM | ||||
| 048 | 253196-8 | 1.20 | 1.45 | |
| INBUSBOUT M6X18 HM1304 | ||||
| 049 | 922326-9 | 1.00 | 1.21 | |
| O-RING 67 HR2400 | ||||
| 050 | 213720-9 | 2.40 | 2.90 | |
| LABEL MAKITA HM1304 * | ||||
| 051 | 819084-5 | 2.40 | 2.90 | |
| O-RING 36 | ||||
| 052 | 213510-0 | 1.20 | 1.45 | |
| OLIEDEKSEL HR5001C | ||||
| 053 | 416561-4 | 6.00 | 7.26 | |
| KRUISKOPSCHROEF 5X16 | ||||
| 054 | 911221-8 | 1.00 | 1.21 | |
| AFDEKPLAAT HM1304 | ||||
| 055 | 345278-1 | 1.20 | 1.45 | |
| RUBBER KOOLBORSTELRING HM1400 | ||||
| 056 | 262003-4 | 1.20 | 1.45 | |
| KOOLBORSTELHOUDERDOP A | ||||
| 057 | 643700-5 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-204 A | ||||
| 058* | 194992-4 | 11.00 | 13.31 | |
| INBUSBOUT M5X18 | ||||
| 059 | 922227-1 | 1.00 | 1.21 | |
| MOTORHUISDEKSEL HM1304 | ||||
| 060 | 345319-3 | 13.20 | 15.97 | |
| INBUSBOUT M6X50 HM0810B P | ||||
| 061 | 922371-4 | 1.20 | 1.45 | |
| SLUITRING 6X12MM A | ||||
| 062 | 941151-9 | 1.00 | 1.21 | |
| MOTORHUIS HM1304 | ||||
| 063 | 153438-9 | 51.70 | 62.56 | |
| O-RING 30 | ||||
| 063A | 213406-5 | 1.20 | 1.45 | |
| KOOLBORSTEL KLEMRING HM1500 | ||||
| 063B | 414665-6 | 1.20 | 1.45 | |
| KOOLBORSTELHOUDER HM1303 A | ||||
| 063C | 643711-0 | 10.80 | 13.07 | |
| KRUKASHUIS HM1304 A | ||||
| 064 | 317623-0 | 192.50 | 232.92 | |
| NAAMPLAAT HM1304 | ||||
| 065 | 853955-6 | 3.60 | 4.36 | |
| VELD HM1304 | ||||
| 066 | 626124-0 | 63.80 | 77.20 | |
| ZESKANTBOUT 5X65 | ||||
| 067 | 265428-1 | 3.60 | 4.36 | |
| SLUITRING 18 | ||||
| 068 | 253794-8 | 1.00 | 1.21 | |
| KOGELLAGER 6200LLB | ||||
| 069 | 211066-7 | 4.80 | 5.81 | |
| ISOLATIERING A | ||||
| 070 | 681635-2 | 1.20 | 1.45 | |
| ANKER HM1304 | ||||
| 071 | 516864-7 | 146.30 | 177.02 | |
| WAAIER 80 HM1304 | ||||
| 072 | 241870-0 | 9.60 | 11.62 | |
| KOGELLAGER 6202LLB A | ||||
| 073 | 211228-7 | 8.40 | 10.16 | |
| TUSSENPLAAT HM1304 | ||||
| 074 | 418000-0 | 3.60 | 4.36 | |
| INBUSBOUT M6X45MM HM1304 | ||||
| 075 | 266310-7 | 2.40 | 2.90 | |
| TANDWIELHUISDEKSEL HM1304 | ||||
| 076 | 317446-6 | 34.10 | 41.26 | |
| KOGELLAGER 6302 | ||||
| 077 | 211214-8 | 9.60 | 11.62 | |
| TANDWIEL 57 HM1303 * | ||||
| 078 | 226450-3 | 59.40 | 71.87 | |
| PAKKINGRING B HM1304 | ||||
| 079 | 421780-9 | 3.60 | 4.36 | |
| TANDWIELHUIS HM1304 | ||||
| 080 | 317445-8 | 51.70 | 62.56 | |
| PEN HM1200K/1304 | ||||
| 081 | 256111-1 | 2.40 | 2.90 | |
| PAKKINGRING A HM1304 | ||||
| 082 | 421779-4 | 2.40 | 2.90 | |
| TAPSCHROEF 4X18 P | ||||
| 083 | 265A48-7 | 1.00 | 1.21 | |
| HANDGREEP SET HM1304 * | ||||
| 084 | 183546-2 | 20.90 | 25.29 | |
| SLUITRING 6MM A | ||||
| 085 | 267214-6 | 1.00 | 1.21 | |
| INBUSBOUT M6X50 HM0810B P | ||||
| 086 | 922371-4 | 1.20 | 1.45 | |
| PEN HM1200K/1304 | ||||
| 087 | 256111-1 | 2.40 | 2.90 | |
| KEERRING HM1303/04/1400 | ||||
| 088 | 331212-7 | 3.60 | 4.36 | |
| KOGELLAGER 6001 | ||||
| 089 | 211104-5 | 4.80 | 5.81 | |
| TANDWIEL 34 HM1304 | ||||
| 090 | 226449-8 | 58.30 | 70.54 | |
| KOGELLAGER 6201 P | ||||
| 091 | 211109-5 | 4.80 | 5.81 | |
| HANDGREEP SET HM1304 * | ||||
| 092 | 183546-2 | 20.90 | 25.29 | |
| CONDENSATOR 0.1UF A | ||||
| 093 | 645105-5 | 3.60 | 4.36 | |
| SPONS B03700/TW009/010 | ||||
| 094 | 685725-3 | 1.00 | 1.21 | |
| BLOKKEERKNOP HM1303/04 | ||||
| 095 | 415805-9 | 1.20 | 1.45 | |
| SCHAKELAARHANDEL HM1304 | ||||
| 096 | 417544-7 | 3.60 | 4.36 | |
| VERGRENDELPLAAT HM1303 * | ||||
| 097 | 415806-7 | 1.20 | 1.45 | |
| SCHAKELAAR SW131 A | ||||
| 098 | 651922-3 | 11.00 | 13.31 | |
| SCHAKELAARHUIS HM1304 | ||||
| 099 | 421778-6 | 3.60 | 4.36 | |
| DRUKVEER 3 | ||||
| 100 | 231457-6 | 1.00 | 1.21 | |
| KABELTULE 10 | ||||
| 101 | 682560-0 | 2.40 | 2.90 | |
| NETSNOER 2X1.50 4.0MTR A | ||||
| 102 | 695123-3 | 22.00 | 26.62 | |
| KLEMSTRIP 9555NB/BO3711 A | ||||
| 103 | 687124-5 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 P | ||||
| 104 | 265A48-7 | 1.00 | 1.21 | |
| INBUSBOUT M6X40 | ||||
| 105 | 922361-7 | 1.20 | 1.45 | |
| SLUITRING 6MM A | ||||
| 106 | 267214-6 | 1.00 | 1.21 | |
