Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR1841F'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

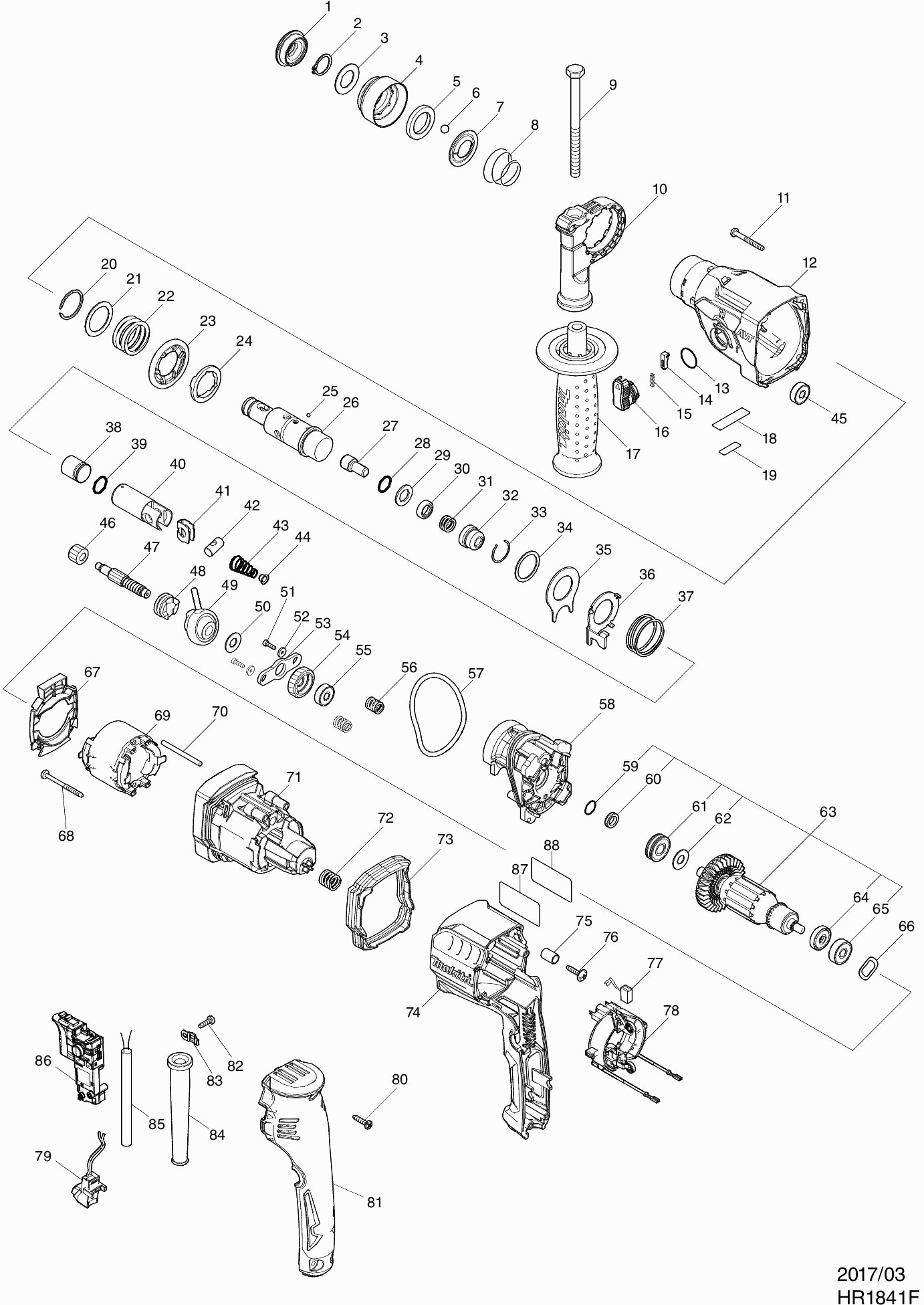

Tekeningen van de Makita HR1841F
Onderdelen lijst van de Makita HR1841F
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RUBBER STOFKAP 34 HR166D | ||||
| 001 | 286037-3 | 1.20 | 1.45 | |
| BORGRING S-17 | ||||
| 002 | 961057-5 | 1.00 | 1.21 | |
| SLUITRING 17MM DCU180 P | ||||
| 003 | 253377-4 | 1.00 | 1.21 | |
| BOORHOUDERKAP HR166D | ||||
| 004 | 457214-6 | 1.00 | 1.21 | |
| RING 21 HR166D | ||||
| 005 | 257416-2 | 1.20 | 1.45 | |
| STALEN KOGEL 7.0 HR2400 | ||||
| 006 | 216022-2 | 1.00 | 1.21 | |
| GELEIDERING HR2300 | ||||
| 007 | 346177-0 | 1.00 | 1.21 | |
| CONISCHE DRUKVEER 21-29 HR166D | ||||
| 008 | 232347-6 | 1.00 | 1.21 | |
| ZESKANTBOUT M8X110 A | ||||
| 009 | 265495-6 | 1.20 | 1.45 | |
| BASISSET VOOR ZIJHANDGREEP 158057-6 | ||||
| 010 | 194581-5 | 9.00 | 10.89 | |
| AFSTANDHOUDER 18 HR1841F | ||||
| 010 | 122810-6 | 6.00 | 7.26 | |
| AFSTANDHOUDER 18 HR1841F | ||||
| 010C10 | 122810-6 | 6.00 | 7.26 | |
| SCHROEF 4X35 A | ||||
| 011 | 266351-3 | 1.00 | 1.21 | |
| TANDWIELHUIS HR1841F | ||||
| 012 | 144271-0 | 16.50 | 19.96 | |
| KOGELLAGER 6805LLB 6221DW P | ||||
| 012 | 211375-4 | 13.20 | 15.97 | |
| KEERRING (OLIE) 25 HR2460 | ||||
| 012 | 213636-8 | 4.80 | 5.81 | |
| KEERRING (OLIE) 25 HR2460 | ||||
| 012C10 | 213636-8 | 4.80 | 5.81 | |
| KOGELLAGER 6805LLB 6221DW P | ||||
| 012C20 | 211375-4 | 13.20 | 15.97 | |
| O-RING 17 HR2440/50 | ||||
| 013 | 213278-8 | 1.00 | 1.21 | |
| BLOKKEERKNOP COMPLEET HR166D | ||||
| 014 | 161568-2 | 1.20 | 1.45 | |
| DRUKVEER 3 HR166D | ||||
| 015 | 232344-2 | 1.00 | 1.21 | |
| VERSTELKNOP HR166D | ||||
| 016 | 161569-0 | 2.40 | 2.90 | |
| HANDGREEP HR2230 RUBBER A | ||||
| 017 | 158057-6 | 9.60 | 11.62 | |
| MOER M8 ZWT | ||||
| 017 | 931402-8 | 1.00 | 1.21 | |
| MOER M8 ZWT | ||||
| 017C10 | 931402-8 | 1.00 | 1.21 | |
| PLAAT HR1840* | ||||
| 018 | 457356-6 | 1.00 | 1.21 | |
| LABEL, SERIENUMMER HR1841F | ||||
| 019 | 853K20-7 | 2.40 | 2.90 | |
| BORGRING WR-25 HR1830F A | ||||
| 020 | 347555-7 | 1.00 | 1.21 | |
| SLUITRING 25 HR1830F | ||||
| 021 | 267304-5 | 1.00 | 1.21 | |
| DRUKVEER 25 HR1840 | ||||
| 022 | 232360-4 | 1.20 | 1.45 | |
| TANDWIEL 44 HR1840* | ||||
| 023 | 221494-8 | 7.20 | 8.71 | |
| AANDRIJFFLENS HR1840 | ||||
| 024 | 327039-1 | 2.40 | 2.90 | |
| STALEN KOGEL 3 P | ||||
| 025 | 216019-1 | 1.00 | 1.21 | |
| BOOR/BEITELHOUDER HR1840* | ||||
| 026 | 326886-7 | 13.20 | 15.97 | |
| SLAGBOUT HR1840 | ||||
| 027 | 326887-5 | 1.20 | 1.45 | |
| O-RING 11 (3,5MM) | ||||
| 028 | 213117-2 | 2.40 | 2.90 | |
| REVET 13 HR1841F | ||||
| 029 | 253380-5 | 1.00 | 1.21 | |
| RING 10 HR1840 | ||||
| 030 | 326888-3 | 1.20 | 1.45 | |
| DRUKVEER 10A HR1840 | ||||
| 031 | 232357-3 | 1.00 | 1.21 | |
| BUS HR1840 | ||||
| 032 | 327038-3 | 2.40 | 2.90 | |
| BORGRING 22 HR1830/BHR162 | ||||
| 033 | 233942-5 | 1.00 | 1.21 | |
| PLATTE RING 24 BTD132 | ||||
| 034 | 267175-0 | 1.20 | 1.45 | |
| ADAPTERPLAAT HR1830F | ||||
| 035 | 345681-6 | 1.00 | 1.21 | |
| WISSELPLAAT HR1840 | ||||
| 036 | 347128-6 | 1.20 | 1.45 | |
| DRUKVEER 32 HR1830F | ||||
| 037 | 233458-0 | 1.00 | 1.21 | |
| SLAGHAMER HR1840 | ||||
| 038 | 326889-1 | 2.40 | 2.90 | |
| O-RING 10 HR1840 | ||||
| 039 | 213832-8 | 1.00 | 1.21 | |
| ZUIGER HR1841F | ||||
| 040 | 326890-6 | 6.00 | 7.26 | |
| GELEIDINGSPLAAT HR1840 | ||||
| 041 | 347127-8 | 1.00 | 1.21 | |
| ZUIGERVERBINDING HR1830F | ||||
| 042 | 324612-8 | 1.20 | 1.45 | |
| CONISCHE DRUKVEER 6-13 HR1840 | ||||
| 043 | 232361-2 | 1.00 | 1.21 | |
| VEERGELEIDER HR1840 | ||||
| 044 | 347130-9 | 1.00 | 1.21 | |
| KOGELLAGER 626LLB A | ||||
| 045 | 211016-2 | 6.00 | 7.26 | |
| TANDWIEL 19 HR1840 | ||||
| 046 | 221495-6 | 2.40 | 2.90 | |
| TANDWIELAS HR1840 | ||||
| 047 | 326892-2 | 3.60 | 4.36 | |
| KOPPELINGSPLAAT HR1840 | ||||
| 048 | 326891-4 | 3.60 | 4.36 | |
| SCHOMMELLAGER 9 HR1840 | ||||
| 049 | 219029-7 | 14.30 | 17.30 | |
| SLUITRING 9 | ||||
| 050 | 253733-8 | 1.00 | 1.21 | |
| INBUSBOUT M3X12MM HR166D | ||||
| 051 | 251510-2 | 1.00 | 1.21 | |
| REVET 3 HR1841F* | ||||
| 052 | 253381-3 | 1.00 | 1.21 | |
| PLAAT TBV VEER HR1841F* | ||||
| 053 | 347129-4 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 054 | 221496-4 | |||
| KOGELLAGER 626LLB A | ||||
| 055 | 211016-2 | 6.00 | 7.26 | |
| DRUKVEER 7 HR1841F* | ||||
| 056 | 232359-9 | 1.00 | 1.21 | |
| O-RING 60 HR010G | ||||
| 057 | 213833-6 | 1.00 | 1.21 | |
| BINNENHUIS COMPLEET HR1840 | ||||
| 058 | 144270-2 | 16.50 | 19.96 | |
| O-RING 12 HR5210C | ||||
| 059 | 213118-0 | 1.00 | 1.21 | |
| RING 9 HR1840* | ||||
| 060 | 326893-0 | 1.20 | 1.45 | |
| KOGELLAGER 609LLU | ||||
| 061 | 210060-6 | 4.80 | 5.81 | |
| SLUITRING 9 | ||||
| 062 | 267231-6 | 1.00 | 1.21 | |
| ANKER 240V HR1840 | ||||
| 063 | 513989-8 | 28.60 | 34.61 | |
| ISOLATIERING HR1841F | ||||
| 064 | 681670-0 | 1.00 | 1.21 | |
| KOGELLAGER 627DDW A | ||||
| 065 | 210045-2 | 3.60 | 4.36 | |
| BORGRING 15 DLS211Z A | ||||
| 066 | 267804-5 | 1.00 | 1.21 | |
| Borgring 15 Hr2230 P | ||||
| 066 | I55213 | 0.83 | 1.00 | |
| TUSSENPLAAT HR1841F | ||||
| 067 | 457350-8 | 1.20 | 1.45 | |
| TAPSCHROEF 4X45 P | ||||
| 068 | 266069-6 | 1.20 | 1.45 | |
| VELD HR1840 | ||||
| 069 | 633994-0 | 10.80 | 13.07 | |
| PEN 4MM HR1841F* | ||||
| 070 | 256347-2 | 1.00 | 1.21 | |
| MOTORHUIS HR1841F | ||||
| 071 | 457352-4 | 6.00 | 7.26 | |
| DRUKVEER 10B HR1840* | ||||
| 072 | 232358-1 | 1.00 | 1.21 | |
| BUFFERRING HR1841F* | ||||
| 073 | 424951-7 | 2.40 | 2.90 | |
| HANDGREEP HR1841F | ||||
| 074 | 457355-8 | 8.40 | 10.16 | |
| BUS 8 HR1841F* | ||||
| 075 | 257417-0 | 1.00 | 1.21 | |
| TAPSCHROEF 4X18 HR1841F | ||||
| 076 | 251530-6 | 1.00 | 1.21 | |
| KOOLBORSTELSET CB-459 A | ||||
| 077 | 195026-6 | 2.40 | 2.90 | |
| KOOLBORSTELHOUDER HR1840 | ||||
| 078 | 632K41-0 | 8.40 | 10.16 | |
| LICHT CIRCUIT HR2611FT | ||||
| 079 | 631937-6 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 080 | 265B67-9 | 1.00 | 1.21 | |
| HANDGREEPDEKSEL HR1840 | ||||
| 081 | 457354-0 | 7.20 | 8.71 | |
| TAPSCHR 4X14MM GA9070Y A | ||||
| 082 | 265B74-2 | 1.00 | 1.21 | |
| Tapschroef 4X14 Ga7020 P | ||||
| 082 | 266385-6 | 0.83 | 1.00 | |
| TREKONTLASTER | ||||
| 083 | 687682-1 | 1.00 | 1.21 | |
| KABELTULE 10-110 | ||||
| 084 | 682566-8 | 1.20 | 1.45 | |
| NETSNOER 2X1.50 4.0MTR A | ||||
| 085 | 695123-3 | 22.00 | 26.62 | |
| SCHAKELAAR HR1840* | ||||
| 086 | 651086-3 | 13.20 | 15.97 | |
| NAAMPLAAT HR1841F | ||||
| 087 | 853K16-8 | 3.60 | 4.36 | |
| BESCHERMLABEL HR1841F* | ||||
| 088 | 813E00-9 | 2.40 | 2.90 | |
