Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR2470'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

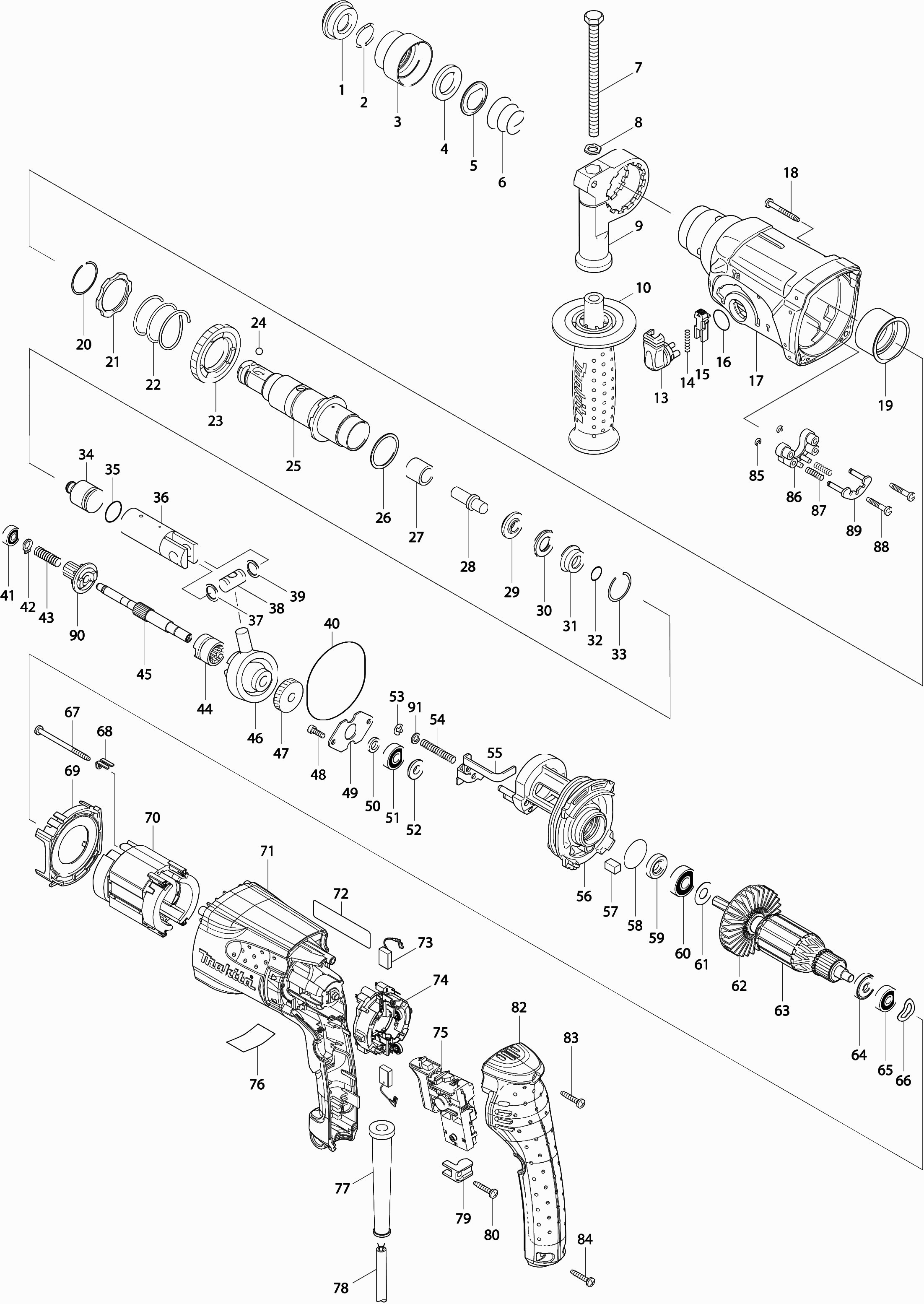

Tekeningen van de Makita HR2470
Onderdelen lijst van de Makita HR2470
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| RUBBER STOFKAP 35 HR2440/50 | ||||
| 001* | 286263-4 | 1.20 | 1.45 | |
| BORGRING 19 HR2440/50 A | ||||
| 002 | 233940-9 | 1.20 | 1.45 | |
| BOORHOUDERKAP HR2440/50 | ||||
| 003 | 417629-9 | 1.20 | 1.45 | |
| RING 21 HR2440/50 | ||||
| 004* | 257241-1 | 1.20 | 1.45 | |
| GELEIDERING HR2440/50 | ||||
| 005 | 345187-4 | 1.20 | 1.45 | |
| DRUKVEER 21-29 HR2440/50 | ||||
| 006 | 233916-6 | 1.00 | 1.21 | |
| ZESKANTBOUT M8X120MM A | ||||
| 007 | 265583-9 | 1.20 | 1.45 | |
| SLUITRING ZESKANT HP2051/F | ||||
| 008 | 345280-4 | 1.00 | 1.21 | |
| ZIJHANDGREEP BOORMACHINE/COMBIHAMER | ||||
| 009 | 136603-5 | 4.00 | 4.84 | |
| HANDGREEP HR2230 RUBBER A | ||||
| 010 | 158057-6 | 9.60 | 11.62 | |
| MOER M8 ZWT | ||||
| 010A | 931402-8 | 1.00 | 1.21 | |
| VERSTELKNOP HR2470 | ||||
| 013 | 162245-9 | 2.40 | 2.90 | |
| DRUKVEER 3X28MM HR1830F | ||||
| 014 | 234264-6 | 1.00 | 1.21 | |
| BLOKKEERKNOP HR1830F | ||||
| 015 | 419192-8 | 1.00 | 1.21 | |
| O-RING 17 HR2440/50 | ||||
| 016 | 213278-8 | 1.00 | 1.21 | |
| TANDWIELHUIS CPL HR2470 | ||||
| 017 | 158216-2 | 14.30 | 17.30 | |
| KEERRING 25 BHR240 A | ||||
| 017A | 213345-9 | 2.40 | 2.90 | |
| SCHROEF 4X35 A | ||||
| 018 | 266351-3 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 018-1 | 265B69-5 | |||
| NAALDLAGER HR2440/50 | ||||
| 019 | 153290-5 | 7.20 | 8.71 | |
| BORGRING 29 HR2440/50 | ||||
| 020 | 233929-7 | 1.00 | 1.21 | |
| REVET 31 BHR241 A | ||||
| 021 | 267460-1 | 1.20 | 1.45 | |
| DRUKVEER 32 HR2450FT | ||||
| 022 | 233401-9 | 2.40 | 2.90 | |
| TANDWIEL 51 HR2450FT | ||||
| 023 | 227109-5 | 10.80 | 13.07 | |
| STALEN KOGEL 7.0 HR2400 | ||||
| 024* | 216022-2 | 1.00 | 1.21 | |
| BOORHOUDER COMPL BHR202/2470 A | ||||
| 025 | 123100-0 | 41.80 | 50.58 | |
| SLUITRING 28MM HR2440/50 | ||||
| 026 | 267229-3 | 1.00 | 1.21 | |
| BUS HR2230 | ||||
| 027 | 331769-8 | 2.40 | 2.90 | |
| SLAGSTUK BHR240 | ||||
| 028 | 324669-9 | 2.40 | 2.90 | |
| RING 10 HR2450FT | ||||
| 029 | 324402-9 | 2.40 | 2.90 | |
| STOOTRING BHR240 | ||||
| 030 | 421955-0 | 1.20 | 1.45 | |
| O-RING HUIS HR2440/50 | ||||
| 031 | 324216-6 | 6.00 | 7.26 | |
| O-RING 9 HR2440/50 | ||||
| 032* | 213073-6 | 1.20 | 1.45 | |
| VEERRING 28 HR2440/50 | ||||
| 033* | 233917-4 | 1.00 | 1.21 | |
| SLAGHAMER HR2460 | ||||
| 034 | 324733-6 | 2.40 | 2.90 | |
| O-RING 16 HK0500 | ||||
| 035* | 213227-5 | 1.20 | 1.45 | |
| ZUIGER CILINDER HR2470 | ||||
| 036 | 318132-2 | 13.20 | 15.97 | |
| SLUITRING 12 BHR240/241 | ||||
| 037 | 267104-3 | 1.20 | 1.45 | |
| ZUIGERPEN HR2440/50 A | ||||
| 038 | 324215-8 | 2.40 | 2.90 | |
| SLUITRING 12 BHR240/241 | ||||
| 039 | 267104-3 | 1.20 | 1.45 | |
| O-RING 63 BHR240 | ||||
| 040 | 213727-5 | 2.40 | 2.90 | |
| KOGELLAGER 606ZZ A | ||||
| 041 | 210137-7 | 1.20 | 1.45 | |
| BORGRING S-7 | ||||
| 042 | 961003-8 | 1.00 | 1.21 | |
| DRUKVEER 7 HR2450 | ||||
| 043 | 233343-7 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 044 | 331768-0 | |||
| KOPPELING AS | ||||
| 045 | 324668-1 | 9.60 | 11.62 | |
| SCHOMMELLAGER 10 BHR200 P | ||||
| 046 | 219014-0 | 45.10 | 54.57 | |
| TANDWIEL HR2230 | ||||
| 047 | 226656-3 | 3.60 | 4.36 | |
| ZESKANTBOUT M4X12 HR2440/50 | ||||
| 048 | 266273-7 | 1.00 | 1.21 | |
| LAGERBORGING HR2440/50 | ||||
| 049 | 345179-3 | 1.00 | 1.21 | |
| SLUITRING 8MM | ||||
| 050 | 267234-0 | 1.00 | 1.21 | |
| KOGELLAGER 608ZZ A | ||||
| 051 | 210046-0 | 1.20 | 1.45 | |
| RING 8 BHR243 | ||||
| 052 | 324212-4 | 4.80 | 5.81 | |
| STOPRING E-4 | ||||
| 053 | 961011-9 | 1.00 | 1.21 | |
| DRUKVEER 6 HR2450 | ||||
| 054 | 233342-9 | 1.00 | 1.21 | |
| WISSELPLAAT HR2450 | ||||
| 055 | 345363-0 | 2.40 | 2.90 | |
| LAGERHUIS HR2470 A | ||||
| 056 | 141574-3 | 10.80 | 13.07 | |
| DEMPINGSVILT BHR240 | ||||
| 057 | 443126-9 | 1.00 | 1.21 | |
| O-RING 26 A | ||||
| 058 | 213407-3 | 1.20 | 1.45 | |
| KEERRING 10 HR2230 P | ||||
| 059 | 213077-8 | 3.60 | 4.36 | |
| KOGELLAGER 6000DDW HM1213C A | ||||
| 060 | 211289-7 | 13.20 | 15.97 | |
| SLUITRING 10 MT870 | ||||
| 061 | 267213-8 | 1.20 | 1.45 | |
| WAAIER 64 HR2230 | ||||
| 062 | 240092-9 | 2.40 | 2.90 | |
| ANKER HR2460 A | ||||
| 063 | 517984-0 | 33.00 | 39.93 | |
| ISOLATIERING JR180D | ||||
| 064 | 681652-2 | 1.00 | 1.21 | |
| KOGELLAGER 627DDW A | ||||
| 065 | 210045-2 | 3.60 | 4.36 | |
| BORGRING 15 DLS211Z A | ||||
| 066 | 267804-5 | 1.00 | 1.21 | |
| TAPSCHROEF PT4X60 | ||||
| 067 | 266052-3 | 1.20 | 1.45 | |
| BORGPLAAT GD0800C | ||||
| 068 | 344871-8 | 1.20 | 1.45 | |
| TUSSENPLAAT HR2230 | ||||
| 069 | 419716-0 | 1.00 | 1.21 | |
| VELD HR2460 A | ||||
| 070 | 621884-9 | 26.40 | 31.94 | |
| VELD HR2460 A | ||||
| 070-1 | 621884-9 | 26.40 | 31.94 | |
| MOTORHUIS HR2460 | ||||
| 071 | 419731-4 | 10.80 | 13.07 | |
| Niet meer leverbaar, geen vervanging | ||||
| 072 | 863538-4 | |||
| KOOLBORSTEL SET CB-325 | ||||
| 073* | 194074-2 | 2.40 | 2.90 | |
| KOOLBORSTELHOUDER HR2230 | ||||
| 074 | 638500-6 | 9.60 | 11.62 | |
| SCHAKELAAR HR2230 | ||||
| 075 | 650588-6 | 16.50 | 19.96 | |
| LABEL SERIENR. HR2470* | ||||
| 076 | 814963-2 | 2.40 | 2.90 | |
| KABELTULE 10-110 | ||||
| 077 | 682566-8 | 1.20 | 1.45 | |
| NETSNOER 2X1.50 4.0MTR A | ||||
| 078 | 695123-3 | 22.00 | 26.62 | |
| KLEMSTRIP 4350T | ||||
| 079 | 687260-7 | 1.00 | 1.21 | |
| TAPSCHROEF 4X22 GA4530 P | ||||
| 080 | 266324-6 | 1.00 | 1.21 | |
| MOTORHUISDEKSEL HR2230 | ||||
| 082 | 419717-8 | 6.00 | 7.26 | |
| TAPSCHROEF 4X22 GA4530 P | ||||
| 083 | 266324-6 | 1.00 | 1.21 | |
| TAPSCHROEF 4X22 GA4530 P | ||||
| 084 | 266324-6 | 1.00 | 1.21 | |
| STOPRING E-3 A | ||||
| 085 | 961017-7 | 1.00 | 1.21 | |
| GELEIDE BASIS HR2450 | ||||
| 086 | 417796-0 | 1.00 | 1.21 | |
| DRUKVEER 4 HR2450 ZWART | ||||
| 087 | 233344-5 | 1.00 | 1.21 | |
| Niet meer leverbaar, geen vervanging | ||||
| 088 | 266374-1 | |||
| TAPSCHROEF 4X25 A | ||||
| 088-1 | 265B73-4 | 1.00 | 1.21 | |
| BLOKKEERPLAAT HR2450 | ||||
| 089 | 163430-7 | 2.40 | 2.90 | |
| TANDWIEL 10 HR2470 | ||||
| 090 | 227179-4 | 17.60 | 21.30 | |
| SLUITRING 5 DCU180 P | ||||
| 091 | 941102-2 | 1.00 | 1.21 | |
