Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR3012FC'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

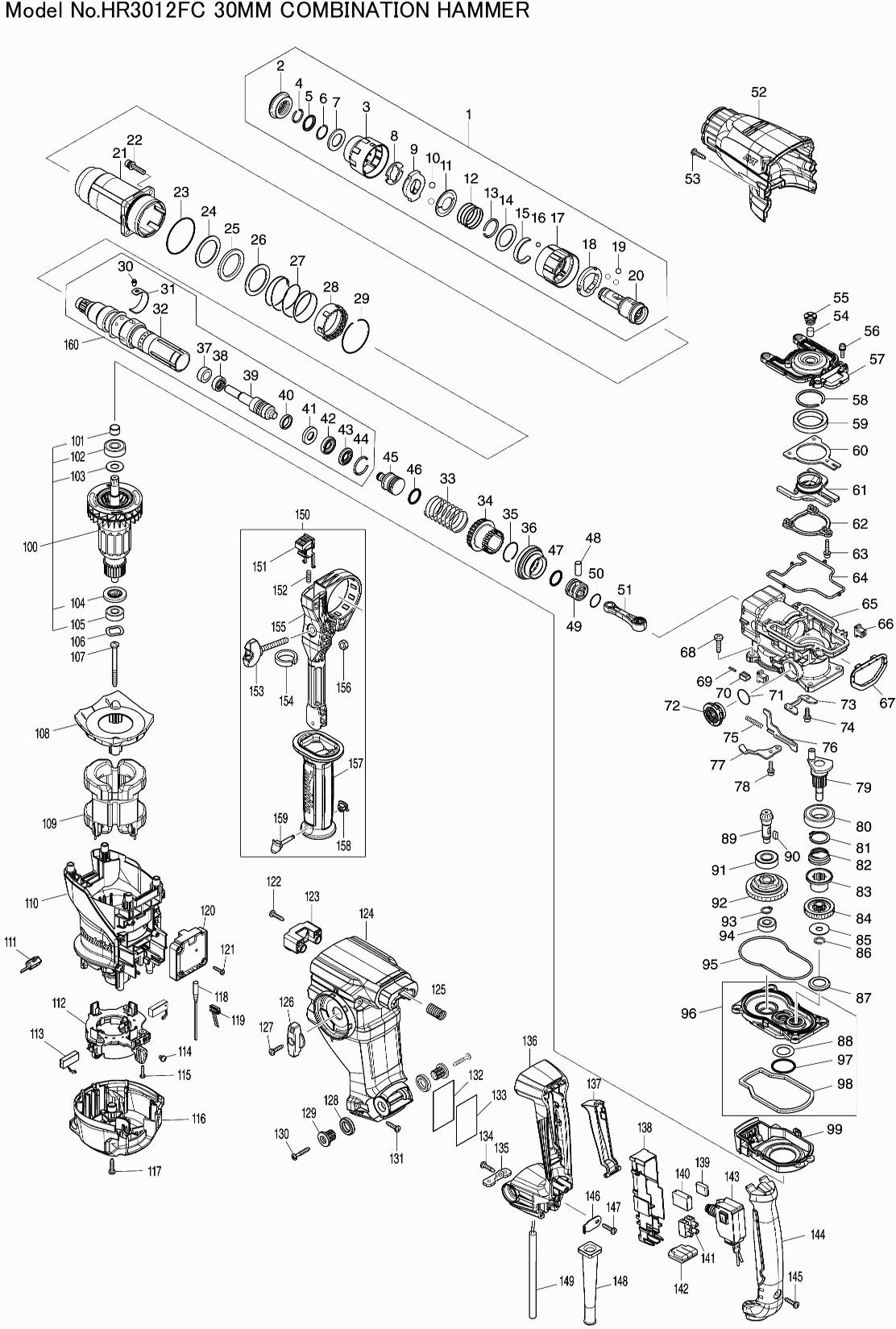

Tekeningen van de Makita HR3012FC
Onderdelen lijst van de Makita HR3012FC
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| BOORKOP SDS-PLUS | ||||
| 001 | 191F47-2 | 20.00 | 24.20 | |
| RUBBER STOFKAP 35 HR2300 | ||||
| 001 | 286288-8 | 1.20 | 1.45 | |
| BOORKOPKAP HR3001/11C | ||||
| 002 | 459685-3 | 2.40 | 2.90 | |
| ADFDEKKAP HR3012FC | ||||
| 002 | 422570-3 | 1.20 | 1.45 | |
| BOORKOPAFDEKKAP HR3012FC | ||||
| 003 | 459162-5 | 4.80 | 5.81 | |
| VEERRING 14 HR2300 | ||||
| 003 | 233989-9 | 1.00 | 1.21 | |
| SLUITREVET 16MM HR2631F | ||||
| 004 | 346834-0 | 1.21 | 1.46 | |
| VEERRING 14 HR2300 | ||||
| 004 | 233989-9 | 1.00 | 1.21 | |
| SLUITREVET 16MM HR2631F | ||||
| 005 | 346834-0 | 1.21 | 1.46 | |
| SLUITRING 16 HR2300 P | ||||
| 005 | 346221-3 | 1.00 | 1.21 | |
| BORGVEER 15 HR2300 | ||||
| 005 | 233992-0 | 1.00 | 1.21 | |
| RING 17 HR3001/11 | ||||
| 006 | 327269-4 | 4.80 | 5.81 | |
| BORGVEER 15 HR2300 | ||||
| 006 | 233992-0 | 1.00 | 1.21 | |
| REVET 17MM HR3012FC | ||||
| 007 | 253467-3 | 1.20 | 1.45 | |
| STALEN KOGEL 7.0 HR2400 | ||||
| 007 | 216022-2 | 1.00 | 1.21 | |
| PLAAT HR3012FC | ||||
| 008 | 347687-0 | 1.20 | 1.45 | |
| STOPPER HR3012FC | ||||
| 009 | 310926-1 | 6.00 | 7.26 | |
| DRUKVEER 21-34 HR3001/11 | ||||
| 009 | 232503-8 | 1.00 | 1.21 | |
| STALEN KOGEL 7.0 HR2400 | ||||
| 010 | 216022-2 | 1.00 | 1.21 | |
| GELEIDINGSSLUITRING HR3012FC | ||||
| 011 | 347745-2 | 1.20 | 1.45 | |
| DRUKVEER 26 HR3012FC | ||||
| 012 | 232554-1 | 1.00 | 1.21 | |
| BORGRING 21 HR2450FT | ||||
| 013 | 233924-7 | 1.00 | 1.21 | |
| SLUITRING 24MM HR3012FC | ||||
| 014 | 253468-1 | 1.20 | 1.45 | |
| BLADVEER HR3012FC | ||||
| 015 | 232555-9 | 1.00 | 1.21 | |
| STALEN KOGEL 5.0 | ||||
| 016 | 216018-3 | 1.00 | 1.21 | |
| AFDEKKAP A HR3012FC | ||||
| 017 | 459159-4 | 6.00 | 7.26 | |
| WISSELRING A HR3012FC | ||||
| 018 | 347496-7 | 7.20 | 8.71 | |
| STALEN KOGEL 6 LF1000 A | ||||
| 019 | 216030-3 | 1.00 | 1.21 | |
| GEREEDSCHAPHOUDER HR3012FC | ||||
| 020 | 327264-4 | 13.20 | 15.97 | |
| CILINDERHUIS HR3001/11C | ||||
| 021 | 140J35-0 | 14.30 | 17.30 | |
| KEERRING (OLIE) 25 HR2460 | ||||
| 021C10 | 213636-8 | 4.80 | 5.81 | |
| KEERRING (OLIE) 25 HR2460 | ||||
| 021-C10 | 213636-8 | 4.80 | 5.81 | |
| INBUSSCHR M5X25MM HR3011FC | ||||
| 022 | 266793-1 | 1.00 | 1.21 | |
| O-RING 46 | ||||
| 023 | 213620-3 | 1.20 | 1.45 | |
| REVET 31 HR2811C | ||||
| 024 | 267354-0 | 1.00 | 1.21 | |
| RUBBER RING 31 HR3001/11C | ||||
| 025 | 422493-5 | 2.40 | 2.90 | |
| REVET 31 HR2811C | ||||
| 026 | 267354-0 | 1.00 | 1.21 | |
| DRUKVEER 37 HR3001/11 | ||||
| 027 | 232496-9 | 1.00 | 1.21 | |
| BLOKKEERBUS HR2811 | ||||
| 028 | 419986-1 | 1.20 | 1.45 | |
| VEERRING 41 HR2811 | ||||
| 029 | 233952-2 | 1.00 | 1.21 | |
| KRAAGPIN 4 HR3011FC | ||||
| 030 | 256598-7 | 1.20 | 1.45 | |
| BLADVEER HR3011FC | ||||
| 031 | 347501-0 | 1.00 | 1.21 | |
| GEREEDSCHAPGELEIDER HR3012FC | ||||
| 032 | 327272-5 | 30.80 | 37.27 | |
| BOOR-BEITELHOUDER HR3011FC | ||||
| 032 | 327277-5 | 30.80 | 37.27 | |
| DRUKVEER 27 HR3001/11 | ||||
| 033 | 232497-7 | 1.00 | 1.21 | |
| GELEIDEBUS HR3001/11 | ||||
| 034 | 327276-7 | 8.40 | 10.16 | |
| BORGVEER 24 HR3001/11 | ||||
| 035 | 232501-2 | 1.00 | 1.21 | |
| TANDWIEL 31 A HR3001/11 | ||||
| 036 | 226868-8 | 17.60 | 21.30 | |
| BUS 11 HR3011FC | ||||
| 037 | 327515-5 | 2.40 | 2.90 | |
| RING 11 HR3011FC | ||||
| 038 | 327516-3 | 2.40 | 2.90 | |
| SLAGBOUT A HR3011FC | ||||
| 039 | 140S89-1 | 13.20 | 15.97 | |
| SLAGSTUK HR3012FC | ||||
| 039 | 140S90-6 | 11.00 | 13.31 | |
| PAKKINGRING 12 HR3011FC | ||||
| 040 | 213880-7 | 2.40 | 2.90 | |
| RING 11 HR3011FC | ||||
| 041 | 327268-6 | 1.20 | 1.45 | |
| STOOTRING 12 HR2300 | ||||
| 042 | 424267-0 | 1.20 | 1.45 | |
| SLUITRING 11 HR3011FC | ||||
| 043 | 327271-7 | 1.20 | 1.45 | |
| VEERRING 21 HK0500 | ||||
| 044 | 231987-7 | 1.00 | 1.21 | |
| SLAGSTUK HR3001/11 | ||||
| 045 | 327266-0 | 3.60 | 4.36 | |
| O-RING 16 HR3001/11 | ||||
| 046 | 213881-5 | 3.60 | 4.36 | |
| O-RING 16 HR3001/11 | ||||
| 047 | 213881-5 | 3.60 | 4.36 | |
| PIN 7 HR3001/11 | ||||
| 048 | 268122-4 | 1.00 | 1.21 | |
| ZUIGER HR3001/11 | ||||
| 049 | 319807-6 | 4.80 | 5.81 | |
| O-RING 16 BHR240 | ||||
| 050 | 213226-7 | 1.20 | 1.45 | |
| DRIJFSTANG HR3001/11 | ||||
| 051 | 140J36-8 | 4.80 | 5.81 | |
| CILINDERKAP HR3011/12 | ||||
| 052 | 459167-5 | 7.20 | 8.71 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 053 | 265B67-9 | 1.00 | 1.21 | |
| DEMPINGSVILT HR2300 | ||||
| 054 | 443153-6 | 1.00 | 1.21 | |
| FILTERKAP HR3001/11 | ||||
| 055 | 459180-3 | 1.00 | 1.21 | |
| ZESKANTBOUT DCS230T | ||||
| 056 | 922123-3 | 1.00 | 1.21 | |
| KRUKASKAP HR3011/12 | ||||
| 057 | 319802-6 | 7.20 | 8.71 | |
| BORGRING HR2811 | ||||
| 058 | 961140-8 | 1.20 | 1.45 | |
| KOGELLAGER 6806DDW A | ||||
| 059 | 211423-9 | 4.80 | 5.81 | |
| LAGERBORGRING B HR3001/11 | ||||
| 060 | 347500-2 | 1.20 | 1.45 | |
| BALANSGEWICHT HR3001/11 | ||||
| 061 | 140J31-8 | 36.30 | 43.92 | |
| BALANSHOUDER HR3001/11 | ||||
| 062 | 310927-9 | 3.60 | 4.36 | |
| INBUSBOUT M4X20MM | ||||
| 063 | 266948-8 | 1.00 | 1.21 | |
| PAKKINGRING B HR3001/11 | ||||
| 064 | 459182-9 | 1.20 | 1.45 | |
| KRUKASHUIS CPL HR3001/11 | ||||
| 065 | 140J33-4 | 23.10 | 27.95 | |
| MONTAGEBUS MT860 | ||||
| 066 | 455165-7 | 1.00 | 1.21 | |
| STOOTKUSSEN HR3001/11 | ||||
| 067 | 422492-7 | 1.20 | 1.45 | |
| SCHROEF 4X20 HR2811 P | ||||
| 068 | 266420-0 | 1.00 | 1.21 | |
| TAPSCHROEF 5X20 A | ||||
| 068-1 | 266021-4 | 1.20 | 1.45 | |
| DRUKVEER 2 HR3001/11 | ||||
| 069 | 232499-3 | 1.00 | 1.21 | |
| DRUKPLAAT HR3001/11 | ||||
| 070 | 310929-5 | 1.00 | 1.21 | |
| O-RING 18 | ||||
| 071 | 213262-3 | 1.20 | 1.45 | |
| KOPPELPLAAT HR3001/11 | ||||
| 072 | 459175-6 | 2.40 | 2.90 | |
| LAGERBORGRING A HR3001/11 | ||||
| 073 | 347497-5 | 1.20 | 1.45 | |
| ZESKANTBOUT DCS230T | ||||
| 074 | 922123-3 | 1.00 | 1.21 | |
| DRUKVEER 4 HR2811 | ||||
| 075 | 234019-9 | 1.00 | 1.21 | |
| VERBINDINGSPLAAT HR4510C | ||||
| 076 | 345814-3 | 1.00 | 1.21 | |
| GELEIDEPLAAT HR3001/11 | ||||
| 077 | 347498-3 | 1.20 | 1.45 | |
| ZESKANTBOUT DCS230T | ||||
| 078 | 922123-3 | 1.00 | 1.21 | |
| KRUKAS CPL HR3001/11 | ||||
| 079 | 140M22-7 | 10.80 | 13.07 | |
| KOGELLAGER 6904 | ||||
| 080 | 211323-3 | 8.40 | 10.16 | |
| BORGRING S-20 | ||||
| 081 | 961060-6 | 1.00 | 1.21 | |
| DRUKVEER 21-26 HR3001/11 | ||||
| 082 | 232498-5 | 1.00 | 1.21 | |
| KOPPELING HR3001/11 | ||||
| 083 | 327273-3 | 3.60 | 4.36 | |
| TANDWIEL 31 B HR3001/11 | ||||
| 084 | 226869-6 | 8.40 | 10.16 | |
| REVET 29 HR2811C | ||||
| 085 | 267353-2 | 1.00 | 1.21 | |
| BORGRING HR2811 | ||||
| 086 | 961034-7 | 1.00 | 1.21 | |
| SCHOTELRING 16 HR2811 | ||||
| 087 | 345818-5 | 1.00 | 1.21 | |
| SLUITRING 16 * | ||||
| 088 | 253749-3 | 1.00 | 1.21 | |
| TANDWIEL 8 HR3001/11 | ||||
| 089 | 226867-0 | 9.60 | 11.62 | |
| INLEGSPIE 4 HR4013C | ||||
| 090 | 254239-9 | 1.20 | 1.45 | |
| KOGELLAGER 6001DW P | ||||
| 091 | 211131-2 | 9.60 | 11.62 | |
| KOPPELBEGRENZER HR2811 | ||||
| 092 | 125386-2 | 41.80 | 50.58 | |
| BORGRING S-10 EM4351UH A | ||||
| 093 | 257408-1 | 1.20 | 1.45 | |
| KOGELLAGER 608DDW A | ||||
| 094 | 210005-4 | 4.80 | 5.81 | |
| PAKKINGRING A HR3001/11 | ||||
| 095 | 459181-1 | 1.00 | 1.21 | |
| TANDWIELHUIS HR3011/12 | ||||
| 096 | 136330-4 | 13.20 | 15.97 | |
| O-RING 26 A | ||||
| 097 | 213407-3 | 1.20 | 1.45 | |
| SPONSRUBBER HR3011FC | ||||
| 098 | 459183-7 | 1.00 | 1.21 | |
| LUCHTINLAAT HR3001/12 | ||||
| 099 | 140J32-6 | 6.00 | 7.26 | |
| ANKER HR3011/12 | ||||
| 100 | 515448-8 | 45.10 | 54.57 | |
| BUS 10 HR2811 | ||||
| 101 | 331775-3 | 1.20 | 1.45 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 102 | 211097-6 | |||
| SLUITRING 10 BST220/HR2811 | ||||
| 103 | 253171-4 | 1.00 | 1.21 | |
| ISOLATIERING | ||||
| 104 | 681644-1 | 1.00 | 1.21 | |
| KOGELLAGER 608DDW A | ||||
| 105 | 210005-4 | 4.80 | 5.81 | |
| BORGRING 15 DLS211Z A | ||||
| 106 | 267804-5 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 107 | 266329-6 | |||
| TUSSENPLAAT HR3001/11 | ||||
| 108 | 459172-2 | 1.20 | 1.45 | |
| VELD HR3001 | ||||
| 109 | 621899-6 | 26.40 | 31.94 | |
| MOTORHUIS HR3011/12 | ||||
| 110 | 459158-6 | 10.80 | 13.07 | |
| LEDCIRCUIT HR3001/11 | ||||
| 111 | 620C43-0 | 4.80 | 5.81 | |
| KOOLBORSTELHOUDER HR3001/11 | ||||
| 112 | 632N59-9 | 14.30 | 17.30 | |
| KOOLBORSTEL CB351 HR3011FC A | ||||
| 113 | 197244-2 | 7.20 | 8.71 | |
| SCHROEF 3.5X5 * | ||||
| 114 | 652044-2 | 1.00 | 1.21 | |
| SCHROEF M3X14 | ||||
| 115 | 266404-8 | 1.00 | 1.21 | |
| ACHTERDEKSEL HR3011/12 | ||||
| 116 | 459169-1 | 6.00 | 7.26 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 117 | 265B67-9 | 1.00 | 1.21 | |
| KABELBOOM HR3011/12 | ||||
| 118 | 632P88-4 | 1.20 | 1.45 | |
| KABELBOOM HR3011/12 | ||||
| 119 | 632P89-2 | 2.40 | 2.90 | |
| CONTROLLER HR3011/12 | ||||
| 120 | 620C41-4 | 39.60 | 47.92 | |
| SCHROEF M3X14 | ||||
| 121 | 266404-8 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 122 | 265B67-9 | 1.00 | 1.21 | |
| HANDGREEPBUS HR3001/11 | ||||
| 123 | 140M21-9 | 1.20 | 1.45 | |
| RUBBER PEN 6 AC320H P | ||||
| 123C10 | 263005-3 | 1.00 | 1.21 | |
| RUBBER PEN 6 AC320H P | ||||
| 123-C10 | 263005-3 | 1.00 | 1.21 | |
| HANDGREEPBASIS HR3011/12 | ||||
| 124 | 459161-7 | 7.20 | 8.71 | |
| DRUKVEER 10 HR3001/11 | ||||
| 125 | 232500-4 | 1.00 | 1.21 | |
| WISSELHENDEL HR3001/11 | ||||
| 126 | 459174-8 | 1.20 | 1.45 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 127 | 265B67-9 | 1.00 | 1.21 | |
| BUFFERRING HR001G | ||||
| 128 | 459184-5 | 1.00 | 1.21 | |
| SCHOUDERPIN 5 HR3001/11 | ||||
| 129 | 459176-4 | 1.00 | 1.21 | |
| TAPSCHROEF PF 5X25 P | ||||
| 130 | 266459-3 | 1.00 | 1.21 | |
| TAPSCHROEF 5X25 A | ||||
| 130-1 | 266041-8 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 131 | 265B67-9 | 1.00 | 1.21 | |
| NAAMPLAAT HR3011FC | ||||
| 132 | 856V77-3 | 3.60 | 4.36 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 133 | 818U61-0 | |||
| TAPSCHR 4X18MM DGA520 A | ||||
| 134 | 265B67-9 | 1.00 | 1.21 | |
| BORGPLAAT HR3001/11 | ||||
| 135 | 347502-8 | 2.40 | 2.90 | |
| HANDGREEP HR3001/11 | ||||
| 136 | 459164-1 | 4.80 | 5.81 | |
| SCHAKELAARHENDEL HR3001/11 | ||||
| 137 | 459177-2 | 1.20 | 1.45 | |
| SCHAKELAARHOUDER HR3001/11 | ||||
| 138 | 459178-0 | 2.40 | 2.90 | |
| AANLOOPWEERSTAND TW0350 | ||||
| 139 | 646755-9 | 2.40 | 2.90 | |
| CONDENSATOR 5704R 0,22UF P | ||||
| 140 | 645190-8 | 2.40 | 2.90 | |
| Kroonsteen RP0910 P | ||||
| 141 | 654531-7 | 2.10 | 2.54 | |
| BUFFER HR3001/11 | ||||
| 142 | 424031-9 | 1.00 | 1.21 | |
| SCHAKELAAR HR3001/11 | ||||
| 143 | 651385-3 | 22.00 | 26.62 | |
| HANDGREEPKAP HR3001/11 | ||||
| 144 | 459166-7 | 6.00 | 7.26 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 145 | 265B67-9 | 1.00 | 1.21 | |
| TREKONTLASTER HP1621 | ||||
| 146 | 687169-3 | 1.00 | 1.21 | |
| TAPSCHR 4X18MM DGA520 A | ||||
| 147 | 265B67-9 | 1.00 | 1.21 | |
| KABELTULE 10 GA9010C A | ||||
| 148 | 682573-1 | 2.40 | 2.90 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 149 | 665890-4 | |||
| ZIJHANDGREEP COMBIHAMER | ||||
| 150 | 126882-3 | 12.00 | 14.52 | |
| BLOKKEERKNOP DHR281/283* | ||||
| 151 | 144959-2 | 1.20 | 1.45 | |
| DRUKVEER 4 HR23/2600 | ||||
| 152 | 233360-7 | 1.00 | 1.21 | |
| VLEUGELBOUT M6X50MM | ||||
| 153 | 265625-9 | 1.20 | 1.45 | |
| SPONSRUBBER DHR281* | ||||
| 154 | 422258-5 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 155 | 458355-1 | |||
| ZESKANTMOER M6 | ||||
| 156 | 931302-2 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 157 | 458357-7 | |||
| AFDEKKAP HANDGRP DHR281/283 | ||||
| 158 | 422255-1 | 1.20 | 1.45 | |
| MONTAGEPIN H-GR DHR281/283* | ||||
| 159 | 161838-9 | 3.60 | 4.36 | |
| BOOR/BEITELHOUDER ASSY HR3001 | ||||
| 160 | 136305-3 | 63.80 | 77.20 | |
| BOOR/BEITELHOUDER HR3011/12 | ||||
| 160 | 136312-6 | 56.10 | 67.88 | |
| BOOR/BEITELHOUDER HR3011/12 | ||||
| 160-1 | 136312-6 | 56.10 | 67.88 | |
