Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR3850'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, 5 tot 10 werkdagen. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

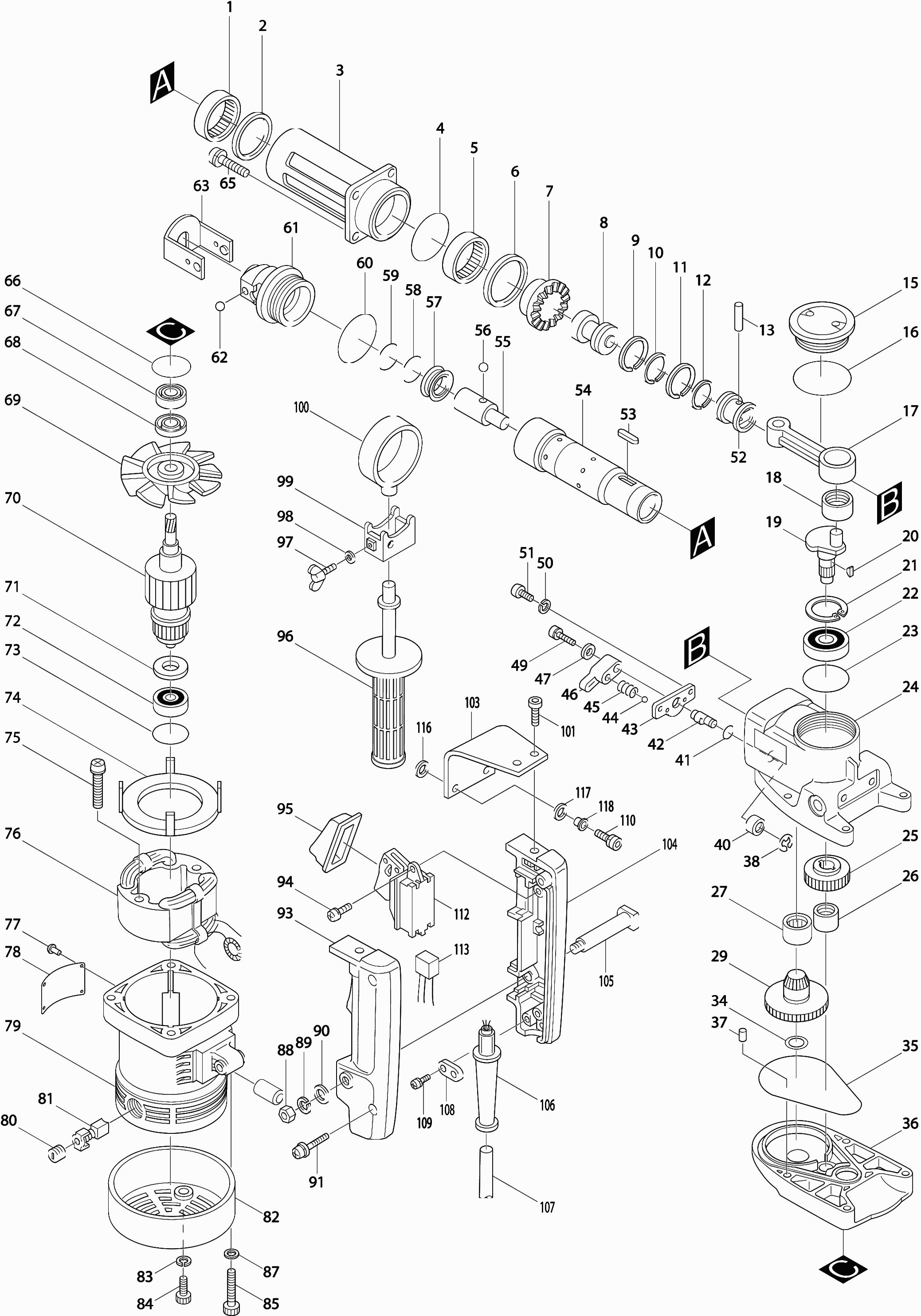

Tekeningen van de Makita HR3850
Onderdelen lijst van de Makita HR3850
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| NAALDLAGER 4516 * | ||||
| 001 | 212551-3 | 9.60 | 11.62 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 002 | 253831-8 | |||
| SLAGHUIS HR3850-HR3850K * | ||||
| 003 | 311674-5 | 112.20 | 135.76 | |
| O-RING 56 | ||||
| 004 | 213655-4 | 2.40 | 2.90 | |
| NAALDLAGER 4516 * | ||||
| 005 | 212551-3 | 9.60 | 11.62 | |
| SLUITRING 45 * | ||||
| 006 | 253832-6 | 6.00 | 7.26 | |
| TANDWIEL 36 HR3850-HR3850K * | ||||
| 007 | 221347-1 | 46.20 | 55.90 | |
| ZWEVENDE ZUIGER HR3850/K/B * | ||||
| 008 | 321369-2 | 13.20 | 15.97 | |
| ZUIGERVEER 34 HR3850-HR3850K | ||||
| 009* | 412038-7 | 8.40 | 10.16 | |
| BINNENRING 30 HR3850-HR3850K | ||||
| 010* | 412041-8 | 11.00 | 13.31 | |
| ZUIGERVEER 34 HR3850-HR3850K | ||||
| 011* | 412038-7 | 8.40 | 10.16 | |
| BINNENRING 30 HR3850-HR3850K | ||||
| 012* | 341743-8 | 3.60 | 4.36 | |
| PEN 8 P | ||||
| 013 | 256029-6 | 2.40 | 2.90 | |
| VULDOP HM0810 NIEUW A | ||||
| 015 | 411709-3 | 6.00 | 7.26 | |
| O-RING 60 | ||||
| 016 | 213654-6 | 2.40 | 2.90 | |
| DRIJFSTANG HM0810-HR3850 | ||||
| 017 | 312956-8 | 16.50 | 19.96 | |
| NAALDLAGER 1212 A | ||||
| 018 | 212108-0 | 11.00 | 13.31 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 019 | 321726-4 | |||
| INLEGSPIE 4 | ||||
| 020 | 254001-2 | 1.00 | 1.21 | |
| BORGRING R-47 | ||||
| 021 | 962203-3 | 1.20 | 1.45 | |
| KOGELLAGER 6204 | ||||
| 022 | 211306-3 | 10.80 | 13.07 | |
| O-RING 48 | ||||
| 023 | 213606-7 | 2.40 | 2.90 | |
| KRUKASHUIS HR3850-HR3850K * | ||||
| 024 | 157307-6 | 82.50 | 99.82 | |
| TANDWIEL 33 HR3850-HR3850K * | ||||
| 025 | 221689-3 | 11.00 | 13.31 | |
| NAALDLAGER 1210 | ||||
| 026 | 212102-2 | 6.00 | 7.26 | |
| NAALDLAGER 2216* | ||||
| 027 | 212359-5 | 11.00 | 13.31 | |
| KOPPELBEGRENZER HR3850 | ||||
| 029 | 134527-9 | 184.80 | 223.61 | |
| DUNNE SLUITRING 15 | ||||
| 034 | 253314-8 | 1.00 | 1.21 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 035 | 213853-0 | |||
| TANDWIELHUIS HR3850-HR3850K * | ||||
| 036 | 157306-8 | 42.90 | 51.91 | |
| RUBBER PEN 6 AC320H P | ||||
| 037 | 263005-3 | 1.00 | 1.21 | |
| STOPRING E-4 | ||||
| 038 | 961011-9 | 1.00 | 1.21 | |
| NAALDLAGER 609 A | ||||
| 040 | 212011-5 | 9.60 | 11.62 | |
| O-RING 10 AF500HP A | ||||
| 041 | 213055-8 | 1.00 | 1.21 | |
| SCHAKELAS HR3850-HR3850K * | ||||
| 042 | 321727-2 | 14.30 | 17.30 | |
| SCHAKELASPLAAT HR3850-HR3850 * | ||||
| 043 | 342786-3 | 2.40 | 2.90 | |
| STALEN KOGEL 4.8 | ||||
| 044 | 216002-8 | 1.00 | 1.21 | |
| DRUKVEER 3 | ||||
| 045 | 231317-2 | 1.00 | 1.21 | |
| SCHAKELHEFBOOM HR3850-HR3850K | ||||
| 046 | 410331-3 | 1.20 | 1.45 | |
| SLUITRING M4 | ||||
| 047 | 941052-1 | 1.00 | 1.21 | |
| INBUSBOUT M4X16 | ||||
| 049 | 922127-5 | 1.00 | 1.21 | |
| VEERRING 5MM DLS211 | ||||
| 050 | 253427-5 | 1.00 | 1.21 | |
| INBUSBOUT M5X12 | ||||
| 051 | 922212-4 | 1.00 | 1.21 | |
| ZUIGER HR3850-HR3850K * | ||||
| 052 | 321370-7 | 44.00 | 53.24 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 053 | 254205-6 | |||
| CILINDER 34 HR3850-HR3850K * | ||||
| 054 | 152335-6 | 139.70 | 169.04 | |
| SLAGSTUK HR3850 * | ||||
| 055 | 322216-0 | 24.20 | 29.28 | |
| STALEN KOGEL 7.9 A | ||||
| 056 | 216004-4 | 1.00 | 1.21 | |
| X-RING 28 | ||||
| 057* | 213428-5 | 17.60 | 21.30 | |
| O-RING 27 | ||||
| 058* | 213411-2 | 3.60 | 4.36 | |
| O-RING 27 | ||||
| 059* | 213411-2 | 3.60 | 4.36 | |
| O-RING 50 | ||||
| 060 | 213604-1 | 2.40 | 2.90 | |
| BEITELGELEIDER HR3850 | ||||
| 061 | 322325-5 | 51.70 | 62.56 | |
| STALEN KOGEL 7.9 A | ||||
| 062 | 216004-4 | 1.00 | 1.21 | |
| KLEMBEUGEL HR3520-3850-HM0810* | ||||
| 063 | 165227-0 | 28.60 | 34.61 | |
| ZESKANTBOUT M6X25MM A | ||||
| 065 | 266087-4 | 1.00 | 1.21 | |
| O-RING 32 | ||||
| 066 | 213459-4 | 1.20 | 1.45 | |
| KOGELLAGER 6201DDW A | ||||
| 067 | 211129-9 | 8.40 | 10.16 | |
| KEERRING 14 | ||||
| 068 | 213160-1 | 4.80 | 5.81 | |
| WAAIER 94 HR3850 * | ||||
| 069 | 241634-2 | 9.60 | 11.62 | |
| ANKER HR3850-HR3850K | ||||
| 070 | 514773-4 | 100.10 | 121.12 | |
| ISOLATIERING A | ||||
| 071 | 681635-2 | 1.20 | 1.45 | |
| KOGELLAGER 6200LLB | ||||
| 072 | 211066-7 | 4.80 | 5.81 | |
| O-RING 30 | ||||
| 073 | 213406-5 | 1.20 | 1.45 | |
| TUSSENPLAAT HM1200-HM1200K | ||||
| 074 | 410163-8 | 4.80 | 5.81 | |
| SCHROEF 5X45 * | ||||
| 075 | 911266-6 | 1.00 | 1.21 | |
| VELD HM1200 HR3850 A | ||||
| 076 | 528910-4 | 69.30 | 83.85 | |
| MOTORHUIS HM1200-K-HR3850-K | ||||
| 079 | 159034-1 | 39.60 | 47.92 | |
| KOOLBORSTELHOUDERDOP A | ||||
| 080 | 643650-4 | 1.20 | 1.45 | |
| KOOLBORSTEL SET CB-155 A | ||||
| 081* | 194987-7 | 6.10 | 7.38 | |
| ACHTERDEKSEL | ||||
| 082 | 284055-5 | 12.10 | 14.64 | |
| VEERRING 5MM DLS211 | ||||
| 083 | 253427-5 | 1.00 | 1.21 | |
| INBUSBOUT M5X16 A | ||||
| 084 | 922221-3 | 1.00 | 1.21 | |
| INBUSBOUT M6X55 A | ||||
| 085 | 922376-4 | 1.20 | 1.45 | |
| SLUITRING 6X12MM A | ||||
| 087 | 941151-9 | 1.00 | 1.21 | |
| ZESKANTMOER M6 | ||||
| 088 | 931302-2 | 1.00 | 1.21 | |
| VEERRING 6 A | ||||
| 089 | 253903-9 | 1.00 | 1.21 | |
| SLUITRING 6X12MM A | ||||
| 090 | 941151-9 | 1.00 | 1.21 | |
| SCHROEF 5X25 | ||||
| 091 | 911241-2 | 1.00 | 1.21 | |
| HANDGREEP HM1200-K-HR3850-ETCA | ||||
| 093 | 182077-8 | 17.60 | 21.30 | |
| SCHROEF 4X14 A | ||||
| 094 | 911123-8 | 1.00 | 1.21 | |
| STOFKAP VOOR SCHAKELAAR | ||||
| 095 | 421265-5 | 2.40 | 2.90 | |
| VLEUGELBOUT M6X18 A | ||||
| 097 | 924321-5 | 1.20 | 1.45 | |
| RUBBER RING 5,5 * | ||||
| 098 | 261049-7 | 1.20 | 1.45 | |
| KLEMBLOK HR3500-HR3520-HR3850 | ||||
| 099 | 164543-7 | 10.80 | 13.07 | |
| KLEMRING HR3850-HR3850K * | ||||
| 100 | 164572-0 | 12.10 | 14.64 | |
| INBUSBOUT M6X14 A | ||||
| 101 | 922316-2 | 1.00 | 1.21 | |
| VEERRING 6 A | ||||
| 102 | 253903-9 | 1.00 | 1.21 | |
| HANDGREEPBEUGEL HR3850(K) * | ||||
| 103 | 343754-9 | 6.00 | 7.26 | |
| BORSTBOUT HM1200 | ||||
| 105 | 321210-9 | 3.60 | 4.36 | |
| Niet meer leverbaar, geen vervanging | ||||
| 106 | 682505-8 | |||
| NETSNOER 2X1.50 4.0MTR A | ||||
| 107 | 695123-3 | 22.00 | 26.62 | |
| KLEMSTRIP SR2600 | ||||
| 108 | 687031-2 | 1.00 | 1.21 | |
| SCHROEF 4X18 SR2600 | ||||
| 109 | 911131-9 | 1.00 | 1.21 | |
| INBUSBOUT M6X14 A | ||||
| 110 | 922316-2 | 1.00 | 1.21 | |
| VEERRING 6 A | ||||
| 111 | 253903-9 | 1.00 | 1.21 | |
| SCHAKELAAR SW-52 6511322 | ||||
| 112 | 651145-3 | 26.40 | 31.94 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 114 | 423156-6 | |||
| STATORVEERTJE CB5 | ||||
| 121 | 654020-2 | 1.20 | 1.45 | |
| KLEMBUS 2MM TBV STAT.VEER | ||||
| 122 | 654502-4 | 1.00 | 1.21 | |
