Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HR5212C'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen.Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

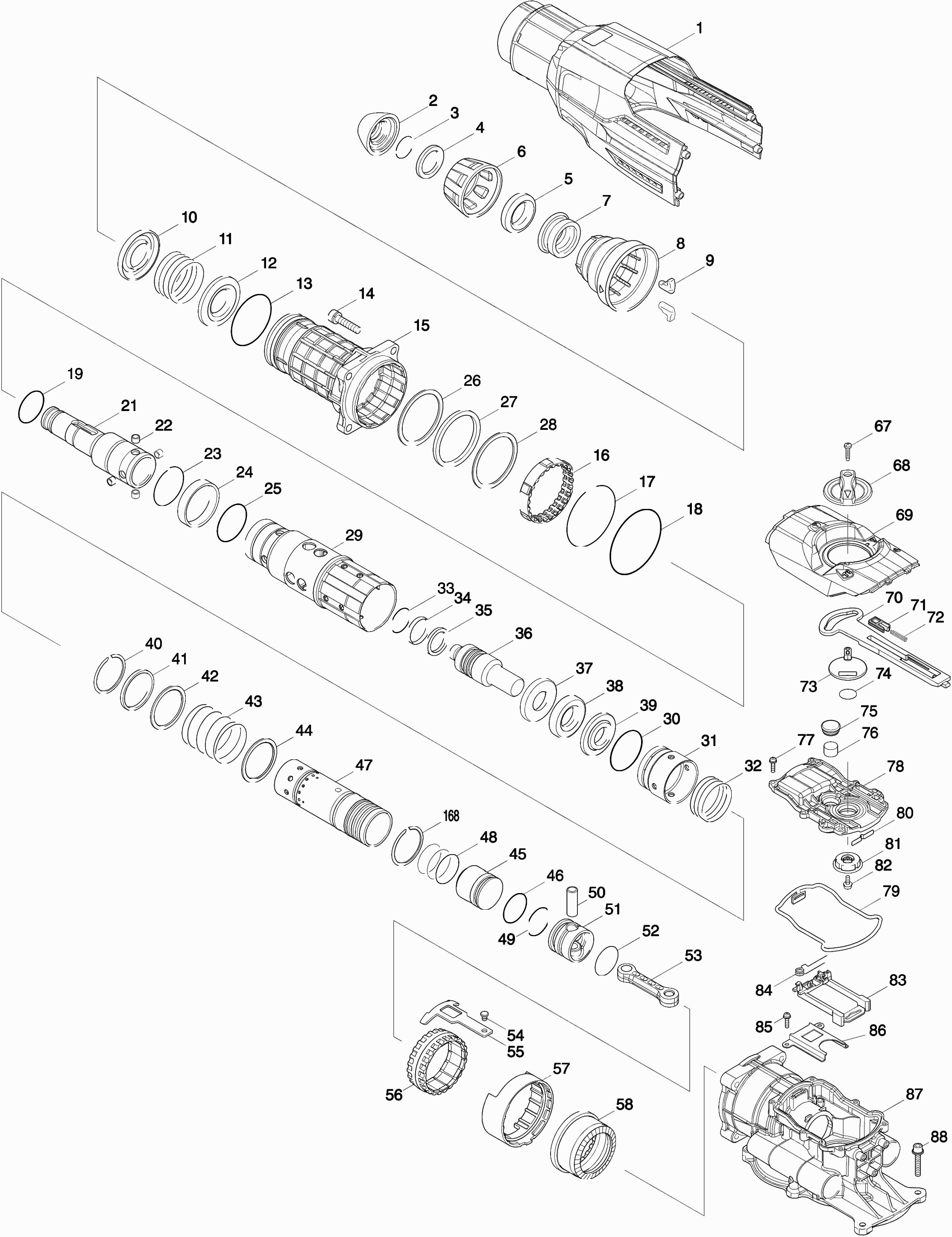

Tekeningen van de Makita HR5212C
Onderdelen lijst van de Makita HR5212C
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| MOTORHUIS DEKSEL HR5212C | ||||
| 001 | 142411-4 | 36.30 | 43.92 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 001A | 810100-6 | |||
| BEITELHOUDERKAP HR4013C | ||||
| 002 | 286292-7 | 2.40 | 2.90 | |
| BORGRING 25 HR5210C | ||||
| 003 | 233948-3 | 1.20 | 1.45 | |
| RING 28 HR5212C | ||||
| 004 | 257367-9 | 2.40 | 2.90 | |
| RUBBER RING 29 HR5202C | ||||
| 005 | 262172-1 | 6.00 | 7.26 | |
| BEITELBLOKKEERKAP HR5202C | ||||
| 006 | 454767-6 | 2.40 | 2.90 | |
| INSPANRING HR5210C | ||||
| 007 | 324752-2 | 14.30 | 17.30 | |
| ONTGRENDELKAP HR5202C | ||||
| 008 | 454768-4 | 3.60 | 4.36 | |
| GEREEDSCHAPKLEM HR5210C | ||||
| 009 | 310178-4 | 6.00 | 7.26 | |
| VEERGELEIDER HR5202C | ||||
| 010 | 346751-4 | 3.60 | 4.36 | |
| DRUKVEER 49 HR5202C | ||||
| 011 | 234317-1 | 2.40 | 2.90 | |
| VEERGELEIDER HR5202C | ||||
| 012 | 346751-4 | 3.60 | 4.36 | |
| O-RING 60 HR5212C A | ||||
| 013 | 213664-3 | 1.20 | 1.45 | |
| INBUSBOUT HR5210C | ||||
| 014 | 922456-6 | 1.00 | 1.21 | |
| CILINDER COMPLEET HR5202C | ||||
| 015 | 142408-3 | 56.10 | 67.88 | |
| O-RING 55 P | ||||
| 015A | 213663-5 | 2.40 | 2.90 | |
| O-RING 42 HR5212C | ||||
| 015B | 213778-8 | 11.00 | 13.31 | |
| GLIJLAGER 49 HR5212C | ||||
| 015C | 214603-6 | 8.40 | 10.16 | |
| VEERRING 54 HR5212C | ||||
| 015D | 259056-2 | 1.00 | 1.21 | |
| BLOKKEERBUS HR5212C | ||||
| 016 | 454769-2 | 2.40 | 2.90 | |
| VEERRING 74 HR5202C | ||||
| 017 | 259057-0 | 1.20 | 1.45 | |
| O-RING 78 HR5210C | ||||
| 018 | 213766-5 | 2.40 | 2.90 | |
| O-RING 38 HR5212C A | ||||
| 019 | 213789-3 | 2.40 | 2.90 | |
| BOOR/BEITELHOUDER A HR5202C | ||||
| 021 | 326361-3 | 125.40 | 151.73 | |
| PEN 9MM HR5212C | ||||
| 022 | 268308-0 | 1.20 | 1.45 | |
| BORGRING 46 HM1202C | ||||
| 023 | 231989-3 | 1.20 | 1.45 | |
| RING 49 HR5212C | ||||
| 024 | 257353-0 | 2.40 | 2.90 | |
| O-RING 45 HR5202C | ||||
| 025 | 213779-6 | 2.40 | 2.90 | |
| SLUITRING 60MM HR5212C | ||||
| 026 | 267477-4 | 2.40 | 2.90 | |
| RUBBER RING 60 HR5202C | ||||
| 027 | 262171-3 | 3.60 | 4.36 | |
| SLUITRING 60MM HR5212C | ||||
| 028 | 267477-4 | 2.40 | 2.90 | |
| BOOR/BEITELHOUDER B HR5202C | ||||
| 029 | 326362-1 | 161.70 | 195.66 | |
| O-RING 48 HR5212C | ||||
| 030 | 213783-5 | 3.60 | 4.36 | |
| GELEIDEBUS HR5202C | ||||
| 031 | 454761-8 | 2.40 | 2.90 | |
| DRUKVEER 45 HR5202C | ||||
| 032 | 234318-9 | 1.20 | 1.45 | |
| O-RING 26,5 HR5202C | ||||
| 033 | 213811-6 | 2.40 | 2.90 | |
| FLUORIDE RING 32,5 HR5212C | ||||
| 034 | 213780-1 | 13.20 | 15.97 | |
| SLAGBOUT HR5212C A | ||||
| 035 | 327245-8 | 11.00 | 13.31 | |
| SLAGBOUT HR5212C A | ||||
| 036 | 327245-8 | 11.00 | 13.31 | |
| RING 23 HR5212C | ||||
| 037 | 257354-8 | 4.80 | 5.81 | |
| RUBBER RING 24 HR5202C | ||||
| 038 | 262173-9 | 4.80 | 5.81 | |
| KRAAGREVET 23MM HR5212C | ||||
| 039 | 267856-6 | 4.80 | 5.81 | |
| BORGRING WR-44 HR5202C | ||||
| 040 | 257994-2 | 3.60 | 4.36 | |
| RING 44 HR5212C | ||||
| 041 | 257355-6 | 2.40 | 2.90 | |
| SLUITRING 44 HR5212C | ||||
| 042 | 267478-2 | 2.40 | 2.90 | |
| DRUKVEER 46 HR5202C | ||||
| 043 | 234319-7 | 3.60 | 4.36 | |
| SLUITRING 44 HR5212C | ||||
| 044 | 267478-2 | 2.40 | 2.90 | |
| SLAGHAMER HR5212C | ||||
| 045 | 326377-8 | 8.40 | 10.16 | |
| O-RING 33 HR5212C | ||||
| 046 | 213781-9 | 4.80 | 5.81 | |
| CILINDER HR5202C | ||||
| 047 | 332093-2 | 77.00 | 93.17 | |
| O-RING 35 | ||||
| 048 | 213460-9 | 1.20 | 1.45 | |
| O-RING 30 HR5212C | ||||
| 049 | 213782-7 | 3.60 | 4.36 | |
| BUS 9 HR5202C | ||||
| 050 | 257820-5 | 3.60 | 4.36 | |
| VEERRING 6 A | ||||
| 051 | 253903-9 | 1.00 | 1.21 | |
| O-RING 35 | ||||
| 052 | 213460-9 | 1.20 | 1.45 | |
| DRIJFSTANG HR5202C | ||||
| 053 | 454765-0 | 6.00 | 7.26 | |
| PLATPIN 6MM HR4013C | ||||
| 054 | 256548-2 | 1.00 | 1.21 | |
| VERBINDINGSPLAAT HR5202C | ||||
| 055 | 346749-1 | 4.80 | 5.81 | |
| GELEIDEBUS HR5202C | ||||
| 056 | 313272-1 | 16.50 | 19.96 | |
| GELEIDERING HR5202C | ||||
| 057 | 454779-9 | 6.00 | 7.26 | |
| TANDWIEL 33 HR5212C | ||||
| 058 | 227625-7 | 16.50 | 19.96 | |
| PLAAT TBV VEER HR5202C | ||||
| 059 | 454774-9 | 1.20 | 1.45 | |
| DRUKVEER 15 HR5210C | ||||
| 060 | 233497-0 | 2.40 | 2.90 | |
| O-RING 24 HR2430 | ||||
| 061 | 213953-6 | 1.20 | 1.45 | |
| PIJP 21,5 HR5212C | ||||
| 062 | 332092-4 | 3.60 | 4.36 | |
| O-RING 24 HR2430 | ||||
| 063 | 213953-6 | 1.20 | 1.45 | |
| BALANSGEWICHT HR5212C | ||||
| 064 | 326375-2 | 3.60 | 4.36 | |
| DRUKVEER 15 HR5210C | ||||
| 065 | 233497-0 | 2.40 | 2.90 | |
| HOUDER CPL HR006G | ||||
| 066 | 141E52-3 | 9.60 | 11.62 | |
| TAPSCHROEF 4X18 P | ||||
| 067 | 265A48-7 | 1.00 | 1.21 | |
| VERSTELKNOP HR4013C | ||||
| 068 | 454326-6 | 2.40 | 2.90 | |
| KRUKASHUIS KAP HR5212C | ||||
| 069 | 319082-4 | 9.60 | 11.62 | |
| CONTROLE PLAAT HR5202C | ||||
| 070 | 454770-7 | 2.40 | 2.90 | |
| SCHUIF PLAAT HR5202C | ||||
| 071 | 454771-5 | 1.20 | 1.45 | |
| DRUKVEER 4MM HR4013C | ||||
| 072 | 234284-0 | 1.00 | 1.21 | |
| KRUKASGELEIDER HR4013C | ||||
| 073 | 454345-2 | 2.40 | 2.90 | |
| O-RING 18 | ||||
| 074 | 213262-3 | 1.20 | 1.45 | |
| FILTERKAP HR5202C | ||||
| 075 | 424607-2 | 1.20 | 1.45 | |
| FILTER HK1820 | ||||
| 076 | 443129-3 | 1.00 | 1.21 | |
| SCHROEF 4X16 A | ||||
| 077 | 911526-6 | 1.00 | 1.21 | |
| OLIEDEKSEL HR5202C | ||||
| 078 | 454764-2 | 4.80 | 5.81 | |
| AFDICHTRING B HR5202C P | ||||
| 079 | 424608-0 | 2.40 | 2.90 | |
| BLADVEER HR4013C | ||||
| 080 | 232280-2 | 1.00 | 1.21 | |
| VERBINDINGSRING HR5202C | ||||
| 081 | 454766-8 | 1.20 | 1.45 | |
| KRUISKOPSCHROEF M4X10 | ||||
| 082 | 911511-9 | 1.00 | 1.21 | |
| VERBINDINGGELEIDER HR5202C | ||||
| 083 | 454778-1 | 3.60 | 4.36 | |
| TORSIEVEER 7 HR5202C | ||||
| 084 | 233611-8 | 1.20 | 1.45 | |
| SCHROEF 4X16 A | ||||
| 085 | 911526-6 | 1.00 | 1.21 | |
| GELEIDERAIL HR5202C | ||||
| 086 | 346748-3 | 2.40 | 2.90 | |
| KRUKASHUIS A HR5212C A | ||||
| 087 | 141H07-6 | 63.80 | 77.20 | |
| INBUSBOUT M6X35MM* | ||||
| 088 | 922359-4 | 1.00 | 1.21 | |
| BASIS HOUDER AVT HR5212C | ||||
| 089 | 454777-3 | 6.00 | 7.26 | |
| KRUISKOPSCHROEF 5X20 | ||||
| 090 | 911233-1 | 1.00 | 1.21 | |
| DRUKVEER 12 HR5212C* | ||||
| 091 | 234320-2 | 1.00 | 1.21 | |
| KOPPELBEGRENZER ASSY HR5212C | ||||
| 092 | 126476-4 | 88.00 | 106.48 | |
| TANDWIEL 10 HR5212C | ||||
| 093 | 227628-1 | 8.40 | 10.16 | |
| KOGELLAGER 6904 | ||||
| 094 | 211323-3 | 8.40 | 10.16 | |
| KOPPELBEGRENZER ASSY HR5212C | ||||
| 095 | 126476-4 | 88.00 | 106.48 | |
| KRAAGREVET 8MM | ||||
| 096 | 324727-1 | 4.80 | 5.81 | |
| KOGELLAGER 608DDW A | ||||
| 097 | 210005-4 | 4.80 | 5.81 | |
| SLUITRING 8X14X0,5 MM | ||||
| 098 | 253215-0 | 1.00 | 1.21 | |
| BORGRING S-8 | ||||
| 099 | 961004-6 | 1.00 | 1.21 | |
| AFDICHTRING A HR5212C | ||||
| 100 | 424609-8 | 2.40 | 2.90 | |
| TANDWIELHUIS HR5212C | ||||
| 101 | 142409-1 | 39.60 | 47.92 | |
| INBUSBOUT M6X35MM* | ||||
| 102 | 922359-4 | 1.00 | 1.21 | |
| KEERRING 10 HR4500C | ||||
| 103 | 213231-4 | 6.00 | 7.26 | |
| KRUKAS HR5212C A | ||||
| 104 | 327142-8 | 14.30 | 17.30 | |
| KOGELLAGER 6006LLU HR4500C | ||||
| 105 | 211418-2 | 12.10 | 14.64 | |
| KRUKASSPIE HR4000C | ||||
| 106 | 254229-2 | 1.20 | 1.45 | |
| TANDWIEL 46 HR5212C | ||||
| 107 | 227788-9 | 10.80 | 13.07 | |
| TANDWIEL 26 HR5212C | ||||
| 108 | 227336-4 | 7.20 | 8.71 | |
| BORGRING S-22 | ||||
| 109 | 961102-6 | 1.00 | 1.21 | |
| SLUITRING 12 | ||||
| 110 | 253843-1 | 1.20 | 1.45 | |
| BUS 12 HR4500C | ||||
| 111 | 331596-3 | 6.00 | 7.26 | |
| KOGELLAGER 6202LLU HR4500C | ||||
| 112 | 211238-4 | 7.20 | 8.71 | |
| SLUITRING 15 BTW200 | ||||
| 113 | 267215-4 | 1.20 | 1.45 | |
| ANKER 240V HR5212C | ||||
| 114 | 517898-3 | 112.20 | 135.76 | |
| ISOLATIERING | ||||
| 115 | 681642-5 | 8.40 | 10.16 | |
| KOGELLAGER 6000DDW HM1213C A | ||||
| 116 | 211289-7 | 13.20 | 15.97 | |
| MET.SCHROEF CK 5X80MM | ||||
| 117 | 266568-8 | 1.20 | 1.45 | |
| TUSSENPLAAT HR5212C* | ||||
| 118 | 454772-3 | 2.40 | 2.90 | |
| VELD 220-240V HR5210C | ||||
| 119 | 636303-2 | 34.10 | 41.26 | |
| KOOLBORSTELHOUDER HR5212C | ||||
| 120 | 632B59-7 | 8.40 | 10.16 | |
| KOOLBORSTEL SET CB-175 A | ||||
| 121 | 195844-2 | 7.20 | 8.71 | |
| AFSCHERMPLAAT HR5212C | ||||
| 122 | 454780-4 | 10.80 | 13.07 | |
| TAPSCHROEF 5X25 A | ||||
| 123 | 266041-8 | 1.00 | 1.21 | |
| TANDWIELHUISDEKSEL HR5212C | ||||
| 124 | 454763-4 | 6.00 | 7.26 | |
| MOTORHUIS HR5212C | ||||
| 125 | 454757-9 | 22.00 | 26.62 | |
| INBUSBOUT M6X35MM* | ||||
| 126 | 922359-4 | 1.00 | 1.21 | |
| WAAIER 90 HR5001C | ||||
| 127 | 240016-5 | 6.00 | 7.26 | |
| SLUITRING 8 LF1000 P | ||||
| 128 | 253165-9 | 1.00 | 1.21 | |
| MOER M8 HR5210C | ||||
| 129 | 252178-7 | 1.00 | 1.21 | |
| ACHTERDEKSEL HR5212C | ||||
| 130 | 454762-6 | 8.40 | 10.16 | |
| TAPSCHROEF 5X25 A | ||||
| 131 | 266041-8 | 1.00 | 1.21 | |
| NETSNOER 2X1.50 4.0MTR A | ||||
| 132 | 695123-3 | 22.00 | 26.62 | |
| KABELTULE 10 | ||||
| 133 | 682560-0 | 2.40 | 2.90 | |
| TAPSCHROEF 4X18 P | ||||
| 134 | 265A48-7 | 1.00 | 1.21 | |
| KLEMSTRIPBASIS HR4010C | ||||
| 135 | 419024-9 | 1.20 | 1.45 | |
| TAPSCHROEF 4X18 P | ||||
| 136 | 265A48-7 | 1.00 | 1.21 | |
| TREKONTLASTER HP1621 | ||||
| 137 | 687169-3 | 1.00 | 1.21 | |
| DRAADBOOM HR5212C* | ||||
| 138 | 632C15-3 | 2.40 | 2.90 | |
| TAPSCHROEF 5X25 A | ||||
| 139 | 266041-8 | 1.00 | 1.21 | |
| SLUITRING 5 | ||||
| 140 | 253194-2 | 1.00 | 1.21 | |
| BUS 9 HR4013C | ||||
| 141 | 257813-2 | 1.00 | 1.21 | |
| TOERENREGELCIRCUIT HR5212C | ||||
| 142 | 620249-2 | 78.10 | 94.50 | |
| TAPSCHROEF 4X18 P | ||||
| 143 | 265A48-7 | 1.00 | 1.21 | |
| LENS HR4013C | ||||
| 144 | 454346-0 | 1.20 | 1.45 | |
| DRUKVEER 6MM HR4013C | ||||
| 145 | 234281-6 | 1.00 | 1.21 | |
| SCHAKELAAR HR4013C | ||||
| 146 | 632A83-4 | 19.80 | 23.96 | |
| SCHAKELKNOP C HR4013C | ||||
| 147 | 454336-3 | 2.40 | 2.90 | |
| SCHAKELAAR HUIS HR5212C | ||||
| 148 | 187890-9 | 3.60 | 4.36 | |
| SCHAKELAAR HUIS HR5212C | ||||
| 149 | 187890-9 | 3.60 | 4.36 | |
| TAPSCHROEF 5X25 A | ||||
| 150 | 266041-8 | 1.00 | 1.21 | |
| NAAMPLAAT HR5212C | ||||
| 151 | 815W21-5 | 3.60 | 4.36 | |
| DRUKVEER 18,5MM HR4013C* | ||||
| 152 | 234283-2 | 1.00 | 1.21 | |
| HANDGREEPSTEUN HR5212C | ||||
| 153 | 454758-7 | 10.80 | 13.07 | |
| STOFAFZ. AANSL. A HR4013C | ||||
| 154 | 454343-6 | 1.20 | 1.45 | |
| TAPSCHROEF 5X25 A | ||||
| 155 | 266041-8 | 1.00 | 1.21 | |
| STOFAFZ. AANSL. B HR4013C | ||||
| 156 | 454344-4 | 2.40 | 2.90 | |
| STOFKAP HR4013C | ||||
| 157 | 424557-1 | 2.40 | 2.90 | |
| ACHTERHANDGREEP HR5212C | ||||
| 158 | 454759-5 | 15.40 | 18.63 | |
| SCHAKELKNOP A HR4013C | ||||
| 160 | 454332-1 | 2.40 | 2.90 | |
| DRUKVEER 7MM HR4013C | ||||
| 161 | 234285-8 | 1.00 | 1.21 | |
| SCHAKELAARHANDEL HR4013C | ||||
| 162 | 454327-4 | 1.20 | 1.45 | |
| PEN HR4013C | ||||
| 163 | 268309-8 | 2.40 | 2.90 | |
| SCHAKELAAR HOUDER HR4010C | ||||
| 164 | 154626-1 | 2.40 | 2.90 | |
| SCHAKELAAR HR4013C | ||||
| 165 | 650678-5 | 9.60 | 11.62 | |
| HANDGREEPKAP HR5212C | ||||
| 166 | 454760-0 | 10.80 | 13.07 | |
| TAPSCHROEF 4X18 P | ||||
| 167 | 265A48-7 | 1.00 | 1.21 | |
| BORGRING WR-44 HR5202C | ||||
| 168 | 257994-2 | 3.60 | 4.36 | |
| TAPSCHROEF 5X25 A | ||||
| 259 | 266041-8 | 1.00 | 1.21 | |
