Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HS004G'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

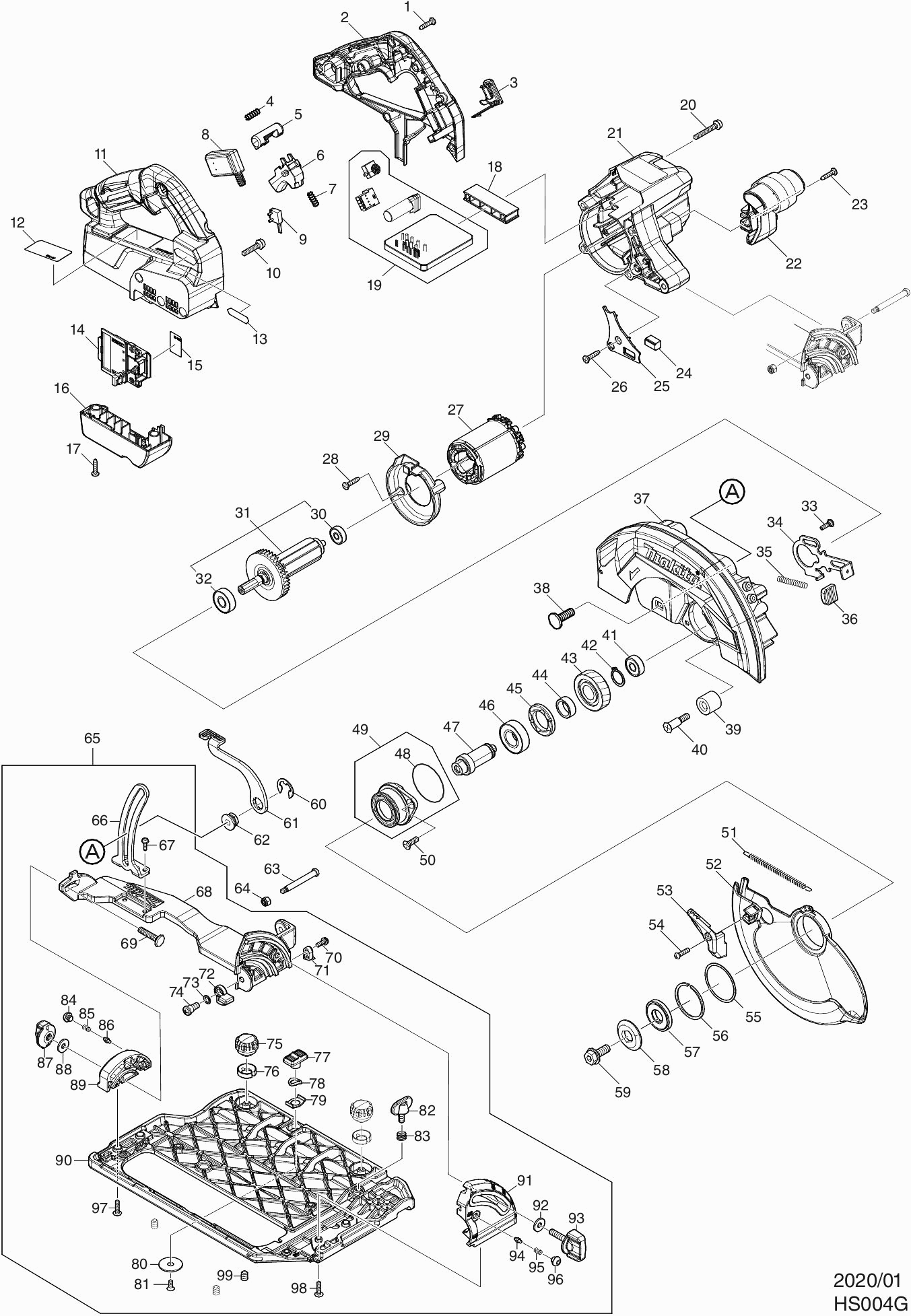

Tekeningen van de Makita HS004G
Onderdelen lijst van de Makita HS004G
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Geen informatie beschikbaar, niet bestelbaar | ||||
001 | 266326-2 | |||
Handgreepset HS003G | ||||
002 | 183R15-1 | 17.90 | 21.66 | |
Rubber pen 6 | ||||
002C10 | 263005-3 | 0.83 | 1.00 | |
Afdekkap DGA701 | ||||
003 | 140F99-0 | 2.44 | 2.95 | |
O-ring 16 | ||||
003C10 | 213218-6 | 0.83 | 1.00 | |
Label DGA701 | ||||
003C20 | 818H07-8 | 2.80 | 3.39 | |
Drukveer 4 | ||||
004 | 231433-0 | 0.83 | 1.00 | |
Vergrendelknop Kp0810/C | ||||
005 | 419704-7 | 1.51 | 1.83 | |
Schakelknop DHS660 | ||||
006 | 458594-3 | 0.83 | 1.00 | |
Drukveer 4 | ||||
007 | 231433-0 | 0.83 | 1.00 | |
Schakelaar C3Xa-1Pspm Dsp600 | ||||
008 | 651083-9 | 19.88 | 24.05 | |
Schakelunit DHS782 | ||||
009 | 632M92-5 | 10.81 | 13.08 | |
Schroef 5x25 | ||||
010 | 911243-8 | 0.83 | 1.00 | |
Handgreepset HS003G | ||||
011 | 183R15-1 | 17.90 | 21.66 | |
Rubber pen 6 | ||||
011C10 | 263005-3 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
012 | 857E51-2 | |||
Label XGT HS004G | ||||
013 | 8012U4-2 | 0.83 | 1.00 | |
Controleunit GA-40V serie | ||||
014 | 632P65-6 | 8.46 | 10.24 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
015 | 857E58-8 | |||
Behuizing terminal HS003/4G | ||||
016 | 140S46-9 | 3.65 | 4.42 | |
Rubber pen 6 | ||||
016C10 | 263005-3 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
017 | 266326-2 | |||
Afstandbus HS003/4G | ||||
018 | 412480-2 | 1.01 | 1.22 | |
Controller HS003/4G | ||||
019 | 620D01-2 | 150.83 | 182.50 | |
Schroef 5x36 | ||||
020 | 911258-5 | 0.83 | 1.00 | |
Motorhuis DHS782 | ||||
021 | 458746-6 | 9.52 | 11.52 | |
Handgreep (Voor) DHS752 | ||||
022 | 458750-5 | 7.43 | 8.99 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
023 | 266326-2 | |||
Ledcircuit DHR680 | ||||
024 | 620936-3 | 8.46 | 10.24 | |
Lens DHS782 | ||||
025 | 458751-3 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
026 | 266326-2 | |||
Veld HS003/4G | ||||
027 | 629479-2 | 34.36 | 41.58 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
028 | 266326-2 | |||
Tussenplaat DHS782 | ||||
029 | 458749-0 | 1.21 | 1.46 | |
Kogellager 626zz | ||||
030 | 210143-2 | 2.80 | 3.39 | |
Anker DHS782 | ||||
031 | 519534-7 | 39.89 | 48.27 | |
Kogellager 6000ddw | ||||
032 | 211289-7 | 12.58 | 15.22 | |
Met.schroef M4x14mm DHS782 | ||||
033 | 251529-1 | 0.83 | 1.00 | |
Asblokkering HS003/4G | ||||
034 | 347676-5 | 1.72 | 2.08 | |
Drukveer 6 5903R | ||||
035 | 233084-5 | 0.83 | 1.00 | |
Kap | ||||
036 | 286039-9 | 0.83 | 1.00 | |
Beschermkap HS003/4G | ||||
037 | 140S42-7 | 46.31 | 56.04 | |
O-ring 26 | ||||
037C10 | 213434-0 | 0.83 | 1.00 | |
Rubber pen 6 | ||||
037C20 | 263005-3 | 0.83 | 1.00 | |
Schaalverdeling DHS782 | ||||
037C30 | 818C45-0 | 0.83 | 1.00 | |
Slotbout 8x25 | ||||
038 | 266396-1 | 0.83 | 1.00 | |
Rubber bus 8 DHS782 | ||||
039 | 262185-2 | 2.08 | 2.52 | |
Met.schroef M6x30mm DHS782 | ||||
040 | 251572-0 | 0.83 | 1.00 | |
Kogellager 608Zz A | ||||
041 | 210046-0 | 0.83 | 1.00 | |
Borgring S-17 | ||||
042 | 961057-5 | 0.83 | 1.00 | |
Tandwiel 37 DHS782 | ||||
043 | 226838-7 | 5.22 | 6.32 | |
Ring 17 DHS782 | ||||
044 | 257451-0 | 1.01 | 1.22 | |
Lagerborging 23-36 Ga7010 | ||||
045 | 285809-3 | 2.16 | 2.61 | |
Kogellager 6003ddw | ||||
046 | 210301-0 | 5.96 | 7.21 | |
Zaagas DHS782 | ||||
047 | 327192-3 | 3.22 | 3.90 | |
O-ring 42 | ||||
048 | 213565-5 | 0.83 | 1.00 | |
Lagerhuis DHS782 | ||||
049 | 136021-7 | 4.09 | 4.95 | |
Verzonkenschroef 5x13 | ||||
050 | 265034-2 | 0.83 | 1.00 | |
Trekveer 4 DHS782 | ||||
051 | 232467-6 | 0.83 | 1.00 | |
Verende beschermkap HS003/4G | ||||
052 | 319970-5 | 26.11 | 31.59 | |
Hefboom 37 DHS782/83 | ||||
053 | 271450-8 | 1.70 | 2.06 | |
Schroef 4X16 DUH501 A | ||||
054 | 265178-8 | 0.83 | 1.00 | |
Sluitring 40 | ||||
055 | 267337-0 | 0.83 | 1.00 | |
Borgring WR-40 DHS782 | ||||
056 | 257452-8 | 1.01 | 1.22 | |
Binnenflens 35 Dls600 A | ||||
057 | 224593-5 | 6.58 | 7.96 | |
Buitenflens 35mm | ||||
058 | 224409-4 | 1.72 | 2.08 | |
Inbusbout M8x20 | ||||
059 | 266283-4 | 1.21 | 1.46 | |
Borgring E-12 | ||||
060 | 257953-6 | 0.83 | 1.00 | |
Hendel 50 HS003/4G | ||||
061 | 271460-5 | 1.43 | 1.73 | |
Borgmoer DHS782 | ||||
062 | 252262-8 | 9.52 | 11.52 | |
Met.schr. M5x | ||||
063 | 265118-6 | 0.83 | 1.00 | |
Zeskant borgmoer 5x8 | ||||
064 | 252103-8 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
065 | 136280-3 | |||
Afstandhouder DHS782/83 | ||||
066 | 347532-9 | 2.80 | 3.39 | |
Schroef 4x12 | ||||
067 | 911516-9 | 1.43 | 1.73 | |
Frame HS003/4G | ||||
068 | 319975-5 | 21.70 | 26.26 | |
Bout M6x30 DHS782 | ||||
069 | 251920-3 | 0.83 | 1.00 | |
Schroef 4x12 | ||||
070 | 911116-5 | 0.83 | 1.00 | |
Aanduidplaat Sp6000 | ||||
071 | 419632-6 | 0.83 | 1.00 | |
Stopper HS003/4G | ||||
072 | 319978-9 | 2.80 | 3.39 | |
O-ring 7 | ||||
073 | 213026-5 | 0.83 | 1.00 | |
Schroef M6 | ||||
074 | 251267-5 | 0.83 | 1.00 | |
Schroef M4x3 | ||||
075 | 265775-0 | 1.72 | 2.08 | |
Houder | ||||
076 | 419627-9 | 0.83 | 1.00 | |
Schuifplaat Dsp600 | ||||
077 | 458092-7 | 1.43 | 1.73 | |
Veerring 10 | ||||
078 | 253932-2 | 0.83 | 1.00 | |
Sluitplaat | ||||
079 | 345977-5 | 0.83 | 1.00 | |
Borgring | ||||
080 | 345748-0 | 1.01 | 1.22 | |
Verzonken schroef 4x10 | ||||
081 | 912112-6 | 0.83 | 1.00 | |
Vleugelbout 6x15 | ||||
082 | 265726-3 | 1.21 | 1.46 | |
Drukveer 8 | ||||
083 | 233376-2 | 0.83 | 1.00 | |
Zeskant bout M6x4 | ||||
084 | 266559-9 | 2.45 | 2.96 | |
Drukveer 3,5 Hr2400 | ||||
085 | 231234-6 | 2.08 | 2.52 | |
Kraagpen 3-5 DHS782/83 | ||||
086 | 263041-9 | 0.83 | 1.00 | |
Starknop M6 | ||||
087 | 252270-9 | 1.43 | 1.73 | |
Sluitring 6 | ||||
088 | 253111-2 | 0.83 | 1.00 | |
Hoekgeleider A HS003/4G | ||||
089 | 319977-1 | 12.58 | 15.22 | |
Voetplaat HS004G | ||||
090 | 319974-7 | 39.89 | 48.27 | |
Hoekgeleider B HS003/4G | ||||
091 | 319976-3 | 16.07 | 19.44 | |
Sluitring 6 | ||||
092 | 253111-2 | 0.83 | 1.00 | |
Schroef M6x26 | ||||
093 | 265776-8 | 1.01 | 1.22 | |
Kraagpen 3-5 DHS782/83 | ||||
094 | 263041-9 | 0.83 | 1.00 | |
Drukveer 3,5 Hr2400 | ||||
095 | 231234-6 | 2.08 | 2.52 | |
Zeskant bout M6x4 | ||||
096 | 266559-9 | 2.45 | 2.96 | |
Met.Schr. M4X16Mm DHS782/83 | ||||
097 | 265174-6 | 0.83 | 1.00 | |
Met.Schr. M4X16Mm DHS782/83 | ||||
098 | 265174-6 | 0.83 | 1.00 | |
Zeskant bout M6 | ||||
099 | 266225-8 | 0.83 | 1.00 |
