Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita HW1200'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

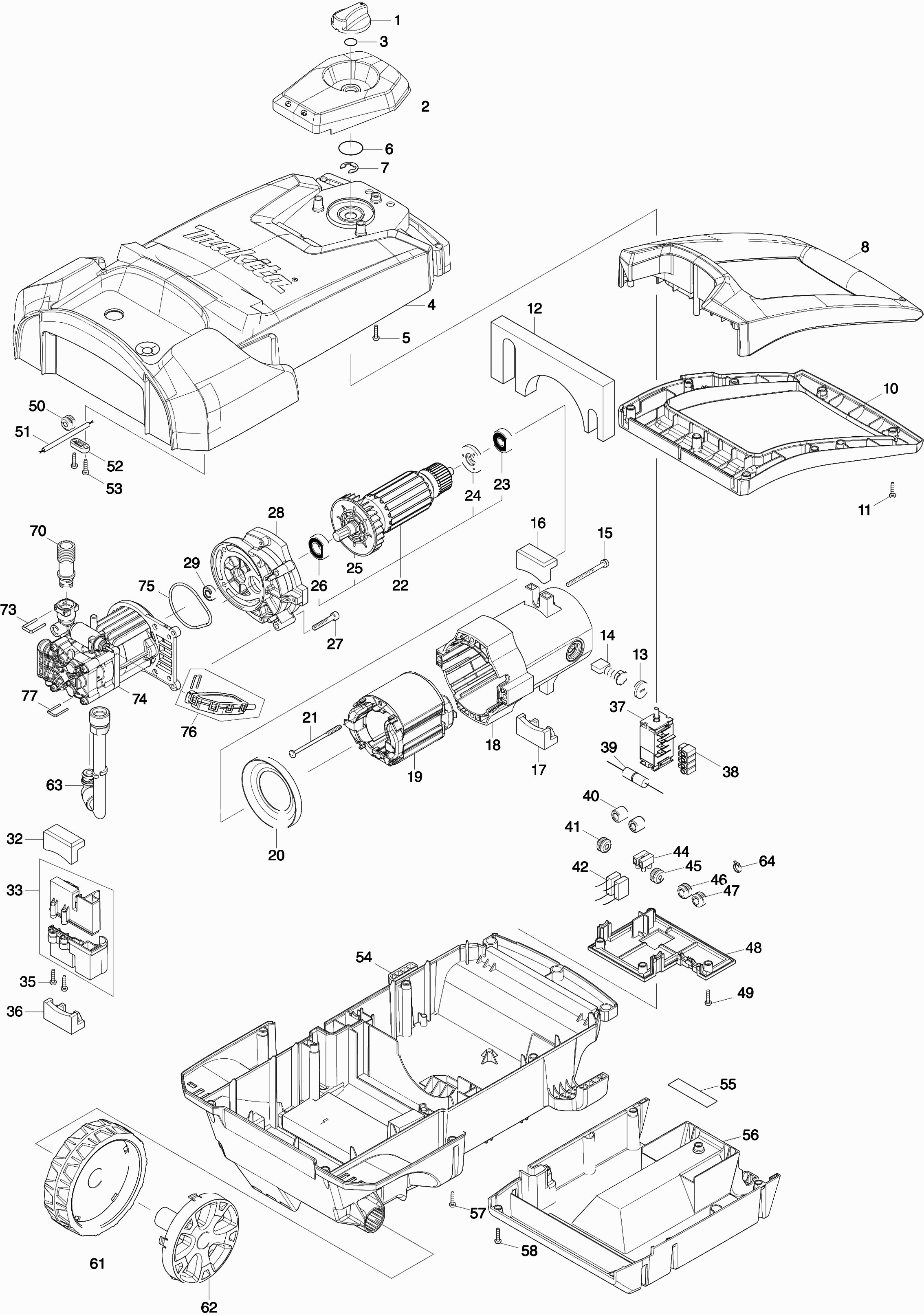

Tekeningen van de Makita HW1200
Onderdelen lijst van de Makita HW1200
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Schakelknop Hw1200 | ||||
001 | 456837-7@141 | 1.02 | 1.23 | |
Afdekkap Hw1200 | ||||
002 | 456953-5@141 | 4.09 | 4.95 | |
O-ring 14 | ||||
003 | 213176-6@141 | 0.83 | 1.00 | |
Voorhuis Compleet Hw1200 | ||||
004 | 143817-9@141 | 26.11 | 31.59 | |
Tapschroef Pt4x20 | ||||
005 | 266045-0@141 | 0.83 | 1.00 | |
O-Ring 29 Af500Hp/Sr2600 | ||||
006 | 213412-0@141 | 0.83 | 1.00 | |
Borgring E12 | ||||
007 | 961062-2@141 | 0.83 | 1.00 | |
Handgreep Hw1200 | ||||
008 | 456841-6@141 | 10.84 | 13.12 | |
Handgreep Achter Hw1200 | ||||
010 | 456843-2@141 | 8.52 | 10.31 | |
Tapschroef Pt4x20 | ||||
011 | 266045-0@141 | 0.83 | 1.00 | |
Sponsrubber Hw1200 | ||||
012 | 424856-1@141 | 3.20 | 3.87 | |
Koolborstelhouderdop | ||||
013 | 643700-5@141 | 1.01 | 1.22 | |
Koolborstel set Cb-203 | ||||
014 | 191953-5@141 | 6.58 | 7.96 | |
Schroef 5x65 | ||||
015 | 911288-6@141 | 0.83 | 1.00 | |
Bescherming Hw1200 | ||||
016 | 424852-9@141 | 1.43 | 1.73 | |
Bescherming Hw1200 | ||||
017 | 424852-9@141 | 1.43 | 1.73 | |
Motorhuis Cpl Hw1200 | ||||
018 | 143813-7@141 | 17.90 | 21.66 | |
Koolborstelhouder | ||||
018 | 643712-8@141 | 7.44 | 9.00 | |
Veld 240V Hw1200 | ||||
019 | 639092-8@141 | 57.34 | 69.38 | |
Statorveer | ||||
019 | 654197-3@141 | 0.83 | 1.00 | |
Klembus tbv statorv. 2mm | ||||
019 | 654502-4@141 | 0.83 | 1.00 | |
Niet meer leverbaar, geen vervanging | ||||
020 | 416131-9@141 | |||
Met. schroef Ck 5x85mm | ||||
021 | 265A13-6@141 | 0.83 | 1.00 | |
Anker 240V Hw1200 | ||||
022 | 513474-1@141 | 57.06 | 69.04 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
023 | 211067-5@141 | |||
Isolatiering | ||||
024 | 681630-2@141 | 1.43 | 1.73 | |
Waaier 80 | ||||
025 | 241908-1@141 | 2.80 | 3.39 | |
Kogellager 6002ddw | ||||
026 | 211236-8@141 | 9.52 | 11.52 | |
Inbusbout M6X35Mm | ||||
027 | 266586-6@141 | 0.83 | 1.00 | |
Tandwielhuis Hw1200 | ||||
028 | 143822-6@141 | 10.84 | 13.12 | |
Rubber pen 6 | ||||
028C10 | 263005-3@141 | 0.83 | 1.00 | |
Kogellager 698Ddw | ||||
029 | 211166-3@141 | 1.21 | 1.46 | |
Bescherming Hw1200 | ||||
032 | 424852-9@141 | 1.43 | 1.73 | |
Pomp Borgplaat Hw1200 | ||||
033 | 183D72-5@141 | 2.80 | 3.39 | |
Tapschroef Pt4x20 | ||||
035 | 266045-0@141 | 0.83 | 1.00 | |
Bescherming Hw1200 | ||||
036 | 424852-9@141 | 1.43 | 1.73 | |
Schakelaar Hw1200 | ||||
037 | 650780-4@141 | 17.92 | 21.68 | |
Kabelschoenkapje | ||||
038 | 686035-1@141 | 0.83 | 1.00 | |
Zekering Hw1200 | ||||
039 | 632G71-7@141 | 4.09 | 4.95 | |
Lijn filter | ||||
040 | 688163-8@141 | 0.83 | 1.00 | |
Doorvoer Hw1200 | ||||
041 | 682100-4@141 | 0.83 | 1.00 | |
Ontstorings condensator | ||||
042 | 645089-7@141 | 0.83 | 1.00 | |
Kroonsteen | ||||
044 | 654531-7@141 | 2.16 | 2.61 | |
Doorvoer Hw1200 | ||||
045 | 682098-5@141 | 0.83 | 1.00 | |
Doorvoer Hw1200 | ||||
046 | 682100-4@141 | 0.83 | 1.00 | |
Doorvoer Hw1200 | ||||
047 | 682100-4@141 | 0.83 | 1.00 | |
Schakelhuisdeksel Hw1200 | ||||
048 | 456833-5@141 | 2.45 | 2.96 | |
Tapschroef Pt4x20 | ||||
049 | 266045-0@141 | 0.83 | 1.00 | |
Doorvoer Hw1200 | ||||
050 | 682100-4@141 | 0.83 | 1.00 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
051 | 665883-1@141 | |||
Klemstrip | ||||
052 | 687124-5@141 | 0.83 | 1.00 | |
Tapschroef Pt4x20 | ||||
053 | 266045-0@141 | 0.83 | 1.00 | |
Motorhuis Achter Hw1200 | ||||
054 | 143820-0@141 | 21.70 | 26.26 | |
Waarschuwingslabel Hw1200 | ||||
054C10 | 809R02-9@141 | 0.83 | 1.00 | |
Naamplaat Hw1200 | ||||
055 | 852W47-6@141 | 2.80 | 3.39 | |
Motorhuisdeksel Achter Hw1200 | ||||
056 | 456838-5@141 | 8.46 | 10.24 | |
Tapschroef Pt4x20 | ||||
057 | 266045-0@141 | 0.83 | 1.00 | |
Tapschroef Pt4x20 | ||||
058 | 266045-0@141 | 0.83 | 1.00 | |
Wiel Hw1200 | ||||
061 | 456835-1@141 | 2.80 | 3.39 | |
Wielkap Hw1200 | ||||
062 | 456836-9@141 | 2.08 | 2.52 | |
Adapter Hw1200 | ||||
063 | 123649-0@141 | 6.60 | 7.99 | |
Klemband | ||||
064 | 687010-0@141 | 0.83 | 1.00 | |
Adapter Hw1200 | ||||
070 | TG00000007@141 | 7.44 | 9.00 | |
U-Beugel Hp1300 | ||||
073 | TG00000002@141 | 1.02 | 1.23 | |
Pomp Compleet Hw1200 | ||||
074 | TG00000001@141 | 143.65 | 173.82 | |
Afdichtring 62 | ||||
075 | TG00000006@141 | 1.01 | 1.22 | |
Schakelaar Hw1200 | ||||
076 | TG00000005@141 | 12.58 | 15.22 | |
U-Beugel Hp1300 | ||||
077 | TG00000003@141 | 1.70 | 2.06 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
077-1 | TG00000062@141 |
