Technical drawing of model Makita LM001C

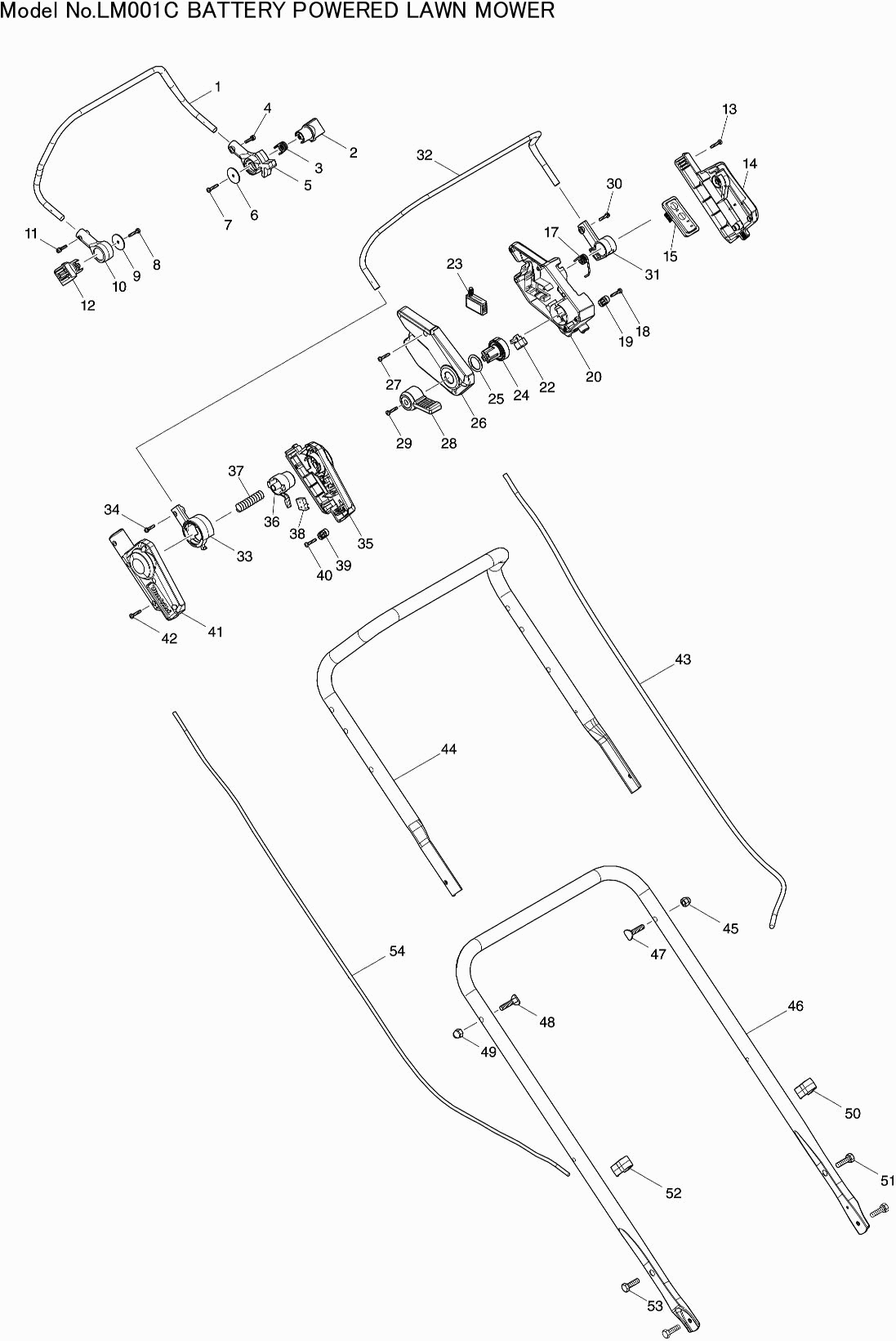

Technical drawing 1
Click for enlargement

Technical drawing 2
Click for enlargement

Technical drawing 3
Click for enlargement

Technical drawing 4
Click for enlargement

Spare parts list of model Makita LM001C

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Drive lever DLM532/533
001 327425-6 7.44 9.00
Lever Holder DLM532/533
002 459859-6 0.83 1.00
Torsion spring 12 DLM532/533
003 232566-4 0.83 1.00
Screw 4x20
004 911138-5 0.83 1.00
Lever holder L DLM532/533
005 459864-3 2.45 2.96
Washer 5
006 267136-0 1.01 1.22
Self-tapping screw 4x20
007 266424-2 0.83 1.00
Self-tapping screw 4x20
008 266424-2 0.83 1.00
Washer 5
009 267136-0 1.01 1.22
Lever Holder R DLM532/533
010 459858-8 1.43 1.73
Screw 4x20
011 911138-5 0.83 1.00
Lever Holder DLM532/533
012 459859-6 0.83 1.00
Self-tapping screw 4x20
013 266424-2 0.83 1.00
LM001C Switch House
014 183S75-9 3.65 4.42
Switch LM001C
015 141C58-9 16.07 19.44
Label A/U LM001C
015C10 8031N1-9 1.10 1.33
Torsion spring 12 DLM532/533
017 232575-3 0.83 1.00
Self-tapping screw 4x20
018 266424-2 0.83 1.00
Clamp Bracket
019 687053-2 0.83 1.00
Switch Housing LM001C
020 413824-9 5.88 7.11
Speed Controller
022 620415-1 11.19 13.54
Switch C3Xa-1Pspm Dsp600
023 651083-9 19.88 24.05
No information available, not orderable
024 459866-9
O-ring 26mm DLM532/533
025 213897-0 0.83 1.00
LM001C Switch House
026 183S75-9 3.65 4.42
Self-tapping screw 4x20
027 266424-2 0.83 1.00
Speed lever DLM532/533
028 459865-1 1.21 1.46
Self-tapping screw 4x20
029 266424-2 0.83 1.00
Screw 4x20
030 911138-5 0.83 1.00
Switch lever holder L DLM533
031 459863-5 1.72 2.08
Hex nut M4
031C10 931102-0 0.83 1.00
Switch lever DLM532/533
032 327424-8 7.44 9.00
Switch Lever Holder R DLM533
033 459856-2 2.08 2.52
Hex nut M4
033C10 931102-0 0.83 1.00
Screw 4x20
034 911138-5 0.83 1.00
Switch Box Set DLM532/533
035 183P40-0 4.08 4.94
No information available, not orderable
035-1 183X73-3
Label indication B
035C10 8007C6-9 0.83 1.00
No information available, not orderable
036 459857-0
Compression Spring 15 DLM460
037 231227-3 0.83 1.00
Switch
038 632E26-0 11.32 13.70
Clamp Bracket
039 687124-5 0.83 1.00
Self-tapping screw 4x20
040 266424-2 0.83 1.00
Switch Box Set DLM532/533
041 183P40-0 4.08 4.94
No information available, not orderable
041-1 183X73-3
Label indication B
041C10 8007C6-9 0.83 1.00
Self-tapping screw 4x20
042 266424-2 0.83 1.00
Connection cable LM001C
043 699162-5 26.11 31.59
Push pole above DLM532/533
044 327421-4 17.90 21.66
Nut Cap M8 DLM532/533
045 252278-3 0.83 1.00
Push pole below DLM532
046 327422-2 17.90 21.66
Slot Screw M8x38mm DLM532/533
047 265A62-3 0.83 1.00
Slot Screw M8x38mm DLM532/533
048 265A62-3 0.83 1.00
Nut Cap M8 DLM532/533
049 252278-3 0.83 1.00
Cable clamp DLM532/533
050 459905-5 0.83 1.00
No information available, not orderable
051 921451-3
Cable clamp DLM532/533
052 459905-5 0.83 1.00
No information available, not orderable
053 921451-3
Wiring harness A DLM532/533
054 699142-1 5.22 6.32
Grass Catcher Assembly LM001C A
055 122B20-7 36.17 43.77
Grass Catcher Assembly LM001C A
055-1 122B20-7 36.17 43.77
Grass catcher LM001C
055-1C10 162976-0 28.68 34.70
Grass catcher LM001C
055-1C20 327866-6 14.58 17.64
Key Cap LM001C
056 413409-1 5.22 6.32
Torsion spring 4 LM001C
057 232681-4 0.83 1.00
Safety key DLM460
058 643535-4 3.22 3.90
Cover Cap LM001C
059 413408-3 4.08 4.94
Nameplate LM001C
060 811E55-8 0.83 1.00
Torsion spring 4 LM001C
061 232681-4 0.83 1.00
Self-tapping screw 4x20
062 266424-2 0.83 1.00
Handle LM001C
063 413413-0 1.72 2.08
Stopring E-3
064 961017-7 0.83 1.00
Axis LM001C
065 327834-9 0.83 1.00
Mower deck cap B LM001C
066 141D09-8 39.89 48.27
Warning Label LM001C
066C10 8031N2-7 0.83 1.00
Label indic LM001C
066C20 8031N3-5 0.83 1.00
Closure B LM001C
067 413432-6 0.83 1.00
Closure B LM001C
068 413432-6 0.83 1.00
Torsion spring 4 LM001C
069 232681-4 0.83 1.00
Hook R LM001C
070 312B03-7 4.08 4.94
Hook L LM001C
071 312B02-9 4.08 4.94
Holder LM001C
072 413613-2 1.01 1.22
Self-tapping screw 4x20
073 266424-2 0.83 1.00
Holder LM001C
074 413613-2 1.01 1.22
Self-tapping screw 4x20
075 266424-2 0.83 1.00
Holder LM001C
076 413613-2 1.01 1.22
Self-tapping screw 4x20
077 266424-2 0.83 1.00
Clamp Bracket
078 687053-2 0.83 1.00
Terminal Strip *
079 687051-6 0.83 1.00
Self-tapping screw 4x20
080 266424-2 0.83 1.00
Clamp Bracket
081 687124-5 0.83 1.00
Terminal Strip *
082 687051-6 0.83 1.00
Controller LM001C
083 620E76-7 334.47 404.71
Self-tapping screw 4x20
084 266424-2 0.83 1.00
Wiring Harness set LM001C
085 638A15-9 5.22 6.32
Buffer B DLM532/533
086 422529-0 0.83 1.00
Controller LM001C
087 620E95-3 104.69 126.67
Buffer A DLM532/533
088 422528-2 0.83 1.00
LED circuit LM001C
089 620C94-3 3.65 4.42
Wiring harness C DLM532/533
090 699145-5 8.46 10.24
Self-tapping screw 4x20
091 266424-2 0.83 1.00
Clamp Bracket
092 687124-5 0.83 1.00
Terminal Strip *
093 687051-6 0.83 1.00
Screw Vk 20mm
094 911233-1 0.83 1.00
Maaidekkap A LM001C
095 136404-1 46.31 56.04
Upper Motor Housing DLM532/533
096 319869-4 8.46 10.24
19mm lock washer DLM532/533
097 253455-0 0.83 1.00
Ball bearing 6000ddw
098 210141-6 1.21 1.46
Motor assembly DLM532/533
099 519606-8 115.42 139.66
Ball Bearing 6004llu
100 211332-2 6.58 7.96
Parker screw 2x8mm DLM532/533
101 265B29-7 0.83 1.00
Controller B DLM532/533
102 620B88-2 19.80 23.96
Field DLM532/533
103 629465-3 115.42 139.66
Lower Motor Housing DLM532/533
104 319870-9 9.52 11.52
Screw 5X70 *
105 911691-1 1.21 1.46
Screw M3X6
106 652031-1 0.83 1.00
Screw Vk 20mm
107 911233-1 0.83 1.00
Socket Head Cap Screw M8x25 ck/zwt
108 922442-7 0.83 1.00
Motor Mounts DLM532/533
109 319867-8 17.90 21.66
Motor Intermediate Plate DLM532/533
110 459853-8 2.08 2.52
Screw 4x16
111 911126-2 0.83 1.00
Fan 170 DLM532/533
112 240205-2 5.22 6.32
Circular Blade Support DLM532/533
113 319868-6 5.22 6.32
Self-tapping screw 4x20
114 266424-2 0.83 1.00
No information available, not orderable
115 191D52-7
Maaimesbout M8x35mm DLM532 A
116 265A69-9 0.83 1.00
Mulchinleg DLM532
117 127516-1 7.45 9.01
Locking button DLM462/532
118 459884-7 1.02 1.23
Compression Spring 7
119 231401-3 0.83 1.00
Locking button holder DLM462/532
120 459885-5 1.02 1.23
Self-tapping screw 4x20
121 266424-2 0.83 1.00
Ejection cover DLM532
123 140R96-8 10.84 13.12
Warning label
123C10 8007P8-6 0.83 1.00
Allen bolt M8 DLM532/533
124 265B20-5 0.83 1.00
Push Rod Support L DLM532
125 347579-3 8.46 10.24
Torsion spring 6mm
126 233597-6 0.83 1.00
Retaining Ring E-5
127 961018-5 0.83 1.00
Ejection cover axle 6mm DLM532
128 327418-3 2.08 2.52
Allen Bolt M5x12mm Ck
129 922213-2 0.83 1.00
Lid holder DLM532/533
130 459877-4 2.08 2.52
Rear Grip DLM532
131 162692-4 10.81 13.08
Right Hand Grip Holder DLM533
132 347578-5 7.44 9.00
Clamp
133 451825-9 0.83 1.00
Allen bolt M8 DLM532/533
134 265B20-5 0.83 1.00
Spring for valve DLM532/533
135 232628-8 3.22 3.90
Compression Spring 16 LM001C
135-1 232711-1 5.88 7.11
Connecting Rod DLM532
136 347580-8 23.75 28.74
Washer 6x12mm
137 941151-9 0.83 1.00
Locknut 6-10
138 252014-7 0.83 1.00
Washer 8
139 267216-2 0.83 1.00
Locknut 6-10
140 252014-7 0.83 1.00
Washer 6x12mm
141 941151-9 0.83 1.00
Washer 8
142 253762-1 1.01 1.22
Cable feedthrough DLM533
143 422526-6 0.83 1.00
Allen Bolt M5x12mm Ck
144 922213-2 0.83 1.00
Cable protector DLM532
145 459880-5 0.83 1.00
Cable Grommet DLM532/533
146 683A20-1 0.83 1.00
Mower deck LM001C
147 141D12-9 158.70 192.03
Warning Label LM001C
147C10 8031N4-3 0.83 1.00
Height Plate DLM532/533
148 347582-4 4.09 4.95
Allen bolt M8 DLM532/533
149 265B20-5 0.83 1.00
Hex bolt M6X12
150 922311-2 0.83 1.00
Rear axle cap DLM532/533
151 313290-9 2.44 2.95
Allen Bolt M5x12mm Ck
157 922213-2 0.83 1.00
Torsion spring 9mm DLM532/533
159 232567-2 0.83 1.00
Side plate DLM532
160 347584-0 1.72 2.08
Axle 8mm DLM532
161 327420-6 1.01 1.22
Stopring E-7
162 961013-5 0.83 1.00
Side cap DLM532
163 459886-3 3.65 4.42
Socket Head Cap Screw M8x25 ck/zwt
164 922442-7 0.83 1.00
Handle for DLM462
165 459870-8 5.22 6.32
Cover for DLM532
166 459871-6 10.81 13.08
Bottom plate mowing deck DLM532
167 459872-4 12.58 15.22
Self-tapping screw 4x20
168 266424-2 0.83 1.00
Flange Bolt M8x12
169 265324-3 1.21 1.46
Ball bearing 6002ddw
170 211236-8 9.52 11.52
Rear wheel assembly DLM532/533
171 127513-7 23.75 28.74
Ball bearing 6002ddw
172 211236-8 9.52 11.52
Gear 49 DLM532/533
173 226941-4 14.23 17.22
Lock washer S-12
174 961052-5 0.83 1.00
Gear 12 DLM532/533
175 226940-6 4.08 4.94
Gear holder plate DLM532
176 347586-6 0.83 1.00
Self-tapping screw 4x20
177 266424-2 0.83 1.00
Screw 5x12
178 911213-7 0.83 1.00
Wheel cap DLM532/533
179 459867-7 5.22 6.32
Screw 5x12
180 911213-7 0.83 1.00
No information available, not orderable
181 313369-6
Ball Bearing 6001Ddw A
182 210163-6 1.21 1.46
Rear Axle DLM532/533
183 162689-3 26.11 31.59
Hex bolt M6X12
184 922311-2 0.83 1.00
Height Adjustment DLM532/533
185 162694-0 8.46 10.24
No information available, not orderable
186 313369-6
Ball Bearing 6001Ddw A
187 210163-6 1.21 1.46
Screw 5x12
188 911213-7 0.83 1.00
Wheel cap DLM532/533
189 459867-7 5.22 6.32
Screw 5x12
190 911213-7 0.83 1.00
Gear holder plate DLM532
191 347586-6 0.83 1.00
Gear 49 DLM532/533
192 226941-4 14.23 17.22
Gear 12 DLM532/533
193 226940-6 4.08 4.94
Lock washer S-12
194 961052-5 0.83 1.00
Ball bearing 6002ddw
195 211236-8 9.52 11.52
Rear wheel assembly DLM532/533
196 127513-7 23.75 28.74
Ball bearing 6002ddw
197 211236-8 9.52 11.52
Flange Bolt M8x12
198 265324-3 1.21 1.46
Tapping screw 5x16mm
199 266388-0 0.83 1.00
Height adjustment plate DLM532
200 347585-8 1.21 1.46
Hex bolt M6X12
201 922311-2 0.83 1.00
Drive unit DLM532/533
202 127510-3 115.42 139.66
Flange Bolt M8x12
203 265324-3 1.21 1.46
Ball bearing 6002ddw
204 211236-8 9.52 11.52
Front wheel assembly DLM532/533
205 127514-5 21.70 26.26
Ball bearing 6002ddw
206 211236-8 9.52 11.52
Front Axle DLM532/533
207 162688-5 19.80 23.96
Ball bearing 6002ddw
208 211236-8 9.52 11.52
Front wheel assembly DLM532/533
209 127514-5 21.70 26.26
Ball bearing 6002ddw
210 211236-8 9.52 11.52
Flange Bolt M8x12
211 265324-3 1.21 1.46
Axle lock plate
212 341462-6 1.43 1.73
Self-tapping screw 4x20
213 266424-2 0.83 1.00
Self-tapping screw 4x20
214 266424-2 0.83 1.00
Lock Ring S-19
224 961059-1 0.83 1.00
Connection cable LM001C
225 699163-3 102.31 123.80

There are 0 items in your shopping basket.
