Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Makita MR001G'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

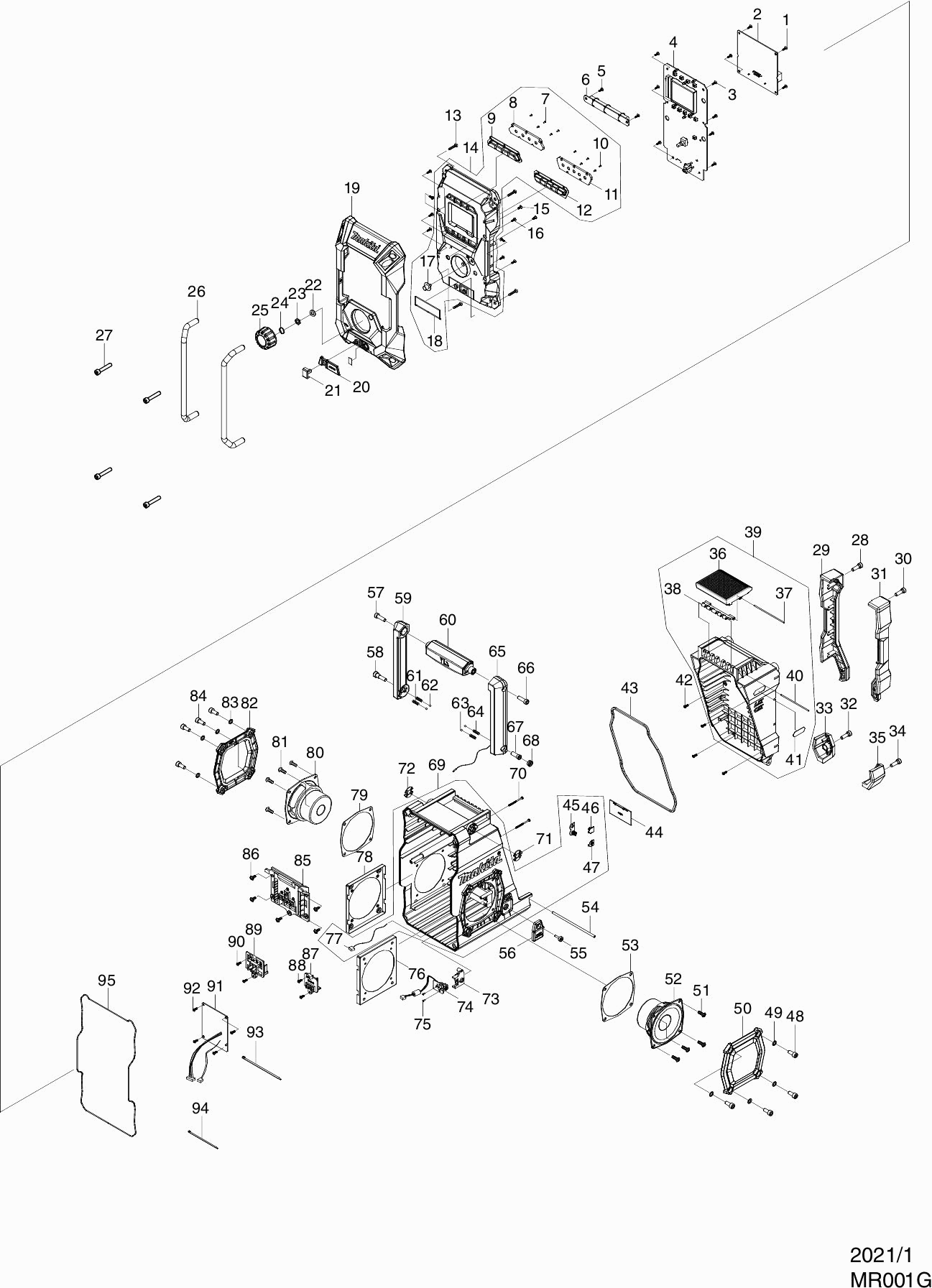

Tekeningen van de Makita MR001G
Onderdelen lijst van de Makita MR001G
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| Schroef M3X8 (Zk) Dmr200 | ||||
| 001 | SE00000521 | 0.83 | 1.00 | |
| Circuit A MR001G | ||||
| 002 | SE00000844 | 59.21 | 71.64 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 003 | SE00000521 | 0.83 | 1.00 | |
| Printplaat C MR001G | ||||
| 004 | SE00000847 | 48.40 | 58.56 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 005 | SE00000521 | 0.83 | 1.00 | |
| Printplaat P MR001/2G | ||||
| 006 | SE00000848 | 9.24 | 11.18 | |
| Tapschroef 1.7 Bmr100 | ||||
| 007 | SE09090011 | 0.83 | 1.00 | |
| Schakelknophouder BLK MR003G | ||||
| 008 | SE00000849 | 1.10 | 1.33 | |
| Knop A/U MR001G | ||||
| 009 | SE00000850 | 1.63 | 1.97 | |
| Tapschroef 1.7 Bmr100 | ||||
| 010 | SE09090011 | 0.83 | 1.00 | |
| Presetknophouder BLK MR003G | ||||
| 011 | SE00000851 | 1.10 | 1.33 | |
| Presetknop MR003G | ||||
| 012 | SE00000852 | 1.69 | 2.04 | |
| Schroef M4X16 Bmr100 | ||||
| 013 | SE09064161 | 0.83 | 1.00 | |
| Voorhuis MR001G | ||||
| 014 | SE00000853 | 28.02 | 33.90 | |
| Parker 3x6mm MR001G | ||||
| 015 | SE00000854 | 0.83 | 1.00 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 016 | SE00000521 | 0.83 | 1.00 | |
| Schakelknop MR003/4G | ||||
| 017 | SE00000855 | 0.83 | 1.00 | |
| Pakking MR003/4G | ||||
| 018 | SE00000856 | 1.10 | 1.33 | |
| Stootrand MR001G | ||||
| 019 | SE00000857 | 23.06 | 27.90 | |
| Afdekkap rubb jack MR001 | ||||
| 020 | SE00000859 | 1.39 | 1.68 | |
| Afdekkap jack MR001 | ||||
| 021 | SE00000860 | 1.18 | 1.43 | |
| Borgring DMR115 | ||||
| 022 | SE00000754 | 0.83 | 1.00 | |
| Borgmoer DMR115 | ||||
| 023 | SE00000755 | 0.83 | 1.00 | |
| Volumeknopring Bmr100 | ||||
| 024 | SE21B1110A | 0.83 | 1.00 | |
| Draaiknop MR001 | ||||
| 025 | SE00000861 | 2.02 | 2.44 | |
| Handgreep MR001 | ||||
| 026 | SE00000862 | 10.50 | 12.70 | |
| Schroef 6x33mm DMR115 | ||||
| 027 | SE00000709 | 0.83 | 1.00 | |
| Schroef M6X16 Bmr100 | ||||
| 028 | SE09176166 | 0.83 | 1.00 | |
| Stootrand L MR001 | ||||
| 029 | SE00000863 | 7.22 | 8.74 | |
| Schroef M6X16 Bmr100 | ||||
| 030 | SE09176166 | 0.83 | 1.00 | |
| Stootrand R MR001 | ||||
| 031 | SE00000864 | 7.22 | 8.74 | |
| Schroef M6X16 Bmr100 | ||||
| 032 | SE09176166 | 0.83 | 1.00 | |
| Stootrand L MR001 | ||||
| 033 | SE00000865 | 4.45 | 5.38 | |
| Schroef M6X16 Bmr100 | ||||
| 034 | SE09176166 | 0.83 | 1.00 | |
| Stootrand R MR001 | ||||
| 035 | SE00000866 | 4.45 | 5.38 | |
| Afdekkap MR003G | ||||
| 036 | SE00000867 | 3.84 | 4.65 | |
| Pin 2x84 MR003/4G | ||||
| 037 | SE00000868 | 0.83 | 1.00 | |
| Sluitplaat Dmr200 | ||||
| 038 | SE00000536 | 1.00 | 1.21 | |
| Batterijkap MR001G | ||||
| 039 | SE00000870 | 21.08 | 25.51 | |
| Pin 2X77Mm Dmr200 | ||||
| 040 | SE00000539 | 0.83 | 1.00 | |
| Label XGT MR003/4G | ||||
| 041 | SE00000872 | 0.83 | 1.00 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 042 | SE00000521 | 0.83 | 1.00 | |
| Pakking batt.kap MR001G | ||||
| 043 | SE00000873 | 6.38 | 7.72 | |
| Batterijplaat Bmr100 | ||||
| 044 | SE0307PC5Z | 1.00 | 1.21 | |
| Contactstrip +/- Bmr100 | ||||
| 045 | SE021E9030 | 1.02 | 1.23 | |
| Contactstrip (-) Dmr107* | ||||
| 046 | SE00000467 | 0.83 | 1.00 | |
| Contactstrip (+) Dmr107* | ||||
| 047 | SE00000466 | 0.83 | 1.00 | |
| Schroef M6X14 Bmr100 | ||||
| 048 | SE9076146A | 0.83 | 1.00 | |
| Pakking Bmr100/102 | ||||
| 049 | SE024J9070 | 0.83 | 1.00 | |
| Speakergaas MR001 | ||||
| 050 | SE00000874 | 6.38 | 7.72 | |
| Schroef M4X12 Bmr100 | ||||
| 051 | SE09090023 | 0.83 | 1.00 | |
| Speaker R MR001 | ||||
| 052 | SE00000875 | 19.12 | 23.14 | |
| Speakerpakking MR001 | ||||
| 053 | SE00000876 | 2.71 | 3.28 | |
| Montagepin MR001 | ||||
| 054 | SE00000877 | 1.67 | 2.02 | |
| Schroef 3X14Mm | ||||
| 055 | SE00000404 | 0.83 | 1.00 | |
| Afdekkap DC-jack MR001/2G | ||||
| 056 | SE00000878 | 1.18 | 1.43 | |
| Tapschroef 6X20Mm Bmr102 | ||||
| 057 | SE00000176 | 0.83 | 1.00 | |
| Schroef 6x17mm DMR115 | ||||
| 058 | SE00000715 | 0.83 | 1.00 | |
| Handgreephendel L MR001G | ||||
| 059 | SE00000879 | 4.44 | 5.37 | |
| Handgreep MR001G | ||||
| 060 | SE00000881 | 9.24 | 11.18 | |
| Drukveer Bmr102 | ||||
| 061 | SE00000184 | 0.83 | 1.00 | |
| Kogel Bmr100 | ||||
| 062 | SE09994007 | 0.83 | 1.00 | |
| Kogel Bmr100 | ||||
| 063 | SE09994007 | 0.83 | 1.00 | |
| Drukveer Bmr102 | ||||
| 064 | SE00000184 | 0.83 | 1.00 | |
| Handgreep R annt MR002G | ||||
| 065 | SE00000883 | 11.84 | 14.33 | |
| Tapschroef 6X20Mm Bmr102 | ||||
| 066 | SE00000176 | 0.83 | 1.00 | |
| Schroef 7x16mm DMR115 | ||||
| 067 | SE00000716 | 1.00 | 1.21 | |
| Schroef 10.8x4,5mm DMR115 | ||||
| 068 | SE00000717 | 1.39 | 1.68 | |
| Achterhuis MR001G | ||||
| 069 | SE00000886 | 25.41 | 30.75 | |
| Verzonken Schroef 3X45 Dmr106 | ||||
| 070 | SE00000445 | 0.83 | 1.00 | |
| Handgreepplt R MR001G | ||||
| 071 | SE00000888 | 0.98 | 1.19 | |
| Handgreepplt L MR001G | ||||
| 072 | SE00000889 | 0.98 | 1.19 | |
| DC-jack houder MR001G | ||||
| 073 | SE00000890 | 0.83 | 1.00 | |
| Printplaat F Dcjack MR001G | ||||
| 074 | SE00000891 | 7.22 | 8.74 | |
| Tapschroef 1.7 Bmr100 | ||||
| 075 | SE09090011 | 0.83 | 1.00 | |
| Speakerhouder MR001 | ||||
| 076 | SE00000892 | 7.22 | 8.74 | |
| Draadboom m/aansl MR001/2G | ||||
| 077 | SE00000587 | 0.83 | 1.00 | |
| Speakerhouder MR001 | ||||
| 078 | SE00000892 | 7.22 | 8.74 | |
| Speakerpakking MR001 | ||||
| 079 | SE00000876 | 2.71 | 3.28 | |
| Speaker L MR001/2G | ||||
| 080 | SE00000893 | 19.12 | 23.14 | |
| Schroef M4X12 Bmr100 | ||||
| 081 | SE09090023 | 0.83 | 1.00 | |
| Speakergaas MR001 | ||||
| 082 | SE00000874 | 6.38 | 7.72 | |
| Pakking Bmr100/102 | ||||
| 083 | SE024J9070 | 0.83 | 1.00 | |
| Schroef M6X14 Bmr100 | ||||
| 084 | SE9076146A | 0.83 | 1.00 | |
| Aansluitunit XGT MR001/2G | ||||
| 085 | SE00000894 | 9.52 | 11.52 | |
| Tapschroef 3X10Mm Bmr102 | ||||
| 086 | SE00000193 | 0.83 | 1.00 | |
| Aansluitunit CXT MR001/2G | ||||
| 087 | SE00000895 | 4.60 | 5.57 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 088 | SE00000521 | 0.83 | 1.00 | |
| Aansluitunit LXT MR001/2G | ||||
| 089 | SE00000896 | 4.60 | 5.57 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 090 | SE00000521 | 0.83 | 1.00 | |
| Printplaat D+M MR001/02G | ||||
| 091 | SE00000897 | 32.69 | 39.55 | |
| Schroef M3X8 (Zk) Dmr200 | ||||
| 092 | SE00000521 | 0.83 | 1.00 | |
| Kabelbinder 150mm MR001 | ||||
| 093 | SE00000898 | 0.83 | 1.00 | |
| W/Ties 100Mm Bmr102 | ||||
| 094 | SE00000195 | 0.83 | 1.00 | |
| Achterhuispak MR001G | ||||
| 095 | SE00000899 | 1.39 | 1.68 | |
