Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Metabo 00597001 ( KHE2443 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

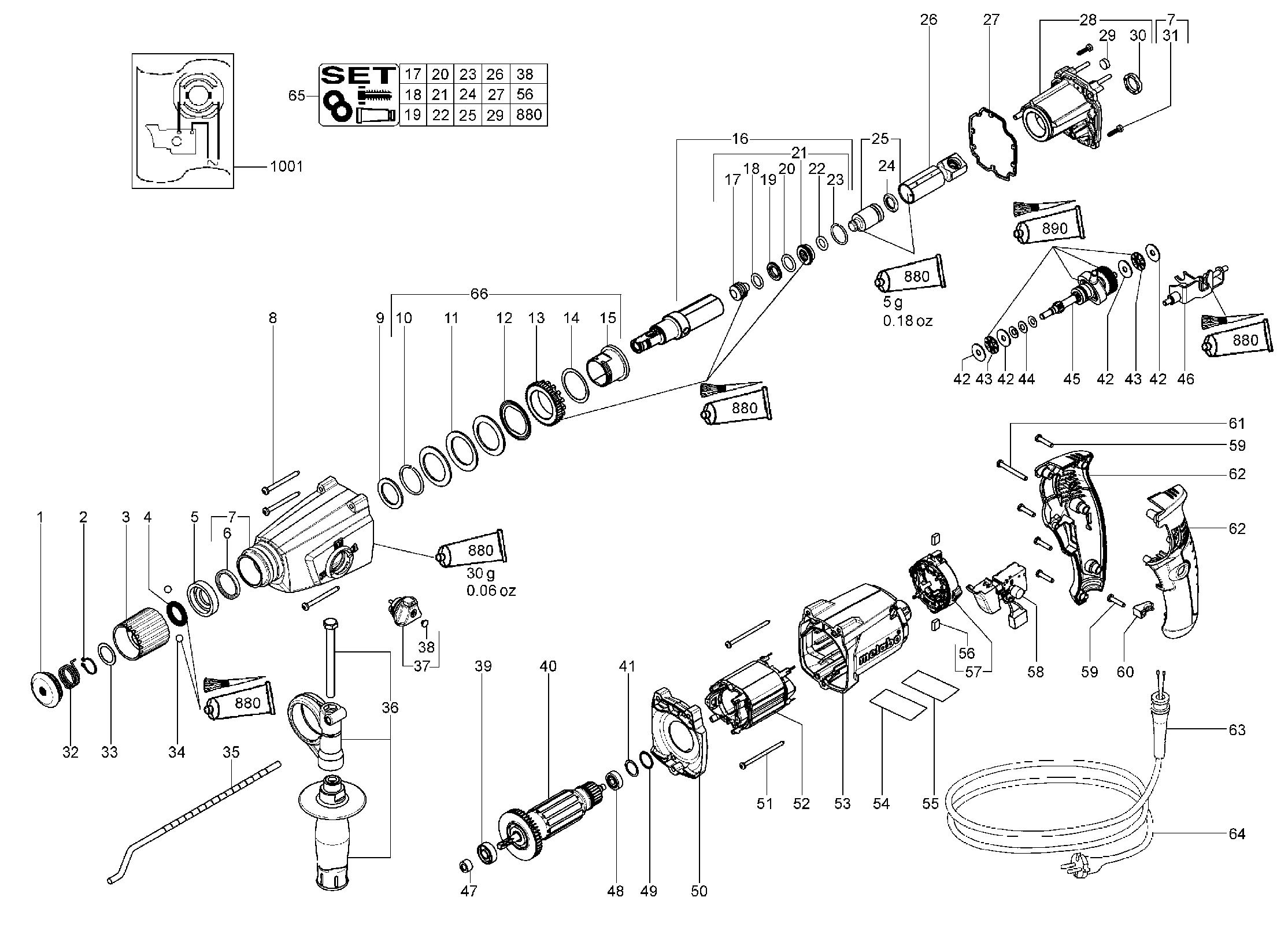

Tekeningen van de Metabo 00597001 ( KHE2443 )
Onderdelen lijst van de Metabo 00597001 ( KHE2443 )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
Niet meer leverbaar, geen vervanging | ||||
1 | 344092950 | |||
Borgveer-ring | ||||
2 | 141164080 | 1.55 | 1.88 | |
Verstelring | ||||
3 | 343361680 | 4.51 | 5.46 | |
Trekveerring | ||||
4 | 342001560 | 3.02 | 3.65 | |
Afstandsring | ||||
5 | 343361690 | 1.67 | 2.02 | |
Afdichtring | ||||
6 | 143194060 | 2.28 | 2.76 | |
Tandwielhuis compl. | ||||
7 | 316063710 | 80.81 | 97.78 | |
Schroef | ||||
8 | 141123610 | 1.55 | 1.88 | |
Steunschijf | ||||
9 | 141153750 | 1.67 | 2.02 | |
Veerring | ||||
10 | 141181290 | 1.55 | 1.88 | |
Schotelveer | ||||
11 | 342070340 | 3.02 | 3.65 | |
Frictieschijf | ||||
12 | 339004870 | 1.67 | 2.02 | |
Tandwiel | ||||
13 | 340004090 | 7.22 | 8.74 | |
Wrijvingsschijf | ||||
14 | 339006380 | 1.55 | 1.88 | |
Koppelingshuls | ||||
15 | 341059230 | 16.25 | 19.66 | |
Boorhuls compl. | ||||
16 | 316053480 | 113.82 | 137.72 | |
Dopper compl. | ||||
17 | 316045630 | 8.89 | 10.76 | |
O-ring | ||||
18 | 143192400 | 1.67 | 2.02 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
19 | 341059320 | |||
O-ring | ||||
20 | 143194640 | 1.67 | 2.02 | |
Vangerhuls compl. | ||||
21 | 316045650 | 18.80 | 22.75 | |
O-ring | ||||
22 | 143193920 | 5.87 | 7.10 | |
Borgveer-ring | ||||
23 | 141181840 | 1.55 | 1.88 | |
Profiel-plunjer-ring | ||||
24 | 344093140 | 4.51 | 5.46 | |
Plunjer compl. | ||||
25 | 316048010 | 12.23 | 14.80 | |
Opwekhuls | ||||
26 | 316050650 | 24.23 | 29.32 | |
Borgring | ||||
27 | 342022350 | 1.55 | 1.88 | |
Tandwielflens compl. | ||||
28 | 316053470 | 32.27 | 39.05 | |
Afdichtvilt | ||||
29 | 344070670 | 1.55 | 1.88 | |
Rubber buffer | ||||
30 | 344095920 | 1.55 | 1.88 | |
Bolcilinderkop draadvorm | ||||
31 | 141119440 | 1.55 | 1.88 | |
Draaiveer | ||||
32 | 342022250 | 1.55 | 1.88 | |
Ring | ||||
33 | 339007400 | 1.55 | 1.88 | |
Kogel | ||||
34 | 143115330 | 1.55 | 1.88 | |
Dieptegeleider | ||||
35 | 341511630 | 4.51 | 5.46 | |
Handgreep compl. | ||||
36 | 314000840 | 8.89 | 10.76 | |
Schakelknop compl. | ||||
37 | 316052990 | 4.51 | 5.46 | |
Vulling | ||||
38 | 343398340 | 1.55 | 1.88 | |
Kogellager, 8X 22X 7 | ||||
39 | 143115890 | 4.51 | 5.46 | |
Anker compl.,230V | ||||
40 | 310012200 | 37.65 | 45.56 | |
Ring | ||||
41 | 141153400 | 1.67 | 2.02 | |
Schijf axiaal | ||||
42 | 143115300 | 1.55 | 1.88 | |
Naaldlager axiaal | ||||
43 | 143115310 | 3.02 | 3.65 | |
Schotelveer | ||||
44 | 141154920 | 1.67 | 2.02 | |
Tandwielas compl. | ||||
45 | 316045740 | 60.59 | 73.31 | |
Schakel-element compl. | ||||
46 | 316045610 | 7.22 | 8.74 | |
Centrifugeerschijf | ||||
47 | 343398310 | 1.55 | 1.88 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
48 | 143112230 | |||
O-ring | ||||
49 | 143195230 | 1.55 | 1.88 | |
Flens | ||||
50 | 343398300 | 3.02 | 3.65 | |
Schroef | ||||
51 | 341722860 | 1.55 | 1.88 | |
Veldpakket compl.,230V | ||||
52 | 311012630 | 26.95 | 32.61 | |
Motorhuis | ||||
53 | 343398290 | 11.74 | 14.21 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
54 | 399999990 | |||
Typeplaatje | ||||
55 | 338053090 | 1.55 | 1.88 | |
Koolborstelset,230 V | ||||
56 | 316046950 | 12.23 | 14.80 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
57 | 316049160 | |||
Elektro.schakelaar zonder stelwiel,230V | ||||
58 | 343411660 | 16.25 | 19.66 | |
Schroef | ||||
59 | 141116020 | 1.67 | 2.02 | |
Kabelklem | ||||
60 | 343362490 | 1.67 | 2.02 | |
Schroef | ||||
61 | 141116990 | 1.67 | 2.02 | |
Pistolgreep 2-delig | ||||
62 | 343398280 | 11.74 | 14.21 | |
Kabelbescherming | ||||
63 | 344101140 | 2.28 | 2.76 | |
Kabel m. CEE-stekker | ||||
64 | 344489060 | 18.80 | 22.75 | |
Onderhoudset | ||||
65 | 316045760 | 74.13 | 89.70 | |
Veiligheidskoppeling | ||||
66 | 316045700 | 32.27 | 39.05 | |
Tube vet 50 gr. SF 126 | ||||
880 | 344130800 | 18.80 | 22.75 | |
Tube vet 50 gr. SF 011 1,8oz | ||||
890 | 344130560 | 32.27 | 39.05 | |
Geen informatie beschikbaar, niet bestelbaar | ||||
1001 | 338505160 |
