Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000359601 ( 5378 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

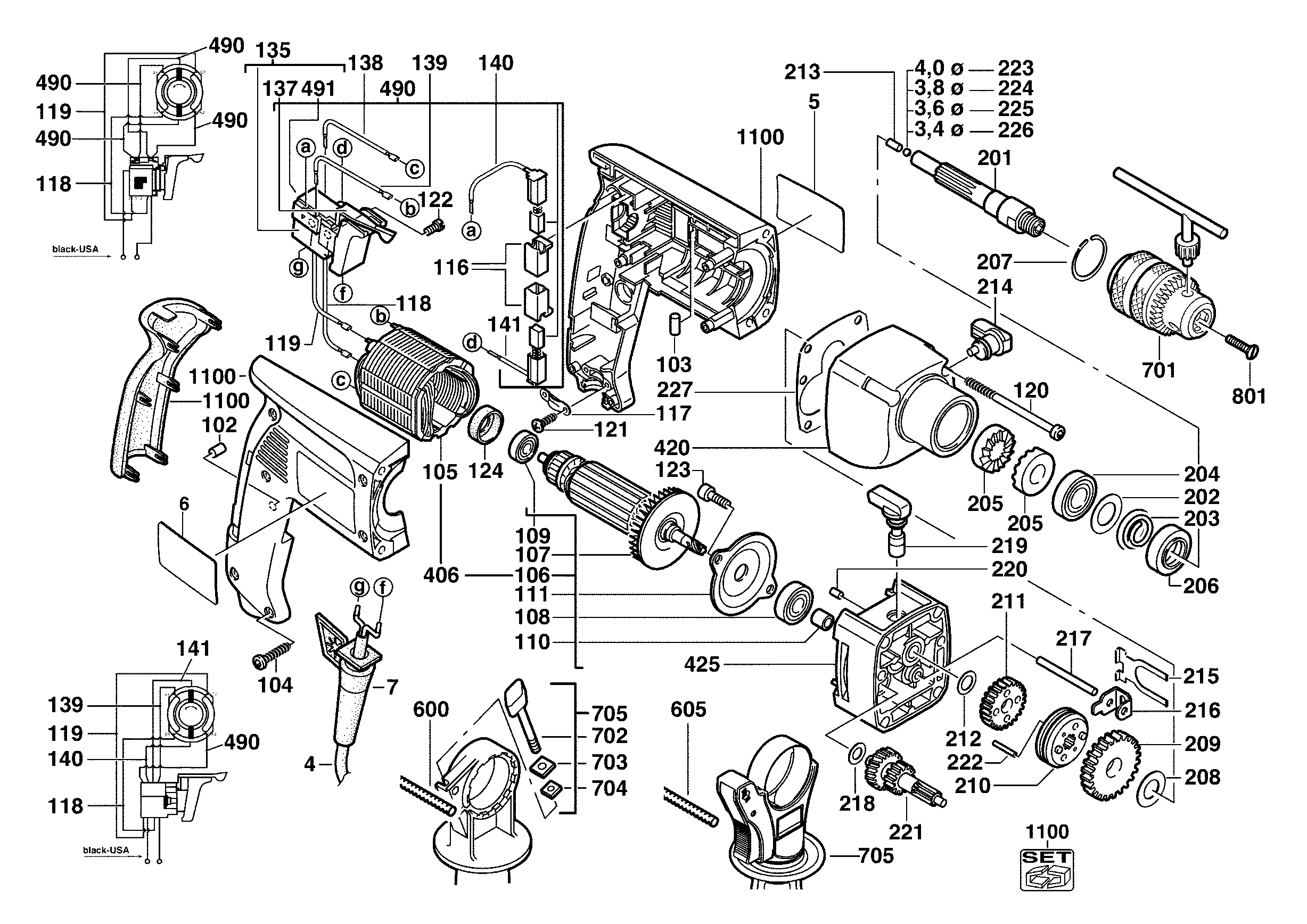

Tekeningen van de Milwaukee 4000359601 ( 5378 )
Onderdelen lijst van de Milwaukee 4000359601 ( 5378 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624032 | 12.60 | 15.25 | |
| CABLE ENTRY SLEEVE | ||||
| 0007 | 4931359575 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0102 | 4931409768 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0103 | 4931307423 | 5.40 | 6.53 | |
| SCREW N874101-1 SHR H-K4X18 T15 | ||||
| 0104 | 4931624515 | 1.80 | 2.18 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426188 | 23.76 | 28.75 | |
| ARMATURE | ||||
| 0106 | 4931344946 | 52.27 | 63.25 | |
| FAN | ||||
| 0107 | 4931302487 | 4.49 | 5.43 | |
| GROOVED BALL BEAR, | ||||
| 0108 | 4931368037 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0109 | 4931901253 | 9.00 | 10.89 | |
| BUSHING | ||||
| 0110 | 4931343243 | 4.49 | 5.43 | |
| BEARING COVER | ||||
| 0111 | 4931267585 | 4.49 | 5.43 | |
| BRUSH HOLDER | ||||
| 0116 | 4931315039 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0117 | 4931256500 | 5.40 | 6.53 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0118 | 4931623180 | |||
| WIRE | ||||
| 0119 | 4931623181 | 4.49 | 5.43 | |
| SCREW | ||||
| 0120 | 4931339996 | 1.80 | 2.18 | |
| SCREW | ||||
| 0121 | 4931624516 | 1.80 | 2.18 | |
| SCREW | ||||
| 0122 | 4931621772 | 1.80 | 2.18 | |
| SCREW | ||||
| 0123 | 4931612817 | 1.80 | 2.18 | |
| RUBBER SLEEVE | ||||
| 0124 | 4931301483 | 1.80 | 2.18 | |
| SWITCH BOARD | ||||
| 0135 | 4931372753 | 20.59 | 24.91 | |
| DRILL SPINDLE | ||||
| 0201 | 4931409811 | 12.60 | 15.25 | |
| DISC | ||||
| 0202 | 4931621809 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0203 | 4931267406 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0204 | 4931891058 | 9.00 | 10.89 | |
| PERCUSSION SLEEVE | ||||
| 0205 | 4931267571 | 3.60 | 4.36 | |
| SEAL RING | ||||
| 0206 | 4931267522 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0207 | 4931890311 | 5.40 | 6.53 | |
| DISC | ||||
| 0208 | 4931621647 | 1.80 | 2.18 | |
| DRILL SPINDLE WHEEL | ||||
| 0209 | 4931426230 | 9.00 | 10.89 | |
| SHIFT RING COMPL, | ||||
| 0210 | 4931307130 | 15.84 | 19.17 | |
| DRILL SPINDLE WHEEL | ||||
| 0211 | 4931426231 | 9.00 | 10.89 | |
| DISC | ||||
| 0212 | 4931621679 | 5.40 | 6.53 | |
| PIN | ||||
| 0213 | 4931805526 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0214 | 4931339525 | 5.40 | 6.53 | |
| RETAINING SPRING | ||||
| 0215 | 4931307118 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0216 | 4931267576 | 5.40 | 6.53 | |
| PIN | ||||
| 0217 | 4931621731 | 5.40 | 6.53 | |
| DISC | ||||
| 0218 | 4931621715 | 5.40 | 6.53 | |
| SWITCH LEVER | ||||
| 0219 | 4931339526 | 5.40 | 6.53 | |
| PIN | ||||
| 0220 | 4931621770 | 5.40 | 6.53 | |
| REDUCTION GEAR | ||||
| 0221 | 4931267582 | 39.60 | 47.92 | |
| PIN | ||||
| 0222 | 4931621732 | 5.40 | 6.53 | |
| Ball | ||||
| 0223 | 4931805390 | 1.80 | 2.18 | |
| BALL | ||||
| 0224 | 4931621735 | 1.80 | 2.18 | |
| BALL | ||||
| 0225 | 4931621736 | 1.80 | 2.18 | |
| BALL | ||||
| 0226 | 4931621737 | 1.80 | 2.18 | |
| GASKET | ||||
| 0227 | 4931267583 | 4.49 | 5.43 | |
| SWITCH BOARD | ||||
| 0491 | 4931372753 | 20.59 | 24.91 | |
| DEPTH GAUGE | ||||
| 0600 | 4931384434 | 5.40 | 6.53 | |
| Tandkransboorhouder 1,5 - 13 mm, 1/2 x 20 | ||||
| 0701 | 4932267980 | 22.77 | 27.55 | |
| SCREW | ||||
| 0702 | 4931254533 | 1.80 | 2.18 | |
| CLAMPING PLATE | ||||
| 0703 | 4931271221 | 4.49 | 5.43 | |
| NUT D 562 M 6 | ||||
| 0704 | 4931614025 | 4.49 | 5.43 | |
| Zijhandgreep | ||||
| 0705 | 4932373725 | 17.60 | 21.30 | |
| Locking Screw | ||||
| 0801 | 4931401643 | 1.80 | 2.18 | |
| HOUSING | ||||
| 1100 | 4931359606 | 25.34 | 30.66 | |
