Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000398260 ( 545S )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

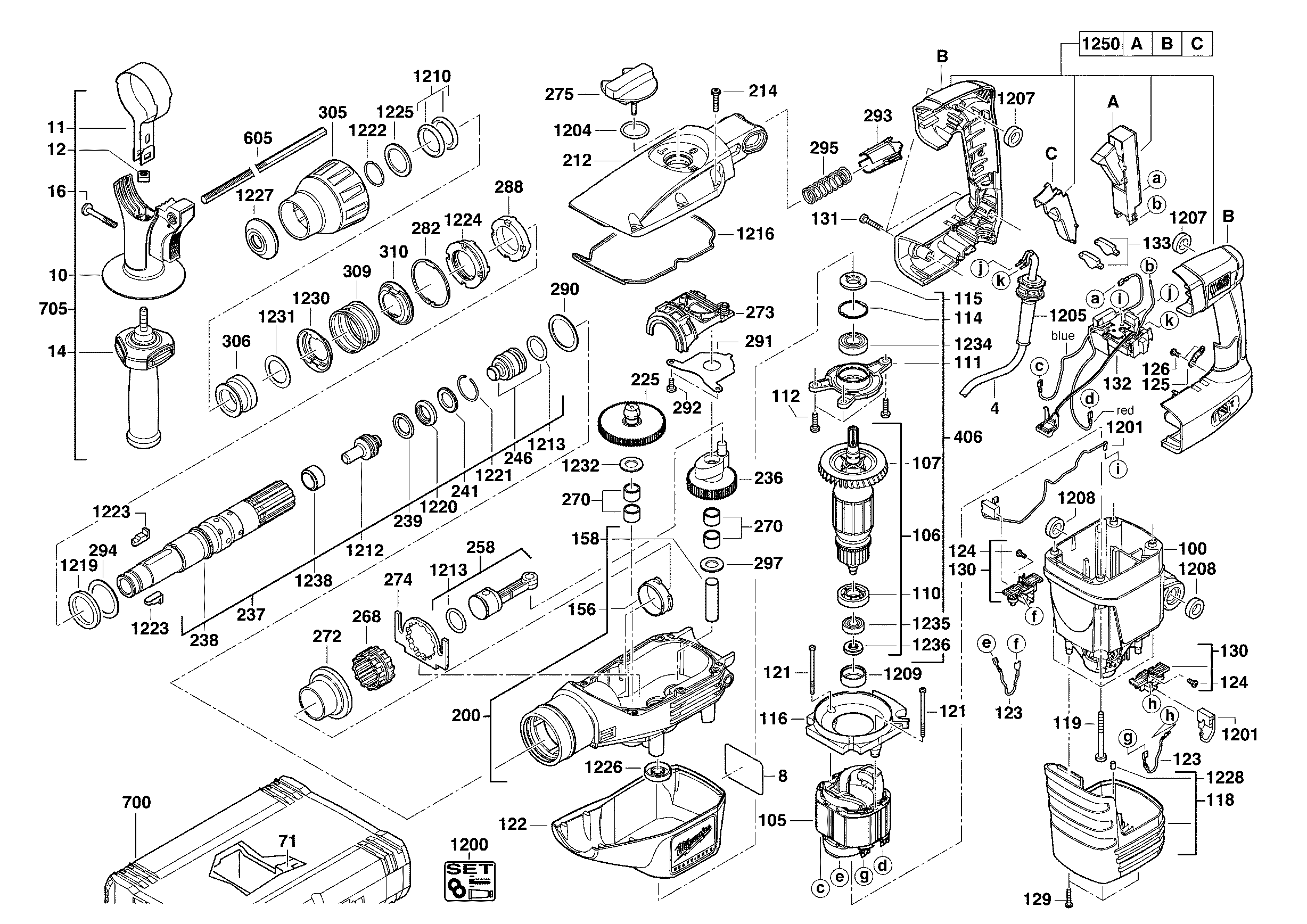

Tekeningen van de Milwaukee 4000398260 ( 545S )
Onderdelen lijst van de Milwaukee 4000398260 ( 545S )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931624585 | 17.42 | 21.08 | |
| RATING PLATE | ||||
| 0008 | 4931398264 | 1.80 | 2.18 | |
| WORK STAND | ||||
| 0010 | 4931412344 | 12.60 | 15.25 | |
| BAND | ||||
| 0011 | 4931398263 | 5.40 | 6.53 | |
| NUT | ||||
| 0012 | 4931398267 | 5.40 | 6.53 | |
| HANDLE | ||||
| 0014 | 4931398253 | 31.68 | 38.33 | |
| SCREW N874101-1 SHR C-K5X45/20 KOMBITORX | ||||
| 0016 | 4931622765 | 1.80 | 2.18 | |
| INSERT | ||||
| 0071 | 4931398276 | 26.93 | 32.59 | |
| MOTOR HOUSING | ||||
| 0100 | 4931398203 | 17.42 | 21.08 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931442747 | 50.69 | 61.33 | |
| Armature | ||||
| 0106 | 4931442685 | 95.04 | 115.00 | |
| FAN | ||||
| 0107 | 4931398185 | 4.49 | 5.43 | |
| Dust Seal | ||||
| 0110 | 4931398508 | 5.40 | 6.53 | |
| BEARING END PLATE | ||||
| 0111 | 4931426441 | 17.05 | 20.63 | |
| SCREW | ||||
| 0112 | 4931624541 | 1.80 | 2.18 | |
| LOCKING RING | ||||
| 0114 | 4931890311 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0115 | 4931398198 | 9.91 | 11.99 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931405703 | 5.40 | 6.53 | |
| MOTOR CAP | ||||
| 0118 | 4931398204 | 14.40 | 17.42 | |
| SCREW D7500-1CE M6x60 T30 TAPT 2000 A2F | ||||
| 0119 | 4931624542 | 1.80 | 2.18 | |
| SCREW | ||||
| 0121 | 4931339996 | 1.80 | 2.18 | |
| GEAR BOX INSULATION | ||||
| 0122 | 4931398336 | 16.20 | 19.60 | |
| WIRE | ||||
| 0123 | 4931624263 | 5.40 | 6.53 | |
| SCREW | ||||
| 0124 | 4931624538 | 1.80 | 2.18 | |
| CABLE COLLAR | ||||
| 0125 | 4931256500 | 5.40 | 6.53 | |
| Screw N874101-1 Shr H-k4x22 T15 | ||||
| 0129 | 4931624517 | 1.80 | 2.18 | |
| BRUSH HOLDER | ||||
| 0130 | 4931381694 | 5.40 | 6.53 | |
| Screw | ||||
| 0131 | 4931624504 | 1.80 | 2.18 | |
| Elect.circuit Board | ||||
| 0132 | 4931409100 | 39.60 | 47.92 | |
| LIGHT PIPE | ||||
| 0133 | 4931398114 | 5.40 | 6.53 | |
| BEARING | ||||
| 0156 | 4931398095 | 9.00 | 10.89 | |
| BEARING BOLT | ||||
| 0158 | 4931398746 | 8.09 | 9.79 | |
| GEAR BOX | ||||
| 0200 | 4931409529 | 133.06 | 161.00 | |
| GEAR BOX COVER | ||||
| 0212 | 4931426454 | 44.35 | 53.66 | |
| SCREW | ||||
| 0214 | 4931624555 | 1.80 | 2.18 | |
| REPAIR KIT | ||||
| 0225 | 4931432433 | 147.31 | 178.25 | |
| Crank Wheel | ||||
| 0236 | 4931409600 | 33.26 | 40.24 | |
| SPINDLE | ||||
| 0237 | 4931398026 | 210.67 | 254.91 | |
| SPINDLE SLEEVE | ||||
| 0238 | 4931417457 | 115.63 | 139.91 | |
| BACK-PRESSURE RING | ||||
| 0239 | 4931398031 | 5.40 | 6.53 | |
| DISC | ||||
| 0241 | 4931398032 | 9.00 | 10.89 | |
| PERC, BODY W SEAL | ||||
| 0246 | 4931455433 | 34.85 | 42.17 | |
| Piston Compl. | ||||
| 0258 | 4931398747 | 12.60 | 15.25 | |
| SET COLLAR | ||||
| 0268 | 4931398078 | 5.40 | 6.53 | |
| Needle Bearing | ||||
| 0270 | 4931621847 | 9.00 | 10.89 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0272 | 4931398745 | |||
| ADJUSTING PIECE | ||||
| 0273 | 4931398154 | 5.40 | 6.53 | |
| LOCKING PLATE | ||||
| 0274 | 4931398075 | 5.40 | 6.53 | |
| SWITCH | ||||
| 0275 | 4931398626 | 10.80 | 13.07 | |
| Ring | ||||
| 0282 | 4931624479 | 5.40 | 6.53 | |
| THRUST COLLAR | ||||
| 0288 | 4931398091 | 5.40 | 6.53 | |
| Disc | ||||
| 0290 | 4931624499 | 5.40 | 6.53 | |
| LATCH PLATE | ||||
| 0291 | 4931398658 | 5.40 | 6.53 | |
| SCREW | ||||
| 0292 | 4931624236 | 1.80 | 2.18 | |
| THRUST PIECE | ||||
| 0293 | 4931398097 | 4.49 | 5.43 | |
| PRESSURE SPRING | ||||
| 0295 | 4931398099 | 4.49 | 5.43 | |
| DISC | ||||
| 0297 | 4931624535 | 5.40 | 6.53 | |
| SLEEVE | ||||
| 0305 | 4931398216 | 9.00 | 10.89 | |
| Locking Lever | ||||
| 0306 | 4931426248 | 5.40 | 6.53 | |
| Pressure Spring | ||||
| 0309 | 4931398856 | 5.40 | 6.53 | |
| Reparatieset | ||||
| 0310 | 4931426013 | 12.60 | 15.25 | |
| Armature Assembly | ||||
| 0406 | 4931449971 | 139.39 | 168.66 | |
| DEPTH GAUGE | ||||
| 0605 | 4931398266 | 4.49 | 5.43 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 0700 | 4931409602 | |||
| HANDLE | ||||
| 0705 | 4931398228 | 68.11 | 82.41 | |
| MAINTENANCE SET | ||||
| 1200 | 4931398232 | 198.00 | 239.58 | |
| CARBON BRUSH SET | ||||
| 1201 | 4931398132 | 15.84 | 19.17 | |
| O-RING N874701 26X3 | ||||
| 1204 | 4931622166 | 1.80 | 2.18 | |
| PROTECTING COVER | ||||
| 1205 | 4931393422 | 5.40 | 6.53 | |
| DAMPING ELEMENT | ||||
| 1207 | 4931398748 | 5.40 | 6.53 | |
| SEALING SLEEVE | ||||
| 1208 | 4931398101 | 5.40 | 6.53 | |
| Rubber Sleeve | ||||
| 1209 | 4931398085 | 3.60 | 4.36 | |
| Seal Ring | ||||
| 1210 | 4931624440 | 5.40 | 6.53 | |
| SNAP DIE | ||||
| 1212 | 4931398578 | 33.26 | 40.24 | |
| O-ring (fkm) | ||||
| 1213 | 4931398297 | 1.80 | 2.18 | |
| SEAL | ||||
| 1216 | 4931398539 | 5.40 | 6.53 | |
| DAMPING ELEMENT | ||||
| 1219 | 4931398105 | 5.40 | 6.53 | |
| Core Lifter Ring | ||||
| 1220 | 4931398033 | 5.40 | 6.53 | |
| RING | ||||
| 1221 | 4931398073 | 5.40 | 6.53 | |
| Spring Ring | ||||
| 1222 | 9170319040 | 1.80 | 2.18 | |
| Niet meer leverbaar, geen vervanging | ||||
| 1223 | 4931398068 | |||
| SEAL RETAINER | ||||
| 1224 | 4931398034 | 16.20 | 19.60 | |
| Interlock Disc | ||||
| 1225 | 4931398080 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 1226 | 4931624495 | 5.40 | 6.53 | |
| Rubber Cap | ||||
| 1227 | 4931398064 | 6.31 | 7.64 | |
| HOLDING-DOWN DEVICE | ||||
| 1228 | 4931409768 | 5.40 | 6.53 | |
| Reparatieset | ||||
| 1230 | 4931426013 | 12.60 | 15.25 | |
| Washer | ||||
| 1231 | 4931398298 | 1.80 | 2.18 | |
| WASHER | ||||
| 1232 | 4931624586 | 1.80 | 2.18 | |
| Grooved Ball Bear. | ||||
| 1234 | 4931398189 | 5.40 | 6.53 | |
| Ball Bearing | ||||
| 1235 | 4931341741 | 9.00 | 10.89 | |
| Magnetic Disc | ||||
| 1236 | 4931426570 | 5.40 | 6.53 | |
| Stop Washer | ||||
| 1238 | 4931409781 | 17.11 | 20.70 | |
| Geen informatie beschikbaar, niet bestelbaar | ||||
| 1250 | 4931398592 | |||
