Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000383701 ( AG10-125 )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

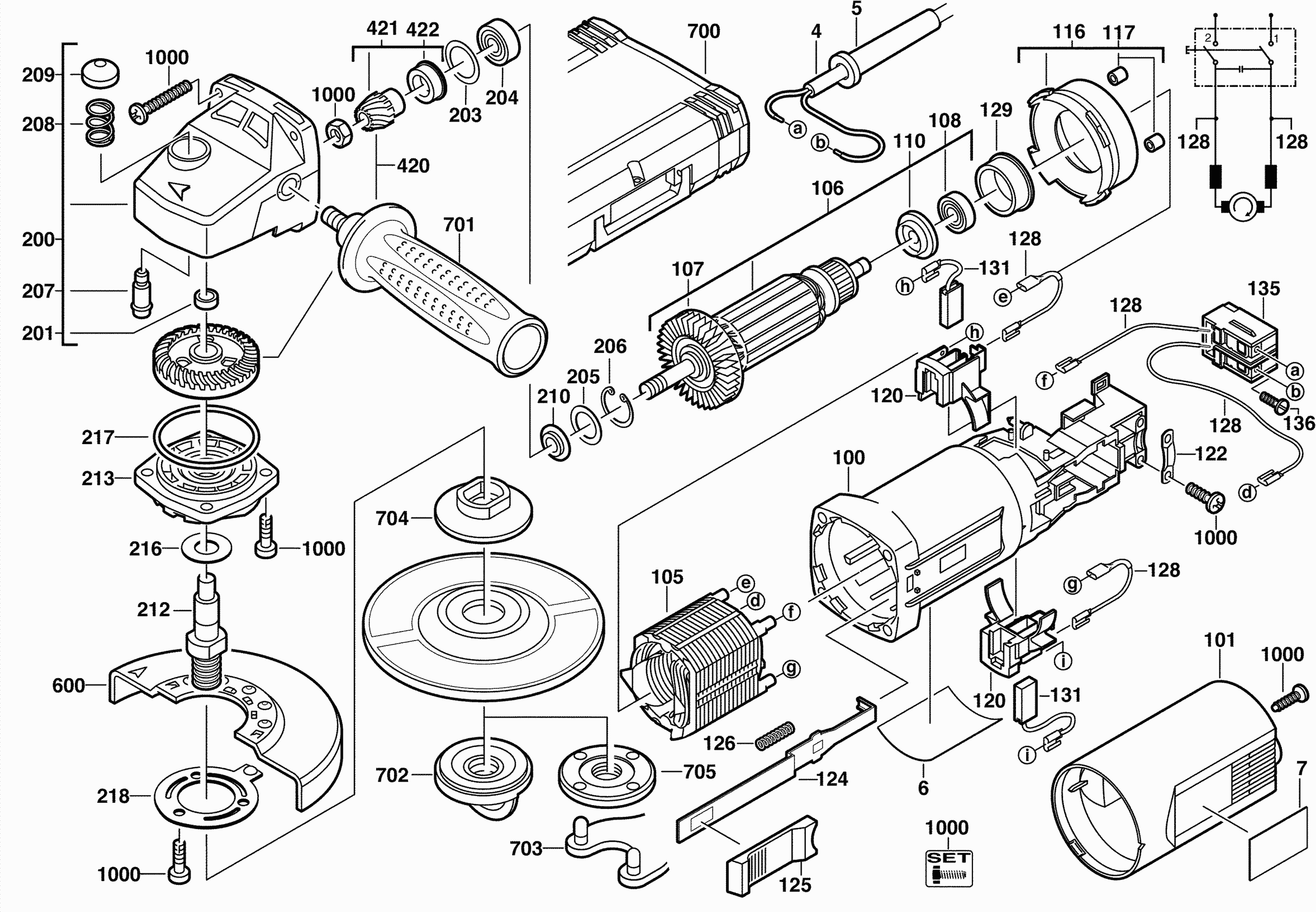

Tekeningen van de Milwaukee 4000383701 ( AG10-125 )
Onderdelen lijst van de Milwaukee 4000383701 ( AG10-125 )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931623831 | 28.51 | 34.50 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931206687 | 5.40 | 6.53 | |
| NAME PLATE | ||||
| 0007 | 4931382311 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0100 | 4931383013 | 12.60 | 15.25 | |
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ARMATURE | ||||
| 0106 | 4931426514 | 66.53 | 80.50 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931901253 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| AIR DEFLECTOR RING | ||||
| 0116 | 4931326933 | 4.49 | 5.43 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER | ||||
| 0120 | 4931326923 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| Guide Piece | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| Slider | ||||
| 0125 | 4931442821 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| Carbon Brush Set | ||||
| 0131 | 4931392592 | 15.84 | 19.17 | |
| SWITCH | ||||
| 0135 | 4931326976 | 14.40 | 17.42 | |
| SCREW D 85 AM 3,5X5 | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| WASHER | ||||
| 0203 | 4931362085 | 1.80 | 2.18 | |
| GROOVED BALL BEAR, | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| WASHER | ||||
| 0210 | 4931624287 | 1.80 | 2.18 | |
| Spindle | ||||
| 0212 | 4931409808 | 9.00 | 10.89 | |
| BEARING END PLATE | ||||
| 0213 | 4931378310 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931623480 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0217 | 4931623590 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0218 | 4931345965 | 1.80 | 2.18 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931369937 | 26.93 | 32.59 | |
| BEVEL GEAR PAIR | ||||
| 0421 | 4931369937 | 26.93 | 32.59 | |
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| GUARD CAP | ||||
| 0600 | 4931407642 | 9.00 | 10.89 | |
| Handle | ||||
| 0701 | 4932409546 | 12.10 | 14.64 | |
| Opspansleutel, recht | ||||
| 0703 | 4932367712 | 8.16 | 9.87 | |
| Spanflens | ||||
| 0704 | 4932449324 | 8.28 | 10.02 | |
| Spanmoer M14, 3 mm tbv slijpmachines | ||||
| 0705 | 4932345628 | 9.84 | 11.91 | |
| BOLT SET | ||||
| 1000 | 4931362838 | 14.40 | 17.42 | |
