Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000383726 ( AG15-125XC )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

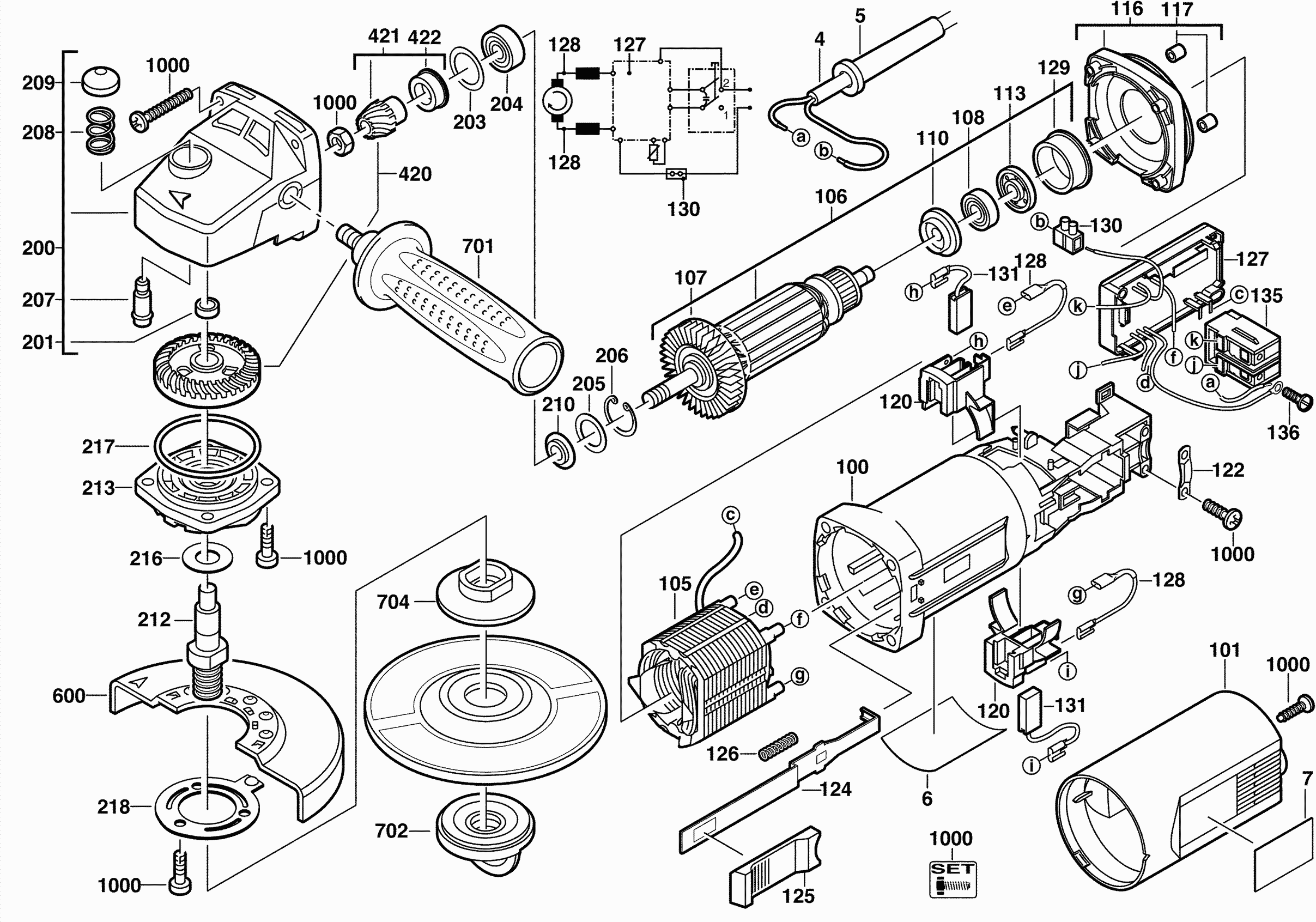

Tekeningen van de Milwaukee 4000383726 ( AG15-125XC )
Onderdelen lijst van de Milwaukee 4000383726 ( AG15-125XC )
| Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
| Getoonde prijzen zijn inclusief btw | ||||
| CONNECTION CABLE | ||||
| 0004 | 4931623861 | 12.60 | 15.25 | |
| CABLE ENTRY SLEEVE | ||||
| 0005 | 4931218785 | 5.40 | 6.53 | |
| NAME PLATE | ||||
| 0007 | 4931382311 | 1.80 | 2.18 | |
| MOTOR HOUSING | ||||
| 0100 | 4931383013 | 12.60 | 15.25 | |
| HOUSING CAP | ||||
| 0101 | 4931407395 | 6.31 | 7.64 | |
| ELECTRIC FIELD | ||||
| 0105 | 4931426582 | 29.70 | 35.94 | |
| ARMATURE | ||||
| 0106 | 4931442662 | 79.20 | 95.83 | |
| FAN | ||||
| 0107 | 4931341088 | 5.40 | 6.53 | |
| BALL BEARING | ||||
| 0108 | 4931901253 | 9.00 | 10.89 | |
| INSULATING DISC | ||||
| 0110 | 4931271823 | 5.40 | 6.53 | |
| Magnetic Disc | ||||
| 0113 | 4931426570 | 5.40 | 6.53 | |
| INTERMEDIATE FLANGE | ||||
| 0116 | 4931369787 | 5.40 | 6.53 | |
| HOLDING-DOWN DEVICE | ||||
| 0117 | 4931409768 | 5.40 | 6.53 | |
| BRUSH HOLDER | ||||
| 0120 | 4931326923 | 5.40 | 6.53 | |
| CABLE COLLAR | ||||
| 0122 | 4931256500 | 5.40 | 6.53 | |
| Guide Piece | ||||
| 0124 | 4931326959 | 5.40 | 6.53 | |
| Slider | ||||
| 0125 | 4931442821 | 3.60 | 4.36 | |
| PRESSURE SPRING | ||||
| 0126 | 4931326981 | 5.40 | 6.53 | |
| ELECTRONIC ELEMENT | ||||
| 0127 | 4931455148 | 80.78 | 97.74 | |
| WIRE | ||||
| 0128 | 4931623738 | 4.49 | 5.43 | |
| BEARING SLEEVE | ||||
| 0129 | 4931326953 | 5.40 | 6.53 | |
| TERMINAL STRIP | ||||
| 0130 | 4931341008 | 5.40 | 6.53 | |
| CARBON BRUSH SET | ||||
| 0131 | 4931369477 | 14.40 | 17.42 | |
| SWITCH | ||||
| 0135 | 4931326976 | 14.40 | 17.42 | |
| SCREW D 85 AM 3,5X5 | ||||
| 0136 | 4931617313 | 1.80 | 2.18 | |
| GEAR BOX | ||||
| 0200 | 4931412193 | 49.10 | 59.41 | |
| SLEEVE N874989 HKO 0810 | ||||
| 0201 | 4931912093 | 5.40 | 6.53 | |
| WASHER | ||||
| 0203 | 4931362085 | 1.80 | 2.18 | |
| GROOVED BALL BEAR, | ||||
| 0204 | 4931368037 | 5.40 | 6.53 | |
| DISC | ||||
| 0205 | 4931622761 | 5.40 | 6.53 | |
| LOCKING RING | ||||
| 0206 | 4931616614 | 5.40 | 6.53 | |
| LOCKING BOLT | ||||
| 0207 | 4931326929 | 5.40 | 6.53 | |
| PRESSURE SPRING | ||||
| 0208 | 4931326942 | 5.40 | 6.53 | |
| PUSH-BUTTON | ||||
| 0209 | 4931326930 | 5.40 | 6.53 | |
| Spindle | ||||
| 0212 | 4931409808 | 9.00 | 10.89 | |
| BEARING END PLATE | ||||
| 0213 | 4931378310 | 9.00 | 10.89 | |
| DISC | ||||
| 0216 | 4931623480 | 5.40 | 6.53 | |
| SEAL RING | ||||
| 0217 | 4931623590 | 5.40 | 6.53 | |
| SPRING WASHER | ||||
| 0218 | 4931345965 | 1.80 | 2.18 | |
| BEVEL GEAR PAIR | ||||
| 0420 | 4931369937 | 26.93 | 32.59 | |
| BEVEL GEAR PAIR | ||||
| 0421 | 4931369937 | 26.93 | 32.59 | |
| SEAL RING | ||||
| 0422 | 4931369774 | 5.40 | 6.53 | |
| GUARD CAP | ||||
| 0600 | 4931407642 | 9.00 | 10.89 | |
| Handle | ||||
| 0701 | 4932409546 | 12.10 | 14.64 | |
| Fixtec Nut M14 P1a | ||||
| 0702 | 4932358225 | 34.03 | 41.18 | |
| Spanflens | ||||
| 0704 | 4932449324 | 8.28 | 10.02 | |
| BOLT SET | ||||
| 1000 | 4931362846 | 14.40 | 17.42 | |
