Hier vindt u alle beschikbare onderdelen en tekeningen van de 'Milwaukee 4000380483 ( B2E16RLD )'. Vanaf hier kunt u direct alle gewenste onderdelen bestellen. Vele onderdelen moeten bij de fabrikant besteld worden, dit duurt afhankelijk van het merk, één tot vier weken. Alle informatie die we hebben, staat op onze website, wij kunnen u geen advies geven over wat u nodig heeft, daarvoor zult u de machine ter reparatie in moeten leveren. Let bij het bestellen op het volgende:

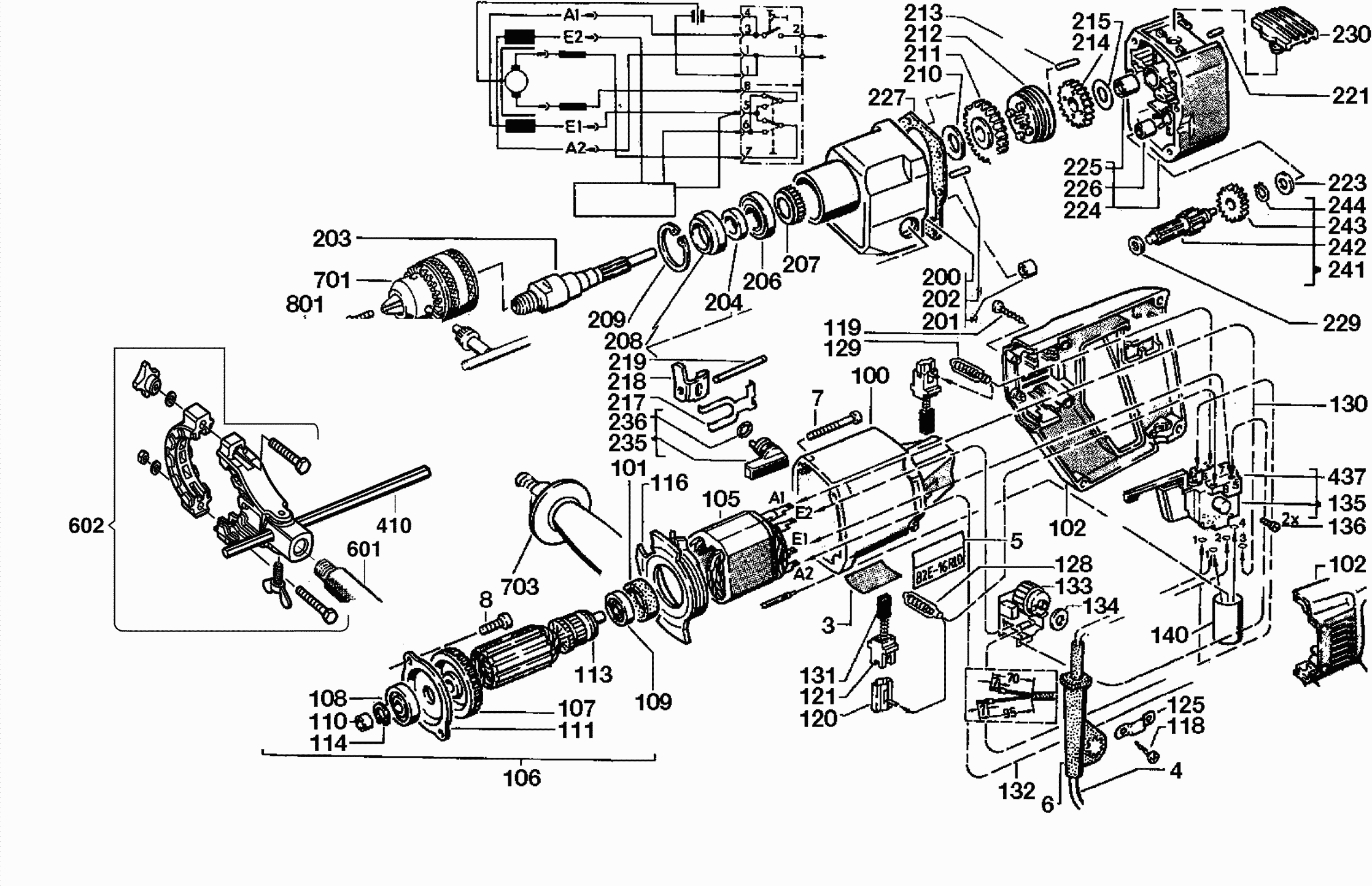

Tekeningen van de Milwaukee 4000380483 ( B2E16RLD )
Onderdelen lijst van de Milwaukee 4000380483 ( B2E16RLD )
Pos. | Omschrijving | Prijs excl. BTW | Prijs incl. BTW | |
Getoonde prijzen zijn inclusief btw | ||||
RATING PLATE | ||||
0003 | 4931380499 | 1.80 | 2.18 | |
CONNECTION CABLE | ||||
0004 | 4931622543 | 12.60 | 15.25 | |
NAME PLATE | ||||
0005 | 4931380498 | 1.80 | 2.18 | |
CABLE ENTRY SLEEVE | ||||
0006 | 4931359575 | 5.40 | 6.53 | |
SCREW D 912 M 4X60 | ||||
0007 | 4931606830 | 1.80 | 2.18 | |
SCREW | ||||
0008 | 4931612817 | 1.80 | 2.18 | |
HOUSING | ||||
0100 | 4931359587 | 19.01 | 23.00 | |
RUBBER SLEEVE | ||||
0101 | 4931301483 | 1.80 | 2.18 | |
HANDLE | ||||
0102 | 4931380490 | 15.29 | 18.50 | |
ELECTRIC FIELD | ||||
0105 | 4931426603 | 27.50 | 33.28 | |
ARMATURE | ||||
0106 | 4931426512 | 42.00 | 50.82 | |
FAN | ||||
0107 | 4931271335 | 4.49 | 5.43 | |
GROOVED BALL BEAR, | ||||
0108 | 4931368037 | 5.40 | 6.53 | |
BALL BEARING | ||||
0109 | 4931901253 | 9.00 | 10.89 | |
BUSHING | ||||
0110 | 4931267417 | 5.40 | 6.53 | |
BEARING COVER | ||||
0111 | 4931267463 | 4.49 | 5.43 | |
INSULATING DISC | ||||
0113 | 4931271823 | 5.40 | 6.53 | |
RING D471 9X1 | ||||
0114 | 4931605115 | 4.49 | 5.43 | |
AIR DEFLECTOR RING | ||||
0116 | 4931271360 | 5.40 | 6.53 | |
SCREW | ||||
0118 | 4931624538 | 1.80 | 2.18 | |
SCREW | ||||
0119 | 4931618253 | 1.80 | 2.18 | |
BRUSH HOLDER | ||||
0120 | 4931317547 | 5.40 | 6.53 | |
BRUSH HOLDER INSUL | ||||
0121 | 4931317543 | 5.40 | 6.53 | |
CABLE COLLAR | ||||
0125 | 4931256500 | 5.40 | 6.53 | |
CHOKING COIL | ||||
0128 | 4931622654 | 5.40 | 6.53 | |
CHOKING COIL | ||||
0129 | 4931622655 | 5.40 | 6.53 | |
WIRE | ||||
0130 | 4931622244 | 5.40 | 6.53 | |
CARBON BRUSH SET | ||||
0131 | 4931392577 | 10.80 | 13.07 | |
WIRE | ||||
0132 | 4931622245 | 5.40 | 6.53 | |
PRINTED CIRCUIT | ||||
0133 | 4931395285 | 44.35 | 53.66 | |
RING | ||||
0134 | 4931271764 | 4.49 | 5.43 | |
SWITCH | ||||
0135 | 4931380488 | 19.01 | 23.00 | |
SCREW | ||||
0136 | 4931621772 | 1.80 | 2.18 | |
CAPACITOR | ||||
0140 | 4931622487 | 12.60 | 15.25 | |
GEAR BOX | ||||
0200 | 4931412489 | 31.68 | 38.33 | |
NEEDLE BEARING | ||||
0201 | 4931219424 | 3.60 | 4.36 | |
PIN | ||||
0202 | 4931615663 | 4.49 | 5.43 | |
DRILL SPINDLE | ||||
0203 | 4931320032 | 69.70 | 84.34 | |
SLEEVE | ||||
0204 | 4931267415 | 4.49 | 5.43 | |
BALL BEARING | ||||
0206 | 4931891058 | 9.00 | 10.89 | |
PERCUSSION SLEEVE | ||||
0207 | 4931267571 | 3.60 | 4.36 | |
SEAL RING | ||||
0208 | 4931267522 | 5.40 | 6.53 | |
LOCKING RING | ||||
0209 | 4931890311 | 5.40 | 6.53 | |
DISC | ||||
0210 | 4931943605 | 5.40 | 6.53 | |
DRILL SPINDLE WHEEL | ||||
0211 | 4931307985 | 26.93 | 32.59 | |
SHIFT RING COMPL, | ||||
0212 | 4931307130 | 15.84 | 19.17 | |
PIN | ||||
0213 | 4931621732 | 5.40 | 6.53 | |
DRILL SPINDLE WHEEL | ||||
0214 | 4931307988 | 20.59 | 24.91 | |
DISC N874237 8,1X16X0,5 | ||||
0215 | 4931901226 | 5.40 | 6.53 | |
RETAINING SPRING | ||||
0217 | 4931307118 | 5.40 | 6.53 | |
SWITCH LEVER | ||||
0218 | 4931309010 | 4.49 | 5.43 | |
PIN | ||||
0219 | 4931621731 | 5.40 | 6.53 | |
PIN | ||||
0221 | 4931621650 | 5.40 | 6.53 | |
DISC N874237 A6,8X19X1,5 | ||||
0223 | 4931621995 | 4.49 | 5.43 | |
BEARING END PLATE | ||||
0224 | 4931412603 | 31.68 | 38.33 | |
SLEEVE N874989 HKO 0810 | ||||
0225 | 4931912093 | 5.40 | 6.53 | |
NEEDLE BEARING | ||||
0226 | 4931219422 | 1.80 | 2.18 | |
GASKET | ||||
0227 | 4931307995 | 5.40 | 6.53 | |
DISC N874237 8,3X16,5X1 | ||||
0229 | 4931919962 | 5.40 | 6.53 | |
COVER | ||||
0230 | 4931309131 | 3.60 | 4.36 | |
SWITCH LEVER | ||||
0235 | 4931310479 | 5.40 | 6.53 | |
O-RING N874701 14X1 | ||||
0236 | 4931621782 | 1.80 | 2.18 | |
REDUCTION GEAR | ||||
0241 | 4931307989 | 58.61 | 70.92 | |
REDUCT, GEAR SHAFT | ||||
0242 | 4931307990 | 17.11 | 20.70 | |
REDUCTION GEAR | ||||
0243 | 4931307993 | 17.42 | 21.08 | |
RING D471 12X1 | ||||
0244 | 4931605142 | 5.40 | 6.53 | |
DEPTH GAUGE | ||||
0410 | 4931245452 | 17.11 | 20.70 | |
SWITCH LEVER | ||||
0437 | 4931353794 | 33.00 | 39.93 | |
EXTENSION | ||||
0601 | 4931220759 | 25.34 | 30.66 | |
CLAMPING RING | ||||
0602 | 4931407016 | 28.51 | 34.50 | |
Tandkransboorhouder 3 - 16 mm, M 18 x 2,5 | ||||
0701 | 4932320014 | 69.85 | 84.52 | |
Zijhandgreep tbv slijpmachines 180 - 230 mm | ||||
0703 | 4931433531 | 11.40 | 13.79 | |
Locking Screw | ||||
0801 | 4931401643 | 1.80 | 2.18 |
